EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg
ILLUST NO. 1 OF 3(9505-9910)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

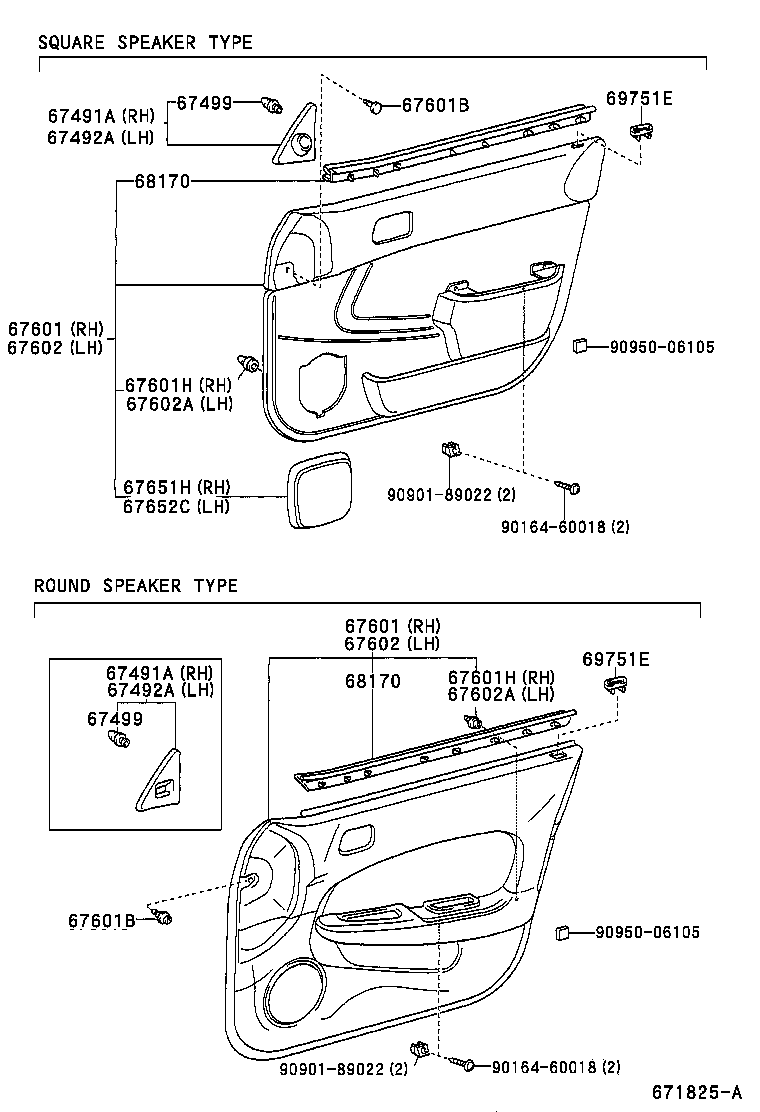

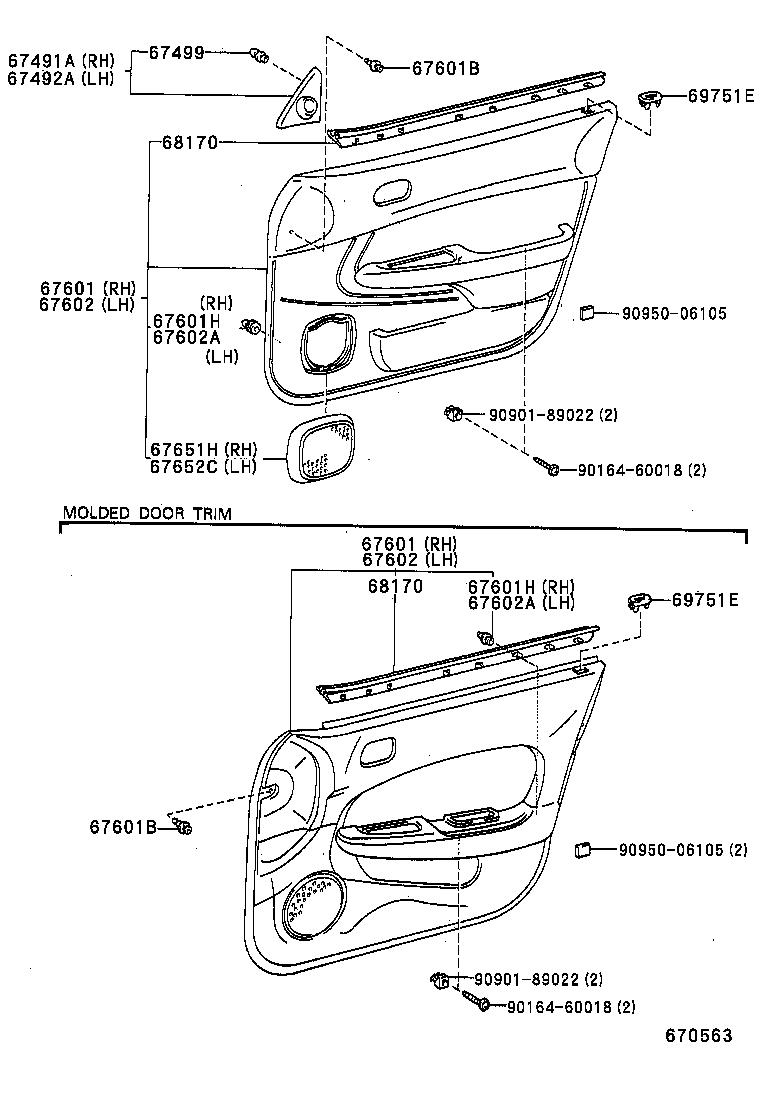

| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12400 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12430 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67491-12400 |
ZZE111;AE111..GCC,GEN;AE111..GLI..TUR;EE110..LHD..3FC;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12370 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 67491-12400 |
AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12430 |
AE110..TH;AE111,112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN) |
1 | ||
| 67491-12430 |
AE111..WG..5F;AE111..GLI..TH;AE112..LHD..XLI;CE110,EE110..STD,XL;AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,TUR,VEN) |
1 | ||
| 67491-12400 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL);AE110,112,CE110,EE110..(GL,GLI,XL)..(ARL,BZ,GCC,GEN,PHL,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12370 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 67492-12400 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12430 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67492-12400 |
ZZE111;AE111..GCC,GEN;AE111..GLI..TUR;EE110..LHD..3FC;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12430 |
AE110..TH;AE111,112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN) |
1 | ||
| 67492-12430 |
AE111..WG..5F;AE111..GLI..TH;AE112..LHD..XLI;CE110,EE110..STD,XL;AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,TUR,VEN) |
1 | ||
| 67492-12400 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL);AE110,112,CE110,EE110..(GL,GLI,XL)..(ARL,BZ,GCC,GEN,PHL,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12400 |
AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 67771-30070 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 67771-30070 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 67771-30070 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1H490B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E350B0 |
AE11#,EE11#..XL,XLI W(SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E610B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E620B0 |
AE110,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E760B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E770B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H780B0 |
AE111..LHD..SED..(XL,XLI)..GEN;AE112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H620B1 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67610-1K680B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67610-1K790B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67610-1K800B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67610-1K650B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67650-1H760B6 |
AE111..LHD..(XL,XLI)..GEN;CE110,EE11#..LHD..(STD,XL)..(GEN,VEN) MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K800B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-1K680B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K650B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K790B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67650-1H770K0 |
AE111,112,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67650-1H400B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67650-1H120B1 |
AE111..LHD..SED..(XL,XLI)..GEN;AE112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H620B1 |
AE111,EE110..LHD..(XL,XLI)..(GCC,GEN);AE112,CE110,EE111..LHD..(XL,XLI)..(GCC,GEN,TUR) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H780B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H770B0 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H760B2 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER),MD. GRAY,TRIM10,14 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1H490B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E350B0 |
AE11#,EE11#..XL,XLI W(SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E610B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E620B0 |
AE110,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E760B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E770B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H780B0 |
AE111..LHD..SED..(XL,XLI)..GEN;AE112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H620B1 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67610-1K680B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67610-1K790B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67610-1K800B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67610-1K650B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67650-1H760B6 |
AE111..LHD..(XL,XLI)..GEN;CE110,EE11#..LHD..(STD,XL)..(GEN,VEN) MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K800B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-1K680B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K650B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K790B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67650-1H770K0 |
AE111,112,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67650-1H400B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67650-1H120B1 |
AE111..LHD..SED..(XL,XLI)..GEN;AE112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H620B1 |
AE111,EE110..LHD..(XL,XLI)..(GCC,GEN);AE112,CE110,EE111..LHD..(XL,XLI)..(GCC,GEN,TUR) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H780B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H770B0 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H760B2 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER),MD. GRAY,TRIM10,14 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133B0 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 90467-06133B4 |
EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 90467-06133B4 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-06133C0 |
EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN BLACK,TRIM10,14 |
2 | ||
| 90467-06133C0 |
AE111..RHD..XL;EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..4FC..XLI..GEN MOLDED DOOR TRIM,BLACK,TRIM10,14 |
4 | ||
| 90467-06133C0 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN BLACK,TRIM1#,9# |
2 | ||
| 90467-06133B4 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
2 | ||
| 90467-06133C0 |
AE111..LHD..GLI..GEN;AE111..LHD..5F..XLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110,EE110..(GL,XL)..GEN MOLDED DOOR TRIM,BLACK,TRIM1#,9# |
4 | ||
| 90467-06133B4 |
AE111..5F..GLI..GEN;CE110,EE110..(GL,XL)..GEN;AE111..LHD..4FC..GLI..GEN;AE111..SED..(GL,XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM1#,9# |
4 | ||
| 90467-06133B4 |
AE111,CE110,EE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 90467-06133C0 |
AE111,CE110,EE110..SED..(XL,XLI)..GEN BLACK,TRIM10,14 |
2 | ||
| 90467-06133B4 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-06133C0 |
AE111..RHD..XL;AE111..LHD..SED..GEN;CE110,EE110..XL..GEN;AE111..RHD..4FC..XLI..GEN MOLDED DOOR TRIM,BLACK,TRIM10,14 |
4 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133B0 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 90467-06133B4 |
EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 90467-06133B4 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-06133C0 |
EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN BLACK,TRIM10,14 |
2 | ||
| 90467-06133C0 |
AE111..RHD..XL;EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..4FC..XLI..GEN MOLDED DOOR TRIM,BLACK,TRIM10,14 |
4 | ||
| 90467-06133C0 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN BLACK,TRIM1#,9# |
2 | ||
| 90467-06133B4 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
2 | ||
| 90467-06133C0 |
AE111..LHD..GLI..GEN;AE111..LHD..5F..XLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110,EE110..(GL,XL)..GEN MOLDED DOOR TRIM,BLACK,TRIM1#,9# |
4 | ||
| 90467-06133B4 |
AE111..5F..GLI..GEN;CE110,EE110..(GL,XL)..GEN;AE111..LHD..4FC..GLI..GEN;AE111..SED..(GL,XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM1#,9# |
4 | ||
| 90467-06133B4 |
AE111,CE110,EE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 90467-06133C0 |
AE111,CE110,EE110..SED..(XL,XLI)..GEN BLACK,TRIM10,14 |
2 | ||
| 90467-06133B4 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-06133C0 |
AE111..RHD..XL;AE111..LHD..SED..GEN;CE110,EE110..XL..GEN;AE111..RHD..4FC..XLI..GEN MOLDED DOOR TRIM,BLACK,TRIM10,14 |
4 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16170 |
AE111;AE110,EE11#..XL,XLI SABLE |
4 | ||
| 67771-12050 |
AE111;AE110,EE11#..XL,XLI RED |
12 | ||
| 67771-12050 |
AE111..RHD..WG;EE110..LHD..3FC;AE110..4FC..XLI..GEN;AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) RED |
6 | ||
| 67771-12050 |
EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN RED |
6 | ||
| 67771-12050 |
AE111..(GL,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..ARL,GCC,GEN,VEN;AE111,EE111..LHD..(GLI,STD)..(GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
EE110..LHD..3FC;CE110,EE110..MTM..(STD,XL)..(GCC,GEN) FABRIC TYPE-*104,SABLE |
7 | ||
| 67771-12050 |
CE110,EE111..STD,XL;AE111..LHD..GLI..(GEN,TUR);AE110,112,EE110..ARL,GCC,GEN;AE111..(GL,XL,XLI)..(GCC,GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
CE110,EE110..(STD,XL)..(GCC,GEN) FABRIC TYPE-*104,SABLE |
7 | ||
| 67771-12050 |
AE111,112;EE111..MA,TUR,VEN;AE110,CE110,EE110..GL,GLI,STD,XL RED |
6 | ||
| 67771-16170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) SABLE |
2 | ||
| 67771-12050 |
AE111..MA;AE112,EE110;AE111..GL,GLI,XL,XLI;AE110,EE111..MA,TH,TUR;AE110,CE110..(GLI,XL)..GEN RED |
6 | ||
| 67771-16170 |
AE111..WG..5F;CE110,EE110..STD,XL;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,VEN) SABLE |
2 | ||
| 67771-16170 |
AE112..GEN,NZ;CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE111,EE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) SABLE |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16170 |
AE111;AE110,EE11#..XL,XLI SABLE |
4 | ||
| 67771-12050 |
AE111;AE110,EE11#..XL,XLI RED |
12 | ||
| 67771-12050 |
AE111..RHD..WG;EE110..LHD..3FC;AE110..4FC..XLI..GEN;AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) RED |
6 | ||
| 67771-12050 |
EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN RED |
6 | ||
| 67771-12050 |
AE111..(GL,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..ARL,GCC,GEN,VEN;AE111,EE111..LHD..(GLI,STD)..(GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
EE110..LHD..3FC;CE110,EE110..MTM..(STD,XL)..(GCC,GEN) FABRIC TYPE-*104,SABLE |
7 | ||
| 67771-12050 |
CE110,EE111..STD,XL;AE111..LHD..GLI..(GEN,TUR);AE110,112,EE110..ARL,GCC,GEN;AE111..(GL,XL,XLI)..(GCC,GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
CE110,EE110..(STD,XL)..(GCC,GEN) FABRIC TYPE-*104,SABLE |
7 | ||
| 67771-12050 |
AE111,112;EE111..MA,TUR,VEN;AE110,CE110,EE110..GL,GLI,STD,XL RED |
6 | ||
| 67771-16170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) SABLE |
2 | ||
| 67771-12050 |
AE111..MA;AE112,EE110;AE111..GL,GLI,XL,XLI;AE110,EE111..MA,TH,TUR;AE110,CE110..(GLI,XL)..GEN RED |
6 | ||
| 67771-16170 |
AE111..WG..5F;CE110,EE110..STD,XL;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,VEN) SABLE |
2 | ||
| 67771-16170 |
AE112..GEN,NZ;CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE111,EE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) SABLE |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1L310B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K270B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K300B0 |
AE110,EE11#..XL,XLI LEATHER & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N240B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K730B0 |
AE11#,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L350B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12160B0 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#,9# |
1 | ||
| 67660-12430B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67050-12340K0 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12460B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67660-12560B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67660-12430B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67660-12560B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12570B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67660-12570B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12460B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12190B1 |
AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12170B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67050-12180B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67050-12160B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12340B0 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN LEATHER TYPE,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..(GEN,GENKD) W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1L310B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K270B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K300B0 |
AE110,EE11#..XL,XLI LEATHER & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N240B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K730B0 |
AE11#,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L350B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12160B0 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#,9# |
1 | ||
| 67660-12430B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67050-12340K0 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12460B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67660-12560B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67660-12430B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67660-12560B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12570B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67660-12570B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12460B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12190B1 |
AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12170B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67050-12180B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67050-12160B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12340B0 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN LEATHER TYPE,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..(GEN,GENKD) W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-16170 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-12050 |
AE112;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..4FC..XLI;AE112..XLI..GCC;AE111..4FC..GLI..TUR;AE111..GENKD,MA,PHL,TH;AE110,EE111..MA,TH,TUR;AE111,CE110,EE110..STD,XL;AE111..LHD..SED..5F..XLI..GEN;AE112..ARL,BZ,GEN,IDN,NZ,TH,VEN;AE111..5F..(ARL,GCC,NZ,TUR,VEN) RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..GCC;EE110..LHD..3FC;AE111..LHD..5F..XLI;AE111,EE111..STD,XL;AE112,CE110..ARL,GEN,VEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..4FC..XLI..(GCC,GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
AE112..GEN,NZ;CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE111,EE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) SABLE |
2 | ||
| 67771-12050 |
AE110,CE110,EE110..GL,GLI,XL;AE111,112..(GL,GLI,XL,XLI)..(GCC,GEN) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..5F..ARL;AE111..GLI..TUR;EE111..MA,TUR,VEN;AE111..GENKD,PHL,TH;AE111..LHD..5F..XLI;AE111..SED..4FC..XLI;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,CE110,EE110..SEG,STD,XL;AE112..(GLI,SEG)..(ARL,BZ,IDN,PHL,TH,VEN) RED |
6 | ||
| 67771-16170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) SABLE |
2 | ||
| 67771-16170 |
EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) SABLE |
2 | ||
| 67771-16170 |
AE111..WG..5F;CE110,EE110..STD,XL;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,VEN) SABLE |
2 | ||
| 67771-12050 |
AE111..RHD..WG;AE111..GLI..TUR;AE112..XLI..GCC;EE110..LHD..3FC;AE112..ARL,GEN,VEN;AE111..(SEG,XL)..GEN;AE111..LHD..SED..5F..XLI;AE111..SED..4FC..XLI..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) RED |
6 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-16170 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-12050 |
AE112;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..4FC..XLI;AE112..XLI..GCC;AE111..4FC..GLI..TUR;AE111..GENKD,MA,PHL,TH;AE110,EE111..MA,TH,TUR;AE111,CE110,EE110..STD,XL;AE111..LHD..SED..5F..XLI..GEN;AE112..ARL,BZ,GEN,IDN,NZ,TH,VEN;AE111..5F..(ARL,GCC,NZ,TUR,VEN) RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..GCC;EE110..LHD..3FC;AE111..LHD..5F..XLI;AE111,EE111..STD,XL;AE112,CE110..ARL,GEN,VEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..4FC..XLI..(GCC,GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
AE112..GEN,NZ;CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE111,EE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) SABLE |
2 | ||
| 67771-12050 |
AE110,CE110,EE110..GL,GLI,XL;AE111,112..(GL,GLI,XL,XLI)..(GCC,GEN) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..5F..ARL;AE111..GLI..TUR;EE111..MA,TUR,VEN;AE111..GENKD,PHL,TH;AE111..LHD..5F..XLI;AE111..SED..4FC..XLI;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,CE110,EE110..SEG,STD,XL;AE112..(GLI,SEG)..(ARL,BZ,IDN,PHL,TH,VEN) RED |
6 | ||
| 67771-16170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) SABLE |
2 | ||
| 67771-16170 |
EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) SABLE |
2 | ||
| 67771-16170 |
AE111..WG..5F;CE110,EE110..STD,XL;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,VEN) SABLE |
2 | ||
| 67771-12050 |
AE111..RHD..WG;AE111..GLI..TUR;AE112..XLI..GCC;EE110..LHD..3FC;AE112..ARL,GEN,VEN;AE111..(SEG,XL)..GEN;AE111..LHD..SED..5F..XLI;AE111..SED..4FC..XLI..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) RED |
6 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-12030B0 |
AE111;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67651-12030B2 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 67651-12030B2 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(STD,XL,XLI)..(GCC,GEN,VEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 67651-12030B2 |
AE112..GEN,NZ;AE112..XLI..GCC;CE110,EE110..STD,XL;AE111,EE111..(STD,XL,XLI)..(GCC,GEN,NZ,VEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-12030B0 |
AE111;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67651-12030B2 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 67651-12030B2 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(STD,XL,XLI)..(GCC,GEN,VEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 67651-12030B2 |
AE112..GEN,NZ;AE112..XLI..GCC;CE110,EE110..STD,XL;AE111,EE111..(STD,XL,XLI)..(GCC,GEN,NZ,VEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12250 |
AE11#,EE11# RH |
1 | ||
| 68171-12250 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
AE11#,EE11# LH |
1 | ||
| 68172-12170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12250 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12190 |
AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,LH |
1 | ||
| 68171-12250 |
AE111,112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
AE111,112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68172-12170 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12270 |
AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12250 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12250 |
AE111..5F..MA;AE111..RHD..5F..GLI;AE111..4FC..(MA,TH);CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE112,EE111..GEN,IDN,MA,NZ,TH;AE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) RH |
1 | ||
| 68172-12170 |
AE111..5F..MA;AE111..RHD..5F..GLI;AE111..4FC..(MA,TH);CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE112,EE111..GEN,IDN,MA,NZ,TH;AE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) LH |
1 | ||
| 68172-12190 |
AE112..GCC;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL);AE111,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL) MOLDED DOOR TRIM,LH |
1 | ||
| 68172-12190 |
EE110..LHD..3FC;AE112..XLI..(ARL,GCC);AE110,111,CE110,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,LH |
1 | ||
| 68171-12270 |
AE112..GCC;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL);AE111,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12270 |
EE110..LHD..3FC;AE112..XLI..(ARL,GCC);AE110,111,CE110,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,RH |
1 | ||
| 68172-12170 |
AE111..4FC..TH;AE111..RHD..5F..GLI;AE112,EE111..SED..(3FC,5F)..(GEN,MA,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(SEG,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) LH |
1 | ||
| 68171-12250 |
AE111..4FC..TH;AE111..RHD..5F..GLI;AE112,EE111..SED..(3FC,5F)..(GEN,MA,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(SEG,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) RH |
1 | ||
| 68172-12170 |
AE111..4FC..TH;EE111..GEN,MA,VEN;AE111,112..RHD..5F..(GLI,SEG)..(GEN,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) LH |
1 | ||
| 68171-12270 |
AE111..WG..5F;AE111..GLI..TH;AE112..5F..GCC;AE112..4FC..(GCC,TH);AE111,EE111..SED..(GCC,GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12250 |
AE111..4FC..TH;EE111..GEN,MA,VEN;AE111,112..RHD..5F..(GLI,SEG)..(GEN,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) RH |
1 | ||
| 68172-12190 |
AE111..WG..5F;AE111..GLI..TH;AE112..5F..GCC;AE112..4FC..(GCC,TH);AE111,EE111..SED..(GCC,GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL) MOLDED DOOR TRIM,LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12250 |
AE11#,EE11# RH |
1 | ||
| 68171-12250 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
AE11#,EE11# LH |
1 | ||
| 68172-12170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12250 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12190 |
AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,LH |
1 | ||
| 68171-12250 |
AE111,112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
AE111,112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68172-12170 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12270 |
AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12250 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12250 |
AE111..5F..MA;AE111..RHD..5F..GLI;AE111..4FC..(MA,TH);CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE112,EE111..GEN,IDN,MA,NZ,TH;AE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) RH |
1 | ||
| 68172-12170 |
AE111..5F..MA;AE111..RHD..5F..GLI;AE111..4FC..(MA,TH);CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE112,EE111..GEN,IDN,MA,NZ,TH;AE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) LH |
1 | ||
| 68172-12190 |
AE112..GCC;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL);AE111,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL) MOLDED DOOR TRIM,LH |
1 | ||
| 68172-12190 |
EE110..LHD..3FC;AE112..XLI..(ARL,GCC);AE110,111,CE110,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,LH |
1 | ||
| 68171-12270 |
AE112..GCC;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL);AE111,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12270 |
EE110..LHD..3FC;AE112..XLI..(ARL,GCC);AE110,111,CE110,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,RH |
1 | ||
| 68172-12170 |
AE111..4FC..TH;AE111..RHD..5F..GLI;AE112,EE111..SED..(3FC,5F)..(GEN,MA,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(SEG,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) LH |
1 | ||
| 68171-12250 |
AE111..4FC..TH;AE111..RHD..5F..GLI;AE112,EE111..SED..(3FC,5F)..(GEN,MA,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(SEG,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) RH |
1 | ||
| 68172-12170 |
AE111..4FC..TH;EE111..GEN,MA,VEN;AE111,112..RHD..5F..(GLI,SEG)..(GEN,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) LH |
1 | ||
| 68171-12270 |
AE111..WG..5F;AE111..GLI..TH;AE112..5F..GCC;AE112..4FC..(GCC,TH);AE111,EE111..SED..(GCC,GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12250 |
AE111..4FC..TH;EE111..GEN,MA,VEN;AE111,112..RHD..5F..(GLI,SEG)..(GEN,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) RH |
1 | ||
| 68172-12190 |
AE111..WG..5F;AE111..GLI..TH;AE112..5F..GCC;AE112..4FC..(GCC,TH);AE111,EE111..SED..(GCC,GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL) MOLDED DOOR TRIM,LH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12070B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 69751-12070B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
2 | ||
| 69751-12070B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12070B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 69751-12070B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
2 | ||
| 69751-12070B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90901-89022 | ||||
| 90950-06105 | ||||
ILLUST NO. 3 OF 3(9704-9910)

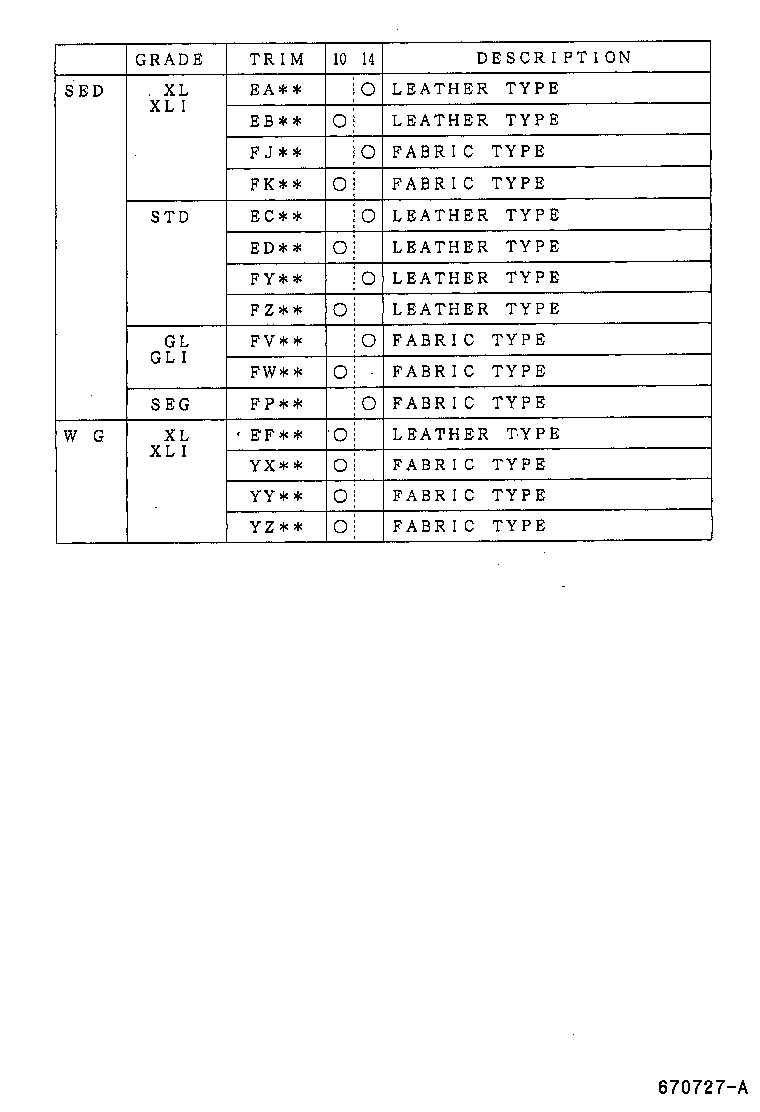

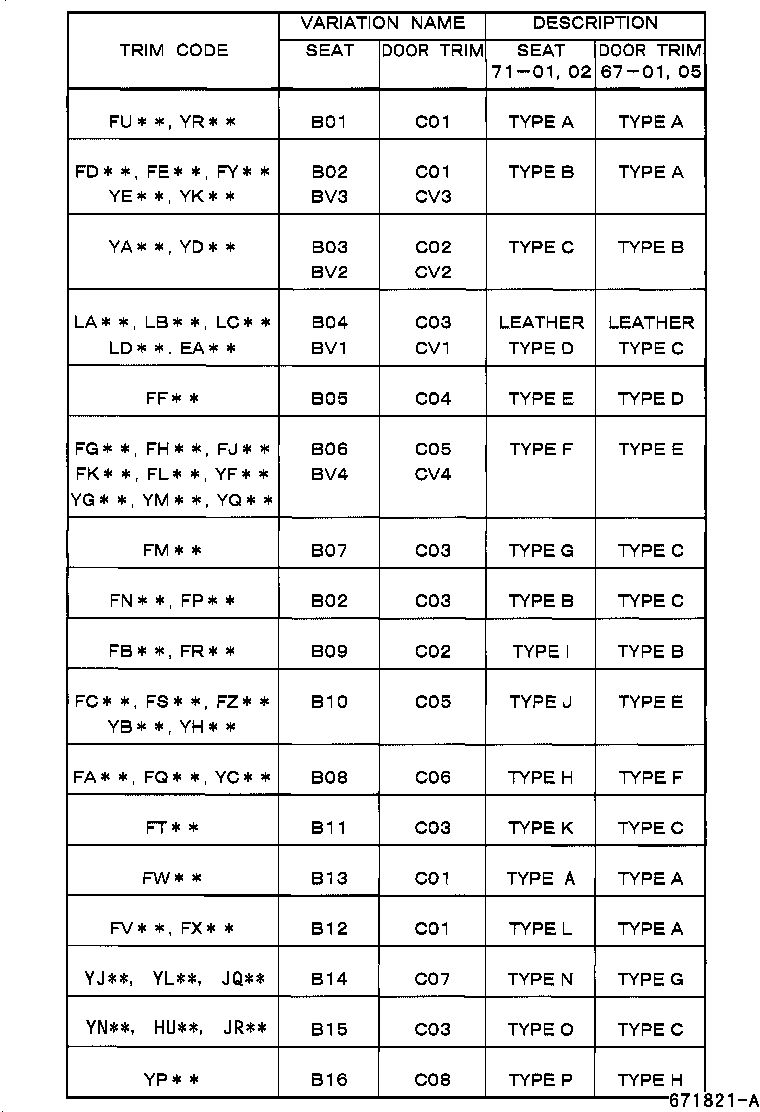

TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|

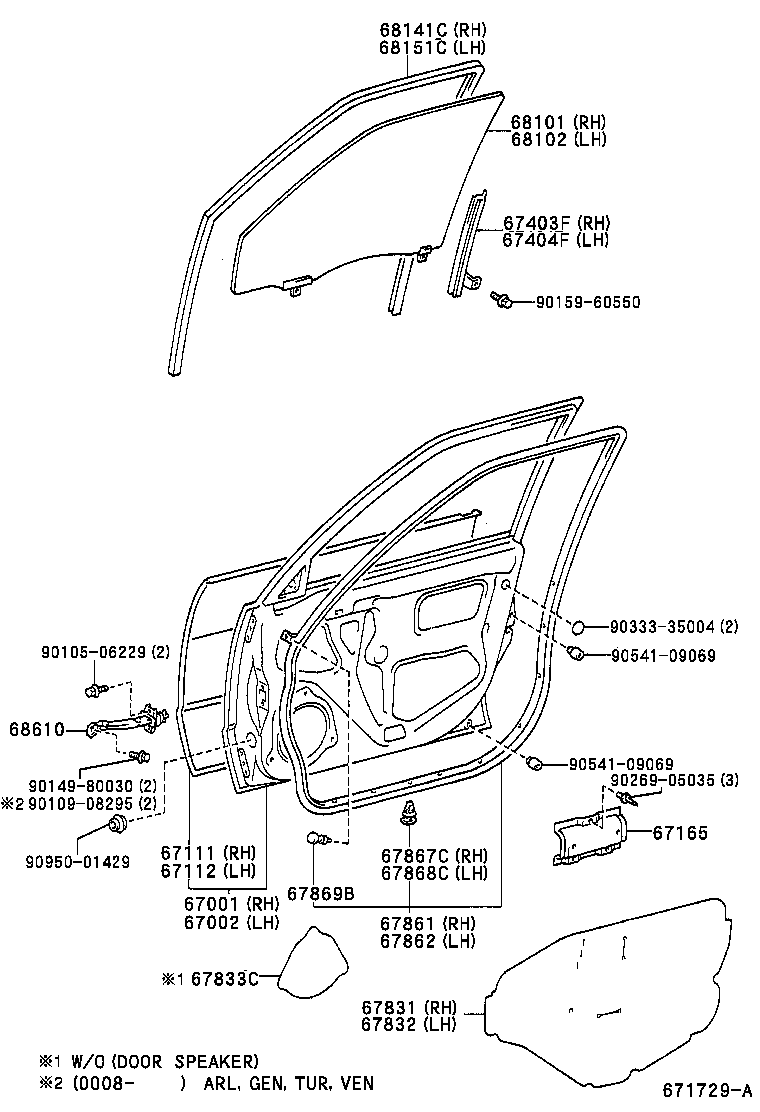

ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A560 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67001-1A460 |
AE11#,EE11# |
1 | ||
| 67001-1A560 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A540 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67002-1A440 |
AE11#,EE11# |
1 | ||
| 67002-1A540 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12600 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67111-12600 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12590 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 67112-12590 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12210 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 67403-12200 |
AE11#,EE11# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12160 |
AE11#,EE11# |
1 | ||
| 67404-12210 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12550 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67831-12550 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12350 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67832-12350 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 67833C - COVER, FRONT DOOR SPEAKER HOLE | ||||
| 67833-12050 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN |
2 | ||
| 67833-12050 |
AE111;AE110,EE11#..XL,XLI |
2 | ||
| 67833-12050 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,PHL) |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-1A010 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN) BUMPER = TYPE B |
1 | ||
| 67861-12880 |
EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE A |
1 | ||
| 67861-1A010 |
AE111..5F..NZ;AE110,112..GCC,NZ,TH;CE110,EE110..GCC,GEN,GENKD,NZ;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,TH) BUMPER = TYPE B |
1 | ||
| 67861-12880 |
AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,PHL) BUMPER = TYPE A |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12840 |
EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE A |
1 | ||
| 67862-12860 |
AE111..5F..NZ;AE110,112..GCC,NZ,TH;CE110,EE110..GCC,GEN,GENKD,NZ;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,TH) |
1 | ||
| 67862-12840 |
AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,PHL) BUMPER = TYPE A |
1 | ||
| 67862-12860 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN) |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AE110..TH;AE110..GLI;AE111..5F..NZ;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH) |
14 | ||
| 67867-12150 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN |
14 | ||
| 67867-12150 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
14 | ||
| 67867-12150 |
AE111..SED;AE110,EE11#;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN) |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
14 | ||
| 67867-12150 |
AE110..TH;AE110..GLI;AE111..5F..NZ;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH) |
14 | ||
| 67867-12150 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN |
14 | ||
| 67867-12150 |
AE111..SED;AE110,EE11#;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN) |
14 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12050 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN |
2 | ||
| 67869-12050 |
AE110..TH;AE110..GLI;AE111..5F..NZ;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH) |
2 | ||
| 67869-12050 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 67869-12050 |
AE111..SED;AE110,EE11#;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN) |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12820 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TUR,VEN) *TT,T=3.5,GREEN |
1 | ||
| 68101-12820 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12820 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *TT,T=3.5,GREEN |
1 | ||
| 68102-12820 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TUR,VEN) *TT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12470 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 68141-12470 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12180 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 68151-12180 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-12060 |
AE111..SED;AE111..RHD..WG;AE110,112,CE110,EE11# LH |
1 | ||
| 68610-12150 |
AE111..SED;AE111..RHD..WG;AE110,112,CE110,EE11# RH |
1 | ||
| 68620-12060 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) LH |
1 | ||
| 68610-02040 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN PLANT TMUK, RH |
1 | ||
| 68610-12150 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) RH |
1 | ||
| 68620-02040 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN PLANT TMUK, LH |
1 | ||
| 68610-12150 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI RH |
1 | ||
| 68610-12150 |
AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL RH |
1 | ||
| 68620-12060 |
AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL LH |
1 | ||
| 68610-12150 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN RH |
1 | ||
| 68620-12060 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN LH |
1 | ||
| 68620-02040 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN PLANT TMUK, LH |
1 | ||
| 68620-02040 |
AE11#,CE110,EE11# PLANT TMUK, LH |
1 | ||
| 68620-02040 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN PLANT TMUK, LH |
1 | ||
| 68610-02040 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN PLANT TMUK, RH |
1 | ||
| 68610-02040 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN PLANT TMUK, RH |
1 | ||
| 68620-12060 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL LH |
1 | ||
| 68610-12150 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL RH |
1 | ||
| 68610-02040 |
AE11#,CE110,EE11# PLANT TMUK, RH |
1 | ||
| 68620-12060 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI LH |
1 | ||
| Common parts | ||||
| 90105-06229 | ||||
| 90109-08295 | ||||
| 90149-80030 | ||||
| 90159-60550 | ||||
| 90269-05035 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 90950-01429 | ||||
ILLUST NO. 3 OF 3(9910- )
TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 3(9910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12400 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12430 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67491-12400 |
ZZE111;AE111..GCC,GEN;AE111..GLI..TUR;EE110..LHD..3FC;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12370 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 67491-12400 |
AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12430 |
AE110..TH;AE111,112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN) |
1 | ||
| 67491-12430 |
AE111..WG..5F;AE111..GLI..TH;AE112..LHD..XLI;CE110,EE110..STD,XL;AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,TUR,VEN) |
1 | ||
| 67491-12400 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL);AE110,112,CE110,EE110..(GL,GLI,XL)..(ARL,BZ,GCC,GEN,PHL,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12400 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12430 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67491-12400 |
ZZE111;AE111..GCC,GEN;AE111..GLI..TUR;EE110..LHD..3FC;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12370 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 67491-12400 |
AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12430 |
AE110..TH;AE111,112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN) |
1 | ||
| 67491-12430 |
AE111..WG..5F;AE111..GLI..TH;AE112..LHD..XLI;CE110,EE110..STD,XL;AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,TUR,VEN) |
1 | ||
| 67491-12400 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL);AE110,112,CE110,EE110..(GL,GLI,XL)..(ARL,BZ,GCC,GEN,PHL,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12370 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 67492-12400 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12430 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67492-12400 |
ZZE111;AE111..GCC,GEN;AE111..GLI..TUR;EE110..LHD..3FC;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12430 |
AE110..TH;AE111,112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN) |
1 | ||
| 67492-12430 |
AE111..WG..5F;AE111..GLI..TH;AE112..LHD..XLI;CE110,EE110..STD,XL;AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,TUR,VEN) |
1 | ||
| 67492-12400 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL);AE110,112,CE110,EE110..(GL,GLI,XL)..(ARL,BZ,GCC,GEN,PHL,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12400 |
AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12370 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 67492-12400 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12430 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(XL,XLI)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67492-12400 |
ZZE111;AE111..GCC,GEN;AE111..GLI..TUR;EE110..LHD..3FC;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12430 |
AE110..TH;AE111,112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN) |
1 | ||
| 67492-12430 |
AE111..WG..5F;AE111..GLI..TH;AE112..LHD..XLI;CE110,EE110..STD,XL;AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,TUR,VEN) |
1 | ||
| 67492-12400 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL);AE110,112,CE110,EE110..(GL,GLI,XL)..(ARL,BZ,GCC,GEN,PHL,VEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12400 |
AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN) W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 67771-30070 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 67771-30070 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 67771-30070 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 67771-30070 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 67771-30070 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 67771-30070 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1H490B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E350B0 |
AE11#,EE11#..XL,XLI W(SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E610B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E620B0 |
AE110,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E760B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E770B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H780B0 |
AE111..LHD..SED..(XL,XLI)..GEN;AE112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H620B1 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67610-1K680B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67610-1K790B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67610-1K800B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67610-1K650B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67650-1H760B6 |
AE111..LHD..(XL,XLI)..GEN;CE110,EE11#..LHD..(STD,XL)..(GEN,VEN) MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K800B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-1K680B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K650B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K790B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67650-1H770K0 |
AE111,112,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67650-1H400B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67650-1H120B1 |
AE111..LHD..SED..(XL,XLI)..GEN;AE112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H620B1 |
AE111,EE110..LHD..(XL,XLI)..(GCC,GEN);AE112,CE110,EE111..LHD..(XL,XLI)..(GCC,GEN,TUR) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H780B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H770B0 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H760B2 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER),MD. GRAY,TRIM10,14 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1H490B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E350B0 |
AE11#,EE11#..XL,XLI W(SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E610B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E620B0 |
AE110,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E760B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E770B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H780B0 |
AE111..LHD..SED..(XL,XLI)..GEN;AE112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H620B1 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67610-1K680B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67610-1K790B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67610-1K800B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67610-1K650B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67650-1H760B6 |
AE111..LHD..(XL,XLI)..GEN;CE110,EE11#..LHD..(STD,XL)..(GEN,VEN) MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K800B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-1K680B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K650B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-1K790B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67650-1H770K0 |
AE111,112,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67650-1H400B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67650-1H120B1 |
AE111..LHD..SED..(XL,XLI)..GEN;AE112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H620B1 |
AE111,EE110..LHD..(XL,XLI)..(GCC,GEN);AE112,CE110,EE111..LHD..(XL,XLI)..(GCC,GEN,TUR) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H780B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H770B0 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN MD. CHARCOAL,TRIM1# |
1 | ||
| 67650-1H760B2 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER),MD. GRAY,TRIM10,14 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133B0 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 90467-06133B4 |
EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 90467-06133B4 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-06133C0 |
EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN BLACK,TRIM10,14 |
2 | ||
| 90467-06133C0 |
AE111..RHD..XL;EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..4FC..XLI..GEN MOLDED DOOR TRIM,BLACK,TRIM10,14 |
4 | ||
| 90467-06133C0 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN BLACK,TRIM1#,9# |
2 | ||
| 90467-06133B4 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
2 | ||
| 90467-06133C0 |
AE111..LHD..GLI..GEN;AE111..LHD..5F..XLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110,EE110..(GL,XL)..GEN MOLDED DOOR TRIM,BLACK,TRIM1#,9# |
4 | ||
| 90467-06133B4 |
AE111..5F..GLI..GEN;CE110,EE110..(GL,XL)..GEN;AE111..LHD..4FC..GLI..GEN;AE111..SED..(GL,XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM1#,9# |
4 | ||
| 90467-06133B4 |
AE111,CE110,EE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 90467-06133C0 |
AE111,CE110,EE110..SED..(XL,XLI)..GEN BLACK,TRIM10,14 |
2 | ||
| 90467-06133B4 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-06133C0 |
AE111..RHD..XL;AE111..LHD..SED..GEN;CE110,EE110..XL..GEN;AE111..RHD..4FC..XLI..GEN MOLDED DOOR TRIM,BLACK,TRIM10,14 |
4 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133B0 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 90467-06133B4 |
EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 90467-06133B4 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-06133C0 |
EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,CE110..SED..(XL,XLI)..GEN BLACK,TRIM10,14 |
2 | ||
| 90467-06133C0 |
AE111..RHD..XL;EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..4FC..XLI..GEN MOLDED DOOR TRIM,BLACK,TRIM10,14 |
4 | ||
| 90467-06133C0 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN BLACK,TRIM1#,9# |
2 | ||
| 90467-06133B4 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
2 | ||
| 90467-06133C0 |
AE111..LHD..GLI..GEN;AE111..LHD..5F..XLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110,EE110..(GL,XL)..GEN MOLDED DOOR TRIM,BLACK,TRIM1#,9# |
4 | ||
| 90467-06133B4 |
AE111..5F..GLI..GEN;CE110,EE110..(GL,XL)..GEN;AE111..LHD..4FC..GLI..GEN;AE111..SED..(GL,XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM1#,9# |
4 | ||
| 90467-06133B4 |
AE111,CE110,EE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 90467-06133C0 |
AE111,CE110,EE110..SED..(XL,XLI)..GEN BLACK,TRIM10,14 |
2 | ||
| 90467-06133B4 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN MOLDED DOOR TRIM,MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-06133C0 |
AE111..RHD..XL;AE111..LHD..SED..GEN;CE110,EE110..XL..GEN;AE111..RHD..4FC..XLI..GEN MOLDED DOOR TRIM,BLACK,TRIM10,14 |
4 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16170 |
AE111;AE110,EE11#..XL,XLI SABLE |
4 | ||
| 67771-12050 |
AE111;AE110,EE11#..XL,XLI RED |
12 | ||
| 67771-12050 |
AE111..RHD..WG;EE110..LHD..3FC;AE110..4FC..XLI..GEN;AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) RED |
6 | ||
| 67771-12050 |
EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN RED |
6 | ||
| 67771-12050 |
AE111..(GL,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..ARL,GCC,GEN,VEN;AE111,EE111..LHD..(GLI,STD)..(GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
EE110..LHD..3FC;CE110,EE110..MTM..(STD,XL)..(GCC,GEN) FABRIC TYPE-*104,SABLE |
7 | ||
| 67771-12050 |
CE110,EE111..STD,XL;AE111..LHD..GLI..(GEN,TUR);AE110,112,EE110..ARL,GCC,GEN;AE111..(GL,XL,XLI)..(GCC,GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
CE110,EE110..(STD,XL)..(GCC,GEN) FABRIC TYPE-*104,SABLE |
7 | ||
| 67771-12050 |
AE111,112;EE111..MA,TUR,VEN;AE110,CE110,EE110..GL,GLI,STD,XL RED |
6 | ||
| 67771-16170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) SABLE |
2 | ||
| 67771-12050 |
AE111..MA;AE112,EE110;AE111..GL,GLI,XL,XLI;AE110,EE111..MA,TH,TUR;AE110,CE110..(GLI,XL)..GEN RED |
6 | ||
| 67771-16170 |
AE111..WG..5F;CE110,EE110..STD,XL;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,VEN) SABLE |
2 | ||
| 67771-16170 |
AE112..GEN,NZ;CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE111,EE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) SABLE |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16170 |
AE111;AE110,EE11#..XL,XLI SABLE |
4 | ||
| 67771-12050 |
AE111;AE110,EE11#..XL,XLI RED |
12 | ||
| 67771-12050 |
AE111..RHD..WG;EE110..LHD..3FC;AE110..4FC..XLI..GEN;AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) RED |
6 | ||
| 67771-12050 |
EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN RED |
6 | ||
| 67771-12050 |
AE111..(GL,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..ARL,GCC,GEN,VEN;AE111,EE111..LHD..(GLI,STD)..(GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
EE110..LHD..3FC;CE110,EE110..MTM..(STD,XL)..(GCC,GEN) FABRIC TYPE-*104,SABLE |
7 | ||
| 67771-12050 |
CE110,EE111..STD,XL;AE111..LHD..GLI..(GEN,TUR);AE110,112,EE110..ARL,GCC,GEN;AE111..(GL,XL,XLI)..(GCC,GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
CE110,EE110..(STD,XL)..(GCC,GEN) FABRIC TYPE-*104,SABLE |
7 | ||
| 67771-12050 |
AE111,112;EE111..MA,TUR,VEN;AE110,CE110,EE110..GL,GLI,STD,XL RED |
6 | ||
| 67771-16170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) SABLE |
2 | ||
| 67771-12050 |
AE111..MA;AE112,EE110;AE111..GL,GLI,XL,XLI;AE110,EE111..MA,TH,TUR;AE110,CE110..(GLI,XL)..GEN RED |
6 | ||
| 67771-16170 |
AE111..WG..5F;CE110,EE110..STD,XL;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,VEN) SABLE |
2 | ||
| 67771-16170 |
AE112..GEN,NZ;CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE111,EE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) SABLE |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1L310B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K270B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K300B0 |
AE110,EE11#..XL,XLI LEATHER & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N240B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K730B0 |
AE11#,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L350B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12160B0 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#,9# |
1 | ||
| 67660-12430B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67050-12340K0 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12460B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67660-12560B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67660-12430B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67660-12560B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12570B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67660-12570B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12460B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12190B1 |
AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12170B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67050-12180B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67050-12160B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12340B0 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN LEATHER TYPE,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..(GEN,GENKD) W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1L310B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K270B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K300B0 |
AE110,EE11#..XL,XLI LEATHER & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N240B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K730B0 |
AE11#,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L350B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12160B0 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1#,9# |
1 | ||
| 67660-12430B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67050-12340K0 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12460B0 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM9# |
1 | ||
| 67660-12560B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67660-12430B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE & W(SPEAKER),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67660-12560B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & SQUARE SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12570B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM9# |
1 | ||
| 67660-12570B1 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE,MD.CHARCOAL,TRIM1# |
1 | ||
| 67660-12460B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) DOOR TRIM=TYPE A-*104 & ROUND SPEAKER TYPE & W(POWER WINDOW),MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN DOOR TRIM=LEATHER TYPE-*104 & W(SPEAKER),MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(XL,XLI)..GEN W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12190B1 |
AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER WINDOW),MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12170B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN W(SPEAKER) & FABRIC TYPE-*104,MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67050-12180B1 |
AE111,CE110,EE110..LHD..SED..(XL,XLI)..GEN MD. CHARCOAL,TRIM10,14 |
1 | ||
| 67050-12160B0 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..(GCC,GEN) FABRIC TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12340B0 |
AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN LEATHER TYPE,MD. CHARCOAL,TRIM1# |
1 | ||
| 67050-12350B1 |
AE111,CE110,EE110..LHD..(STD,XL,XLI)..(GEN,GENKD) W(SPEAKER) & LEATHER TYPE-*104,MD. CHARCOAL,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-16170 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-12050 |
AE112;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..4FC..XLI;AE112..XLI..GCC;AE111..4FC..GLI..TUR;AE111..GENKD,MA,PHL,TH;AE110,EE111..MA,TH,TUR;AE111,CE110,EE110..STD,XL;AE111..LHD..SED..5F..XLI..GEN;AE112..ARL,BZ,GEN,IDN,NZ,TH,VEN;AE111..5F..(ARL,GCC,NZ,TUR,VEN) RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..GCC;EE110..LHD..3FC;AE111..LHD..5F..XLI;AE111,EE111..STD,XL;AE112,CE110..ARL,GEN,VEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..4FC..XLI..(GCC,GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
AE112..GEN,NZ;CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE111,EE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) SABLE |
2 | ||
| 67771-12050 |
AE110,CE110,EE110..GL,GLI,XL;AE111,112..(GL,GLI,XL,XLI)..(GCC,GEN) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..5F..ARL;AE111..GLI..TUR;EE111..MA,TUR,VEN;AE111..GENKD,PHL,TH;AE111..LHD..5F..XLI;AE111..SED..4FC..XLI;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,CE110,EE110..SEG,STD,XL;AE112..(GLI,SEG)..(ARL,BZ,IDN,PHL,TH,VEN) RED |
6 | ||
| 67771-16170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) SABLE |
2 | ||
| 67771-16170 |
EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) SABLE |
2 | ||
| 67771-16170 |
AE111..WG..5F;CE110,EE110..STD,XL;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,VEN) SABLE |
2 | ||
| 67771-12050 |
AE111..RHD..WG;AE111..GLI..TUR;AE112..XLI..GCC;EE110..LHD..3FC;AE112..ARL,GEN,VEN;AE111..(SEG,XL)..GEN;AE111..LHD..SED..5F..XLI;AE111..SED..4FC..XLI..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) RED |
6 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-16170 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-12050 |
AE112;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..4FC..XLI;AE112..XLI..GCC;AE111..4FC..GLI..TUR;AE111..GENKD,MA,PHL,TH;AE110,EE111..MA,TH,TUR;AE111,CE110,EE110..STD,XL;AE111..LHD..SED..5F..XLI..GEN;AE112..ARL,BZ,GEN,IDN,NZ,TH,VEN;AE111..5F..(ARL,GCC,NZ,TUR,VEN) RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..GCC;EE110..LHD..3FC;AE111..LHD..5F..XLI;AE111,EE111..STD,XL;AE112,CE110..ARL,GEN,VEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..4FC..XLI..(GCC,GEN,TUR,VEN) RED |
6 | ||
| 67771-16170 |
AE112..GEN,NZ;CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE111,EE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) SABLE |
2 | ||
| 67771-12050 |
AE110,CE110,EE110..GL,GLI,XL;AE111,112..(GL,GLI,XL,XLI)..(GCC,GEN) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE111..WG..5F;AE111..5F..ARL;AE111..GLI..TUR;EE111..MA,TUR,VEN;AE111..GENKD,PHL,TH;AE111..LHD..5F..XLI;AE111..SED..4FC..XLI;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,CE110,EE110..SEG,STD,XL;AE112..(GLI,SEG)..(ARL,BZ,IDN,PHL,TH,VEN) RED |
6 | ||
| 67771-16170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN,VEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) SABLE |
2 | ||
| 67771-16170 |
EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) SABLE |
2 | ||
| 67771-16170 |
AE111..WG..5F;CE110,EE110..STD,XL;AE112..XLI..(GCC,GEN);AE111,EE111..SED..(STD,XL,XLI)..(GCC,GEN,TH,VEN) SABLE |
2 | ||
| 67771-12050 |
AE111..RHD..WG;AE111..GLI..TUR;AE112..XLI..GCC;EE110..LHD..3FC;AE112..ARL,GEN,VEN;AE111..(SEG,XL)..GEN;AE111..LHD..SED..5F..XLI;AE111..SED..4FC..XLI..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) RED |
6 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-12030B0 |
AE111;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67651-12030B2 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 67651-12030B2 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(STD,XL,XLI)..(GCC,GEN,VEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 67651-12030B2 |
AE112..GEN,NZ;AE112..XLI..GCC;CE110,EE110..STD,XL;AE111,EE111..(STD,XL,XLI)..(GCC,GEN,NZ,VEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-12030B0 |
AE111;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67651-12030B2 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 67651-12030B2 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(STD,XL,XLI)..(GCC,GEN,VEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 67651-12030B2 |
AE112..GEN,NZ;AE112..XLI..GCC;CE110,EE110..STD,XL;AE111,EE111..(STD,XL,XLI)..(GCC,GEN,NZ,VEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12250 |
AE11#,EE11# RH |
1 | ||
| 68171-12250 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
AE11#,EE11# LH |
1 | ||
| 68172-12170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12250 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12190 |
AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,LH |
1 | ||
| 68171-12250 |
AE111,112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
AE111,112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68172-12170 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12270 |
AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12250 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12250 |
AE111..5F..MA;AE111..RHD..5F..GLI;AE111..4FC..(MA,TH);CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE112,EE111..GEN,IDN,MA,NZ,TH;AE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) RH |
1 | ||
| 68172-12170 |
AE111..5F..MA;AE111..RHD..5F..GLI;AE111..4FC..(MA,TH);CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE112,EE111..GEN,IDN,MA,NZ,TH;AE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) LH |
1 | ||
| 68172-12190 |
AE112..GCC;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL);AE111,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL) MOLDED DOOR TRIM,LH |
1 | ||
| 68172-12190 |
EE110..LHD..3FC;AE112..XLI..(ARL,GCC);AE110,111,CE110,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,LH |
1 | ||
| 68171-12270 |
AE112..GCC;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL);AE111,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12270 |
EE110..LHD..3FC;AE112..XLI..(ARL,GCC);AE110,111,CE110,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,RH |
1 | ||
| 68172-12170 |
AE111..4FC..TH;AE111..RHD..5F..GLI;AE112,EE111..SED..(3FC,5F)..(GEN,MA,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(SEG,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) LH |
1 | ||
| 68171-12250 |
AE111..4FC..TH;AE111..RHD..5F..GLI;AE112,EE111..SED..(3FC,5F)..(GEN,MA,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(SEG,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) RH |
1 | ||
| 68172-12170 |
AE111..4FC..TH;EE111..GEN,MA,VEN;AE111,112..RHD..5F..(GLI,SEG)..(GEN,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) LH |
1 | ||
| 68171-12270 |
AE111..WG..5F;AE111..GLI..TH;AE112..5F..GCC;AE112..4FC..(GCC,TH);AE111,EE111..SED..(GCC,GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12250 |
AE111..4FC..TH;EE111..GEN,MA,VEN;AE111,112..RHD..5F..(GLI,SEG)..(GEN,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) RH |
1 | ||
| 68172-12190 |
AE111..WG..5F;AE111..GLI..TH;AE112..5F..GCC;AE112..4FC..(GCC,TH);AE111,EE111..SED..(GCC,GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL) MOLDED DOOR TRIM,LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12250 |
AE11#,EE11# RH |
1 | ||
| 68171-12250 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
AE11#,EE11# LH |
1 | ||
| 68172-12170 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN);AE110,111,CE110,EE111..SED..(SEG,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12250 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12190 |
AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,LH |
1 | ||
| 68171-12250 |
AE111,112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
AE111,112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68172-12170 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12270 |
AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12250 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) RH |
1 | ||
| 68172-12170 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) LH |
1 | ||
| 68171-12250 |
AE111..5F..MA;AE111..RHD..5F..GLI;AE111..4FC..(MA,TH);CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE112,EE111..GEN,IDN,MA,NZ,TH;AE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) RH |
1 | ||
| 68172-12170 |
AE111..5F..MA;AE111..RHD..5F..GLI;AE111..4FC..(MA,TH);CE110,EE110..STD,XL;AE110,112..XLI..(GCC,TH);AE112,EE111..GEN,IDN,MA,NZ,TH;AE111..(XL,XLI)..(GCC,GEN,NZ,TH,VEN) LH |
1 | ||
| 68172-12190 |
AE112..GCC;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL);AE111,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL) MOLDED DOOR TRIM,LH |
1 | ||
| 68172-12190 |
EE110..LHD..3FC;AE112..XLI..(ARL,GCC);AE110,111,CE110,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,LH |
1 | ||
| 68171-12270 |
AE112..GCC;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL);AE111,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12270 |
EE110..LHD..3FC;AE112..XLI..(ARL,GCC);AE110,111,CE110,EE111..GCC,GEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) MOLDED DOOR TRIM,RH |
1 | ||
| 68172-12170 |
AE111..4FC..TH;AE111..RHD..5F..GLI;AE112,EE111..SED..(3FC,5F)..(GEN,MA,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(SEG,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) LH |
1 | ||
| 68171-12250 |
AE111..4FC..TH;AE111..RHD..5F..GLI;AE112,EE111..SED..(3FC,5F)..(GEN,MA,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(SEG,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) RH |
1 | ||
| 68172-12170 |
AE111..4FC..TH;EE111..GEN,MA,VEN;AE111,112..RHD..5F..(GLI,SEG)..(GEN,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) LH |
1 | ||
| 68171-12270 |
AE111..WG..5F;AE111..GLI..TH;AE112..5F..GCC;AE112..4FC..(GCC,TH);AE111,EE111..SED..(GCC,GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL) MOLDED DOOR TRIM,RH |
1 | ||
| 68171-12250 |
AE111..4FC..TH;EE111..GEN,MA,VEN;AE111,112..RHD..5F..(GLI,SEG)..(GEN,TH);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,VEN);AE112,CE110,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,TUR,VEN) RH |
1 | ||
| 68172-12190 |
AE111..WG..5F;AE111..GLI..TH;AE112..5F..GCC;AE112..4FC..(GCC,TH);AE111,EE111..SED..(GCC,GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN,PHL) MOLDED DOOR TRIM,LH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12070B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 69751-12070B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
2 | ||
| 69751-12070B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12070B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 69751-12070B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
2 | ||
| 69751-12070B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90901-89022 | ||||
| 90950-06105 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
