EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg
(9704- )SED

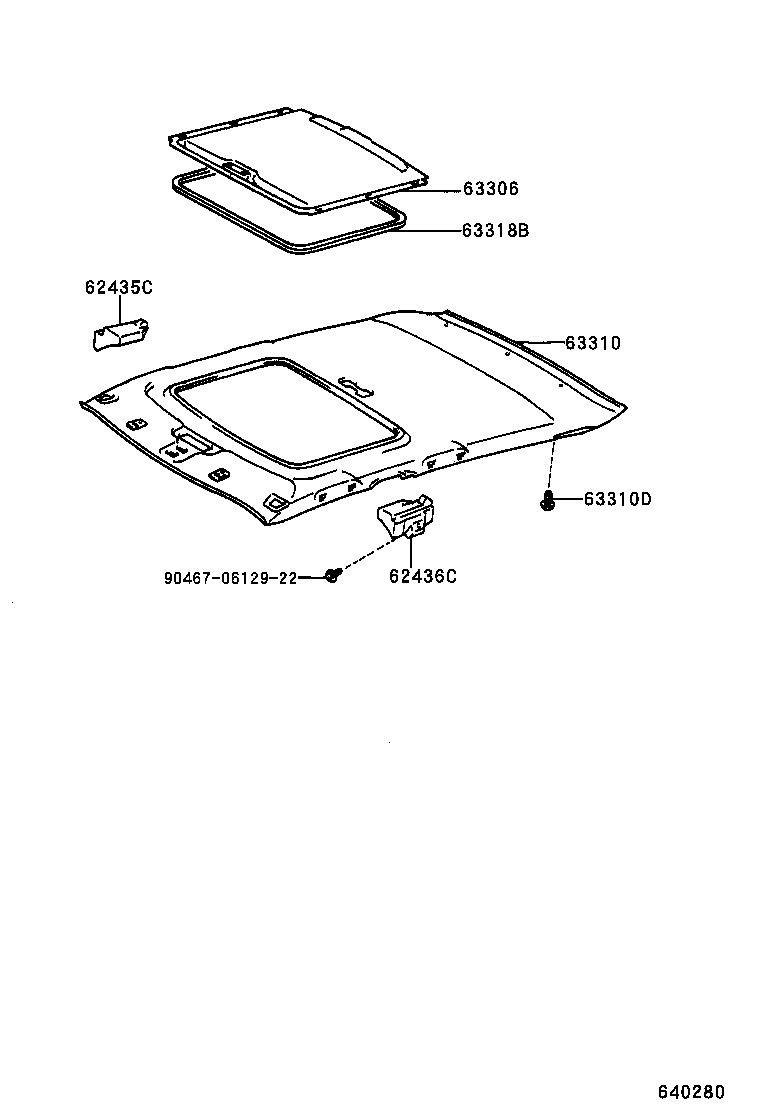

MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62435C - PAD, ROOF SIDE RAIL GARNISH, RH | ||||
| 62435-12020 |
EE110..LHD..3FC;AE112..SED..(ARL,GCC);AE110,EE110..SED..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN);AE111,CE110,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN) |
1 | ||
| 62435-12020 |
AE110,CE110,EE110..SED..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN) |
1 | ||
| 62436C - PAD, ROOF SIDE RAIL GARNISH, LH | ||||
| 62436-12020 |
EE110..LHD..3FC;AE112..SED..(ARL,GCC);AE110,EE110..SED..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN);AE111,CE110,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN) |
1 | ||
| 62436-12020 |
AE110,CE110,EE110..SED..(GL,GLI,XL)..(GCC,GEN);AE111,112,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN) |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-12070B2 |
AE111..SED..GEN;CE110,EE110..(GL,XL)..GEN MEDIUM CHARCOAL,TRIM1#,9# |
1 | ||
| 63306-12070B2 |
CE110,EE110..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MEDIUM CHARCOAL,TRIM10,14 |
1 | ||
| 63306-12070B2 |
EE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MEDIUM CHARCOAL,TRIM10,14 |
1 | ||
| 63306-12070B2 |
AE111,112,CE110,EE110..SED..(3FC,4FC,5F)..(ARL,GEN) MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-1A450B0 |
AE11#,EE11# LT. GRAY,TRIM1# |
1 | ||
| 63310-1A600B0 |
AE111,CE110,EE110..LHD..GEN MEDIUM CHARCOAL,TRIM1#,9# |
1 | ||
| 63310-1A620B0 |
AE111,CE110,EE110..LHD..(3FC,4FC,5F)..GEN W(MOON ROOF),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63310-1A620B0 |
AE111,CE110,EE110..LHD..(3FC,4FC,5F)..GEN W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#,9# |
1 | ||
| 63310-1A620B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..(GL,XL,XLI)..GEN W(MOON ROOF),MEDIUM CHARCOAL,TRIM10,14 |
1 | ||
| 63310-1A600B0 |
AE111,CE110,EE110..LHD..SED..GEN MEDIUM CHARCOAL,TRIM10,14 |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P0 |
EE110..5F..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN W(MOON ROOF),SHADOW GRAY,TRIM10,14 |
3 | ||
| 90467-05021B6 |
EE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-05021B6 |
AE111..SED..GEN;CE110,EE110..(GL,XL)..GEN W(MOON ROOF),MD.CHARCOAL,TRIM1#,9# |
3 | ||
| 90467-05021P0 |
EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN SHADOW GRAY,TRIM10,14 |
4 | ||
| 90467-05021B8 |
AE11#,EE11# LI. GRAY,TRIM1# |
3 | ||
| 90467-05021B6 |
EE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN W(MOON ROOF),MD.CHARCOAL,TRIM10,14 |
3 | ||
| 90467-05021B6 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
4 | ||
| 90467-05021B6 |
CE110,EE110..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN W(MOON ROOF),MD.CHARCOAL,TRIM10,14 |
3 | ||
| 90467-05021B6 |
CE110,EE110..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-05021B6 |
AE111,112,CE110,EE110..SED..(3FC,4FC,5F)..(ARL,GEN) W(MOON ROOF),MD.CHARCOAL,TRIM1# |
3 | ||
| 90467-05021P0 |
AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN SHADOW GRAY,TRIM10,14 |
4 | ||
| 90467-05021P0 |
AE111,CE110,EE110..SED..(GL,GLI,XL,XLI)..GEN W(MOON ROOF),SHADOW GRAY,TRIM10,14 |
3 | ||
| 63318B - MOULDING, ROOF HEADLINING SET, NO.1 | ||||
| 63318-12070B5 |
AE111,112,CE110,EE110..SED..(3FC,4FC,5F)..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 63318-12070B5 |
EE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 63318-12070B5 |
CE110,EE110..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 63318-12070B5 |
AE111..SED..GEN;CE110,EE110..(GL,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| Common parts | ||||
| 90467-0612922 | ||||

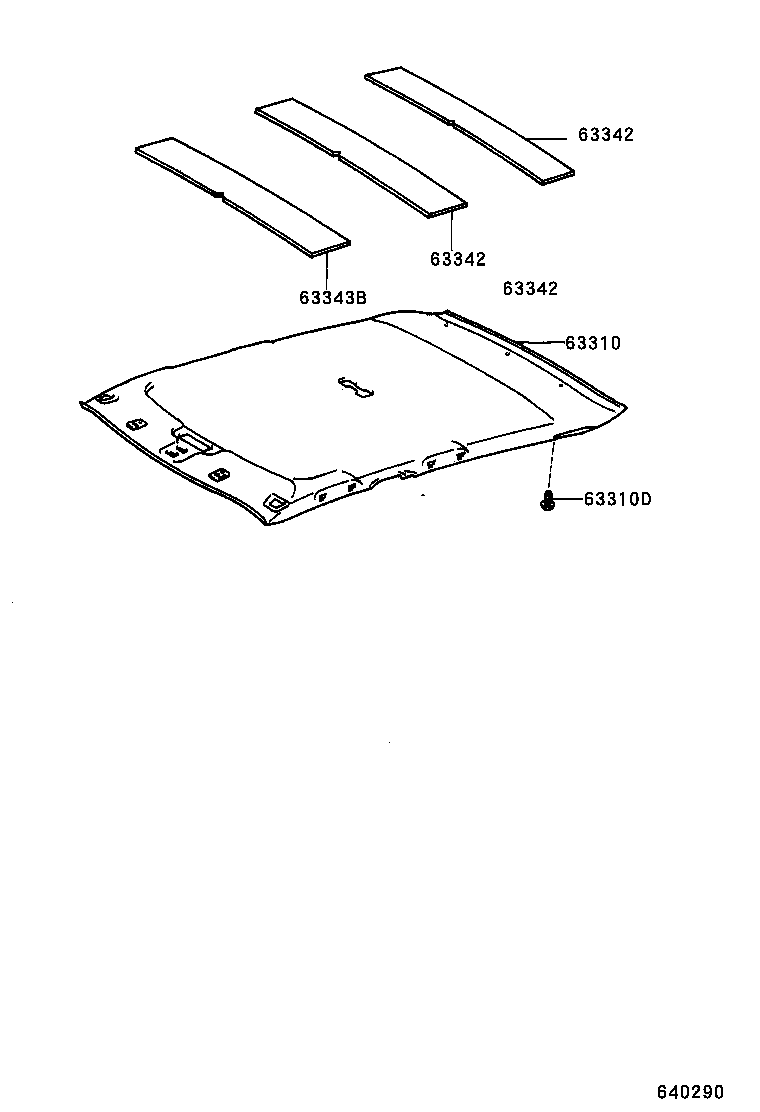

(9704- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-1A450B0 |
AE11#,EE11# LT. GRAY,TRIM1# |
1 | ||
| 63310-1A600B0 |
AE111,CE110,EE110..LHD..GEN MEDIUM CHARCOAL,TRIM1#,9# |
1 | ||
| 63310-1A620B0 |
AE111,CE110,EE110..LHD..(3FC,4FC,5F)..GEN W(MOON ROOF),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63310-1A620B0 |
AE111,CE110,EE110..LHD..(3FC,4FC,5F)..GEN W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#,9# |
1 | ||
| 63310-1A620B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..(GL,XL,XLI)..GEN W(MOON ROOF),MEDIUM CHARCOAL,TRIM10,14 |
1 | ||
| 63310-1A600B0 |
AE111,CE110,EE110..LHD..SED..GEN MEDIUM CHARCOAL,TRIM10,14 |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P0 |
EE110..5F..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN W(MOON ROOF),SHADOW GRAY,TRIM10,14 |
3 | ||
| 90467-05021B6 |
EE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-05021B6 |
AE111..SED..GEN;CE110,EE110..(GL,XL)..GEN W(MOON ROOF),MD.CHARCOAL,TRIM1#,9# |
3 | ||
| 90467-05021P0 |
EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN SHADOW GRAY,TRIM10,14 |
4 | ||
| 90467-05021B8 |
AE11#,EE11# LI. GRAY,TRIM1# |
3 | ||
| 90467-05021B6 |
EE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN W(MOON ROOF),MD.CHARCOAL,TRIM10,14 |
3 | ||
| 90467-05021B6 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
4 | ||
| 90467-05021B6 |
CE110,EE110..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN W(MOON ROOF),MD.CHARCOAL,TRIM10,14 |
3 | ||
| 90467-05021B6 |
CE110,EE110..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-05021B6 |
AE111,112,CE110,EE110..SED..(3FC,4FC,5F)..(ARL,GEN) W(MOON ROOF),MD.CHARCOAL,TRIM1# |
3 | ||
| 90467-05021P0 |
AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN SHADOW GRAY,TRIM10,14 |
4 | ||
| 90467-05021P0 |
AE111,CE110,EE110..SED..(GL,GLI,XL,XLI)..GEN W(MOON ROOF),SHADOW GRAY,TRIM10,14 |
3 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-12160 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
2 | ||
| 63341-12160 |
AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,VEN) |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-12160 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
2 | ||
| 63341-12160 |
AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,VEN) |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-12160 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
2 | ||
| 63341-12160 |
AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,VEN) |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-12050 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 63343-12050 |
AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,VEN) |
1 | ||

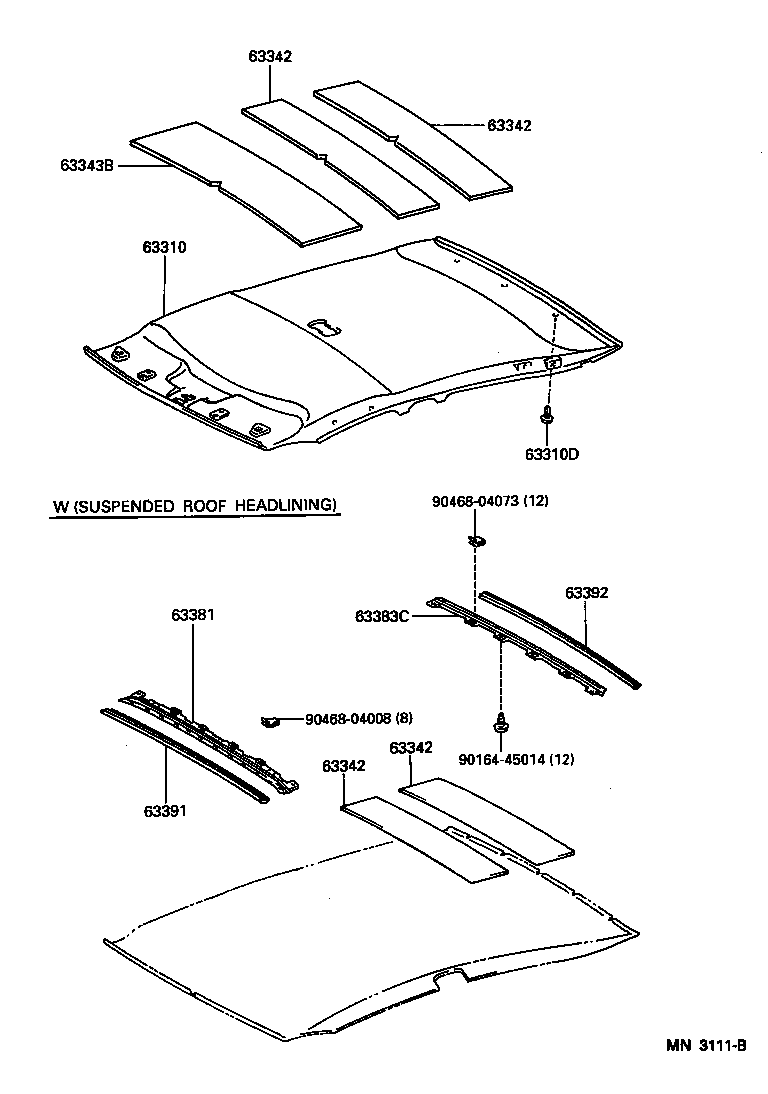

(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-1A450B0 |
AE11#,EE11# LT. GRAY,TRIM1# |
1 | ||
| 63310-1A600B0 |
AE111,CE110,EE110..LHD..GEN MEDIUM CHARCOAL,TRIM1#,9# |
1 | ||
| 63310-1A620B0 |
AE111,CE110,EE110..LHD..(3FC,4FC,5F)..GEN W(MOON ROOF),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 63310-1A620B0 |
AE111,CE110,EE110..LHD..(3FC,4FC,5F)..GEN W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#,9# |
1 | ||
| 63310-1A620B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..(GL,XL,XLI)..GEN W(MOON ROOF),MEDIUM CHARCOAL,TRIM10,14 |
1 | ||
| 63310-1A600B0 |
AE111,CE110,EE110..LHD..SED..GEN MEDIUM CHARCOAL,TRIM10,14 |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P0 |
EE110..5F..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN W(MOON ROOF),SHADOW GRAY,TRIM10,14 |
3 | ||
| 90467-05021B6 |
EE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-05021B6 |
AE111..SED..GEN;CE110,EE110..(GL,XL)..GEN W(MOON ROOF),MD.CHARCOAL,TRIM1#,9# |
3 | ||
| 90467-05021P0 |
EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN SHADOW GRAY,TRIM10,14 |
4 | ||
| 90467-05021B8 |
AE11#,EE11# LI. GRAY,TRIM1# |
3 | ||
| 90467-05021B6 |
EE110..LHD..3FC;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN W(MOON ROOF),MD.CHARCOAL,TRIM10,14 |
3 | ||
| 90467-05021B6 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
4 | ||
| 90467-05021B6 |
CE110,EE110..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN W(MOON ROOF),MD.CHARCOAL,TRIM10,14 |
3 | ||
| 90467-05021B6 |
CE110,EE110..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN;AE111..LHD..SED..(GL,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
4 | ||
| 90467-05021B6 |
AE111,112,CE110,EE110..SED..(3FC,4FC,5F)..(ARL,GEN) W(MOON ROOF),MD.CHARCOAL,TRIM1# |
3 | ||
| 90467-05021P0 |
AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN SHADOW GRAY,TRIM10,14 |
4 | ||
| 90467-05021P0 |
AE111,CE110,EE110..SED..(GL,GLI,XL,XLI)..GEN W(MOON ROOF),SHADOW GRAY,TRIM10,14 |
3 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-12160 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
2 | ||
| 63341-12160 |
AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,VEN) |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-12160 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
2 | ||
| 63341-12160 |
AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,VEN) |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-12160 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
2 | ||
| 63341-12160 |
AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,VEN) |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-12160 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
2 | ||
| 63341-12160 |
AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,VEN) |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-12050 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 63343-12050 |
AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,VEN) |
1 | ||
| Common parts | ||||
| 90164-45014 | ||||
| 90468-04008 | ||||
| 90468-04073 | ||||
