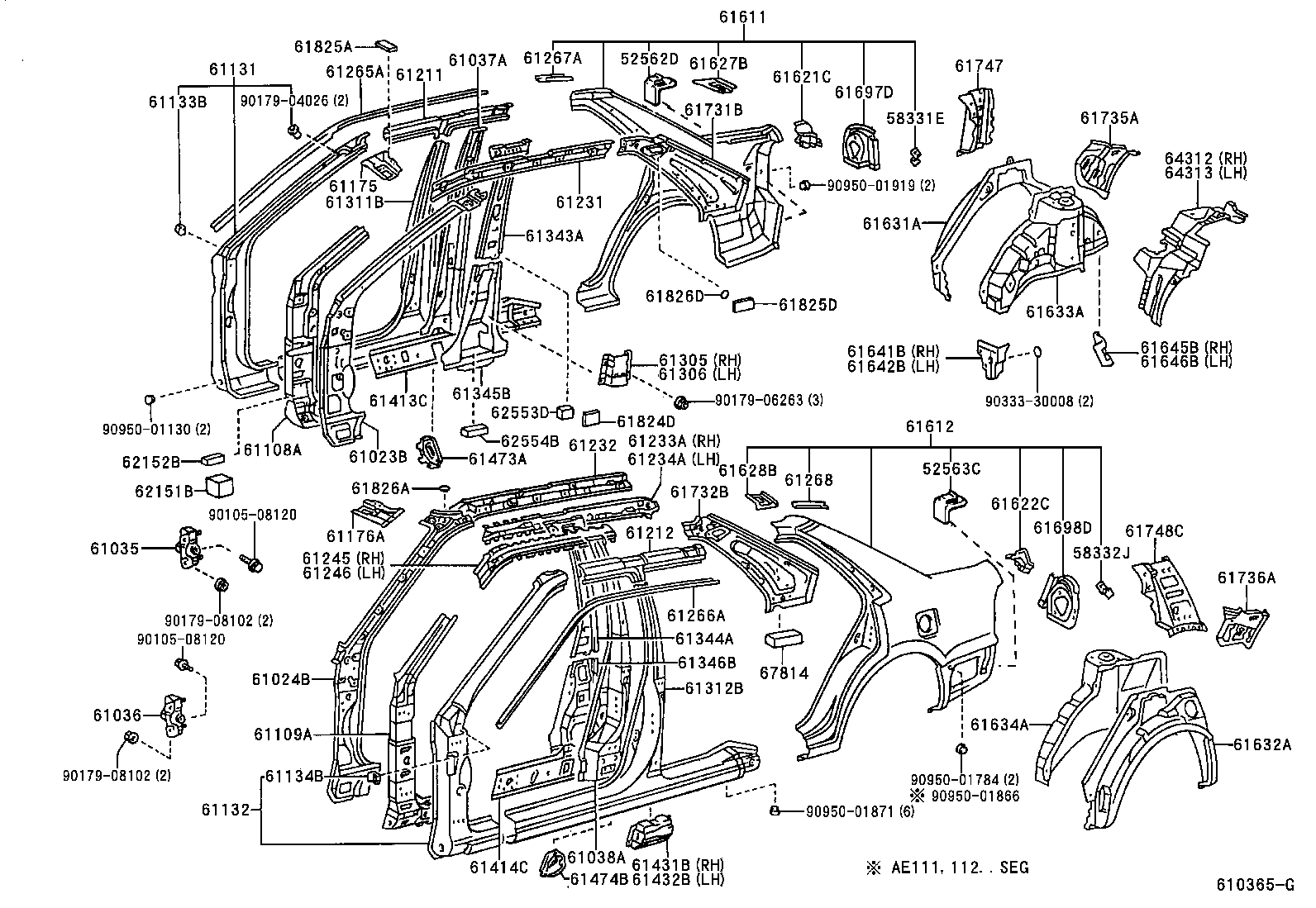

EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg
(9704- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562D - RETAINER, REAR BUMPER, UPPER SIDE, RH | ||||
| 52562-12060 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52562-12060 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52563C - RETAINER, REAR BUMPER, UPPER SIDE, LH | ||||
| 52562-12060 |
EE110..LHD..3FC;AE112,EE111..SED..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52562-12060 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 52562-12060 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 52562-12060 |
AE110,111,CE110,EE11#..SED;AE112..SED..(ARL,BZ,GCC,IDN,VEN) |
1 | ||
| 52562-12060 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL,GLI,XL,XLI) |
1 | ||
| 52562-12060 |
AE112..SED..XLI..(BZ,GCC,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,PHL,TUR,VEN) |
1 | ||
| 58331E - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 58331-12030 |
AE111..SED..(GCC,GEN,TUR);AE110,112,CE110,EE11#..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 58331-12030 |
AE111,ZZE11#..SED..(GCC,GEN,TUR);AE112,EE111..SED..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE110,CE110,EE110..SED..(GL,GLI,XL)..(GCC,GEN) |
1 | ||
| 58331-12030 |
AE111..SED..(GCC,GEN,TUR);AE110,112,CE110,EE11#..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 58332J - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 58332-12030 |
AE111..SED..(GCC,GEN,TUR);AE110,112,CE110,EE11#..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 58332-12030 |
AE111,ZZE11#..SED..(GCC,GEN,TUR);AE112,EE111..SED..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE110,CE110,EE110..SED..(GL,GLI,XL)..(GCC,GEN) |
1 | ||
| 58332-12030 |
AE111..SED..(GCC,GEN,TUR);AE110,112,CE110,EE11#..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-12240 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 61023-12090 |
AE11#,EE11# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-12090 |
AE11#,EE11# |
1 | ||
| 61024-12240 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-12100 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 61035-12100 |
AE111,112,CE110,EE110..LHD |
1 | ||
| 61035-12100 |
AE112,CE110..LHD;EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-12100 |
AE11#,EE11# |
1 | ||
| 61037-12901 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61037-12901 |
AE110,CE110,EE110..GL,GLI,STD,XL;AE111,112,EE111..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61037-12901 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61037-12901 |
AE111..WG..5F;AE112..LHD..XLI;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,VEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-12901 |
AE111..WG..5F;AE112..LHD..XLI;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,VEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61038-12901 |
AE110,CE110,EE110..GL,GLI,STD,XL;AE111,112,EE111..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61038-12901 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61038-12901 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61038-12100 |
AE11#,EE11# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12190 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 61108-12160 |
AE11#,EE11# |
1 | ||
| 61108-12190 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12180 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 61109-12150 |
AE11#,EE11# |
1 | ||
| 61109-12180 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12510 |
EE110..LHD..(GCC,GEN);AE111,112,CE110..LHD..(GCC,GEN,TUR,VEN) |
1 | ||
| 61131-12450 |
AE11#,EE11# |
1 | ||
| 61131-12510 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 61131-12580 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,VEN) |
1 | ||
| 61131-12510 |
AE112..LHD..XLI;AE111,CE110,EE11#..LHD;AE112..(GLI,SEG)..(BZ,GCC,IDN,VEN) |
1 | ||
| 61131-12580 |
AE112..(GLI,SEG)..(BZ,GCC,IDN,VEN);AE111,CE110,EE111..LHD..(GCC,GEN,GENKD,PHL,VEN);AE112,EE110..LHD..(GL,STD,XL,XLI)..(BZ,GCC,GEN) |
1 | ||
| 61131-12510 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12590 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,VEN) |
1 | ||
| 61132-12450 |
AE11#,EE11# |
1 | ||
| 61132-12520 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 61132-12520 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 61132-12590 |
EE110..LHD..(GCC,GEN);AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN) |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-12190 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,CE110,EE111..(GLI,STD,XL)..(GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
2 | ||
| 61133-12190 |
EE111..LHD;AE111,112..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,NZ,TUR,VEN) |
2 | ||
| 61133-12190 |
EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110..(GL,SEG,XL)..GEN;AE111..LHD..SED..5F..XLI..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 61133-12190 |
AE11#,EE11# |
1 | ||
| 61133-12190 |
EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN |
2 | ||
| 61133-12190 |
AE111,CE110..GL,XL;EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..LHD..5F..XLI..GEN;AE111..SED..4FC..XLI..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 61133-12190 |
EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110..(GL,XL)..GEN;AE111..LHD..SED..5F..XLI..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 61133-12190 |
EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 61134B - BRACKET, FRONT BODY PILLAR OUTER, LH | ||||
| 61133-12190 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,CE110,EE111..(GLI,STD,XL)..(GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
2 | ||
| 61133-12190 |
AE11#,EE11# |
1 | ||
| 61133-12190 |
AE111,CE110..GL,XL;EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..LHD..5F..XLI..GEN;AE111..SED..4FC..XLI..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 61133-12190 |
EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 61133-12190 |
EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110..(GL,XL)..GEN;AE111..LHD..SED..5F..XLI..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 61133-12190 |
EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN |
2 | ||
| 61133-12190 |
EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110..(GL,SEG,XL)..GEN;AE111..LHD..SED..5F..XLI..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 61133-12190 |
EE111..LHD;AE111,112..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,NZ,TUR,VEN) |
2 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12350 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 61211-12350 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12350 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 61212-12350 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-12840 |
AE11#,EE11# |
1 | ||
| 61231-1A040 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61231-1A040 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-12810 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61232-12720 |
AE11#,EE11# |
1 | ||
| 61232-12810 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-12120 |
EE110..LHD..3FC;AE112,EE111..SED..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61233-12120 |
AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN) W(MOON ROOF) |
1 | ||
| 61233-12150 |
AE11#,CE110,EE11#..SED..(ARL,GCC,GEN) |
1 | ||
| 61233-12120 |
AE110,CE110,EE110..SED..(GL,GLI,STD,XL);AE111,112,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61233-12150 |
ZZE11#;AE11#,CE110,EE11#..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-12080 |
AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN) W(MOON ROOF) |
1 | ||
| 61234-12110 |
ZZE11#;AE11#,CE110,EE11#..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61234-12080 |
EE110..LHD..3FC;AE112,EE111..SED..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61234-12080 |
AE110,CE110,EE110..SED..(GL,GLI,STD,XL);AE111,112,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61234-12110 |
AE11#,CE110,EE11#..SED..(ARL,GCC,GEN) |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-12010 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE112,ZZE11#..SED..(ARL,GCC,TUR,VEN);AE110,111,CE110,EE111..SED..(GCC,GEN,VEN) |
1 | ||
| 61245-12010 |
EE110..LHD..3FC;AE112,EE111..SED..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61245-12010 |
AE110,CE110,EE110..SED..(GL,GLI,STD,XL);AE111,112,EE111..SED..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61245-12010 |
AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,VEN);AE112,EE110..SED..(GL,STD,XL,XLI)..(BZ,GCC,GEN);AE110,112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,PHL,VEN) |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-12010 |
EE110..LHD..3FC;AE112,EE111..SED..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61246-12010 |
AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,VEN);AE112,EE110..SED..(GL,STD,XL,XLI)..(BZ,GCC,GEN);AE110,112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,PHL,VEN) |
1 | ||
| 61246-12010 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE112,ZZE11#..SED..(ARL,GCC,TUR,VEN);AE110,111,CE110,EE111..SED..(GCC,GEN,VEN) |
1 | ||
| 61246-12010 |
AE110,CE110,EE110..SED..(GL,GLI,STD,XL);AE111,112,EE111..SED..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH | ||||
| 61265-12230 |
AE11#,EE11# |
1 | ||
| 61265-12230 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61265-12230 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61265-12230 |
AE111..WG..5F;AE112..GLI,SEG;AE112,EE111..(STD,XLI)..(BZ,GCC,GEN,IDN,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 61265-12230 |
AE111..MA;AE110,CE110,EE110..GL,GLI,STD,XL;AE112,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TUR,VEN;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61265-12230 |
AE11#,CE110,EE11# |
1 | ||
| 61265-12230 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH | ||||
| 61266-12230 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61266-12230 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61266-12230 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61266-12230 |
AE111..MA;AE110,CE110,EE110..GL,GLI,STD,XL;AE112,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TUR,VEN;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61266-12230 |
AE11#,CE110,EE11# |
1 | ||
| 61266-12230 |
AE111..WG..5F;AE112..GLI,SEG;AE112,EE111..(STD,XLI)..(BZ,GCC,GEN,IDN,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 61266-12230 |
AE11#,EE11# |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-12210 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61267-12210 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-12210 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61268-12210 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-12130 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61305-12130 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-12130 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61306-12130 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12310 |
EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN,VEN) |
1 | ||
| 61311-12290 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61311-12240 |
AE11#,EE11# |
1 | ||
| 61311-12290 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 61311-12290 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61311-12310 |
ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN |
1 | ||
| 61311-12290 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61311-12290 |
AE112..ARL,BZ,GCC,GEN,IDN,VEN;AE110,111,CE110,EE11#..GL,GLI,STD,XL,XLI |
1 | ||
| 61311-12290 |
AE110,111,CE110,EE11#;AE112..ARL,BZ,GCC,GEN,IDN,VEN |
1 | ||
| 61311-12310 |
EE110..GCC,GEN;AE11#,CE110,EE111..ARL,BZ,GCC,GEN,GENKD,IDN,PHL,VEN |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12280 |
AE11#,EE11# |
1 | ||
| 61312-12330 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61312-12350 |
ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN |
1 | ||
| 61312-12330 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61312-12330 |
AE112..ARL,BZ,GCC,GEN,IDN,VEN;AE110,111,CE110,EE11#..GL,GLI,STD,XL,XLI |
1 | ||
| 61312-12330 |
AE110,111,CE110,EE11#;AE112..ARL,BZ,GCC,GEN,IDN,VEN |
1 | ||
| 61312-12350 |
EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN,VEN) |
1 | ||
| 61312-12330 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 61312-12330 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61312-12350 |
EE110..GCC,GEN;AE11#,CE110,EE111..ARL,BZ,GCC,GEN,GENKD,IDN,PHL,VEN |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12120 |
AE11#,EE11# |
1 | ||
| 61343-12160 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61343-12160 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12160 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61344-12160 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61344-12120 |
AE11#,EE11# |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-12030 |
AE11#,EE11# |
1 | ||
| 61345-12040 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61345-12040 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-12030 |
AE11#,EE11# |
1 | ||
| 61346-12040 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61346-12040 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-12080 |
AE11#,EE11# |
1 | ||
| 61413-12900 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61413-12900 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61413-12900 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61413-12900 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN |
1 | ||
| 61413-12900 |
AE111..WG..5F;AE112..LHD..XLI;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
1 | ||
| 61413-12900 |
AE110,CE110,EE110..GL,GLI,STD,XL;AE111,112,EE111..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-12900 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61414-12100 |
AE11#,EE11# |
1 | ||
| 61414-12900 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61414-12900 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61414-12900 |
AE111..WG..5F;AE112..LHD..XLI;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
1 | ||
| 61414-12900 |
AE110,CE110,EE110..GL,GLI,STD,XL;AE111,112,EE111..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61414-12900 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN |
1 | ||
| 61431B - REINFORCEMENT, ROCKER PANEL, NO.6 RH | ||||
| 61431-12010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61431-12010 |
AE110,CE110,EE110..GL,GLI,STD,XL;AE111,112,EE111..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61431-12010 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN |
1 | ||
| 61431-12010 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61431-12010 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61431-12010 |
AE111..WG..5F;AE112..LHD..XLI;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
1 | ||
| 61432B - REINFORCEMENT, ROCKER PANEL, NO.6 LH | ||||
| 61432-12010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61432-12010 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN |
1 | ||
| 61432-12010 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61432-12010 |
AE111..WG..5F;AE112..LHD..XLI;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
1 | ||
| 61432-12010 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61432-12010 |
AE110,CE110,EE110..GL,GLI,STD,XL;AE111,112,EE111..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61473A - PLATE, PILLAR NO.3, LOWER RH | ||||
| 61473-12030 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61473-12030 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61473-12030 |
AE111..WG..5F;AE112..LHD..XLI;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
1 | ||
| 61473-12030 |
AE110,CE110,EE110..GL,GLI,STD,XL;AE111,112,EE111..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61473-12030 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61473-12030 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN |
1 | ||
| 61474B - PLATE, PILLAR NO.4, LOWER LH | ||||
| 61474-12030 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 61474-12030 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
1 | ||
| 61474-12030 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61474-12030 |
AE110,CE110,EE110..GL,GLI,STD,XL;AE111,112,EE111..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 61474-12030 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN |
1 | ||
| 61474-12030 |
AE111..WG..5F;AE112..LHD..XLI;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1E930 |
AE11#,EE11# |
1 | ||
| 61601-1E933 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL,GLI,XL,XLI) |
1 | ||
| 61601-1E933 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61601-1E933 |
AE110,111,CE110,EE11#..SED;AE112..SED..(ARL,BZ,GCC,IDN,VEN) |
1 | ||
| 61601-1E933 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61601-1E933 |
EE110..LHD..3FC;AE112,EE111..SED..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61601-1E933 |
AE11#,CE110,EE11#..SED..(GL,GLI,STD,XL,XLI) |
1 | ||
| 61601-1E933 |
AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1E936 |
AE11#,EE11# |
1 | ||
| 61602-1E942 |
AE111,112,CE110,EE110..LHD..SED..(STD,XL,XLI)..(GCC,GEN) |
2 | ||
| 61602-1E942 |
ZZE11#;EE110..RHD;AE111..GLI..TUR;AE111..RHD..(GL,GLI)..GEN;EE110..LHD..SED..(STD,XL)..(GCC,GEN);AE110,112,CE110,EE111..SED..(ARL,GEN,VEN);AE111,112..SED..(XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-12440 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61621-12350 |
AE11#,EE11# |
2 | ||
| 61621-12440 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-12440 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61622-12440 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61622-12350 |
AE11#,EE11# |
2 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-12130 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61627-12130 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-12140 |
EE110..SED..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61628-12140 |
AE112..SED..XLI..(BZ,GCC,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,PHL,TUR,VEN) |
1 | ||
| 61628-12140 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL,GLI,XL,XLI) |
1 | ||
| 61628-12140 |
AE110,111,CE110,EE11#..SED;AE112..SED..(ARL,BZ,GCC,IDN,VEN) |
1 | ||
| 61628-12140 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61628-12140 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-12320 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61631-12320 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61631-12300 |
AE11#,EE11# |
2 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12340 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61632-12340 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61632-12320 |
AE11#,EE11# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-12922 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61607-12922 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-12920 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61608-12920 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61641B - GUSSET, QUARTER WHEEL HOUSE, RH | ||||
| 61641-12070 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 61641-12070 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61642B - GUSSET, QUARTER WHEEL HOUSE, LH | ||||
| 61642-12070 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61642-12070 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-12120 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-12110 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 61646-12110 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-12040 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61697-12040 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-12040 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 61698-12040 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-12650 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61731-12650 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-12590 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61732-12590 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12360 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61735-12360 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12350 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61736-12350 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-12260 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61747-12260 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-12260 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 61748-12260 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-50020 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 61824-50020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61815-32020 |
AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN) 70X110 |
2 | ||
| 61815-32020 |
EE110..SED..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..SED..(ARL,GCC,GEN,VEN) 70X110 |
2 | ||
| 61815-32020 |
AE111..MA;AE110..GLI;AE111,EE11#..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110..SED..(ARL,BZ,GCC,IDN,NZ,TH,VEN) 70X110 |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-12040 |
AE112..GCC,VEN;CE110..XL..GEN;AE111..RHD..WG..5F;AE110,EE11#..GCC,GEN;AE111..SED..(GCC,GEN,VEN) T=0.8 |
2 | ||
| 61824-12050 |
AE112..GCC,VEN;EE110..LHD..3FC;AE111..RHD..WG..5F;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) T=0.3 |
2 | ||
| 61824-12040 |
AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,112..GCC,IDN,NZ,TH,VEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,NZ,PHL,VEN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) T=0.8 |
2 | ||
| 61824-12050 |
AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,112..GCC,IDN,NZ,TH,VEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,NZ,PHL,VEN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) T=0.3 |
2 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-12050 |
EE110..LHD..3FC;AE111,112,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) T=0.3 |
2 | ||
| 61824-12050 |
AE111..MA;AE110,112..SED..(GCC,IDN,NZ,TH,VEN);AE110,CE110,EE110..SED..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,NZ,PHL,VEN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) T=0.3 |
2 | ||
| 61824-12040 |
CE110,EE110..SED..(GL,STD,XL)..(GCC,GEN);AE11#,EE111..SED..(GL,GLI,SEG,XL,XLI)..(GCC,GEN,VEN) T=0.8 |
2 | ||
| 61824-12040 |
AE111..MA;AE110,112..SED..(GCC,IDN,NZ,TH,VEN);AE110,CE110,EE110..SED..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,NZ,PHL,VEN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) T=0.8 |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
AE111..RHD..WG..5F;AE110,EE110..GCC,GEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE112,EE111..(STD,XLI)..(GCC,GEN,VEN);AE112,CE110..(GLI,XL)..(ARL,GCC,GEN,VEN) 90 X 140 |
2 | ||
| 62554-12160 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 25X70X150 |
2 | ||
| 62152-12050 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 90 X 140 |
2 | ||
| 62554-12160 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) 25X70X150 |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-12120 |
AE11#,EE11# |
2 | ||
| 62553-12120 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
4 | ||
| 62553-12120 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12160 |
EE11#..GCC,GEN;AE11#,CE110..ARL,GCC,GEN,TUR 25X70X150 |
2 | ||
| 62554-12130 |
AE11#,EE11# 30X80X180 |
2 | ||
| 62554-12160 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 25X70X150 |
2 | ||
| 62554-12160 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) 25X70X150 |
2 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64301-12260 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 64301-12260 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64302-12260 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 64302-12260 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 67814 - PAD, QUARTER PANEL SILENCER, NO.2 | ||||
| 67814-12020 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
2 | ||
| 67814-12020 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
2 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-04026 | ||||
| 90179-06263 | ||||
| 90179-08102 | ||||
| 90333-30008 | ||||
| 90950-01130 | ||||
| 90950-01784 | ||||
| 90950-01866 | ||||
| 90950-01871 | ||||
| 90950-01919 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
