EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg
(9505- )SED

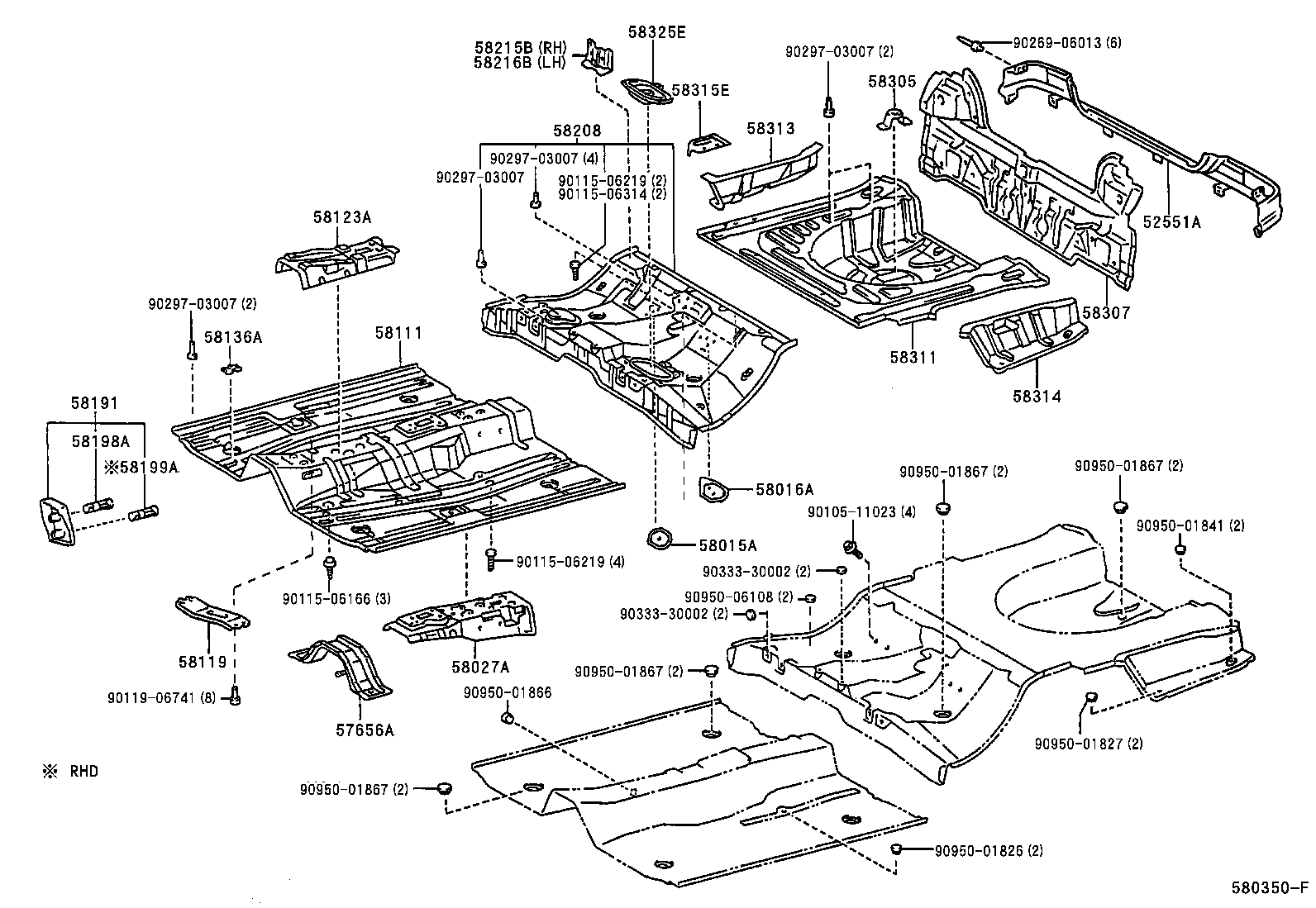

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52551A - FILLER, REAR BUMPER | ||||
| 52551-12040 |
AE11#,EE11# |
1 | ||
| 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 | ||||
| 57656-12080 |
AE11#,EE11#..ARL,GCC,GEN,VEN |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-12040 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 58015-12040 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-12010 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 58016-12010 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-12121 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 58027-12121 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-12261 |
AE11#,EE11# |
1 | ||
| 58111-12262 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-12060 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 58013-12060 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12030 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 58136-12030 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-12060 |
AE111..GLI..TUR;AE111,112,CE110,EE110..LHD..(GL,GLI,SEG,XL,XLI)..(GCC,GEN,GENKD,PHL,VEN) |
1 | ||
| 58192-12060 |
AE111,112,CE110,EE110,ZZE11#..LHD..(3FC,4FC,5F)..(GCC,GEN,TUR,VEN) |
1 | ||
| 58192-12060 |
AE111..GLI..TUR;AE111..LHD..SED..(GCC,GEN,VEN);EE110..LHD..(GL,XL)..(GCC,GEN);AE112,CE110,ZZE11#..LHD..(GCC,GEN,TUR,VEN) |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-12040 |
AE111..GLI..TUR;AE111..LHD..SED..(GCC,GEN,VEN);EE110..LHD..(GL,XL)..(GCC,GEN);AE112,CE110,ZZE11#..LHD..(GCC,GEN,TUR,VEN) |
2 | ||
| 58198-12040 |
AE111,112,CE110,EE110,ZZE11#..LHD..(3FC,4FC,5F)..(GCC,GEN,TUR,VEN) |
2 | ||
| 58198-12040 |
AE111..GLI..TUR;AE111,112,CE110,EE110..LHD..(GL,GLI,SEG,XL,XLI)..(GCC,GEN,GENKD,PHL,VEN) |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-12901 |
AE11#,EE11# |
1 | ||
| 58211-12911 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 58211-12911 |
AE111..MA;AE112..LHD..SED..XLI;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-12041 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 58215-12041 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-12040 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 58216-12040 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-12040 |
AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR);AE110,112,CE110,EE11#..GCC,GEN |
1 | ||
| 58351-12040 |
AE111..SED;AE110,EE11#;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN) |
1 | ||
| 58351-12040 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,TUR);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR |
1 | ||
| 58351-12040 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-1A450 |
AE112..LHD..SED;EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..SED..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) |
1 | ||
| 58307-1A901 |
AE11#,EE11#..XL,XLI INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 58307-1A450 |
AE111..MA;AE110,112..SED..XLI..(GCC,TH);AE110,112,EE110..SED..(GL,GLI,SEG,XL)..(GCC,GEN,IDN,TH,VEN);AE111,CE110,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH) |
1 | ||
| 58307-1A530 |
EE110..LHD..3FC;AE111,112,EE111..SED..(XL,XLI)..(GCC,GEN);CE110,EE110..SED..MTM..(STD,XL)..(GCC,GEN) INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 58307-1A450 |
EE110..LHD..3FC;CE110,EE110..SED..5F..XL..(GCC,GEN);AE111,112,EE111..SED..(XL,XLI)..(GCC,GEN) W(SPLIT TYPE REAR SEAT) |
1 | ||
| 58307-1A530 |
AE111,112,CE110,EE11#..SED..(STD,XL,XLI)..(GCC,GEN) INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-12210 |
AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR);AE110,112,CE110,EE11#..GCC,GEN |
1 | ||
| 58311-12210 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 58311-12210 |
AE111..SED;AE110,EE11#;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN) |
1 | ||
| 58311-12210 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,TUR);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-12904 |
AE11#,EE11# |
1 | ||
| 58313-12904 |
EE110..LHD..3FC;AE112,EE111..SED..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 58313-12904 |
AE111..MA;AE110..GLI;AE110,112..SED..(GCC,IDN,NZ,TH);AE111,CE110,EE11#..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH,TUR) |
1 | ||
| 58313-12904 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 58313-12904 |
AE110,111,EE11#..SED;AE112,CE110..GLI,SEG,XL;AE112..SED..XLI..(BZ,GCC,IDN) |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-12250 |
AE111..SED..(GCC,GEN,TUR);AE110,112,CE110,EE11#..SED..(GCC,GEN) |
1 | ||
| 58314-12250 |
AE111..MA;AE110..GLI;AE110,112..SED..(GCC,IDN,NZ,TH);AE111,CE110,EE11#..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH,TUR) |
1 | ||
| 58314-12250 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 58314-12250 |
AE110,111,EE11#..SED;AE112,CE110..GLI,SEG,XL;AE112..SED..XLI..(BZ,GCC,IDN) |
1 | ||
| 58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH | ||||
| 58315-12070 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 58315-12070 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,TUR);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR |
1 | ||
| 58315-12070 |
AE111..SED;AE110,EE11#;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN) |
1 | ||
| 58315-12070 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12100 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 58325-12100 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| Common parts | ||||
| 90105-11023 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90115-06314 | ||||
| 90119-06741 | ||||
| 90269-06013 | ||||
| 90297-03007 | ||||
| 90333-30002 | ||||
| 90950-01826 | ||||
| 90950-01827 | ||||
| 90950-01841 | ||||
| 90950-01866 | ||||
| 90950-01867 | ||||
| 90950-06108 | ||||
