EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg

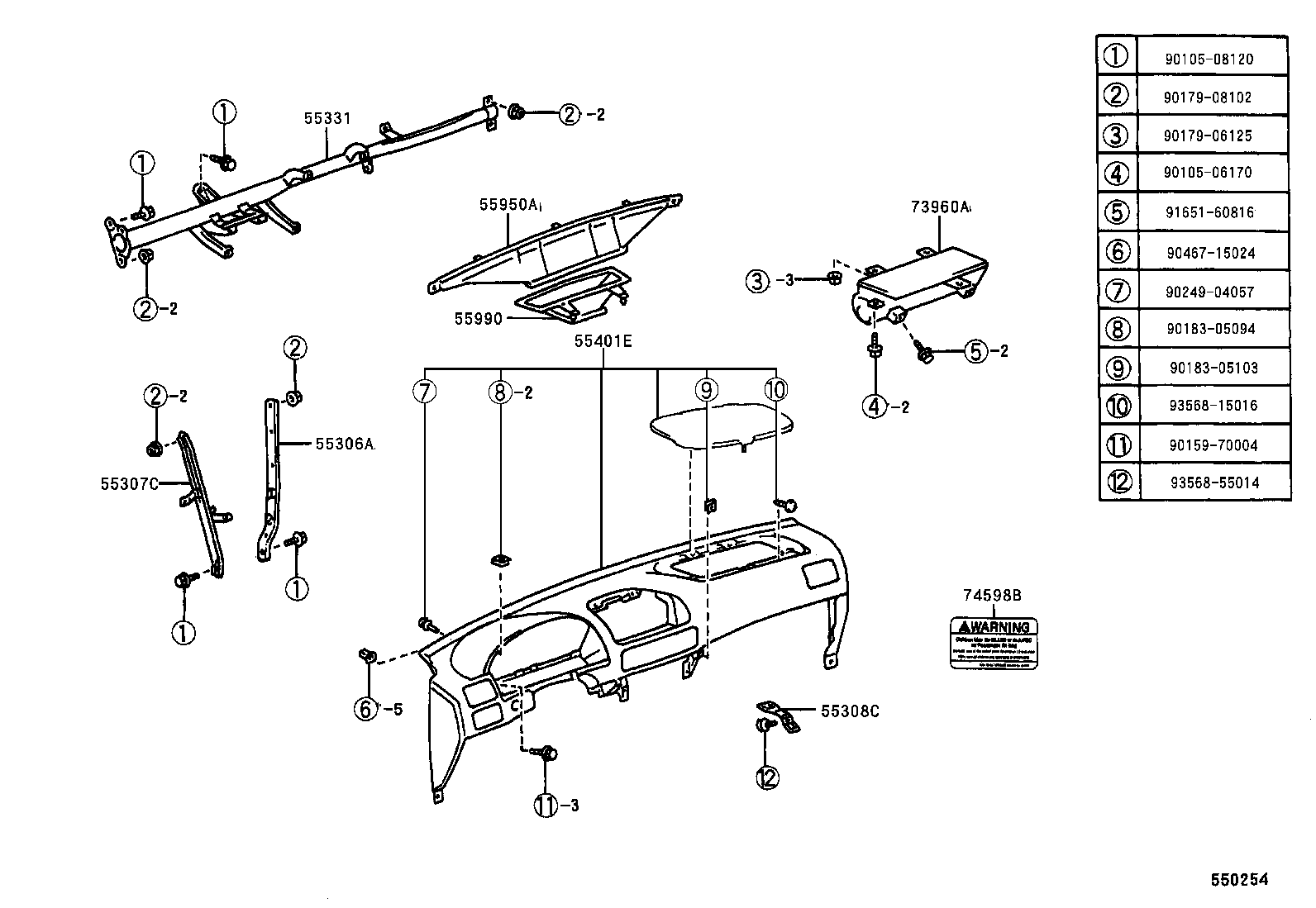

ILLUST NO. 1 OF 2(9704- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12230 |
AE11#,EE11# |
1 | ||
| 55306-12290 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12240 |
AE11#,EE11# |
1 | ||
| 55307-12270 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12260 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 55308-12260 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12280 |
AE11#,EE11# |
1 | ||
| 55330-12341 |
EE110..LHD..(GCC,GEN);AE111..LHD..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN) |
1 | ||
| 55330-12340 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 55330-12340 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 55330-12341 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55330-12340 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-12420B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
1 | ||
| 55401-12470B1 |
AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55401-12560B1 |
AE111,CE110,EE110..LHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55401-12560B1 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55401-12550B0 |
AE111,CE110,EE110..LHD..SED..GEN W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55401-12470B1 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55401-12540B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12190 |
AE11#,EE11# |
1 | ||
| 55950-12230 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55990 - NOZZLE ASSY, CENTER DEFROSTER | ||||
| 55990-12030 |
AE11#,EE11# |
1 | ||
| 55990-12040 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12090 |
EE110..LHD..(GCC,GEN,PHL);AE111,112,CE110,EE111..LHD..(GL,GLI,SEG,XL,XLI)..(BZ,GCC,GEN,PHL,TUR,VEN) |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 74598-20010 |
AE112..LHD..XLI;AE111,112..(GLI,SEG)..(ARL,BZ,GCC,IDN,MA,NZ,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,NZ,PHL);AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,MA,NZ,PHL,TUR,VEN) |
1 | ||
| 74598-20010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 74598-20010 |
AE111..WG..5F;AE111..GLI..TH;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,PHL);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,MA,PHL,TUR,VEN) |
1 | ||
| Common parts | ||||
| 90105-06170 | ||||
| 90105-08120 | ||||
| 90159-70004 | ||||
| 90179-06125 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90249-04057 | ||||
| 90467-15024 | ||||
| 91651-60816 | ||||
| 93568-15016 | ||||
| 93568-55014 | ||||

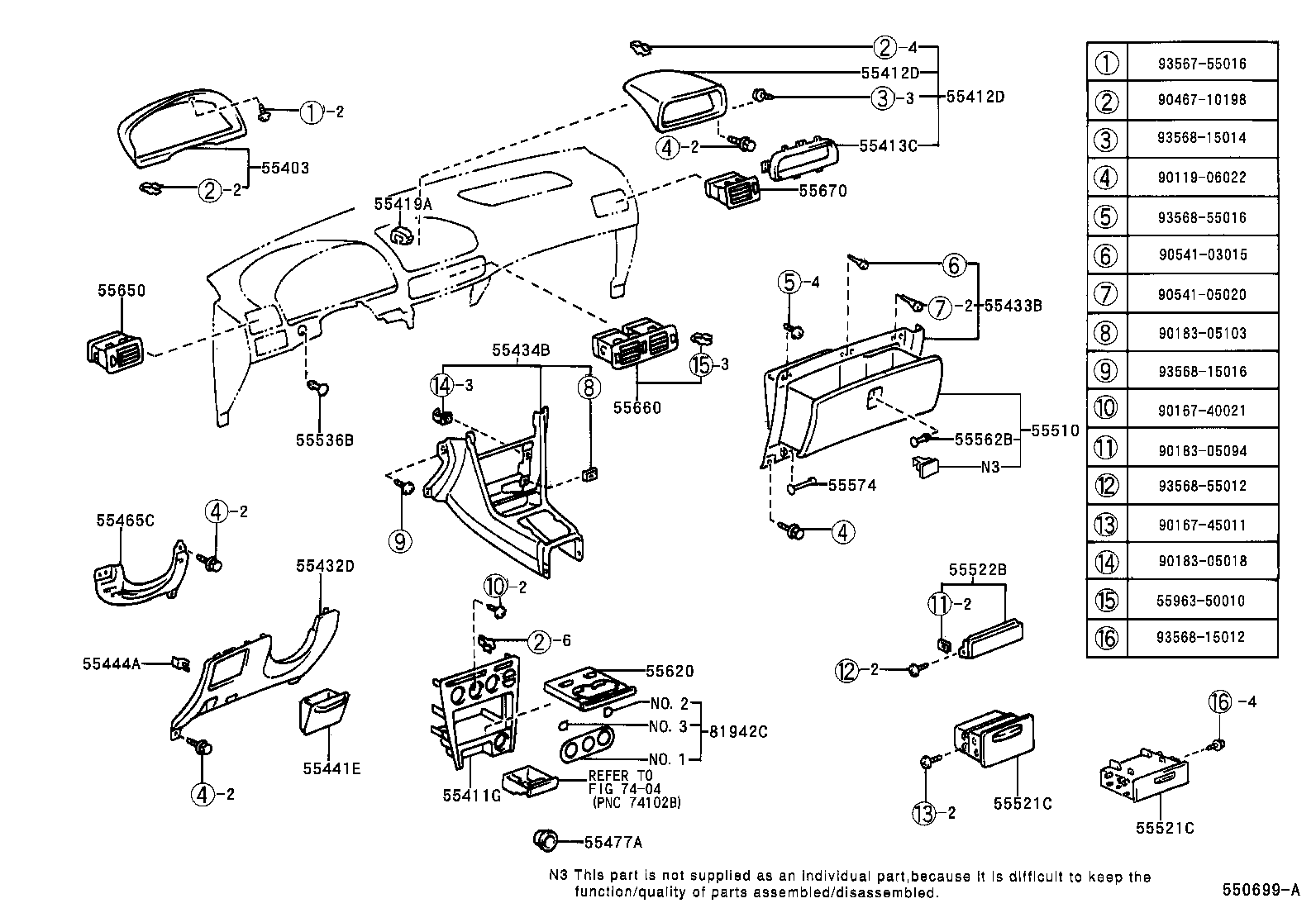

ILLUST NO. 2 OF 2(9704- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-12020 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55410-1A160 |
AE11#,EE11# |
1 | ||
| 55411-12908B1 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55411-12908B1 |
AE111,CE110,EE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55411-12908B1 |
AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55411-12908B1 |
AE111,CE110,EE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1A060B0 |
AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55405-12670 |
AE11#,EE11# |
1 | ||
| 55405-1A060B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1A060B0 |
AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55405-12670 |
AE11#,EE11# |
1 | ||
| 55405-1A060B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-12470 |
AE111,112,CE110,EE11#..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN) |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-14020 |
AE11#,EE11# |
2 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-12380B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
1 | ||
| 55432-12400B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 55432-12400B0 |
AE111,CE110,EE110..LHD..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12110B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
1 | ||
| 55433-12170B0 |
AE111,CE110,EE110..LHD..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 55433-12170B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-12150B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
1 | ||
| 55434-12180B0 |
AE111,CE110,EE110..LHD..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 55434-12180B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-12110B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
1 | ||
| 55441-12140B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 55441-12140B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 55441-12140B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12050 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 55444-12050 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 55465C - INSERT, INSTRUMENT PANEL LOWER PAD, LH | ||||
| 55465-12060 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-33010 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12330B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
1 | ||
| 55550-12370B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 55550-12370B0 |
AE111,CE110,EE110..LHD..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-12010B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55521-16040 |
AE11#,EE11# |
1 | ||
| 55520-12010B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55520-12010B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-12010B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55521-16040 |
AE11#,EE11# |
1 | ||
| 55520-12010B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55520-12010B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..ARL,GCC,GEN |
1 | ||
| 55522-32010 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN |
1 | ||
| 55522-32010 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE110,EE11#..GCC,GEN,PHL;AE111..SED..(ARL,GCC,GEN,PHL);AE112,CE110..(GLI,SEG,XL)..(ARL,GCC,GEN,PHL) |
1 | ||
| 55522-32010 |
AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,PHL) |
1 | ||
| 55536B - COVER, LIGHT CONTROL SWITCH HOLE | ||||
| 55536-12020B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK CHACOAL,TRIM1#,9# |
1 | ||
| 55536-12020B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK CHACOAL,TRIM10,14 |
1 | ||
| 55536-12020B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK CHACOAL,TRIM10,14 |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
2 | ||
| 55562-10010 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 55562-10010 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 55562-10010 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 55574-10010 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-12030B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55604-12030B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55604-12030B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12210 |
AE11#,EE11# |
1 | ||
| 55650-12230B0 |
AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55650-12230B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12290B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55660-12290B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55660-12290B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55660-12250 |
AE11#,EE11# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12230B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
1 | ||
| 55670-12270B0 |
AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55670-12270B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 81942C - SHEET, HEATER CONTROL NAME | ||||
| 81942-12510B1 |
EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN DK.CHARCOAL,TRIM10,14,NO.2 |
1 | ||
| 81942-12450B1 |
AE111,CE110,EE110..LHD..GEN W(DIAL TYPE & HEATER),DK.CHARCOAL,TRIM1#,9#,NO.1 |
1 | ||
| 81942-12520B1 |
EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN DK.CHARCOAL,TRIM10,14,NO.3 |
1 | ||
| 81942-12460B0 |
AE111,CE110,EE110..LHD..GEN W(BOOST VENTILATOR),DK.CHARCOAL,TRIM1#,9#,NO.1 |
1 | ||
| 81942-12510B1 |
AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 81942-12520B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9#,NO.3 |
1 | ||
| 81942-12460B0 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN W(BOOST VENTILATOR),DK.CHARCOAL,TRIM10,14,NO.1 |
1 | ||
| 81942-12450B1 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN W(DIAL TYPE & HEATER),DK.CHARCOAL,TRIM10,14,NO.1 |
1 | ||
| 81942-12520B1 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN DK.CHARCOAL,TRIM1#,NO.3 |
1 | ||
| 81942-12520B1 |
AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN DK.CHARCOAL,TRIM10,14,NO.3 |
1 | ||
| 81942-12510B1 |
AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN DK.CHARCOAL,TRIM10,14,NO.2 |
1 | ||
| Common parts | ||||
| 55963-50010 | ||||
| 90119-06022 | ||||
| 90167-40021 | ||||
| 90167-45011 | ||||
| 90183-05018 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-10198 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
| 93568-15014 | ||||
| 93568-15016 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
