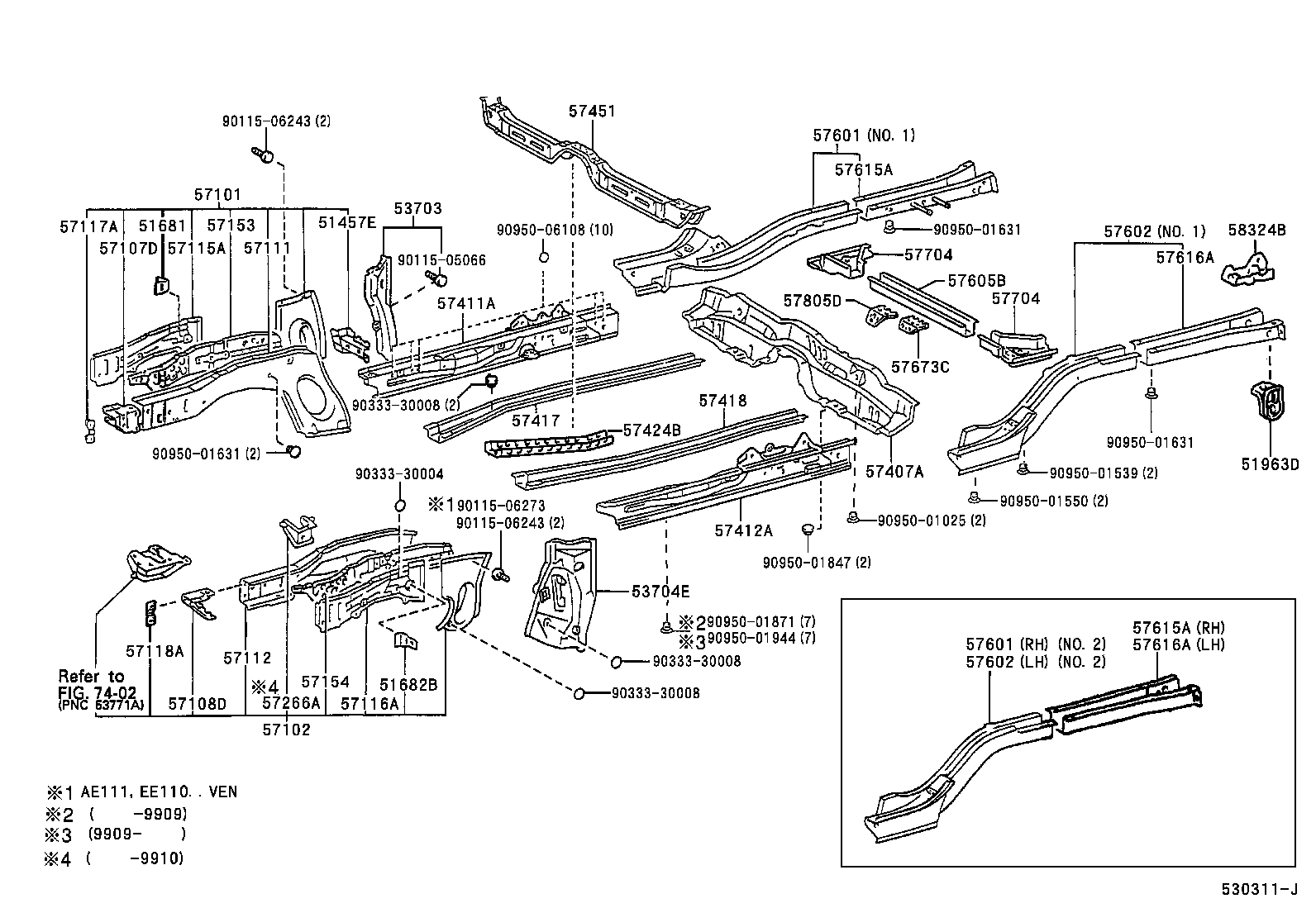

EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg
(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51457E - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE | ||||
| 51457-12020 |
AE112,CE110..LHD;EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 51457-12020 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 51457-12020 |
AE111,112,CE110,EE110..LHD |
1 | ||
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-12050 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 51681-12050 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-12060 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 51682-12060 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 51963D - HOOK, TRANSPORT, REAR LH | ||||
| 51096-12040 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 51096-12040 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH,VEN) |
1 | ||
| 53703 - APRON SUB-ASSY, FRONT FENDER, REAR RH | ||||
| 53703-12070 |
AE11#,EE11# |
1 | ||
| 53703-12040 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 53704E - APRON SUB-ASSY, FRONT FENDER, REAR LH | ||||
| 53704-12060 |
AE11#,EE11# |
1 | ||
| 53704-12090 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12931 |
EE111;CE110,EE110..GL,STD,XL |
1 | ||
| 57101-12931 |
EE110..LHD..3FC;CE110,EE111..GEN,VEN;EE110..MTM..(GCC,GEN) |
1 | ||
| 57101-12916 |
EE11# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12939 |
EE11#;AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN) |
1 | ||
| 57102-12915 |
AE11#,EE11# |
1 | ||
| 57102-12939 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH | ||||
| 57107-12090 |
AE11#,EE11# |
1 | ||
| 57125-13010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 57125-13010 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH | ||||
| 57108-12110 |
AE11#,EE11# |
1 | ||
| 57126-13010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 57126-13010 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12201 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57111-12201 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12141 |
AE11#,EE11# |
1 | ||
| 57112-12142 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12060 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57115-12060 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12060 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57116-12060 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57117A - REINFORCEMENT, FRONT BUMPER MOUNTING | ||||
| 57117-12110 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57117-12110 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 57117-12110 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57117-12110 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57016-12060 |
EE111..GEN,VEN;CE110,EE110..GCC,GEN |
1 | ||
| 57016-12060 |
EE111;CE110,EE110..GL,STD,XL |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57017-12030 |
AE11#,EE11# |
1 | ||
| 57017-13010 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57017-13010 |
AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL |
1 | ||
| 57017-13010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 57017-13010 |
AE111..MA;AE110,EE11#;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,CE110..GLI,SEG,XL;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN) |
1 | ||
| 57266A - BRACKET, ENGINE MOUNTING, LH | ||||
| 57208-12120 |
AE11#,EE11# |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-12070 |
AE111..WG..5F;AE112..LHD..XLI;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,PHL,TH,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,PHL,TH,TUR,VEN) |
1 | ||
| 57407-12070 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 57407-12070 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 57407-12040 |
AE11#,EE11# |
1 | ||
| 57407-12070 |
AE110,CE110,EE110..GL,GLI,STD,XL;AE111,112,EE111..(GL,GLI,XL,XLI)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-12500 |
AE11#,EE11# |
1 | ||
| 57401-12530 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-12530 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 57402-12500 |
AE11#,EE11# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-13010 |
AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 57417-13010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 57417-12100 |
AE11#,EE11# |
1 | ||
| 57417-13010 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-13010 |
AE111..SED;EE110..MTM;AE111..RHD..WG;EE110..LHD..3FC;AE110,112,CE110,EE111 |
1 | ||
| 57418-12060 |
AE11#,EE11# |
1 | ||
| 57418-13010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 57418-13010 |
AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 57418-13010 |
AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL |
1 | ||
| 57418-13010 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 57424B - REINFORCEMENT, FRONT FLOOR UNDER, INNER LH | ||||
| 57424-12020 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57424-12020 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-12152 |
AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL |
1 | ||
| 57451-12153 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57451-12150 |
AE11#,EE11# |
1 | ||
| 57451-12153 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,GCC,GEN,GENKD,IDN,NZ,PHL,TH,TUR,VEN) |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-1A902 |
AE11#,EE11# NO.1 |
1 | ||
| 57601-1A903 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) NO.2 |
1 | ||
| 57601-1A903 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN) NO.2 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-1A902 |
AE11#,EE11# NO.1 |
1 | ||
| 57601-1A903 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) NO.2 |
1 | ||
| 57601-1A903 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN) NO.2 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-1A901 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) NO.2 |
1 | ||
| 57602-1A900 |
AE11#,EE11# NO.1 |
1 | ||
| 57602-1A901 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN) NO.2 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-1A901 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) NO.2 |
1 | ||
| 57602-1A900 |
AE11#,EE11# NO.1 |
1 | ||
| 57602-1A901 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN) NO.2 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12150 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57605-12150 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12902 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57615-12902 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12902 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 57615-12902 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12904 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 57616-12904 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 57616-12904 |
AE111,112,EE111..SED..(GL,GLI,XL,XLI);AE110,CE110,EE110..SED..(GL,GLI,STD,XL) |
1 | ||
| 57616-12904 |
AE11#,EE11# |
1 | ||
| 57616-12904 |
EE110..LHD..3FC;AE111,112,EE111..SED..(GL,GLI,XL,XLI);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL) |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12904 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 57616-12904 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 57616-12904 |
AE111,112,EE111..SED..(GL,GLI,XL,XLI);AE110,CE110,EE110..SED..(GL,GLI,STD,XL) |
1 | ||
| 57616-12904 |
AE11#,EE11# |
1 | ||
| 57616-12904 |
EE110..LHD..3FC;AE111,112,EE111..SED..(GL,GLI,XL,XLI);AE110,CE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL) |
1 | ||
| 57673C - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-12090 |
AE112..BZ;CE110..XL..GEN;AE112..SED..XLI..GCC;AE111,EE11#..SED..(STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,VEN) |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57696-12030 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN LH |
1 | ||
| 57695-12030 |
AE110..TH;AE111..MA;AE111..WG..5F;AE110,CE110..GLI,XL;AE111..LHD..WG..4FC;AE112,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) RH |
1 | ||
| 57696-12030 |
AE110..TH;AE111..MA;AE111..WG..5F;AE110,CE110..GLI,XL;AE111..LHD..WG..4FC;AE112,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) LH |
1 | ||
| 57695-12030 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN RH |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57696-12030 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN LH |
1 | ||
| 57695-12030 |
AE110..TH;AE111..MA;AE111..WG..5F;AE110,CE110..GLI,XL;AE111..LHD..WG..4FC;AE112,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) RH |
1 | ||
| 57696-12030 |
AE110..TH;AE111..MA;AE111..WG..5F;AE110,CE110..GLI,XL;AE111..LHD..WG..4FC;AE112,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) LH |
1 | ||
| 57695-12030 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN RH |
1 | ||
| 57805D - REINFORCEMENT ASSY, NO.1 SEAT LEG, REAR NO.1 | ||||
| 57805-12060 |
CE110..XL;AE110,111,ZZE11#..GCC,GEN,TUR;AE112,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 57805-12060 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR);AE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN);AE112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 57805-12060 |
AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE110..(GL,XL,XLI)..(GCC,GEN,TUR);AE110,112,CE110..(GLI,SEG,XL)..(ARL,GCC,GEN,NZ,PHL,VEN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TUR) |
1 | ||
| Common parts | ||||
| 90115-05066 | ||||
| 90115-06243 | ||||
| 90115-06273 | ||||
| 90333-30004 | ||||
| 90333-30008 | ||||
| 90950-01025 | ||||
| 90950-01539 | ||||
| 90950-01550 | ||||
| 90950-01631 | ||||
| 90950-01847 | ||||
| 90950-01871 | ||||
| 90950-01944 | ||||
| 90950-06108 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
