EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg
(9704- )SED
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-16130 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52155-16130 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52155-16130 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52155-16130 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1A800 |
EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C |
1 | ||
| 52159-1A650 |
AE11#,EE11# BUMPER = TYPE A |
1 | ||
| 52159-1A750 |
AE112,CE110..GLI,XL;AE111,EE110..SED..(GL,GLI,STD,XL,XLI)..(GEN,NZ,VEN) BUMPER = TYPE B |
1 | ||
| 52159-1A750 |
AE112..LHD..GLI;EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..(GEN,VEN) BUMPER = TYPE B |
1 | ||
| 52159-1A800 |
AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C |
1 | ||
| 52159-1A750 |
AE112..SED..XLI..GCC;AE111..SED..(ARL,GCC,GEN,NZ,VEN);AE112,CE110,EE11#..SED..(GL,GLI,STD,XL)..(ARL,GCC,GEN,NZ,VEN) BUMPER = TYPE B |
1 | ||
| 52159-1A800 |
AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL) BUMPER = TYPE C |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-12040 |
AE111;AE110,EE11#..XL,XLI BUMPER = TYPE A |
1 | ||
| 52169-12110 |
AE112..SED..XLI..GCC;AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,NZ,VEN);AE112,CE110,EE11#..SED..(GL,GLI,STD,XL)..(ARL,GCC,GEN,NZ,VEN) BUMPER = TYPE B |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-12400 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 52181-12400 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-12320 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 52182-12320 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52187E - GUIDE, REAR BUMPER LOCATION, RH | ||||
| 52187-16070 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52187-16070 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52188D - GUIDE, REAR BUMPER LOCATION, LH | ||||
| 52187-16070 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52187-16070 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-16020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 52197-16020 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-16020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 52197-16020 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12110 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL BUMPER = TYPE C |
1 | ||
| 52591-12110 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) BUMPER = TYPE C |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12030 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) BUMPER = TYPE B |
1 | ||
| 52592-12030 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL BUMPER = TYPE B |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12030 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) BUMPER = TYPE C |
4 | ||
| 52791-12030 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) BUMPER = TYPE C |
4 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90119-08781 | ||||
| 90159-60431 | ||||
| 90159-60602 | ||||
| 90179-06009 | ||||
| 90179-06127 | ||||
| 90189-06154 | ||||
| 90210-05006 | ||||
| 90467-07130 | ||||
| 90467-09093 | ||||

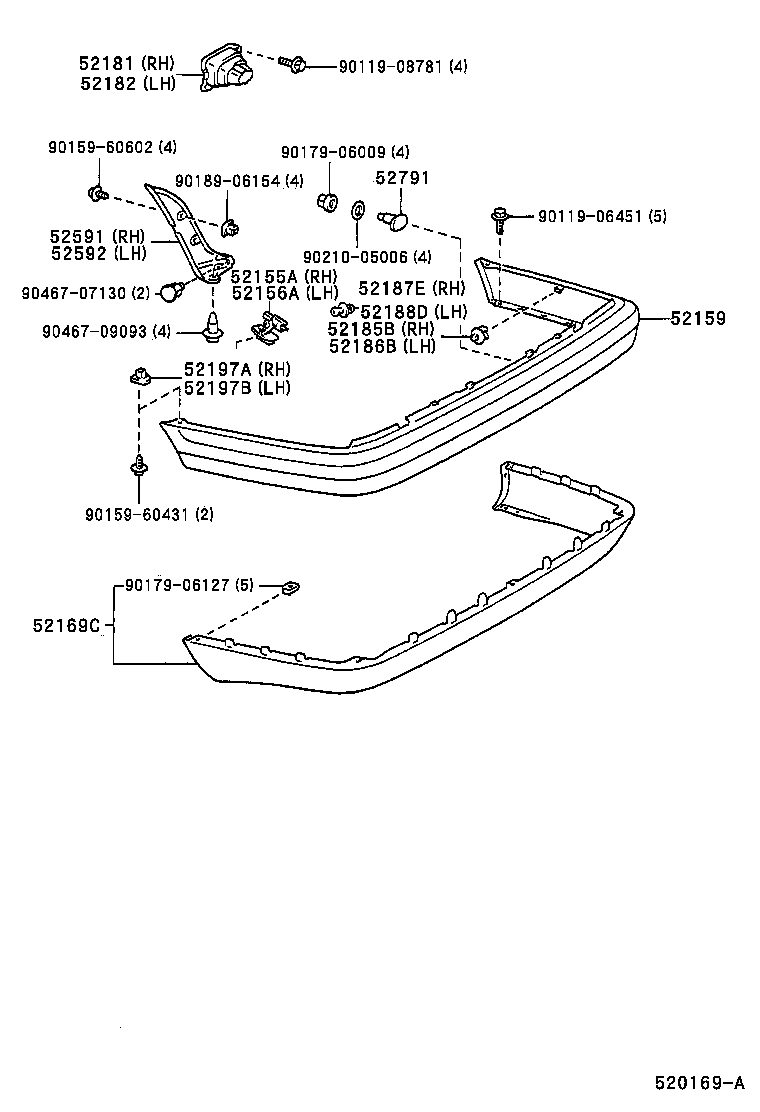

(9505- )SED
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1A800 |
EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C |
1 | ||
| 52159-1A650 |
AE11#,EE11# BUMPER = TYPE A |
1 | ||
| 52159-1A750 |
AE112,CE110..GLI,XL;AE111,EE110..SED..(GL,GLI,STD,XL,XLI)..(GEN,NZ,VEN) BUMPER = TYPE B |
1 | ||
| 52159-1A750 |
AE112..LHD..GLI;EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..(GEN,VEN) BUMPER = TYPE B |
1 | ||
| 52159-1A800 |
AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C |
1 | ||
| 52159-1A750 |
AE112..SED..XLI..GCC;AE111..SED..(ARL,GCC,GEN,NZ,VEN);AE112,CE110,EE11#..SED..(GL,GLI,STD,XL)..(ARL,GCC,GEN,NZ,VEN) BUMPER = TYPE B |
1 | ||
| 52159-1A800 |
AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL) BUMPER = TYPE C |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-12040 |
AE111;AE110,EE11#..XL,XLI BUMPER = TYPE A |
1 | ||
| 52169-12110 |
AE112..SED..XLI..GCC;AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,NZ,VEN);AE112,CE110,EE11#..SED..(GL,GLI,STD,XL)..(ARL,GCC,GEN,NZ,VEN) BUMPER = TYPE B |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-12400 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 52181-12400 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-12320 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 52182-12320 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-16020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 52197-16020 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-16020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 52197-16020 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12110 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL BUMPER = TYPE C |
1 | ||
| 52591-12110 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) BUMPER = TYPE C |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12030 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) BUMPER = TYPE B |
1 | ||
| 52592-12030 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL BUMPER = TYPE B |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12030 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) BUMPER = TYPE C |
4 | ||
| 52791-12030 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) BUMPER = TYPE C |
4 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90119-08781 | ||||
| 90159-60431 | ||||
| 90159-60602 | ||||
| 90179-06009 | ||||
| 90179-06127 | ||||
| 90189-06154 | ||||
| 90210-05006 | ||||
| 90467-07130 | ||||
| 90467-09093 | ||||

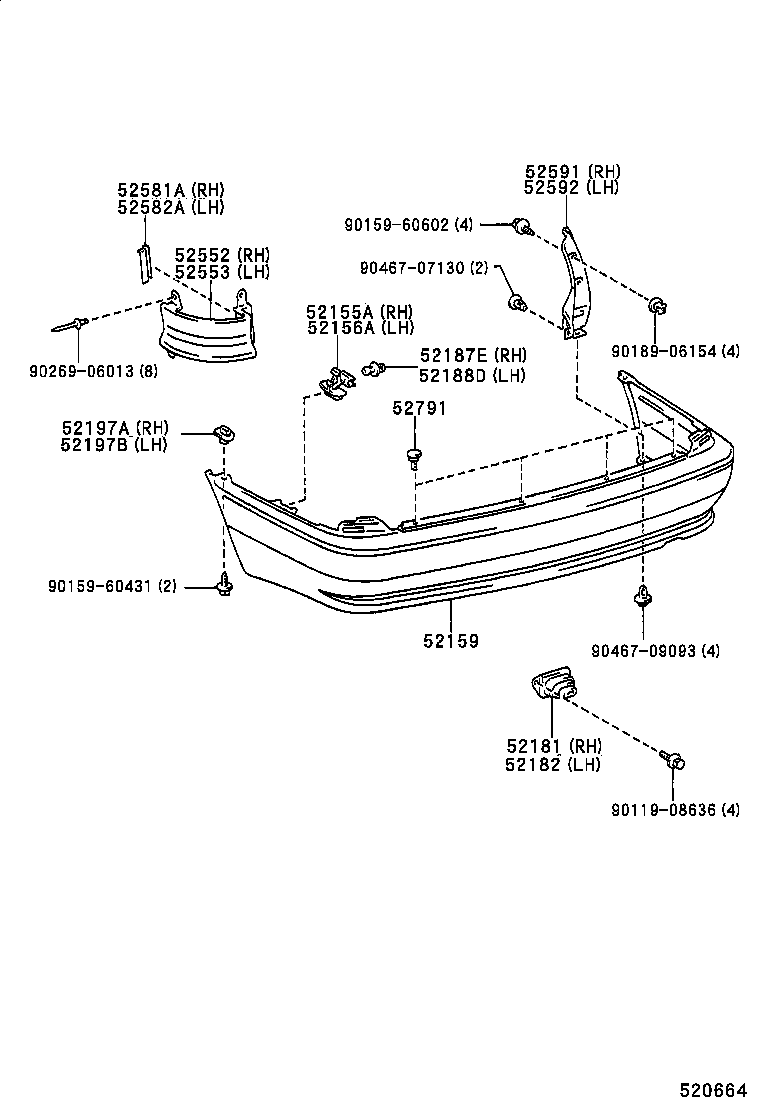

(9704- )SED
TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-16130 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52155-16130 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52155-16130 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52155-16130 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1A800 |
EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C |
1 | ||
| 52159-1A650 |
AE11#,EE11# BUMPER = TYPE A |
1 | ||
| 52159-1A750 |
AE112,CE110..GLI,XL;AE111,EE110..SED..(GL,GLI,STD,XL,XLI)..(GEN,NZ,VEN) BUMPER = TYPE B |
1 | ||
| 52159-1A750 |
AE112..LHD..GLI;EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..(GEN,VEN) BUMPER = TYPE B |
1 | ||
| 52159-1A800 |
AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C |
1 | ||
| 52159-1A750 |
AE112..SED..XLI..GCC;AE111..SED..(ARL,GCC,GEN,NZ,VEN);AE112,CE110,EE11#..SED..(GL,GLI,STD,XL)..(ARL,GCC,GEN,NZ,VEN) BUMPER = TYPE B |
1 | ||
| 52159-1A800 |
AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL) BUMPER = TYPE C |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-12400 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 52181-12400 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-12320 |
EE110..SED..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 52182-12320 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52187E - GUIDE, REAR BUMPER LOCATION, RH | ||||
| 52187-16070 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52187-16070 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52188D - GUIDE, REAR BUMPER LOCATION, LH | ||||
| 52187-16070 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52187-16070 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-16020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 52197-16020 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-16020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 52197-16020 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 52552 - FILLER, REAR BUMPER, RH | ||||
| 52552-12070 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52552-12070 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52553 - FILLER, REAR BUMPER, LH | ||||
| 52553-12070 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52553-12070 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52581A - PROTECTOR, REAR BUMPER FILLER | ||||
| 52581-12110 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52581-12110 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52582A - PROTECTOR, REAR BUMPER FILLER, LH | ||||
| 52582-12050 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 52582-12050 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12110 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL BUMPER = TYPE C |
1 | ||
| 52591-12110 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) BUMPER = TYPE C |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12030 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) BUMPER = TYPE B |
1 | ||
| 52592-12030 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL BUMPER = TYPE B |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12030 |
EE110..LHD..3FC;AE112,CE110,EE111..SED..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..SED..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) BUMPER = TYPE C |
4 | ||
| 52791-12030 |
AE111..MA;AE110,112..SED..XLI..(BZ,GCC,IDN,TH);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) BUMPER = TYPE C |
4 | ||
| Common parts | ||||
| 90119-08636 | ||||
| 90159-60431 | ||||
| 90159-60602 | ||||
| 90189-06154 | ||||
| 90269-06013 | ||||
| 90467-07130 | ||||
| 90467-09093 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
