Toyota Corolla sed/wg EE110 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
COROLLA SED/WG
EE110L-AEHDS (1997)
5201 - FRONT BUMPER & BUMPER STAY

EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9704- )

Click highlighted areas on diagram

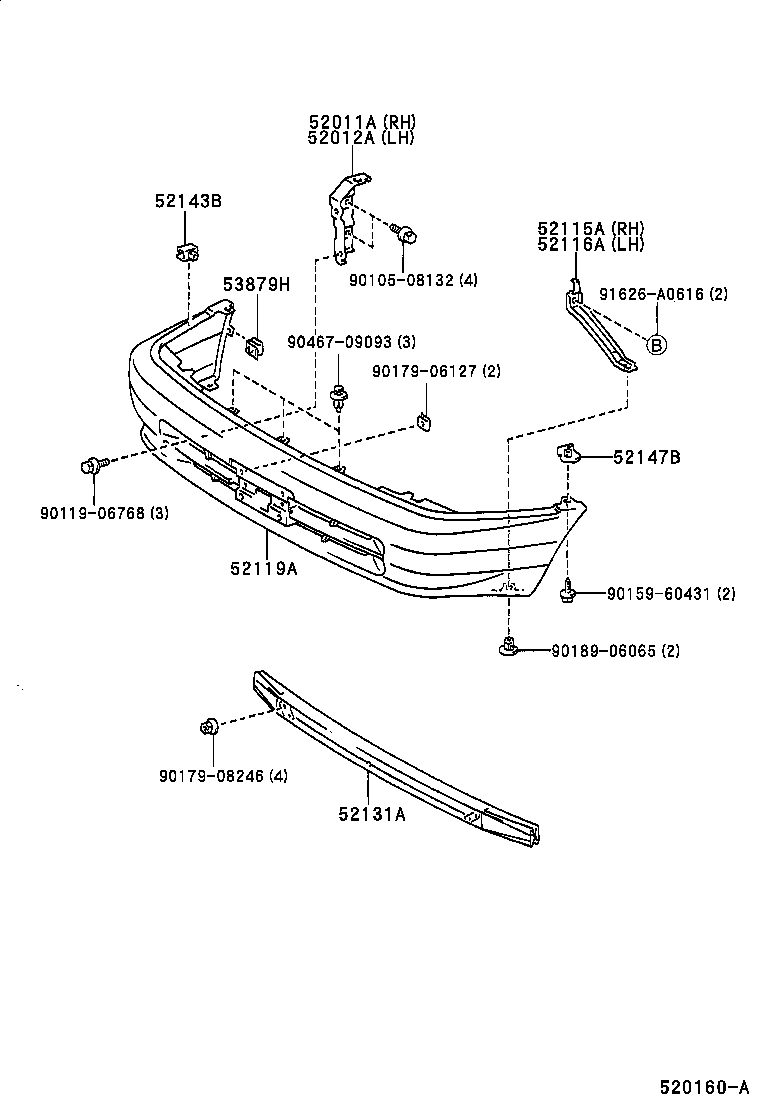

TYPE C

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52141-12490	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52141-12430	AE112,EE111..(STD,XLI)..(BZ,TUR,VEN);AE111,112,CE110,EE110..ARL,GCC,GEN,NZ,TUR,VEN BUMPER = TYPE B	07/1998 - 10/1999	1
52141-12440	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 08/2000	1
52141-12430	AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN) BUMPER = TYPE B	04/1997 - 07/1998	1
52141-12430	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) BUMPER = TYPE B	07/1998 - 10/1999	1
52141-12430	AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ) BUMPER = TYPE B	04/1997 - 07/1998	1
52141-12440	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	04/1997 - 08/2000	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52142-12360	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) BUMPER = TYPE B	07/1998 - 10/1999	1
52142-12360	AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ) BUMPER = TYPE B	04/1997 - 07/1998	1
52142-12370	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	04/1997 - 08/2000	1
52142-12360	AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN) BUMPER = TYPE B	04/1997 - 07/1998	1
52142-12420	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52142-12370	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 08/2000	1
52142-12360	AE112,EE111..(STD,XLI)..(BZ,TUR,VEN);AE111,112,CE110,EE110..ARL,GCC,GEN,NZ,TUR,VEN BUMPER = TYPE B	07/1998 - 10/1999	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12320	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52115-12320	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12290	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52116-12290	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	1
52119A - COVER, FRONT BUMPER
52119-1E020	AE111..RHD..WG;AE112..LHD..GLI;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GEN,VEN);AE110,CE110,EE110..MTM..(GL,STD,XL,XLI)..GEN BUMPER = TYPE B	04/1997 - 08/1998	1
52119-1E330	AE11#,EE11# BUMPER = TYPE A	05/1995 - 04/1997	1
52119-1E510	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 10/1999	1
52119-1E020	EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..GCC,GEN,VEN BUMPER = TYPE B	08/1998 - 10/1999	1
52119-1E510	AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	10/1999 - 08/2000	1
52119-1E610	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52119-1E510	AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL) BUMPER = TYPE C	04/1997 - 10/1999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-12180	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 08/2000	1
52131-12180	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52143B - BRACKET, FRONT BUMPER SIDE
52143-12340	EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN BUMPER = TYPE C	05/1997 - 08/2000	2
52143-12340	EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	04/1997 - 05/1997	2
52143-12340	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	05/1997 - 08/2000	2
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-16080	EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN BUMPER = TYPE C	07/1998 - 08/2000	2
52147-16080	EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE111..SED..4FC..XLI..GEN;AE110,CE110..(XL,XLI)..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	05/1997 - 07/1998	2
52147-16080	EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	04/1997 - 05/1997	2
52147-16080	EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110..(GL,XL)..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	05/1997 - 07/1998	2
52147-16080	CE110..XL..GEN;AE11#,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) BUMPER = TYPE C	07/1998 - 08/2000	2
53879H - RETAINER, FRONT FENDER LINER
53879-12010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	2
53879-12010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	2
Common parts
90105-08132
90119-06768
90159-60431
90179-06127
90179-08246
90189-06065
90467-09093
91626-A0616

(9704- )

Click highlighted areas on diagram

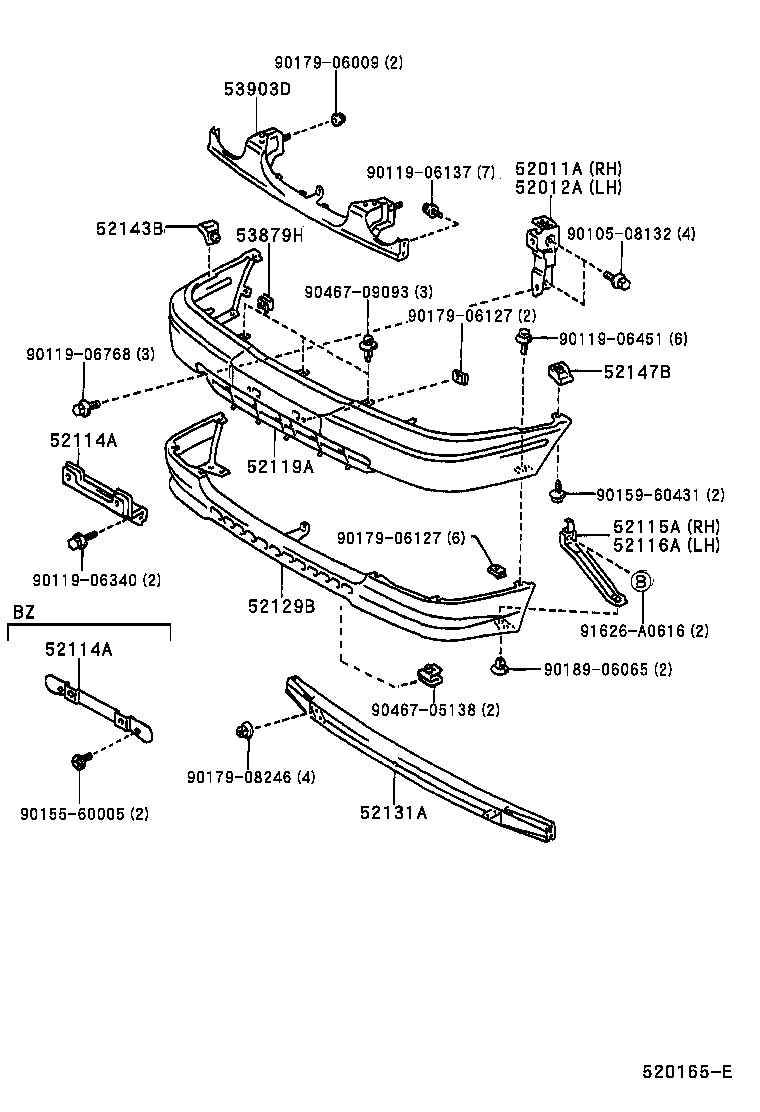

TYPE B

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52141-12490	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52141-12430	AE112,EE111..(STD,XLI)..(BZ,TUR,VEN);AE111,112,CE110,EE110..ARL,GCC,GEN,NZ,TUR,VEN BUMPER = TYPE B	07/1998 - 10/1999	1
52141-12440	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 08/2000	1
52141-12430	AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN) BUMPER = TYPE B	04/1997 - 07/1998	1
52141-12430	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) BUMPER = TYPE B	07/1998 - 10/1999	1
52141-12430	AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ) BUMPER = TYPE B	04/1997 - 07/1998	1
52141-12440	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	04/1997 - 08/2000	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52142-12360	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) BUMPER = TYPE B	07/1998 - 10/1999	1
52142-12360	AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ) BUMPER = TYPE B	04/1997 - 07/1998	1
52142-12370	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	04/1997 - 08/2000	1
52142-12360	AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN) BUMPER = TYPE B	04/1997 - 07/1998	1
52142-12420	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52142-12370	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 08/2000	1
52142-12360	AE112,EE111..(STD,XLI)..(BZ,TUR,VEN);AE111,112,CE110,EE110..ARL,GCC,GEN,NZ,TUR,VEN BUMPER = TYPE B	07/1998 - 10/1999	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-30080	AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE112,CE110,EE110..(GL,SEG,STD,XL)..(GEN,GENKD,PHL)	04/1997 - 12/2999	1
52114-30080	EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN	04/1997 - 09/2001	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-30080	AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE112,CE110,EE110..(GL,SEG,STD,XL)..(GEN,GENKD,PHL)	04/1997 - 12/2999	1
52114-30080	EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN	04/1997 - 09/2001	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12320	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52115-12320	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12290	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52116-12290	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	1
52119A - COVER, FRONT BUMPER
52119-1E020	AE111..RHD..WG;AE112..LHD..GLI;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GEN,VEN);AE110,CE110,EE110..MTM..(GL,STD,XL,XLI)..GEN BUMPER = TYPE B	04/1997 - 08/1998	1
52119-1E330	AE11#,EE11# BUMPER = TYPE A	05/1995 - 04/1997	1
52119-1E510	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 10/1999	1
52119-1E020	EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..GCC,GEN,VEN BUMPER = TYPE B	08/1998 - 10/1999	1
52119-1E510	AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	10/1999 - 08/2000	1
52119-1E610	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52119-1E510	AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL) BUMPER = TYPE C	04/1997 - 10/1999	1
52129B - COVER, FRONT BUMPER, LOWER
52129-12070	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GCC,GEN,VEN);AE112,CE110,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) BUMPER = TYPE B	04/1998 - 10/1999	1
52129-12040	AE111;AE110,EE11#..XL,XLI BUMPER = TYPE A	05/1995 - 04/1997	1
52129-12070	AE112,EE111..(STD,XLI)..(BZ,VEN);AE111,112,CE110,EE110..(3FC,4FC,5F)..(ARL,GCC,GEN,NZ,VEN) BUMPER = TYPE B	04/1998 - 10/1999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-12180	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 08/2000	1
52131-12180	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52143B - BRACKET, FRONT BUMPER SIDE
52143-12340	EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN BUMPER = TYPE C	05/1997 - 08/2000	2
52143-12340	EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	04/1997 - 05/1997	2
52143-12340	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	05/1997 - 08/2000	2
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-16080	EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN BUMPER = TYPE C	07/1998 - 08/2000	2
52147-16080	EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE111..SED..4FC..XLI..GEN;AE110,CE110..(XL,XLI)..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	05/1997 - 07/1998	2
52147-16080	EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	04/1997 - 05/1997	2
52147-16080	EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110..(GL,XL)..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	05/1997 - 07/1998	2
52147-16080	CE110..XL..GEN;AE11#,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) BUMPER = TYPE C	07/1998 - 08/2000	2
53879H - RETAINER, FRONT FENDER LINER
53879-12010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	2
53879-12010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	2
53903D - EXTENSION SUB-ASSY, FRONT BUMPER, UPR
53903-12080	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 10/1999	1
53903-12080	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN)	04/1997 - 10/1999	1
53903-12110	AE111,112,CE110,EE110..ARL,GCC,GEN	10/1999 - 02/2000	1
Common parts
90105-08132
90119-06137
90119-06340
90119-06451
90119-06768
90155-60005
90159-60431
90179-06009
90179-06127
90179-08246
90189-06065
90467-05138
90467-09093
91626-A0616

(9505- )

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12320	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52115-12320	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12290	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52116-12290	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	1
52119A - COVER, FRONT BUMPER
52119-1E020	AE111..RHD..WG;AE112..LHD..GLI;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GEN,VEN);AE110,CE110,EE110..MTM..(GL,STD,XL,XLI)..GEN BUMPER = TYPE B	04/1997 - 08/1998	1
52119-1E330	AE11#,EE11# BUMPER = TYPE A	05/1995 - 04/1997	1
52119-1E510	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 10/1999	1
52119-1E020	EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..GCC,GEN,VEN BUMPER = TYPE B	08/1998 - 10/1999	1
52119-1E510	AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	10/1999 - 08/2000	1
52119-1E610	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52119-1E510	AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL) BUMPER = TYPE C	04/1997 - 10/1999	1
52129B - COVER, FRONT BUMPER, LOWER
52129-12070	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GCC,GEN,VEN);AE112,CE110,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) BUMPER = TYPE B	04/1998 - 10/1999	1
52129-12040	AE111;AE110,EE11#..XL,XLI BUMPER = TYPE A	05/1995 - 04/1997	1
52129-12070	AE112,EE111..(STD,XLI)..(BZ,VEN);AE111,112,CE110,EE110..(3FC,4FC,5F)..(ARL,GCC,GEN,NZ,VEN) BUMPER = TYPE B	04/1998 - 10/1999	1
52143B - BRACKET, FRONT BUMPER SIDE
52143-12340	EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN BUMPER = TYPE C	05/1997 - 08/2000	2
52143-12340	EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	04/1997 - 05/1997	2
52143-12340	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	05/1997 - 08/2000	2
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-16080	EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN BUMPER = TYPE C	07/1998 - 08/2000	2
52147-16080	EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE111..SED..4FC..XLI..GEN;AE110,CE110..(XL,XLI)..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	05/1997 - 07/1998	2
52147-16080	EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	04/1997 - 05/1997	2
52147-16080	EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110..(GL,XL)..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	05/1997 - 07/1998	2
52147-16080	CE110..XL..GEN;AE11#,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) BUMPER = TYPE C	07/1998 - 08/2000	2
53879H - RETAINER, FRONT FENDER LINER
53879-12010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	2
53879-12010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	2
Common parts
90105-08132
90119-06451
90119-06768
90159-60431
90179-06127
90189-06065
90467-09093
91626-A0616

(9910- )

Click highlighted areas on diagram

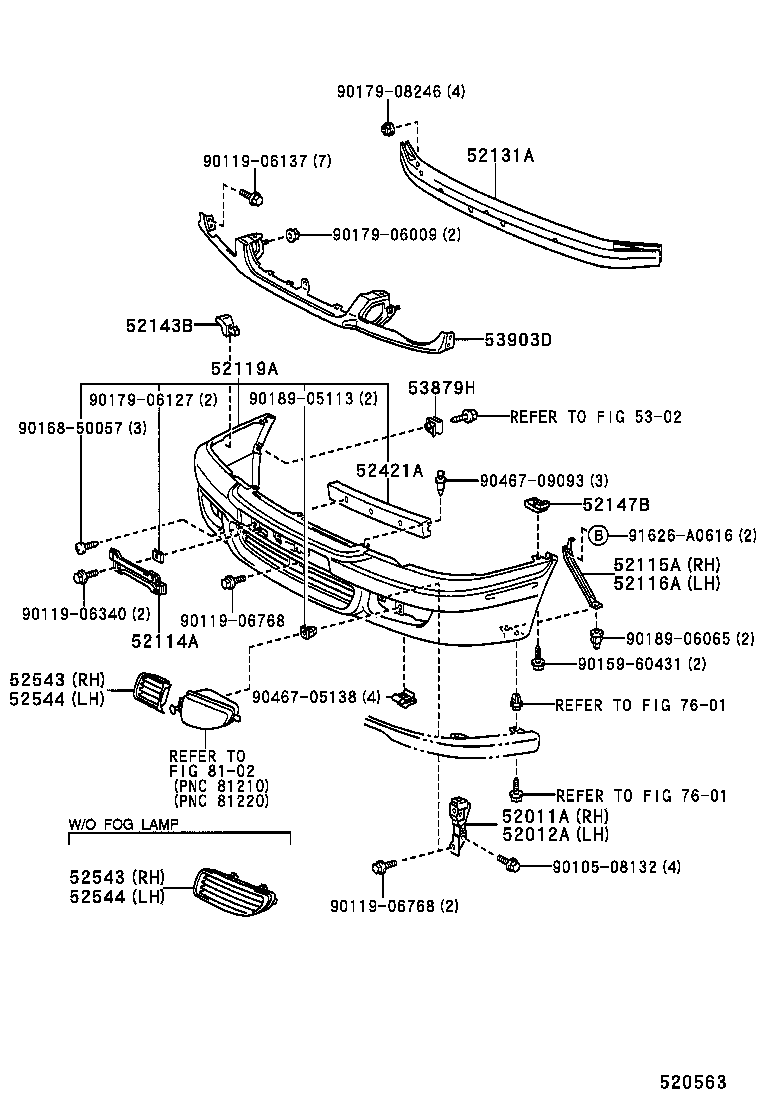

TYPE D

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52141-12490	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52141-12430	AE112,EE111..(STD,XLI)..(BZ,TUR,VEN);AE111,112,CE110,EE110..ARL,GCC,GEN,NZ,TUR,VEN BUMPER = TYPE B	07/1998 - 10/1999	1
52141-12440	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 08/2000	1
52141-12430	AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN) BUMPER = TYPE B	04/1997 - 07/1998	1
52141-12430	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) BUMPER = TYPE B	07/1998 - 10/1999	1
52141-12430	AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ) BUMPER = TYPE B	04/1997 - 07/1998	1
52141-12440	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	04/1997 - 08/2000	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52142-12360	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) BUMPER = TYPE B	07/1998 - 10/1999	1
52142-12360	AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ) BUMPER = TYPE B	04/1997 - 07/1998	1
52142-12370	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	04/1997 - 08/2000	1
52142-12360	AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN) BUMPER = TYPE B	04/1997 - 07/1998	1
52142-12420	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52142-12370	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 08/2000	1
52142-12360	AE112,EE111..(STD,XLI)..(BZ,TUR,VEN);AE111,112,CE110,EE110..ARL,GCC,GEN,NZ,TUR,VEN BUMPER = TYPE B	07/1998 - 10/1999	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-30080	AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE112,CE110,EE110..(GL,SEG,STD,XL)..(GEN,GENKD,PHL)	04/1997 - 12/2999	1
52114-30080	EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN	04/1997 - 09/2001	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12320	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52115-12320	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12290	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52116-12290	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	1
52119A - COVER, FRONT BUMPER
52119-1E020	AE111..RHD..WG;AE112..LHD..GLI;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GEN,VEN);AE110,CE110,EE110..MTM..(GL,STD,XL,XLI)..GEN BUMPER = TYPE B	04/1997 - 08/1998	1
52119-1E330	AE11#,EE11# BUMPER = TYPE A	05/1995 - 04/1997	1
52119-1E510	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	04/1997 - 10/1999	1
52119-1E020	EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..GCC,GEN,VEN BUMPER = TYPE B	08/1998 - 10/1999	1
52119-1E510	AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN BUMPER = TYPE C	10/1999 - 08/2000	1
52119-1E610	AE111,112,CE110,EE110..ARL,GCC,GEN BUMPER = TYPE D	10/1999 - 02/2000	1
52119-1E510	AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL) BUMPER = TYPE C	04/1997 - 10/1999	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-12180	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 08/2000	1
52131-12180	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	1
52143B - BRACKET, FRONT BUMPER SIDE
52143-12340	EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN BUMPER = TYPE C	05/1997 - 08/2000	2
52143-12340	EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	04/1997 - 05/1997	2
52143-12340	AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE112,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH) BUMPER = TYPE C	05/1997 - 08/2000	2
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-16080	EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN BUMPER = TYPE C	07/1998 - 08/2000	2
52147-16080	EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE111..SED..4FC..XLI..GEN;AE110,CE110..(XL,XLI)..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	05/1997 - 07/1998	2
52147-16080	EE110..GL,STD;AE111..LHD..GLI;AE111,CE110..GL,XL;EE110..LHD..XL..GEN;AE111..SED..4FC..XLI..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	04/1997 - 05/1997	2
52147-16080	EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110..(GL,XL)..GEN;AE111..LHD..SED..5F..XLI..GEN BUMPER = TYPE C	05/1997 - 07/1998	2
52147-16080	CE110..XL..GEN;AE11#,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) BUMPER = TYPE C	07/1998 - 08/2000	2
52421A - PAD, FRONT BUMPER
52421-12050	AE111,112,CE110,EE110..ARL,GCC,GEN	10/1999 - 02/2000	1
52543 - SEAL, FRONT BUMPER SIDE, RH
81481-12040	AE111,112,CE110,EE110..ARL,GCC,GEN	10/1999 - 02/2000	1
52543 - SEAL, FRONT BUMPER SIDE, RH
81481-12040	AE111,112,CE110,EE110..ARL,GCC,GEN	10/1999 - 02/2000	1
52544 - SEAL, FRONT BUMPER SIDE, LH
81482-12020	AE111,112,CE110,EE110..ARL,GCC,GEN	10/1999 - 02/2000	1
52544 - SEAL, FRONT BUMPER SIDE, LH
81482-12020	AE111,112,CE110,EE110..ARL,GCC,GEN	10/1999 - 02/2000	1
53879H - RETAINER, FRONT FENDER LINER
53879-12010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	2
53879-12010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 08/2000	2
53903D - EXTENSION SUB-ASSY, FRONT BUMPER, UPR
53903-12080	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 10/1999	1
53903-12080	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN)	04/1997 - 10/1999	1
53903-12110	AE111,112,CE110,EE110..ARL,GCC,GEN	10/1999 - 02/2000	1
Common parts
90105-08132
90119-06137
90119-06340
90119-06768
90159-60431
90168-50057
90179-06009
90179-06127
90179-08246
90189-05113
90189-06065
90467-05138
90467-09093
91626-A0616
Linked diagrams
5302
7601
8102

EE110L-AEHDS (1997)

(9704- )

(9704- )

(9505- )

(9910- )

Part Price Details
