EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

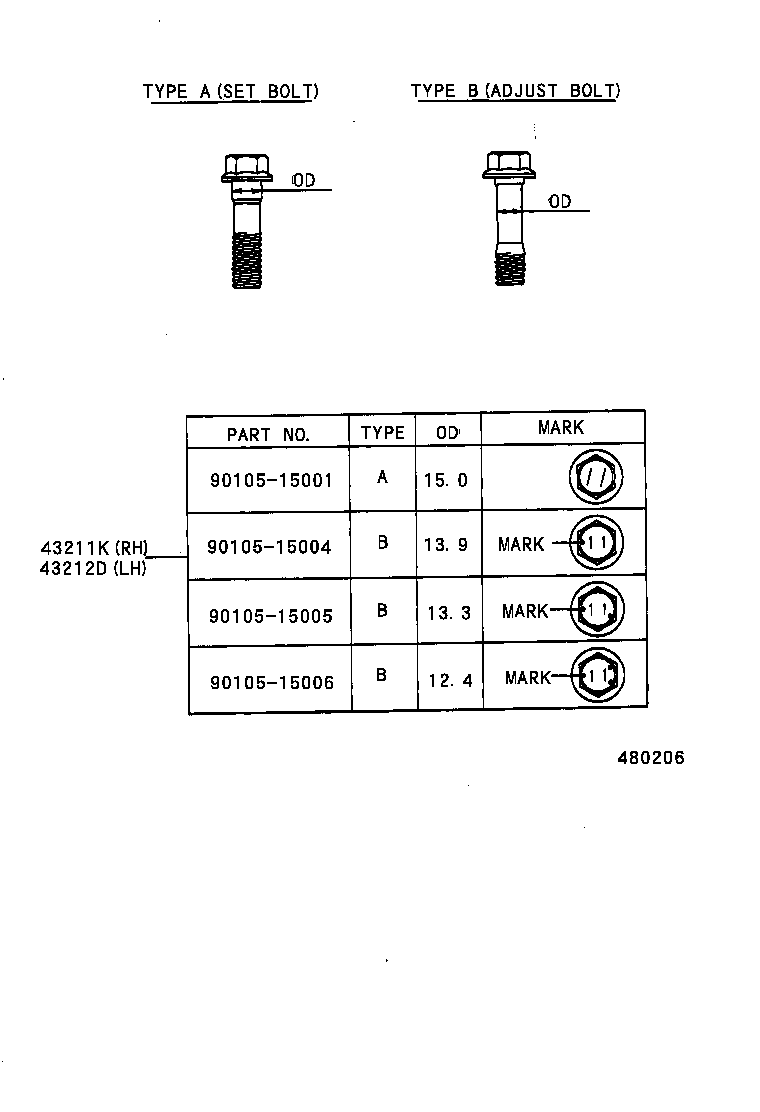

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 43211K 43212D
Part # Description Qty Price
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15005

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=13.3

 1
90105-15001

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=15.0

 2
90105-15006

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=12.4

 1
90105-15001

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=15.0

 2
90105-15004

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=13.9

 1
90105-15005

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=13.3

 1
90105-15006

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=12.4

 1
90105-15004

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=13.9

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15004

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=13.9

 1
90105-15001

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=15.0

 2
90105-15006

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=12.4

 1
90105-15005

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=13.3

 1
90105-15005

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=13.3

 1
90105-15006

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=12.4

 1
90105-15004

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=13.9

 1
90105-15001

EE11#;AE110..TH;AE111..MA;AE111..WG..5F;CE110..XL..GEN;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)

OD=15.0

 2

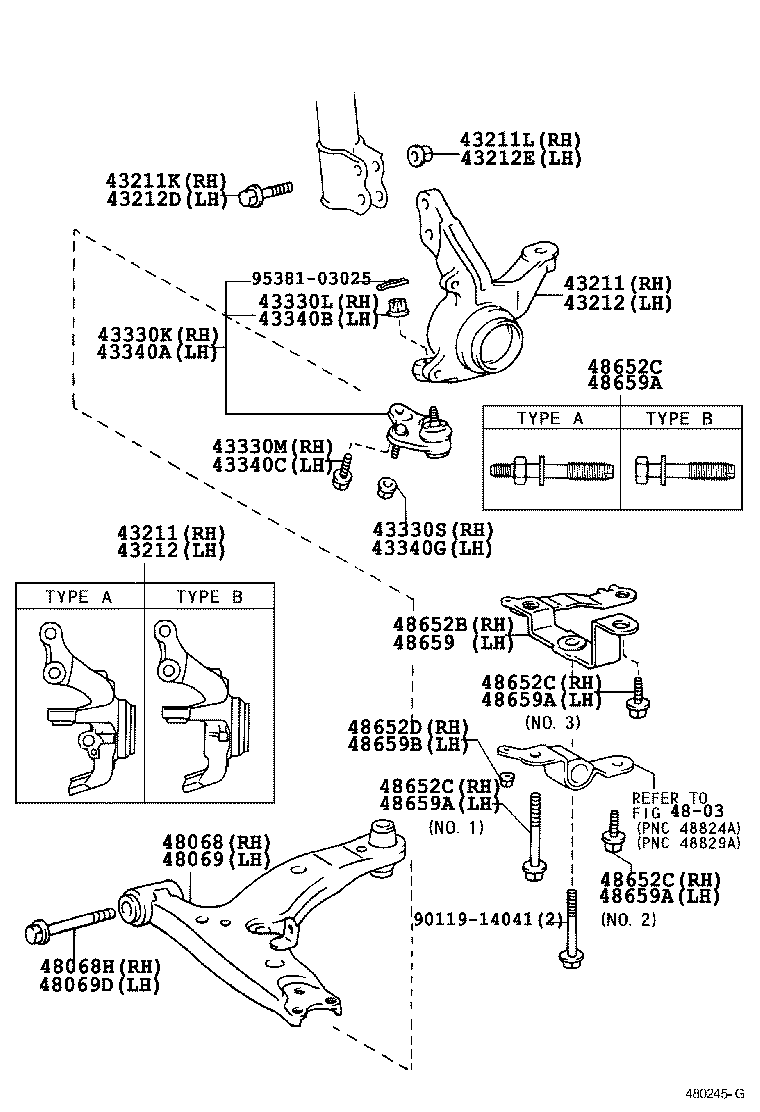

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 43211 43211 43211K 43211L 43212 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48069 48069D 48652B 48652C 48652C 48652C 48652C 48652D 48659 48659A 48659A 48659A 48659A 48659B 9011914041 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-12290

EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN;AE111,CE110..GCC,GEN,TUR,VEN

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12290

AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE A:REFER TO ILLUSTRATION & W(POWER STEERING)

 1
43211-12290

EE111..GEN,VEN;EE110..LHD..3FC;AE111,CE110..GCC,GEN,TUR,VEN;AE112,EE110..(4FC,5F)..(ARL,GCC,GEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12310

AE111..RHD..WG;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE110,112,CE110,EE111..(XL,XLI)..GEN

 1
43211-12330

AE112,ZZE11#..ARL,GCC,GEN,TUR;AE110,111,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN,VEN)

TYPE B:REFER TO ILLUSTRATION

 1
43211-12290

AE111;EE110..GENKD;EE110..(GL,XL)..(GCC,GEN,PHL);AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,TUR

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12290

EE111..GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE110..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12290

EE110..GENKD;AE111,CE110,EE111;AE112,EE110..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,IDN,PHL)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12330

AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE B:REFER TO ILLUSTRATION,W(POWER STEERING)

 1
43211-12290

AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,TUR;AE110,111,EE110..(SEG,STD,XLI)..(GENKD,MA,TH);AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN)

TYPE A:REFER TO ILLUSTRATION & W(POWER STEERING)

 1
43211-12310

AE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)

 1
43211 - KNUCKLE, STEERING, RH
43211-12290

EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN;AE111,CE110..GCC,GEN,TUR,VEN

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12290

AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE A:REFER TO ILLUSTRATION & W(POWER STEERING)

 1
43211-12290

EE111..GEN,VEN;EE110..LHD..3FC;AE111,CE110..GCC,GEN,TUR,VEN;AE112,EE110..(4FC,5F)..(ARL,GCC,GEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12310

AE111..RHD..WG;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE110,112,CE110,EE111..(XL,XLI)..GEN

 1
43211-12330

AE112,ZZE11#..ARL,GCC,GEN,TUR;AE110,111,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN,VEN)

TYPE B:REFER TO ILLUSTRATION

 1
43211-12290

AE111;EE110..GENKD;EE110..(GL,XL)..(GCC,GEN,PHL);AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,TUR

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12290

EE111..GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE110..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12290

EE110..GENKD;AE111,CE110,EE111;AE112,EE110..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,IDN,PHL)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43211-12330

AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE B:REFER TO ILLUSTRATION,W(POWER STEERING)

 1
43211-12290

AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,TUR;AE110,111,EE110..(SEG,STD,XLI)..(GENKD,MA,TH);AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN)

TYPE A:REFER TO ILLUSTRATION & W(POWER STEERING)

 1
43211-12310

AE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15005

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=13.3

 1
90105-15001

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=15.0

 2
90105-15006

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=12.4

 1
90105-15001

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=15.0

 2
90105-15004

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=13.9

 1
90105-15005

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=13.3

 1
90105-15006

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=12.4

 1
90105-15004

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=13.9

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15001

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 2
90179-15001

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 2
43212 - KNUCKLE, STEERING, LH
43212-12250

AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43212-12290

AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE B:REFER TO ILLUSTRATION,W(POWER STEERING)

 1
43212-12270

AE111..RHD..WG;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE110,112,CE110,EE111..(XL,XLI)..GEN

 1
43212-12250

AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA;AE110,111,EE110..(SEG,STD,XLI)..(GENKD,MA,TH);AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,VEN);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43212-12290

AE112,ZZE11#..ARL,GCC,GEN,TUR;AE110,111,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN,VEN)

TYPE B:REFER TO ILLUSTRATION,W(POWER STEERING)

 1
43212-12250

EE110..GENKD;AE111..WG..5F;AE110,111,EE111..SED;AE112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL);AE112,EE110..(3FC,4FC,5F)..(GL,STD,XL,XLI)..(BZ,GCC,GEN,IDN,PHL,VEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43212-12270

AE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)

 1
43212-12250

EE111..GEN,VEN;EE110..LHD..3FC;AE112,EE110..(4FC,5F)..(ARL,GCC,GEN);AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43212 - KNUCKLE, STEERING, LH
43212-12250

AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43212-12290

AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN)

TYPE B:REFER TO ILLUSTRATION,W(POWER STEERING)

 1
43212-12270

AE111..RHD..WG;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE110,112,CE110,EE111..(XL,XLI)..GEN

 1
43212-12250

AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA;AE110,111,EE110..(SEG,STD,XLI)..(GENKD,MA,TH);AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,VEN);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43212-12290

AE112,ZZE11#..ARL,GCC,GEN,TUR;AE110,111,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN,VEN)

TYPE B:REFER TO ILLUSTRATION,W(POWER STEERING)

 1
43212-12250

EE110..GENKD;AE111..WG..5F;AE110,111,EE111..SED;AE112,CE110..(GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL);AE112,EE110..(3FC,4FC,5F)..(GL,STD,XL,XLI)..(BZ,GCC,GEN,IDN,PHL,VEN)

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43212-12270

AE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)

 1
43212-12250

EE111..GEN,VEN;EE110..LHD..3FC;AE112,EE110..(4FC,5F)..(ARL,GCC,GEN);AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN

TYPE A:REFER TO ILLUSTRATION, W(POWER STEERING)

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15004

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=13.9

 1
90105-15001

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=15.0

 2
90105-15006

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=12.4

 1
90105-15005

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

OD=13.3

 1
90105-15005

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=13.3

 1
90105-15006

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=12.4

 1
90105-15004

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

OD=13.9

 1
90105-15001

EE11#;AE110..TH;AE111..MA;AE111..WG..5F;CE110..XL..GEN;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)

OD=15.0

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15001

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 2
90179-15001

EE11#;AE110..TH;AE111..MA;AE111..WG..5F;CE110..XL..GEN;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-19115

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
43330-19115

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 1
90171-14003

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12156

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
90105-12156

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90179-12070

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 2
90179-12070

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-19115

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
43330-19115

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
90171-14003

EE11#;AE110..TH;AE111..MA;AE111..WG..5F;CE110..XL..GEN;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12156

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
90105-12156

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12070

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 2
90179-12070

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-12191

AE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN)

ROUGH ROAD PACKAGE

 1
48068-12160

AE111..RHD..WG;AE110,112,EE110..GCC,GEN;AE111,EE111..SED..(GCC,GEN,VEN)

 1
48068-12170

AE111;AE110,EE11#..XL,XLI

W(STABILIZER BRACKET)

 1
48068-12160

AE111..WG..5F;AE112..GCC,GEN;AE111..LHD..WG..4FC;AE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,TUR,VEN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,VEN)

 1
48068-12191

AE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE112,EE110..BZ,GCC,GEN,GENKD,PHL;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL)

ROUGH ROAD PACKAGE

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14023

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
90119-14023

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-12191

AE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN)

ROUGH ROAD PACKAGE

 1
48069-12170

AE111;AE110,EE11#..XL,XLI

W(STABILIZER BRACKET)

 1
48069-12160

AE111..RHD..WG;AE110,112,EE110..GCC,GEN;AE111,EE111..SED..(GCC,GEN,VEN)

 1
48069-12160

AE111..WG..5F;AE112..GCC,GEN;AE111..LHD..WG..4FC;AE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,TUR,VEN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,VEN)

 1
48069-12191

AE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE112,EE110..BZ,GCC,GEN,GENKD,PHL;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL)

ROUGH ROAD PACKAGE

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
90119-14023

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 1
48652B - BRACKET, FRONT LOWER ARM, RH
48652-12060

AE11#,EE11#

 1
48652-12100

AE112..GCC,GEN;AE111..RHD..WG;EE110..LHD..3FC;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,VEN)

 1
48652-12070

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;CE110,EE110..(GL,STD,XL)..(GEN,NZ,PHL);AE111..SED..(GL,GLI,XL,XLI)..(GEN,NZ,PHL,TH);AE112,EE111..(GLI,SEG,XLI)..(BZ,GEN,IDN,MA,NZ,PHL,TH,VEN)

W(STABILIZER BRACKET)

 1
48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH)
90119-12125

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX31-25.3,NO.3

 1
90119-12238

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90109-10168

AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE11#,EE11#

*12-1.25PX75-38,NO.1

 1
90119-10692

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*10-1.25PX29-23,NO.2

 1
90119-10692

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*10-1.25PX29-23,NO.2

 1
90119-12125

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX31-25.3,NO.3

 1
90109-10168

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH)
90119-12125

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX31-25.3,NO.3

 1
90119-12238

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90109-10168

AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE11#,EE11#

*12-1.25PX75-38,NO.1

 1
90119-10692

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*10-1.25PX29-23,NO.2

 1
90119-10692

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*10-1.25PX29-23,NO.2

 1
90119-12125

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX31-25.3,NO.3

 1
90109-10168

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH)
90119-12125

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX31-25.3,NO.3

 1
90119-12238

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90109-10168

AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE11#,EE11#

*12-1.25PX75-38,NO.1

 1
90119-10692

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*10-1.25PX29-23,NO.2

 1
90119-10692

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*10-1.25PX29-23,NO.2

 1
90119-12125

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX31-25.3,NO.3

 1
90109-10168

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
48652C - BOLT(FOR FRONT LOWER ARM BRACKET RH)
90119-12125

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX31-25.3,NO.3

 1
90119-12238

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90109-10168

AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE11#,EE11#

*12-1.25PX75-38,NO.1

 1
90119-10692

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*10-1.25PX29-23,NO.2

 1
90119-10692

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*10-1.25PX29-23,NO.2

 1
90119-12125

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX31-25.3,NO.3

 1
90109-10168

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
48652D - NUT(FOR FRONT LOWER ARM BRACKET RH)
90179-08145

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
90179-08145

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 1
48659 - BRACKET, FRONT LOWER ARM, LH
48659-12100

AE112..GCC,GEN;AE111..RHD..WG;EE110..LHD..3FC;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(GCC,GEN,VEN)

 1
48659-12060

AE11#,EE11#

 1
48659-12070

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;CE110,EE110..(GL,STD,XL)..(GEN,NZ,PHL);AE111..SED..(GL,GLI,XL,XLI)..(GEN,NZ,PHL,TH);AE112,EE111..(GLI,SEG,XLI)..(BZ,GEN,IDN,MA,NZ,PHL,TH,VEN)

W(STABILIZER BRACKET)

 1
48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH)
90109-10168

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12125

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX31-25.3,NO.3

 1
90119-10692

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*10-1.25PX29-23,NO.2

 1
90119-12125

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX31-25.3,NO.3

 1
90119-10692

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*10-1.25PX29-23,NO.2

 1
90109-10168

AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE11#,EE11#

*12-1.25PX75-38,NO.1

 1
90119-12238

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH)
90109-10168

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12125

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX31-25.3,NO.3

 1
90119-10692

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*10-1.25PX29-23,NO.2

 1
90119-12125

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX31-25.3,NO.3

 1
90119-10692

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*10-1.25PX29-23,NO.2

 1
90109-10168

AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE11#,EE11#

*12-1.25PX75-38,NO.1

 1
90119-12238

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH)
90109-10168

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12125

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX31-25.3,NO.3

 1
90119-10692

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*10-1.25PX29-23,NO.2

 1
90119-12125

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX31-25.3,NO.3

 1
90119-10692

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*10-1.25PX29-23,NO.2

 1
90109-10168

AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE11#,EE11#

*12-1.25PX75-38,NO.1

 1
90119-12238

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
48659A - BOLT(FOR FRONT LOWER ARM BRACKET LH)
90109-10168

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12125

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX31-25.3,NO.3

 1
90119-10692

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*10-1.25PX29-23,NO.2

 1
90119-12125

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX31-25.3,NO.3

 1
90119-10692

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*10-1.25PX29-23,NO.2

 1
90109-10168

AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE11#,EE11#

*12-1.25PX75-38,NO.1

 1
90119-12238

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
90119-12238

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

 1
48659B - NUT(FOR FRONT LOWER ARM BRACKET LH)
90179-08145

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 1
90179-08145

EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

 1
Common parts
90119-14041
95381-03025
Linked diagrams
4803
