Toyota Corolla sed/wg EE110 FRONT STEERING GEAR & LINK

Manufacturers Home
Toyota
GR
COROLLA SED/WG
EE110L-AEHDS (1997)
4505 - FRONT STEERING GEAR & LINK

EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

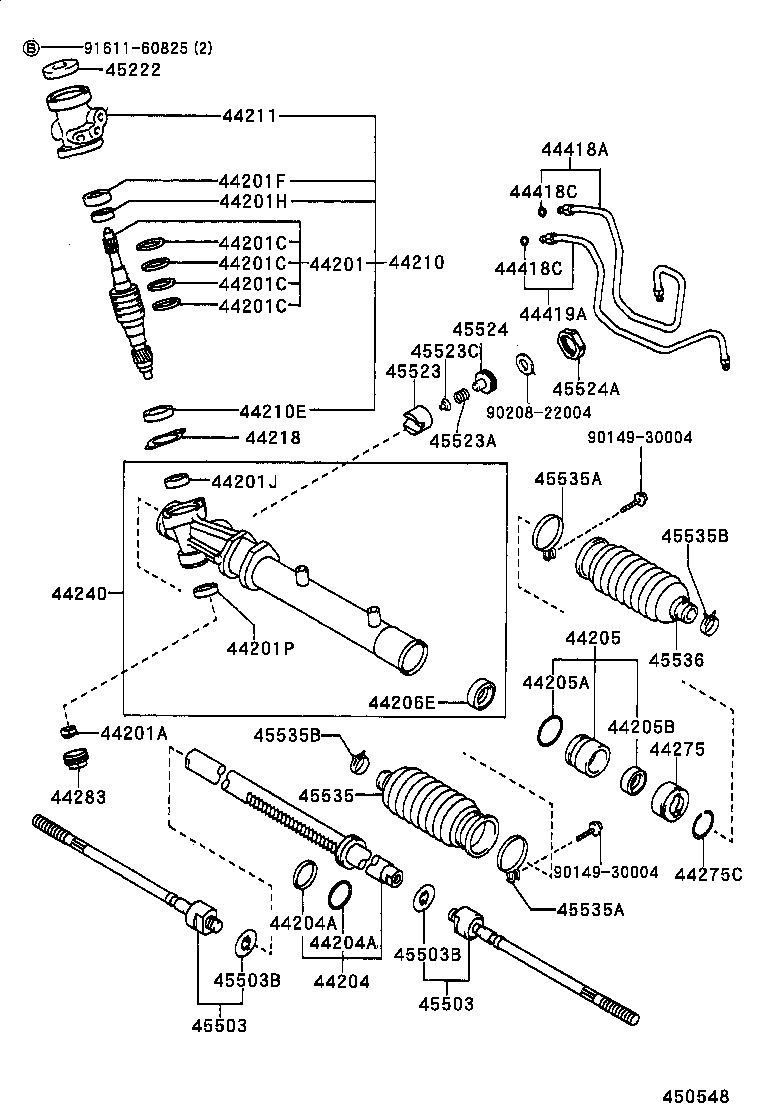

ILLUST NO. 2 OF 2(9505- )AE11#,CE110,EE11#

Click highlighted areas on diagram

POWER STEERING,TOYOTA

Part #	Description	Period	Qty
44201 - VALVE SUB-ASSY, POWER STEERING CONTROL
44201-12370	AE11#,EE11# TOYOTA GEAR BOX	05/1995 - 08/1995	1
44201-12391	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	04/1997 - 09/2001	1
44201-12391	EE110..GCC,GENKD,PHL;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110..LHD..(BZ,GCC,GEN,GENKD,PHL)	04/1997 - 12/2999	1
44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE)
90179-12098	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX	04/1997 - 07/1999	1
90179-12098	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 07/1999	1
90179-12098	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
90179-12098	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
44201B - SPACER(FOR POWER STEERING CONTROL VALVE)
90560-12030	AE11#,EE11#	05/1995 - 08/1995	1
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33002	AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 06/1998	4
90562-33002	AE112,EE111;AE111..GL,GLI,XL,XLI;AE111,EE110..(SEG,STD)..(GENKD,MA);AE110,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL) TOYOTA GEAR BOX	04/1997 - 06/1998	4
90562-33002	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	10/1999 - 12/2999	4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33002	AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 06/1998	4
90562-33002	AE112,EE111;AE111..GL,GLI,XL,XLI;AE111,EE110..(SEG,STD)..(GENKD,MA);AE110,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL) TOYOTA GEAR BOX	04/1997 - 06/1998	4
90562-33002	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	10/1999 - 12/2999	4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33002	AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 06/1998	4
90562-33002	AE112,EE111;AE111..GL,GLI,XL,XLI;AE111,EE110..(SEG,STD)..(GENKD,MA);AE110,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL) TOYOTA GEAR BOX	04/1997 - 06/1998	4
90562-33002	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	10/1999 - 12/2999	4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33002	AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 06/1998	4
90562-33002	AE112,EE111;AE111..GL,GLI,XL,XLI;AE111,EE110..(SEG,STD)..(GENKD,MA);AE110,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL) TOYOTA GEAR BOX	04/1997 - 06/1998	4
90562-33002	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	10/1999 - 12/2999	4
44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER)
90369-19005	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX	04/1997 - 07/1999	1
90369-19005	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
90369-19005	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
90369-19005	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 07/1999	1
44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER)
90363-12008	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	05/1995 - 10/1999	1
90363-12014	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	04/1997 - 10/1999	1
90363-12008	AE111..MA;AE110..GLI;AE110,EE110..GENKD,TH;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE112,CE110,EE11#..(3FC,4FC,5F)..(BZ,GCC,GEN,IDN,MA,PHL,TH) TOYOTA GEAR BOX	04/1997 - 10/1999	1
90363-12014	AE111..WG;AE112..ARL,GCC,GEN;AE111,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	10/1999 - 02/2000	1
90363-12014	EE110..GCC,GENKD,PHL;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110..LHD..(BZ,GCC,GEN,GENKD,PHL)	04/1997 - 10/1999	1
44204 - RACK SUB-ASSY, POWER STEERING
44204-12170	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD	04/1997 - 07/1999	1
44204-12170	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 07/1999	1
44204-12170	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN)	07/1999 - 12/2999	1
44204A - RING(FOR RACK STEERING PISTON)
90301-34006	AE11#,EE11# KOYO GEAR BOX,INNER	05/1995 - 04/1997	1
90301-33003	AE11#,EE11# TOYOTA GEAR BOX,INNER	05/1995 - 07/1996	1
90562-37003	AE11#,EE11# KOYO GEAR BOX,OUTER(J)	05/1995 - 04/1997	1
90562-37004	AE111..RHD..WG;AE112,EE111..ARL,GCC,GEN,VEN;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TOYOTA GEAR BOX,OUTER	05/1995 - 07/1999	1
90301-33003	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX,INNER	07/1999 - 10/1999	1
90562-37004	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX,OUTER	04/1997 - 07/1999	1
90562-37004	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX,OUTER	07/1999 - 10/1999	1
90301-33003	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX,INNER	04/1997 - 07/1999	1
90301-33003	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) TOYOTA GEAR BOX,INNER	04/1997 - 07/1999	1
90562-37004	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX,OUTER	07/1999 - 10/1999	1
90301-33003	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX,INNER	07/1999 - 10/1999	1
44204A - RING(FOR RACK STEERING PISTON)
90301-34006	AE11#,EE11# KOYO GEAR BOX,INNER	05/1995 - 04/1997	1
90301-33003	AE11#,EE11# TOYOTA GEAR BOX,INNER	05/1995 - 07/1996	1
90562-37003	AE11#,EE11# KOYO GEAR BOX,OUTER(J)	05/1995 - 04/1997	1
90562-37004	AE111..RHD..WG;AE112,EE111..ARL,GCC,GEN,VEN;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TOYOTA GEAR BOX,OUTER	05/1995 - 07/1999	1
90301-33003	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX,INNER	07/1999 - 10/1999	1
90562-37004	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX,OUTER	04/1997 - 07/1999	1
90562-37004	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX,OUTER	07/1999 - 10/1999	1
90301-33003	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX,INNER	04/1997 - 07/1999	1
90301-33003	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) TOYOTA GEAR BOX,INNER	04/1997 - 07/1999	1
90562-37004	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX,OUTER	07/1999 - 10/1999	1
90301-33003	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX,INNER	07/1999 - 10/1999	1
44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)
90310-24009	AE111..SEG;EE110..LHD..3FC;AE112,CE110,EE111..GCC,GEN;AE111..LHD..SED..(GCC,GEN);AE111..RHD..SED..5F..(GLI,XLI)..GEN;AE110,EE110..(4F,4FC,5F)..(GL,STD,XL,XLI)..(GCC,GEN) TOYOTA GEAR BOX	04/1997 - 12/1997	1
90310-24009	AE112,CE110,ZZE11#..LHD..(GCC,GEN,TUR);AE111,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	03/2000 - 06/2000	1
90310-24009	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN TOYOTA GEAR BOX	12/1997 - 07/1999	1
90310-24009	EE11#	05/1995 - 07/1996	1
90310-24009	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
90310-24009	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
90310-24009	AE111..4FC..(ARL,MA,NZ,TH);AE111..RHD..SED..5F..(GLI,SEG,XLI);AE111..LHD..(GCC,GEN,GENKD,PHL,VEN);AE112,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE110,CE110,EE110..(GL,STD,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) TOYOTA GEAR BOX	12/1997 - 07/1999	1
90310-24009	AE111..LHD;AE111..4FC..NZ;AE112,CE110,EE11#..GCC,GEN,GENKD,NZ,PHL;AE111..RHD..SED..5F..(GLI,XLI)..(GEN,NZ) TOYOTA GEAR BOX	04/1997 - 12/1997	1
44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE)
90310-24009	AE11#,EE11#	05/1995 - 04/1997	1
44240 - HOUSING ASSY, POWER STEERING RACK
44240-12220	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 07/1999	1
44240-12220	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD	04/1997 - 07/1999	1
44240-12220	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN)	07/1999 - 12/2999	1
44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING)
90410-06002	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN	04/1997 - 07/1999	2
90410-06002	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN	07/1999 - 10/1999	2
90410-06002	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 07/1999	2
90410-06002	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN	07/1999 - 10/1999	2
44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING)
90311-19007	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	07/1999 - 10/1999	1
90311-19007	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 07/1999	1
90311-19007	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN)	07/1999 - 10/1999	1
90311-19007	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN)	04/1997 - 07/1999	1
44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING)
90310-23005	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 08/1998	1
90310-23005	AE11#,EE11#	05/1995 - 04/1997	1
90310-23005	AE112;AE111..ARL,MA,TH;EE110..LHD..(GL,XL)..GEN;EE11#..GCC,GENKD,MA,PHL,VEN;AE111,CE110..LHD..(GCC,GEN,GENKD,PHL,VEN)	07/1999 - 10/1999	1
90310-23005	AE111..MA,TH;AE111,CE110..LHD;EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE110,112,EE111..GCC,IDN,MA,TH,TUR,VEN	04/1997 - 08/1998	1
90310-23005	AE112..ARL,GCC,GEN,VEN;EE110..LHD..(GL,XL)..(GCC,GEN);AE111,CE110,EE111..LHD..(GCC,GEN,VEN)	07/1999 - 10/1999	1
90310-23005	AE112..ARL,GCC,GEN,VEN;EE110..LHD..(GL,XL)..(GCC,GEN);AE111,CE110..LHD..(GCC,GEN,TUR,VEN)	08/1998 - 07/1999	1
90310-23005	AE112;AE111,CE110..LHD;AE111..ARL,MA,NZ,TH;EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE110,CE110,EE111..MA,NZ,TH,TUR	08/1998 - 07/1999	1
44253P - RING, HOLE SNAP(FOR POWER STEERING RACK HOUSING)
90521-41003	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	07/1999 - 10/1999	1
90521-41003	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN)	04/1997 - 07/1999	1
90521-41003	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 07/1999	1
90521-41003	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN)	07/1999 - 10/1999	1
44253Q - BUSH(FOR POWER STEERING RACK HOUSING)
90389-28001	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN	07/1999 - 10/1999	1
90389-28001	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN	04/1997 - 07/1999	1
90389-28001	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN	07/1999 - 10/1999	1
90389-28001	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 07/1999	1
44275 - STOPPER, CYLINDER END
44275-12090	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN TOYOTA GEAR BOX	05/1995 - 07/1999	1
44275-12090	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
44205-12070	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE11#,CE110,EE111..GCC,GEN	07/1999 - 10/1999	1
44275-12090	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN TOYOTA GEAR BOX	04/1997 - 07/1999	1
44275-12090	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	10/1999 - 12/2999	1
44275-12090	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
44205-12070	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH)	07/1999 - 10/1999	1
44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER)
90521-50002	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN	07/1999 - 12/2999	1
90521-50002	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 07/1999	1
90521-50002	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN)	07/1999 - 12/2999	1
90521-50002	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN)	04/1997 - 07/1999	1
44277 - SEAT, RACK GUIDE
44277-12040	AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,EE110..GENKD,TH;AE110,CE110..(GLI,XL)..GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE112,EE11#..(3FC,4FC,5F)..(BZ,GCC,GEN,IDN,MA,PHL,TH)	04/1997 - 07/2000	1
44277-12040	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN)	05/1995 - 07/2000	1
44283 - CAP, RACK HOUSING
44283-12010	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
44283-12010	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN TOYOTA GEAR BOX	05/1995 - 07/1999	1
44283-12010	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN TOYOTA GEAR BOX	04/1997 - 07/1999	1
44283-12010	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-12140	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 07/1999	1
44418-12140	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD	04/1997 - 07/1999	1
44418-12140	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN)	07/1999 - 12/2999	1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-12140	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 07/1999	1
44419-12140	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN)	07/1999 - 12/2999	1
44419-12140	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD	04/1997 - 07/1999	1
45503 - END SUB-ASSY, STEERING RACK
45503-19205	AE11#,EE11#..XL,XLI	05/1995 - 04/1997	2
45503-19215	AE11#,EE11# W(POWER STEERING)	05/1995 - 04/1997	2
45503-19205	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO	10/1999 - 09/2001	2
45503-19215	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN W(POWER STEERING)	07/1999 - 12/2999	2
45503-09190	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) T & K	10/1999 - 09/2001	2
45503-19215	AE111..RHD..WG;AE111..SEG..GEN;EE110..LHD..3FC;AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4FC,5F)..(GL,XL,XLI)..(GCC,GEN) W(POWER STEERING)	04/1997 - 07/1999	2
45503-19215	AE111..LHD;EE110..GENKD;AE111..RHD..WG;AE112,CE110,EE111;AE110,111..ARL,MA,NZ,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) W(POWER STEERING)	04/1997 - 07/1999	2
45503-19215	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) W(POWER STEERING)	07/1999 - 12/2999	2
45503 - END SUB-ASSY, STEERING RACK
45503-19205	AE11#,EE11#..XL,XLI	05/1995 - 04/1997	2
45503-19215	AE11#,EE11# W(POWER STEERING)	05/1995 - 04/1997	2
45503-19205	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO	10/1999 - 09/2001	2
45503-19215	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN W(POWER STEERING)	07/1999 - 12/2999	2
45503-09190	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) T & K	10/1999 - 09/2001	2
45503-19215	AE111..RHD..WG;AE111..SEG..GEN;EE110..LHD..3FC;AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4FC,5F)..(GL,XL,XLI)..(GCC,GEN) W(POWER STEERING)	04/1997 - 07/1999	2
45503-19215	AE111..LHD;EE110..GENKD;AE111..RHD..WG;AE112,CE110,EE111;AE110,111..ARL,MA,NZ,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) W(POWER STEERING)	04/1997 - 07/1999	2
45503-19215	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) W(POWER STEERING)	07/1999 - 12/2999	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN OD=35.2	05/1995 - 10/1999	2
90214-14009	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN);AE112,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN OD=35.2	04/1997 - 10/1999	2
90214-14009	ZZE11#;EE110..RHD;AE111..RHD..(GL,GLI)..GEN;AE111..(XL,XLI)..(GCC,GEN,VEN);EE110..LHD..(STD,XL)..(GCC,GEN);AE110,112,CE110,EE111..ARL,GEN,VEN OD=35.2	10/1999 - 12/2999	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN OD=35.2	05/1995 - 10/1999	2
90214-14009	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN);AE112,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN OD=35.2	04/1997 - 10/1999	2
90214-14009	ZZE11#;EE110..RHD;AE111..RHD..(GL,GLI)..GEN;AE111..(XL,XLI)..(GCC,GEN,VEN);EE110..LHD..(STD,XL)..(GCC,GEN);AE110,112,CE110,EE111..ARL,GEN,VEN OD=35.2	10/1999 - 12/2999	2
45523 - GUIDE, RACK(FOR STEERING GEAR)
45504-12040	AE11#,EE11#..XL,XLI	05/1995 - 04/1997	1
45523-12080	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 10/1999	1
45504-12040	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN)	04/1997 - 07/2000	1
45523-12080	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) W(POWER STEERING), TOYOTA GEAR BOX	10/1999 - 07/2000	1
45523-12080	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 10/1999	1
45053-12010	AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#,ZZE11#..(3FC,4FC,5F)..(GCC,GEN,TUR)	07/2000 - 08/2000	1
45504-12040	AE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)	04/1997 - 07/2000	1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-30015	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	02/2000 - 07/2000	1
90501-32032	AE112,CE110,EE111..GEN;AE111..LHD..(XL,XLI)..(GCC,GEN);EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR) KOYO GEAR BOX	04/1999 - 10/1999	1
90501-32032	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO GEAR BOX	10/1999 - 09/2001	1
90501-30015	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN) W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 02/2000	1
90501-32032	AE110..TH;AE111..MA;AE110,111..RHD..(GL,GLI);AE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE111..GEN,IDN,TH;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR) KOYO GEAR BOX	04/1997 - 04/1999	1
90501-32032	AE111..RHD..WG;AE111..RHD..(GL,GLI)..GEN;AE110,112,CE110,EE111..GEN;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(SEG,XL,XLI)..(GCC,GEN) KOYO GEAR BOX	05/1995 - 04/1999	1
90501-32032	EE110..LHD..3FC;AE112,CE110,EE111..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..LHD..(XL,XLI)..(GCC,GEN) KOYO GEAR BOX	04/1999 - 10/1999	1
90501-30015	AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,EE110..GENKD,TH;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 02/2000	1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-12041	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN) T=17	10/1999 - 07/2000	1
45524-12041	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN)	05/1995 - 10/1999	1
45524-12041	EE110..GENKD;AE111..LHD..(GCC,GEN,GENKD,PHL);AE112,CE110,EE11#..(3FC,4FC,5F)..(BZ,GCC,GEN,MA,PHL)	04/1997 - 10/1999	1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-33003	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN) W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 02/2000	1
90179-33003	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	02/2000 - 07/2000	1
90179-33003	AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,EE110..GENKD,TH;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 02/2000	1
90179-33003	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/2000 - 12/2999	1
45535 - BOOT, STEERING RACK, NO.1
45535-12060	AE110,EE11#;AE111..GLI,SEG W(POWER STEERING), KOYO GEAR BOX	05/1995 - 04/1997	1
45535-12060	AE111..GLI..TUR;EE110..LHD..3FC;CE110,EE111..GEN;AE111..(XL,XLI)..(GCC,GEN,TUR);EE110..MTM..(STD,XL)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	07/1999 - 10/1999	1
45535-12100	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 07/1999	1
45535-12060	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 07/1999	1
45535-12060	AE110,112..IDN,TH;AE111..(GLI,SEG)..(MA,TH);AE111,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,GENKD,PHL,TH) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 07/1999	1
45535-12100	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/1999 - 12/2999	1
45535-12100	AE111..MA;AE111..RHD..WG;AE112,CE110,EE111;AE110,EE110..GENKD,TH;AE111..SED..(GL,GLI,XL,XLI);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 07/1999	1
45535-12060	AE111..RHD..(GL,GLI)..GEN;AE110,112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX	10/1999 - 12/2999	1
45535-12060	AE111..GLI..(TH,TUR);EE110..(STD,XL)..(GCC,GEN,GENKD,PHL);AE112,CE110,EE111..SED..(GEN,IDN,TH,TUR);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,TUR) W(POWER STEERING), KOYO GEAR BOX,(J)	07/1999 - 10/1999	1
45535-12100	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/1999 - 12/2999	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-52001	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR ASSY	05/1995 - 08/1998	2
90460-52001	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR ASSY	07/1999 - 12/2999	2
90460-52001	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN TOYOTA GEAR ASSY	08/1998 - 07/1999	2
90460-52001	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) TOYOTA GEAR ASSY	07/1999 - 12/2999	2
90460-52001	EE110..GENKD;AE11#,CE110,EE111;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN) TOYOTA GEAR ASSY	08/1998 - 07/1999	2
90460-52001	AE111..MA;AE110,EE110..GENKD,TH;AE112,CE110,EE111..GCC,GEN,IDN,MA,TH,TUR,VEN;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH,TUR,VEN);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR ASSY	04/1997 - 08/1998	2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-52001	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR ASSY	05/1995 - 08/1998	2
90460-52001	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR ASSY	07/1999 - 12/2999	2
90460-52001	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN TOYOTA GEAR ASSY	08/1998 - 07/1999	2
90460-52001	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) TOYOTA GEAR ASSY	07/1999 - 12/2999	2
90460-52001	EE110..GENKD;AE11#,CE110,EE111;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN) TOYOTA GEAR ASSY	08/1998 - 07/1999	2
90460-52001	AE111..MA;AE110,EE110..GENKD,TH;AE112,CE110,EE111..GCC,GEN,IDN,MA,TH,TUR,VEN;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH,TUR,VEN);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR ASSY	04/1997 - 08/1998	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 08/1998	2
90467-19012	AE111..WG..5F;AE111..RHD..GL;AE112,EE111..GEN;AE111..LHD..5F..XLI..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN);AE111,CE110,EE110..(STD,XL)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	10/1999 - 09/2001	2
90467-19012	AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE112,CE110,EE111..GCC,GEN;AE111..SED..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE110,EE110..(4F,4FC,5F)..(GL,STD,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	2
90467-19019	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN W(POWER STEERING), TOYOTA GEAR BOX	08/1998 - 07/1999	2
90080-46174	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GEN;AE110,111..RHD..(GL,GLI)..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(L)	04/1997 - 12/2999	2
90467-19019	AE110..TH;AE111..MA;AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GCC,GEN,IDN,TH,TUR,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TH,TUR,VEN);AE110,EE110..(4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 08/1998	2
90467-19019	EE111..XLI;EE110..LHD..3FC;EE110..5F..(GCC,GEN,VEN);AE11#,CE110..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,TUR,VEN W(POWER STEERING), TOYOTA GEAR BOX	08/1998 - 07/1999	2
90467-19012	EE111..GEN;AE111..GL,XL;AE111..WG..5F;AE110,111..MA,TH;AE111..LHD..GLI..GEN;AE111..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..GCC,GEN,GENKD,IDN,PHL,TH,TUR W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	2
90080-46174	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..GEN,IDN,TH;AE110,111..RHD..(GL,GLI);AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR) W(POWER STEERING), KOYO GEAR BOX,(L)	04/1997 - 12/2999	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 08/1998	2
90467-19012	AE111..WG..5F;AE111..RHD..GL;AE112,EE111..GEN;AE111..LHD..5F..XLI..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN);AE111,CE110,EE110..(STD,XL)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	10/1999 - 09/2001	2
90467-19012	AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE112,CE110,EE111..GCC,GEN;AE111..SED..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE110,EE110..(4F,4FC,5F)..(GL,STD,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	2
90467-19019	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN W(POWER STEERING), TOYOTA GEAR BOX	08/1998 - 07/1999	2
90080-46174	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GEN;AE110,111..RHD..(GL,GLI)..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(L)	04/1997 - 12/2999	2
90467-19019	AE110..TH;AE111..MA;AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GCC,GEN,IDN,TH,TUR,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TH,TUR,VEN);AE110,EE110..(4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 08/1998	2
90467-19019	EE111..XLI;EE110..LHD..3FC;EE110..5F..(GCC,GEN,VEN);AE11#,CE110..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,TUR,VEN W(POWER STEERING), TOYOTA GEAR BOX	08/1998 - 07/1999	2
90467-19012	EE111..GEN;AE111..GL,XL;AE111..WG..5F;AE110,111..MA,TH;AE111..LHD..GLI..GEN;AE111..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..GCC,GEN,GENKD,IDN,PHL,TH,TUR W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	2
90080-46174	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..GEN,IDN,TH;AE110,111..RHD..(GL,GLI);AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR) W(POWER STEERING), KOYO GEAR BOX,(L)	04/1997 - 12/2999	2
45536 - BOOT, STEERING RACK, NO.2
45535-12100	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 07/1999	1
45535-12060	EE11# W(POWER STEERING), KOYO GEAR BOX	05/1995 - 04/1997	1
45535-12100	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 07/1999	1
45535-12060	AE110..TH;AE111..MA;AE110,111..RHD..(GL,GLI);AE112,CE110,EE111..SED..(GEN,IDN,TH);AE111,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,PHL,TH) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	1
45535-12060	AE111..RHD..WG;EE110..LHD..3FC;AE110,CE110,EE111..GEN;AE111..RHD..(GL,GLI)..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(SEG,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	1
45535-12060	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX	10/1999 - 09/2001	1
45535-12100	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/1999 - 12/2999	1
45535-12100	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/1999 - 12/2999	1
Common parts
90149-30009
90208-22003

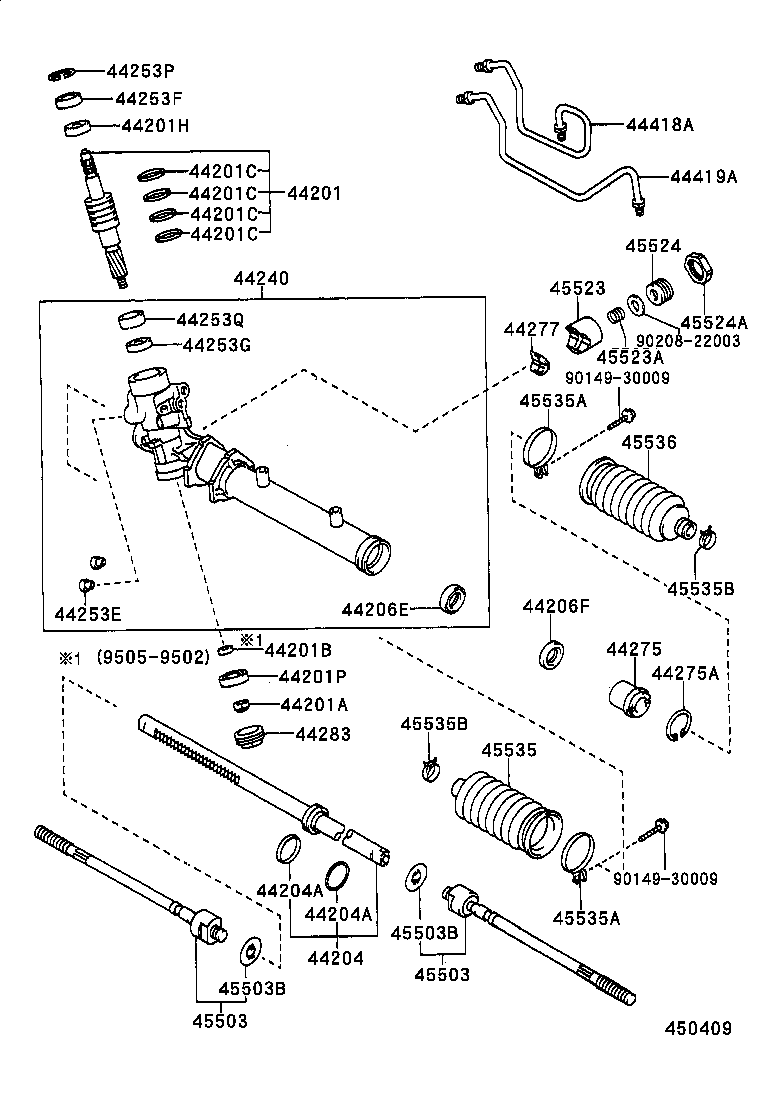

ILLUST NO. 2 OF 2(9505- )AE11#,CE110,EE11#

Click highlighted areas on diagram

POWER STEERING,KOYO

Part #	Description	Period	Qty
44201 - VALVE SUB-ASSY, POWER STEERING CONTROL
44201-12370	AE11#,EE11# TOYOTA GEAR BOX	05/1995 - 08/1995	1
44201-12391	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	04/1997 - 09/2001	1
44201-12391	EE110..GCC,GENKD,PHL;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110..LHD..(BZ,GCC,GEN,GENKD,PHL)	04/1997 - 12/2999	1
44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE)
90179-12098	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX	04/1997 - 07/1999	1
90179-12098	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 07/1999	1
90179-12098	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
90179-12098	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33002	AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 06/1998	4
90562-33002	AE112,EE111;AE111..GL,GLI,XL,XLI;AE111,EE110..(SEG,STD)..(GENKD,MA);AE110,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL) TOYOTA GEAR BOX	04/1997 - 06/1998	4
90562-33002	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	10/1999 - 12/2999	4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33002	AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 06/1998	4
90562-33002	AE112,EE111;AE111..GL,GLI,XL,XLI;AE111,EE110..(SEG,STD)..(GENKD,MA);AE110,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL) TOYOTA GEAR BOX	04/1997 - 06/1998	4
90562-33002	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	10/1999 - 12/2999	4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33002	AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 06/1998	4
90562-33002	AE112,EE111;AE111..GL,GLI,XL,XLI;AE111,EE110..(SEG,STD)..(GENKD,MA);AE110,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL) TOYOTA GEAR BOX	04/1997 - 06/1998	4
90562-33002	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	10/1999 - 12/2999	4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33002	AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 06/1998	4
90562-33002	AE112,EE111;AE111..GL,GLI,XL,XLI;AE111,EE110..(SEG,STD)..(GENKD,MA);AE110,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL) TOYOTA GEAR BOX	04/1997 - 06/1998	4
90562-33002	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	10/1999 - 12/2999	4
44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER)
90369-19005	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX	04/1997 - 07/1999	1
90369-19005	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
90369-19005	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
90369-19005	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 07/1999	1
44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER)
90363-12008	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) TOYOTA GEAR BOX	05/1995 - 10/1999	1
90363-12014	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	04/1997 - 10/1999	1
90363-12008	AE111..MA;AE110..GLI;AE110,EE110..GENKD,TH;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE112,CE110,EE11#..(3FC,4FC,5F)..(BZ,GCC,GEN,IDN,MA,PHL,TH) TOYOTA GEAR BOX	04/1997 - 10/1999	1
90363-12014	AE111..WG;AE112..ARL,GCC,GEN;AE111,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	10/1999 - 02/2000	1
90363-12014	EE110..GCC,GENKD,PHL;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110..LHD..(BZ,GCC,GEN,GENKD,PHL)	04/1997 - 10/1999	1
44204 - RACK SUB-ASSY, POWER STEERING
44204-12170	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD	04/1997 - 07/1999	1
44204-12170	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 07/1999	1
44204-12170	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN)	07/1999 - 12/2999	1
44204A - RING(FOR RACK STEERING PISTON)
90301-34006	AE11#,EE11# KOYO GEAR BOX,INNER	05/1995 - 04/1997	1
90301-33003	AE11#,EE11# TOYOTA GEAR BOX,INNER	05/1995 - 07/1996	1
90562-37003	AE11#,EE11# KOYO GEAR BOX,OUTER(J)	05/1995 - 04/1997	1
90562-37004	AE111..RHD..WG;AE112,EE111..ARL,GCC,GEN,VEN;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TOYOTA GEAR BOX,OUTER	05/1995 - 07/1999	1
90301-33003	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX,INNER	07/1999 - 10/1999	1
90562-37004	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX,OUTER	04/1997 - 07/1999	1
90562-37004	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX,OUTER	07/1999 - 10/1999	1
90301-33003	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX,INNER	04/1997 - 07/1999	1
90301-33003	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) TOYOTA GEAR BOX,INNER	04/1997 - 07/1999	1
90562-37004	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX,OUTER	07/1999 - 10/1999	1
90301-33003	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX,INNER	07/1999 - 10/1999	1
44204A - RING(FOR RACK STEERING PISTON)
90301-34006	AE11#,EE11# KOYO GEAR BOX,INNER	05/1995 - 04/1997	1
90301-33003	AE11#,EE11# TOYOTA GEAR BOX,INNER	05/1995 - 07/1996	1
90562-37003	AE11#,EE11# KOYO GEAR BOX,OUTER(J)	05/1995 - 04/1997	1
90562-37004	AE111..RHD..WG;AE112,EE111..ARL,GCC,GEN,VEN;AE110,CE110,EE110..(GL,GLI,XL)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TOYOTA GEAR BOX,OUTER	05/1995 - 07/1999	1
90301-33003	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX,INNER	07/1999 - 10/1999	1
90562-37004	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX,OUTER	04/1997 - 07/1999	1
90562-37004	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX,OUTER	07/1999 - 10/1999	1
90301-33003	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX,INNER	04/1997 - 07/1999	1
90301-33003	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN) TOYOTA GEAR BOX,INNER	04/1997 - 07/1999	1
90562-37004	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX,OUTER	07/1999 - 10/1999	1
90301-33003	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX,INNER	07/1999 - 10/1999	1
44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)
90310-24009	AE111..SEG;EE110..LHD..3FC;AE112,CE110,EE111..GCC,GEN;AE111..LHD..SED..(GCC,GEN);AE111..RHD..SED..5F..(GLI,XLI)..GEN;AE110,EE110..(4F,4FC,5F)..(GL,STD,XL,XLI)..(GCC,GEN) TOYOTA GEAR BOX	04/1997 - 12/1997	1
90310-24009	AE112,CE110,ZZE11#..LHD..(GCC,GEN,TUR);AE111,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	03/2000 - 06/2000	1
90310-24009	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN TOYOTA GEAR BOX	12/1997 - 07/1999	1
90310-24009	EE11#	05/1995 - 07/1996	1
90310-24009	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
90310-24009	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
90310-24009	AE111..4FC..(ARL,MA,NZ,TH);AE111..RHD..SED..5F..(GLI,SEG,XLI);AE111..LHD..(GCC,GEN,GENKD,PHL,VEN);AE112,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE110,CE110,EE110..(GL,STD,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) TOYOTA GEAR BOX	12/1997 - 07/1999	1
90310-24009	AE111..LHD;AE111..4FC..NZ;AE112,CE110,EE11#..GCC,GEN,GENKD,NZ,PHL;AE111..RHD..SED..5F..(GLI,XLI)..(GEN,NZ) TOYOTA GEAR BOX	04/1997 - 12/1997	1
44240 - HOUSING ASSY, POWER STEERING RACK
44240-12220	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 07/1999	1
44240-12220	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD	04/1997 - 07/1999	1
44240-12220	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN)	07/1999 - 12/2999	1
44275 - STOPPER, CYLINDER END
44275-12090	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN TOYOTA GEAR BOX	05/1995 - 07/1999	1
44275-12090	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
44205-12070	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE11#,CE110,EE111..GCC,GEN	07/1999 - 10/1999	1
44275-12090	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN TOYOTA GEAR BOX	04/1997 - 07/1999	1
44275-12090	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	10/1999 - 12/2999	1
44275-12090	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
44205-12070	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH)	07/1999 - 10/1999	1
44283 - CAP, RACK HOUSING
44283-12010	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
44283-12010	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN TOYOTA GEAR BOX	05/1995 - 07/1999	1
44283-12010	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN TOYOTA GEAR BOX	04/1997 - 07/1999	1
44283-12010	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR BOX	07/1999 - 10/1999	1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-12140	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 07/1999	1
44418-12140	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD	04/1997 - 07/1999	1
44418-12140	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN)	07/1999 - 12/2999	1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-12140	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 07/1999	1
44419-12140	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN)	07/1999 - 12/2999	1
44419-12140	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD	04/1997 - 07/1999	1
45503 - END SUB-ASSY, STEERING RACK
45503-19205	AE11#,EE11#..XL,XLI	05/1995 - 04/1997	2
45503-19215	AE11#,EE11# W(POWER STEERING)	05/1995 - 04/1997	2
45503-19205	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO	10/1999 - 09/2001	2
45503-19215	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN W(POWER STEERING)	07/1999 - 12/2999	2
45503-09190	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) T & K	10/1999 - 09/2001	2
45503-19215	AE111..RHD..WG;AE111..SEG..GEN;EE110..LHD..3FC;AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4FC,5F)..(GL,XL,XLI)..(GCC,GEN) W(POWER STEERING)	04/1997 - 07/1999	2
45503-19215	AE111..LHD;EE110..GENKD;AE111..RHD..WG;AE112,CE110,EE111;AE110,111..ARL,MA,NZ,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) W(POWER STEERING)	04/1997 - 07/1999	2
45503-19215	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) W(POWER STEERING)	07/1999 - 12/2999	2
45503 - END SUB-ASSY, STEERING RACK
45503-19205	AE11#,EE11#..XL,XLI	05/1995 - 04/1997	2
45503-19215	AE11#,EE11# W(POWER STEERING)	05/1995 - 04/1997	2
45503-19205	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO	10/1999 - 09/2001	2
45503-19215	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN W(POWER STEERING)	07/1999 - 12/2999	2
45503-09190	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) T & K	10/1999 - 09/2001	2
45503-19215	AE111..RHD..WG;AE111..SEG..GEN;EE110..LHD..3FC;AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4FC,5F)..(GL,XL,XLI)..(GCC,GEN) W(POWER STEERING)	04/1997 - 07/1999	2
45503-19215	AE111..LHD;EE110..GENKD;AE111..RHD..WG;AE112,CE110,EE111;AE110,111..ARL,MA,NZ,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) W(POWER STEERING)	04/1997 - 07/1999	2
45503-19215	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) W(POWER STEERING)	07/1999 - 12/2999	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN OD=35.2	05/1995 - 10/1999	2
90214-14009	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN);AE112,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN OD=35.2	04/1997 - 10/1999	2
90214-14009	ZZE11#;EE110..RHD;AE111..RHD..(GL,GLI)..GEN;AE111..(XL,XLI)..(GCC,GEN,VEN);EE110..LHD..(STD,XL)..(GCC,GEN);AE110,112,CE110,EE111..ARL,GEN,VEN OD=35.2	10/1999 - 12/2999	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN OD=35.2	05/1995 - 10/1999	2
90214-14009	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN);AE112,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN OD=35.2	04/1997 - 10/1999	2
90214-14009	ZZE11#;EE110..RHD;AE111..RHD..(GL,GLI)..GEN;AE111..(XL,XLI)..(GCC,GEN,VEN);EE110..LHD..(STD,XL)..(GCC,GEN);AE110,112,CE110,EE111..ARL,GEN,VEN OD=35.2	10/1999 - 12/2999	2
45523 - GUIDE, RACK(FOR STEERING GEAR)
45504-12040	AE11#,EE11#..XL,XLI	05/1995 - 04/1997	1
45523-12080	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 10/1999	1
45504-12040	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN)	04/1997 - 07/2000	1
45523-12080	AE11#,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) W(POWER STEERING), TOYOTA GEAR BOX	10/1999 - 07/2000	1
45523-12080	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 10/1999	1
45053-12010	AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#,ZZE11#..(3FC,4FC,5F)..(GCC,GEN,TUR)	07/2000 - 08/2000	1
45504-12040	AE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)	04/1997 - 07/2000	1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-30015	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	02/2000 - 07/2000	1
90501-32032	AE112,CE110,EE111..GEN;AE111..LHD..(XL,XLI)..(GCC,GEN);EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR) KOYO GEAR BOX	04/1999 - 10/1999	1
90501-32032	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO GEAR BOX	10/1999 - 09/2001	1
90501-30015	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN) W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 02/2000	1
90501-32032	AE110..TH;AE111..MA;AE110,111..RHD..(GL,GLI);AE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE111..GEN,IDN,TH;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR) KOYO GEAR BOX	04/1997 - 04/1999	1
90501-32032	AE111..RHD..WG;AE111..RHD..(GL,GLI)..GEN;AE110,112,CE110,EE111..GEN;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(SEG,XL,XLI)..(GCC,GEN) KOYO GEAR BOX	05/1995 - 04/1999	1
90501-32032	EE110..LHD..3FC;AE112,CE110,EE111..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..LHD..(XL,XLI)..(GCC,GEN) KOYO GEAR BOX	04/1999 - 10/1999	1
90501-30015	AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,EE110..GENKD,TH;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 02/2000	1
45523C - SPACER(FOR RACK GUIDE)
45542-12010	AE111..RHD..(GL,GLI)..GEN;AE110,112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN)	10/1999 - 12/2999	1
45542-12010	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN	05/1995 - 10/1999	1
45542-12010	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110..GCC,GEN,GENKD,IDN,PHL,TH,TUR;AE111,EE111..(GL,GLI,XL,XLI)..(GCC,GEN,MA,NZ,TH)	04/1997 - 10/1999	1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-12041	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN) T=17	10/1999 - 07/2000	1
45524-12041	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN)	05/1995 - 10/1999	1
45524-12041	EE110..GENKD;AE111..LHD..(GCC,GEN,GENKD,PHL);AE112,CE110,EE11#..(3FC,4FC,5F)..(BZ,GCC,GEN,MA,PHL)	04/1997 - 10/1999	1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-33003	AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN) W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 02/2000	1
90179-33003	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	02/2000 - 07/2000	1
90179-33003	AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,EE110..GENKD,TH;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 02/2000	1
90179-33003	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/2000 - 12/2999	1
45535 - BOOT, STEERING RACK, NO.1
45535-12060	AE110,EE11#;AE111..GLI,SEG W(POWER STEERING), KOYO GEAR BOX	05/1995 - 04/1997	1
45535-12060	AE111..GLI..TUR;EE110..LHD..3FC;CE110,EE111..GEN;AE111..(XL,XLI)..(GCC,GEN,TUR);EE110..MTM..(STD,XL)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	07/1999 - 10/1999	1
45535-12100	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 07/1999	1
45535-12060	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 07/1999	1
45535-12060	AE110,112..IDN,TH;AE111..(GLI,SEG)..(MA,TH);AE111,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,GENKD,PHL,TH) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 07/1999	1
45535-12100	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/1999 - 12/2999	1
45535-12100	AE111..MA;AE111..RHD..WG;AE112,CE110,EE111;AE110,EE110..GENKD,TH;AE111..SED..(GL,GLI,XL,XLI);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 07/1999	1
45535-12060	AE111..RHD..(GL,GLI)..GEN;AE110,112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX	10/1999 - 12/2999	1
45535-12060	AE111..GLI..(TH,TUR);EE110..(STD,XL)..(GCC,GEN,GENKD,PHL);AE112,CE110,EE111..SED..(GEN,IDN,TH,TUR);AE111..(SEG,XL,XLI)..(GCC,GEN,MA,TH,TUR) W(POWER STEERING), KOYO GEAR BOX,(J)	07/1999 - 10/1999	1
45535-12100	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/1999 - 12/2999	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-52001	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR ASSY	05/1995 - 08/1998	2
90460-52001	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR ASSY	07/1999 - 12/2999	2
90460-52001	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN TOYOTA GEAR ASSY	08/1998 - 07/1999	2
90460-52001	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) TOYOTA GEAR ASSY	07/1999 - 12/2999	2
90460-52001	EE110..GENKD;AE11#,CE110,EE111;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN) TOYOTA GEAR ASSY	08/1998 - 07/1999	2
90460-52001	AE111..MA;AE110,EE110..GENKD,TH;AE112,CE110,EE111..GCC,GEN,IDN,MA,TH,TUR,VEN;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH,TUR,VEN);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR ASSY	04/1997 - 08/1998	2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-52001	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) TOYOTA GEAR ASSY	05/1995 - 08/1998	2
90460-52001	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN TOYOTA GEAR ASSY	07/1999 - 12/2999	2
90460-52001	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN TOYOTA GEAR ASSY	08/1998 - 07/1999	2
90460-52001	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) TOYOTA GEAR ASSY	07/1999 - 12/2999	2
90460-52001	EE110..GENKD;AE11#,CE110,EE111;EE110..(3FC,5F)..(GCC,GEN,PHL,VEN) TOYOTA GEAR ASSY	08/1998 - 07/1999	2
90460-52001	AE111..MA;AE110,EE110..GENKD,TH;AE112,CE110,EE111..GCC,GEN,IDN,MA,TH,TUR,VEN;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH,TUR,VEN);AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR ASSY	04/1997 - 08/1998	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 08/1998	2
90467-19012	AE111..WG..5F;AE111..RHD..GL;AE112,EE111..GEN;AE111..LHD..5F..XLI..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN);AE111,CE110,EE110..(STD,XL)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	10/1999 - 09/2001	2
90467-19012	AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE112,CE110,EE111..GCC,GEN;AE111..SED..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE110,EE110..(4F,4FC,5F)..(GL,STD,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	2
90467-19019	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN W(POWER STEERING), TOYOTA GEAR BOX	08/1998 - 07/1999	2
90080-46174	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GEN;AE110,111..RHD..(GL,GLI)..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(L)	04/1997 - 12/2999	2
90467-19019	AE110..TH;AE111..MA;AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GCC,GEN,IDN,TH,TUR,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TH,TUR,VEN);AE110,EE110..(4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 08/1998	2
90467-19019	EE111..XLI;EE110..LHD..3FC;EE110..5F..(GCC,GEN,VEN);AE11#,CE110..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,TUR,VEN W(POWER STEERING), TOYOTA GEAR BOX	08/1998 - 07/1999	2
90467-19012	EE111..GEN;AE111..GL,XL;AE111..WG..5F;AE110,111..MA,TH;AE111..LHD..GLI..GEN;AE111..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..GCC,GEN,GENKD,IDN,PHL,TH,TUR W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	2
90080-46174	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..GEN,IDN,TH;AE110,111..RHD..(GL,GLI);AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR) W(POWER STEERING), KOYO GEAR BOX,(L)	04/1997 - 12/2999	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 08/1998	2
90467-19012	AE111..WG..5F;AE111..RHD..GL;AE112,EE111..GEN;AE111..LHD..5F..XLI..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN);AE111,CE110,EE110..(STD,XL)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	10/1999 - 09/2001	2
90467-19012	AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE112,CE110,EE111..GCC,GEN;AE111..SED..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE110,EE110..(4F,4FC,5F)..(GL,STD,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	2
90467-19019	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN W(POWER STEERING), TOYOTA GEAR BOX	08/1998 - 07/1999	2
90080-46174	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GEN;AE110,111..RHD..(GL,GLI)..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(L)	04/1997 - 12/2999	2
90467-19019	AE110..TH;AE111..MA;AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..GCC,GEN,IDN,TH,TUR,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TH,TUR,VEN);AE110,EE110..(4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 08/1998	2
90467-19019	EE111..XLI;EE110..LHD..3FC;EE110..5F..(GCC,GEN,VEN);AE11#,CE110..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,TUR,VEN W(POWER STEERING), TOYOTA GEAR BOX	08/1998 - 07/1999	2
90467-19012	EE111..GEN;AE111..GL,XL;AE111..WG..5F;AE110,111..MA,TH;AE111..LHD..GLI..GEN;AE111..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..GCC,GEN,GENKD,IDN,PHL,TH,TUR W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	2
90080-46174	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..GEN,IDN,TH;AE110,111..RHD..(GL,GLI);AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR) W(POWER STEERING), KOYO GEAR BOX,(L)	04/1997 - 12/2999	2
45536 - BOOT, STEERING RACK, NO.2
45535-12100	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	05/1995 - 07/1999	1
45535-12060	EE11# W(POWER STEERING), KOYO GEAR BOX	05/1995 - 04/1997	1
45535-12100	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) W(POWER STEERING), TOYOTA GEAR BOX	04/1997 - 07/1999	1
45535-12060	AE110..TH;AE111..MA;AE110,111..RHD..(GL,GLI);AE112,CE110,EE111..SED..(GEN,IDN,TH);AE111,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,PHL,TH) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	1
45535-12060	AE111..RHD..WG;EE110..LHD..3FC;AE110,CE110,EE111..GEN;AE111..RHD..(GL,GLI)..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(SEG,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX,(J)	04/1997 - 10/1999	1
45535-12060	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) W(POWER STEERING), KOYO GEAR BOX	10/1999 - 09/2001	1
45535-12100	EE110..GENKD;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,112,CE110,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/1999 - 12/2999	1
45535-12100	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) W(POWER STEERING), TOYOTA GEAR BOX	07/1999 - 12/2999	1
Common parts
90149-30004
90208-22004
91611-60825

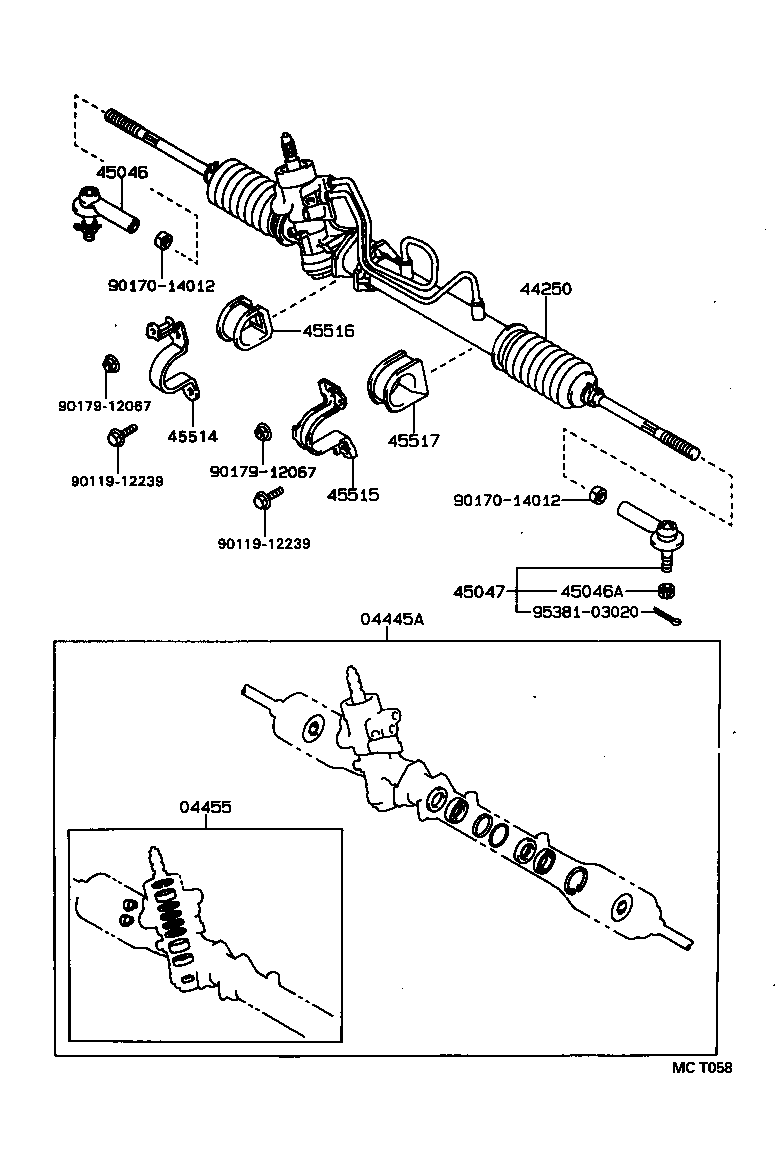

ILLUST NO. 1 OF 2(9505- )AE11#,CE110,EE11#

Click highlighted areas on diagram

POWER STEERING,TOYOTA

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-12150	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 07/1999	1
04445-12150	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX	04/1997 - 07/1999	1
04445-12150	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
04445-12150	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-12090	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX	04/1997 - 07/1999	1
04455-12090	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
04455-12090	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 07/1999	1
04455-12090	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-12560	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	04/1997 - 07/2000	1
44250-12561	AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	07/2000 - 09/2001	1
44250-12560	EE110..GCC,GENKD,PHL;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110..LHD..(BZ,GCC,GEN,GENKD,PHL)	04/1997 - 07/2000	1
45046 - END SUB-ASSY, TIE ROD, RH
45046-09130	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) T & K	10/1999 - 09/2001	1
45046-29305	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN	07/1999 - 10/1999	1
45046-29305	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN	07/1999 - 10/1999	1
45046-29305	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO	10/1999 - 09/2001	1
45046-29305	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN	04/1997 - 07/1999	1
45046-29305	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 07/1999	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
90171-12028	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29305	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO	10/1999 - 09/2001	1
45046-29305	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN	07/1999 - 10/1999	1
45046-09130	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) T & K	10/1999 - 09/2001	1
45046-29305	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN	07/1999 - 10/1999	1
45046-29305	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN	04/1997 - 07/1999	1
45046-29305	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 07/1999	1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-12090	CE110..LHD;AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..ARL,GCC,GEN,VEN W(POWER STEERING)	04/1997 - 12/2999	1
45514-12110	AE111..RHD..WG;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE110,112,CE110,EE111..(XL,XLI)..GEN	05/1995 - 09/2001	1
45514-12090	AE111..MA;CE110..LHD;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,EE110..GENKD,TH;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH,VEN) W(POWER STEERING)	04/1997 - 12/2999	1
45514-12110	AE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,NZ,PHL,TUR)	04/1997 - 12/2999	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-12170	EE110..RHD;AE111..RHD..WG;AE111..RHD..(GL,GLI)..GEN;AE110,112,CE110,EE111..ARL,GEN;EE110..LHD..(STD,XL)..(GCC,GEN);AE111..SED..(SEG,XL,XLI)..(GCC,GEN)	05/1995 - 12/2999	1
45515-12180	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD W(POWER STEERING)	04/1997 - 12/2999	1
45515-12170	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE111,EE110..RHD..(GL,GLI);AE112,EE111..(GLI,XLI)..(GEN,IDN,MA);EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR);AE111..SED..(XL,XLI)..(ARL,GCC,GEN,NZ,TH);AE110,112,CE110..(GLI,SEG,XL)..(ARL,GEN,IDN,NZ,TH)	04/1997 - 12/2999	1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-12060	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
45516-12060	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-12111	AE11#,EE11#	05/1995 - 02/1996	1
45517-12111	AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,112..GCC,IDN,NZ,TH;AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,NZ,PHL);AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH) W(POWER STEERING)	04/1997 - 12/2999	1
Common parts
90119-12239
90170-14012
90179-12067
95381-03020

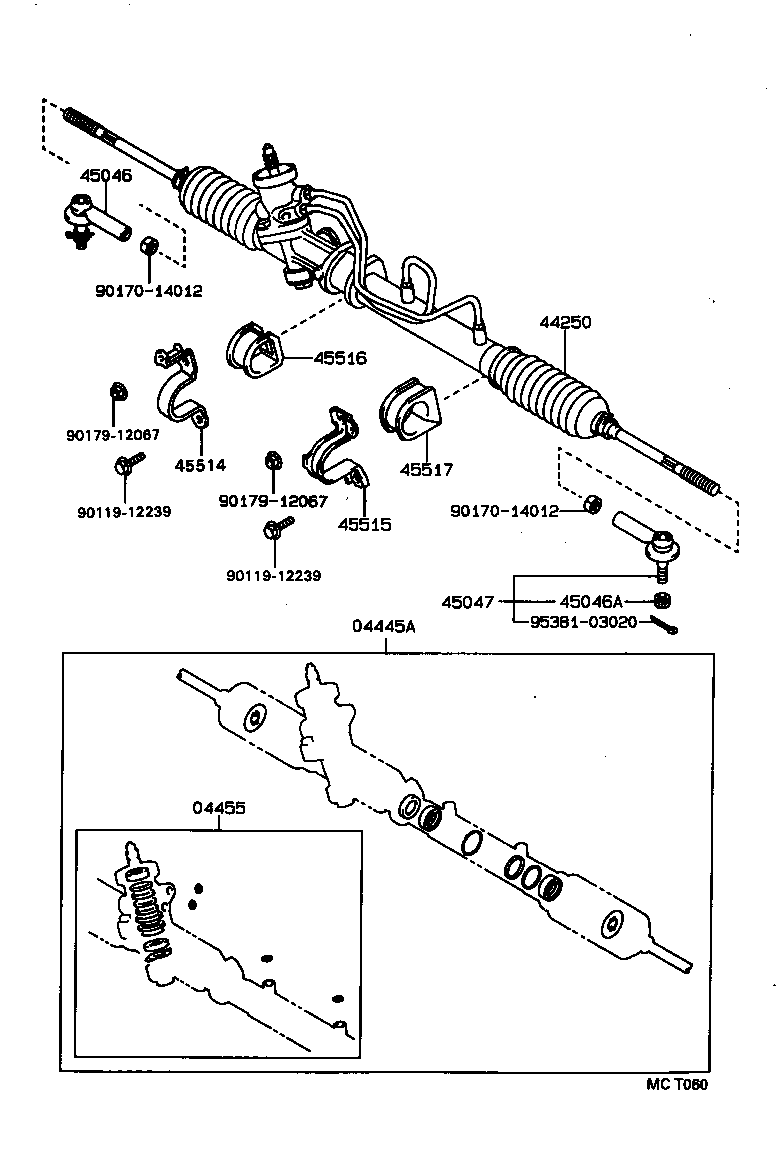

ILLUST NO. 1 OF 2(9505- )AE11#,CE110,EE11#

Click highlighted areas on diagram

POWER STEERING,KOYO

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-12150	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 07/1999	1
04445-12150	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX	04/1997 - 07/1999	1
04445-12150	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
04445-12150	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-12090	AE111..MA;AE112,CE110,EE111;AE111..GL,GLI,XL,XLI;AE110,EE110..GENKD,TH;AE110,EE110..(3FC,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN,PHL,VEN) TOYOTA GEAR BOX	04/1997 - 07/1999	1
04455-12090	EE110..GENKD;AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
04455-12090	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	05/1995 - 07/1999	1
04455-12090	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) TOYOTA GEAR BOX	07/1999 - 10/1999	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-12560	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	04/1997 - 07/2000	1
44250-12561	AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN)	07/2000 - 09/2001	1
44250-12560	EE110..GCC,GENKD,PHL;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110..LHD..(BZ,GCC,GEN,GENKD,PHL)	04/1997 - 07/2000	1
45046 - END SUB-ASSY, TIE ROD, RH
45046-09130	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) T & K	10/1999 - 09/2001	1
45046-29305	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN	07/1999 - 10/1999	1
45046-29305	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN	07/1999 - 10/1999	1
45046-29305	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO	10/1999 - 09/2001	1
45046-29305	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN	04/1997 - 07/1999	1
45046-29305	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 07/1999	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
90171-12028	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29305	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) KOYO	10/1999 - 09/2001	1
45046-29305	AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN	07/1999 - 10/1999	1
45046-09130	AE112,CE110,EE111..GEN;AE111,EE110..(STD,XL,XLI)..(GCC,GEN) T & K	10/1999 - 09/2001	1
45046-29305	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN	07/1999 - 10/1999	1
45046-29305	AE110..TH;AE111..MA;AE110..GLI;AE111,EE111..GL,GLI,XL,XLI;AE112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN	04/1997 - 07/1999	1
45046-29305	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 07/1999	1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-12090	CE110..LHD;AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..ARL,GCC,GEN,VEN W(POWER STEERING)	04/1997 - 12/2999	1
45514-12110	AE111..RHD..WG;EE110..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE110,112,CE110,EE111..(XL,XLI)..GEN	05/1995 - 09/2001	1
45514-12090	AE111..MA;CE110..LHD;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,EE110..GENKD,TH;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,EE110..(3FC,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH,VEN) W(POWER STEERING)	04/1997 - 12/2999	1
45514-12110	AE110..TH;AE111..WG..5F;AE112,EE111..GEN;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,NZ,PHL,TUR)	04/1997 - 12/2999	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-12170	EE110..RHD;AE111..RHD..WG;AE111..RHD..(GL,GLI)..GEN;AE110,112,CE110,EE111..ARL,GEN;EE110..LHD..(STD,XL)..(GCC,GEN);AE111..SED..(SEG,XL,XLI)..(GCC,GEN)	05/1995 - 12/2999	1
45515-12180	EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD W(POWER STEERING)	04/1997 - 12/2999	1
45515-12170	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE111,EE110..RHD..(GL,GLI);AE112,EE111..(GLI,XLI)..(GEN,IDN,MA);EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR);AE111..SED..(XL,XLI)..(ARL,GCC,GEN,NZ,TH);AE110,112,CE110..(GLI,SEG,XL)..(ARL,GEN,IDN,NZ,TH)	04/1997 - 12/2999	1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-12060	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
45516-12060	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-12111	AE11#,EE11#	05/1995 - 02/1996	1
45517-12111	AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE110,112..GCC,IDN,NZ,TH;AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,NZ,PHL);AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,MA,NZ,PHL,TH) W(POWER STEERING)	04/1997 - 12/2999	1
Common parts
90119-12239
90170-14012
90179-12067
95381-03020

EE110L-AEHDS (1997)

ILLUST NO. 2 OF 2(9505- )AE11#,CE110,EE11#

ILLUST NO. 2 OF 2(9505- )AE11#,CE110,EE11#

ILLUST NO. 1 OF 2(9505- )AE11#,CE110,EE11#

ILLUST NO. 1 OF 2(9505- )AE11#,CE110,EE11#

Part Price Details
