EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3FC

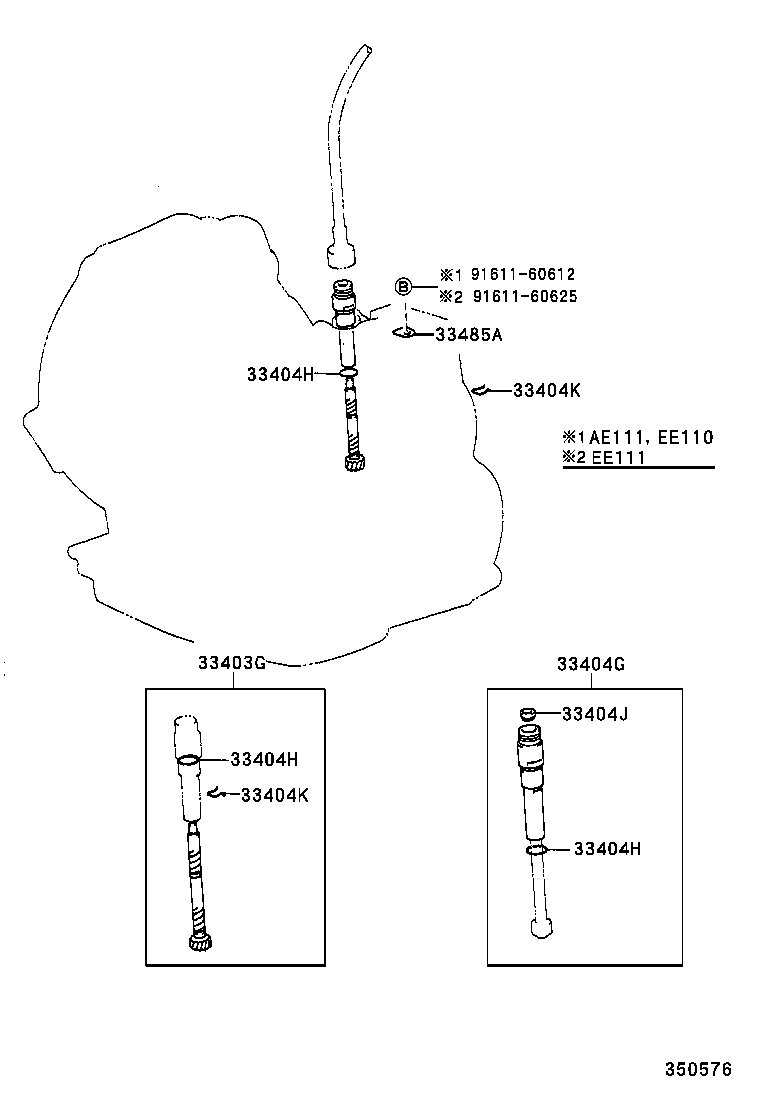

Click highlighted areas on diagram

A131L,A132L

diagram 33403G 33404G 33404H 33404H 33404H 33404J 33404K 33404K 33485A 9161160612 9161160625
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-19305

AE111,EE11#..3FC..GEN

N=22,MARK 22:25

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-32010

AE111,EE11#..3FC..GEN

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24018

AE111,EE11#..3FC..GEN

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24018

AE111,EE11#..3FC..GEN

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24018

AE111,EE11#..3FC..GEN

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AE111..ATM..(GL,SEG,XL)..GEN;AE111..RHD..4FC..(GLI,XLI)..GEN;AE110,112,EE11#..SED..ATM..(ARL,GEN)

 1
90310-09001

AE112..4FC..ARL;EE110..LHD..3FC;AE111..ATM..(GL,XL);AE110,111,EE111..RHD..ATM..(GLI,XLI)..GEN

 1
90310-09001

AE110..4FC..TH;AE111..ATM..(GL,XL);AE111..4FC..(MA,PHL);AE111,EE111..RHD..ATM..(GLI,XLI);AE110,112,EE110..ATM..(GLI,SEG,XL)..(ARL,GEN,IDN,NZ,TH)

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)

 1
90468-12005

AE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,EE110..SED..ATM..(GCC,GEN,TUR,VEN)

 1
90468-12005

EE110..LHD..3FC;AE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,ZZE112..ATM..(GCC,GEN,TUR,VEN)

 1
90468-12005

AE110..4FC..GEN;AE111,112,EE11#..ATM

 1
90468-12005

AE110..4FC..GLI;AE112,EE11#..ATM;AE111..ATM..(GL,GLI,XL,XLI);AE110,111..4FC..(SEG,XLI)..(MA,TH)

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)

 1
90468-12005

AE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,EE110..SED..ATM..(GCC,GEN,TUR,VEN)

 1
90468-12005

EE110..LHD..3FC;AE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,ZZE112..ATM..(GCC,GEN,TUR,VEN)

 1
90468-12005

AE110..4FC..GEN;AE111,112,EE11#..ATM

 1
90468-12005

AE110..4FC..GLI;AE112,EE11#..ATM;AE111..ATM..(GL,GLI,XL,XLI);AE110,111..4FC..(SEG,XLI)..(MA,TH)

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-14010

AE111,EE11#..3FC..GEN

 1
Common parts
91611-60612
91611-60625
