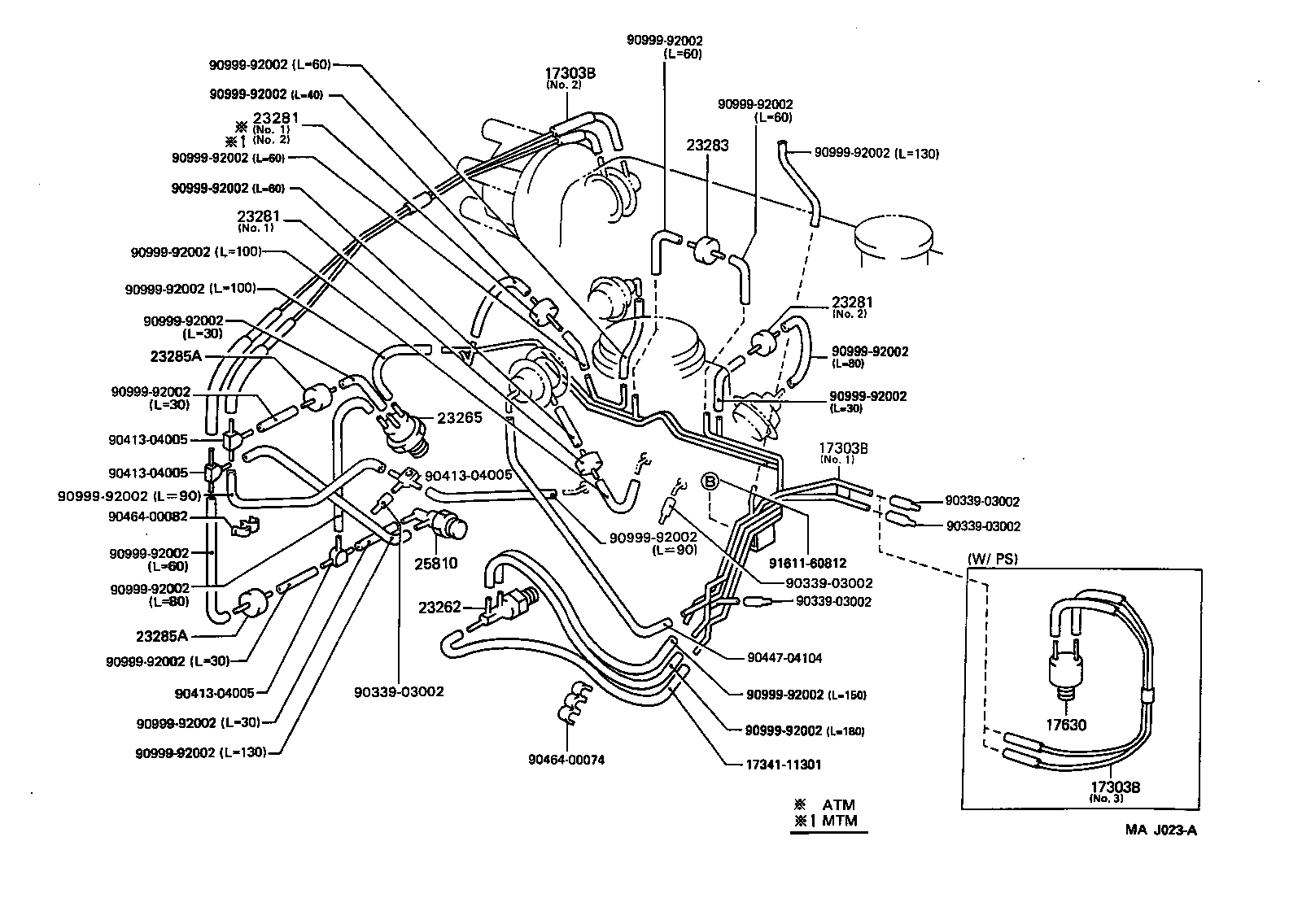

Toyota Corolla sed/wg EE110 VACUUM PIPING

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11550	2E..EE110..GL;2E..EE110..LHD..XL..(GCC,GEN) NO.3	04/1997 - 09/2001	1
17303-11460	2E..EE110..GCC,GEN NO.2	05/1995 - 09/2001	1
17303-11690	2E..EE110..GCC,GEN NO.1	05/1995 - 09/2001	1
17303-11550	2E..EE110 W(POWER STEERING),NO.3	05/1995 - 04/1997	1
17303-11460	2E..EE110 NO.2	04/1997 - 12/2999	1
17303-11690	2E..EE110..GCC,GEN,GENKD,PHL,VEN NO.1	04/1997 - 12/2999	1
17303-11550	2E..EE110..GL;2E..EE110..LHD..XL..GEN;2E..EE110..GCC,GENKD,PHL,VEN NO.3	04/1997 - 12/2999	1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11550	2E..EE110..GL;2E..EE110..LHD..XL..(GCC,GEN) NO.3	04/1997 - 09/2001	1
17303-11460	2E..EE110..GCC,GEN NO.2	05/1995 - 09/2001	1
17303-11690	2E..EE110..GCC,GEN NO.1	05/1995 - 09/2001	1
17303-11550	2E..EE110 W(POWER STEERING),NO.3	05/1995 - 04/1997	1
17303-11460	2E..EE110 NO.2	04/1997 - 12/2999	1
17303-11690	2E..EE110..GCC,GEN,GENKD,PHL,VEN NO.1	04/1997 - 12/2999	1
17303-11550	2E..EE110..GL;2E..EE110..LHD..XL..GEN;2E..EE110..GCC,GENKD,PHL,VEN NO.3	04/1997 - 12/2999	1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11550	2E..EE110..GL;2E..EE110..LHD..XL..(GCC,GEN) NO.3	04/1997 - 09/2001	1
17303-11460	2E..EE110..GCC,GEN NO.2	05/1995 - 09/2001	1
17303-11690	2E..EE110..GCC,GEN NO.1	05/1995 - 09/2001	1
17303-11550	2E..EE110 W(POWER STEERING),NO.3	05/1995 - 04/1997	1
17303-11460	2E..EE110 NO.2	04/1997 - 12/2999	1
17303-11690	2E..EE110..GCC,GEN,GENKD,PHL,VEN NO.1	04/1997 - 12/2999	1
17303-11550	2E..EE110..GL;2E..EE110..LHD..XL..GEN;2E..EE110..GCC,GENKD,PHL,VEN NO.3	04/1997 - 12/2999	1
17630 - VALVE ASSY, AIR CONTROL
17630-15030	2E..EE110..(GL,XL)..(GCC,GEN)	05/1995 - 04/1998	1
17630-15030	2E..EE110..(GL,XL)..(GCC,GEN)	10/1999 - 09/2001	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25820-11040	2E..EE110..GCC,GEN	05/1995 - 09/2001	1
25820-11040	2E..EE110	04/1997 - 12/2999	1
23265 - FILTER, GAS, NO.1
90917-11027	2E..EE110..GCC,GEN	05/1995 - 09/2001	1
90917-11027	2E..EE110	04/1997 - 12/2999	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01100	2E..EE110..3FC NO.1	05/1995 - 09/2001	2
90925-01101	2E..EE110..3FC NO.2	05/1995 - 09/2001	1
90925-01101	2E..EE110..3FC NO.2	04/1997 - 10/1999	1
90925-01100	2E..EE110..3FC NO.1	04/1997 - 10/1999	2
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01100	2E..EE110..3FC NO.1	05/1995 - 09/2001	2
90925-01101	2E..EE110..3FC NO.2	05/1995 - 09/2001	1
90925-01101	2E..EE110..3FC NO.2	04/1997 - 10/1999	1
90925-01100	2E..EE110..3FC NO.1	04/1997 - 10/1999	2
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01100	2E..EE110..3FC NO.1	05/1995 - 09/2001	2
90925-01101	2E..EE110..3FC NO.2	05/1995 - 09/2001	1
90925-01101	2E..EE110..3FC NO.2	04/1997 - 10/1999	1
90925-01100	2E..EE110..3FC NO.1	04/1997 - 10/1999	2
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01091	2E..EE110..GCC,GEN,GENKD,PHL,VEN	04/1997 - 12/2999	1
90925-01091	2E..EE110..GCC,GEN	05/1995 - 09/2001	1
23285A - VALVE, CHECK, NO.1
90917-10049	2E..EE110..GCC,GEN NO.2	05/1995 - 10/1999	2
90917-10049	2E..EE110 NO.2	04/1997 - 10/1999	2
90917-10049	2E..EE110..GCC,GEN	10/1999 - 09/2001	2
23285A - VALVE, CHECK, NO.1
90917-10049	2E..EE110..GCC,GEN NO.2	05/1995 - 10/1999	2
90917-10049	2E..EE110 NO.2	04/1997 - 10/1999	2
90917-10049	2E..EE110..GCC,GEN	10/1999 - 09/2001	2
25810 - VALVE ASSY, BIMETAL
25810-11080	2E..EE110..GCC,GEN,GENKD,PHL,VEN	04/1997 - 12/2999	1
25810-11080	2E..EE110..GCC,GEN	05/1995 - 09/2001	1
Common parts
17341-11301
90339-03002
90413-04005
90447-04104
90464-00074
90464-00082
90999-92002
91611-60812

EE110L-AEHDS (1997)

(9505- )2E..GCC,GEN,GENKD,PHL,VEN
