CE140R-AEMDS (2007)
Toyota Corolla Sed/Wg
ILLUST NO. 5 OF 8(0704-0810)N ; (0704- )RHD..SED
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12520 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
CE140;ZZE142..LHD..XLI..GEN OUTSIDE REAR VIEW MIRROR-*162, COLORED |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12260 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01163 |
CE140,NZE141,ZZE14#..SED 12V 1.2W,W(CAP) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 7 OF 7(0708- )SED
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12770 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
CE140,NZE141..LX,XLI POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
1 | ||
| 84810-52030 |
CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
CE140,NZE141..LX,XLI POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
1 | ||
| 84810-52030 |
CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84810-52030 |
CE140,NZE141..LX,XLI POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84810-52030 |
CE140,NZE141..LX,XLI POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12530 |
CE140,NZE141..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84820-12530 |
CE140,NZE141..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12530 |
CE140,NZE141..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84820-12530 |
CE140,NZE141..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)&INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER |
1 | ||
| Common parts | ||||
| 48966-68010 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 91631-B0820 | ||||
| 94150-10641 | ||||
ILLUST NO. 4 OF 8(0708- )RHD..SED
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ZZFE..ZZE142..LHD..GEN;2C,1NZFE..CE140,NZE141..SED |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1ZZFE..ZZE142..LHD..GEN;2C,1NZFE..CE140,NZE141..SED |
1 | ||
| 28520 - TIMER ASSY, PREHEATING | ||||
| 28520-64520 |
2C..CE140 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
CE140,NZE141,ZZE14#..SED 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
CE140,NZE141,ZZE14#..SED 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
CE140,NZE141,ZZE14#..SED 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
CE140,NZE141,ZZE14#..SED 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
CE140,NZE141,ZZE14#..SED 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
CE140,NZE141,ZZE14#..SED 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
CE140,NZE141,ZZE14#..SED 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
CE140,NZE141,ZZE14#..SED 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
CE140,NZE141,ZZE14#..SED 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
CE140,NZE141,ZZE14#..SED 25A,MINI FUSE |
1 | ||
| 90982-09023 |
CE140,NZE141,ZZE14#..SED 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
CE140,NZE141,ZZE14#..SED 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
CE140,NZE141,ZZE14#..SED 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
CE140,NZE141,ZZE14#..SED 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
CE140,NZE141,ZZE14#..SED 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
CE140,NZE141,ZZE14#..SED 25A,MINI FUSE |
1 | ||
| 90982-09023 |
CE140,NZE141,ZZE14#..SED 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
CE140,NZE141,ZZE14#..SED 10A,MINI FUSE,RED |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82755-12020 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12200 |
CE140,NZE141,ZZE14#..RHD..SED |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12210 |
CE140,NZE141,ZZE14#..RHD..SED |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12230 |
CE140,NZE141,ZZE14#..RHD..SED |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12F30 |
CE140,NZE141,ZZE142..RHD..(LX,XLI) |
1 | ||
| 82730-12F70 |
CE140,NZE141,ZZE142..RHD..(LX,XLI) WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82730-12F50 |
CE140,NZE141,ZZE142..RHD..(LX,XLI) POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12B50 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19015 |
CE140 |
1 | ||
| 84340-69035 |
CE140 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
CE140,NZE141,ZZE14#..RHD..SED |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZZE142..LHD..GEN;CE140,NZE141..SED FRONT FOG LAMP-WITH |
1 | ||
| 85930D - RELAY | ||||
| 90987-02027 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12490 |
CE140..RHD ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 89650-12480 |
CE140..RHD |
1 | ||
| 89650-12490 |
CE140..RHD ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90179-06110 | ||||
| 91631-B0618 | ||||
| 91671-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
ILLUST NO. 2 OF 8(0708- )SED
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
2C..CE140 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20110 |
CE140 |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
ILLUST NO. 1 OF 7(0708- )CE140

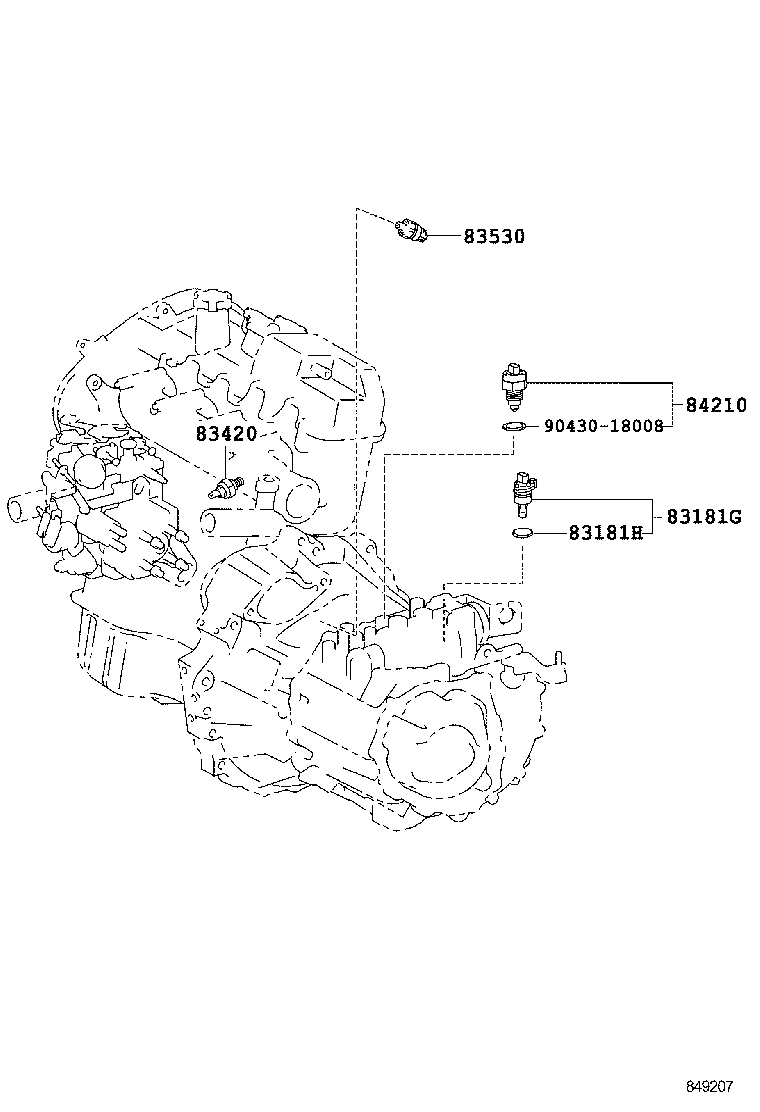

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12030 |
CE140 |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
ZZE141..4FC;CE140,NZE141..SED |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CE140 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28010 |
CE140 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CE140 |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
ILLUST NO. 5 OF 8(0810- )N
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12520 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
CE140;ZZE142..LHD..XLI..GEN OUTSIDE REAR VIEW MIRROR-*162, COLORED |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 3 OF 8(0708- )SED
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
CE140,NZE141,ZZE14#..SED 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
CE140,NZE141,ZZE14#..SED 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
CE140,NZE141,ZZE14#..SED 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
CE140,NZE141,ZZE14#..SED 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
CE140,NZE141,ZZE14#..SED 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
CE140,NZE141,ZZE14#..SED 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
CE140,NZE141,ZZE14#..SED 25A,MINI FUSE |
1 | ||
| 90982-09023 |
CE140,NZE141,ZZE14#..SED 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
CE140,NZE141,ZZE14#..SED 10A,MINI FUSE,RED |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12280 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12080 |
CE140,NZE141,ZZE14#..SED NO.2 |
1 | ||
| 82631-12070 |
CE140,NZE141,ZZE14#..SED NO.1 |
1 | ||
| 82631-12090 |
CE140,NZE141,ZZE14#..SED NO.3 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12080 |
CE140,NZE141,ZZE14#..SED NO.2 |
1 | ||
| 82631-12070 |
CE140,NZE141,ZZE14#..SED NO.1 |
1 | ||
| 82631-12090 |
CE140,NZE141,ZZE14#..SED NO.3 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12080 |
CE140,NZE141,ZZE14#..SED NO.2 |
1 | ||
| 82631-12070 |
CE140,NZE141,ZZE14#..SED NO.1 |
1 | ||
| 82631-12090 |
CE140,NZE141,ZZE14#..SED NO.3 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-47020 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12310 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12370 |
ZZE142..LHD..GEN;CE140,NZE141..LX,XLI |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12110 |
CE140 |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12110 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 82821D - COVER, CONNECTOR | ||||
| 82821-47090 |
CE140,NZE141,ZZE14#..SED |
2 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
1 | ||
| 85916U - RELAY, HEADLAMP, NO.2 | ||||
| 90987-02025 |
ZZE142..LHD..GEN;CE140,NZE141..SED |
1 | ||
| 90987-04010 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02028 |
CE140 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02028 |
CE140 AIR CONDITIONER-WITH OUT |
1 | ||
| 90987-02028 |
CE140 |
1 | ||
| 85927C - RELAY, COOLING FAN, NO.4 | ||||
| 90987-04004 |
CE140 AIR CONDITIONER-WITH OUT |
1 | ||
| 90987-04004 |
CE140 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
CE140 AIR CONDITIONER-WITH OUT |
1 | ||
| 90987-02028 |
CE140 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
