CE140L-AEMDS (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )CE140..LHD

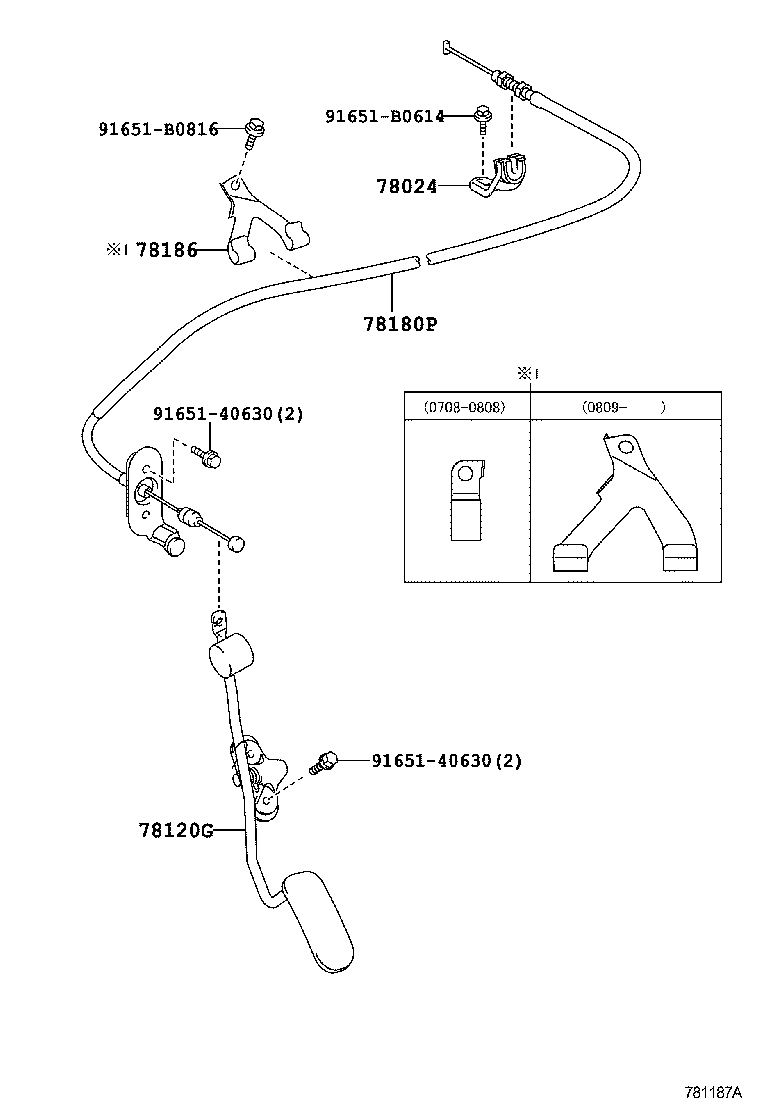

Click highlighted areas on diagram

diagram 78024 78120G 78180P 78186 9165140630 9165140630 91651B0614 91651B0816
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-32140

CE140

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12400

CE140..LHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-12A70

CE140..LHD

 1
78180-12A71

CE140..LHD

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12480

CE140..LHD

 1
78186-12320

CE140..LHD

 1
Common parts
91651-40630
91651-B0614
91651-B0816
