CE140L-AEMDS (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )2C

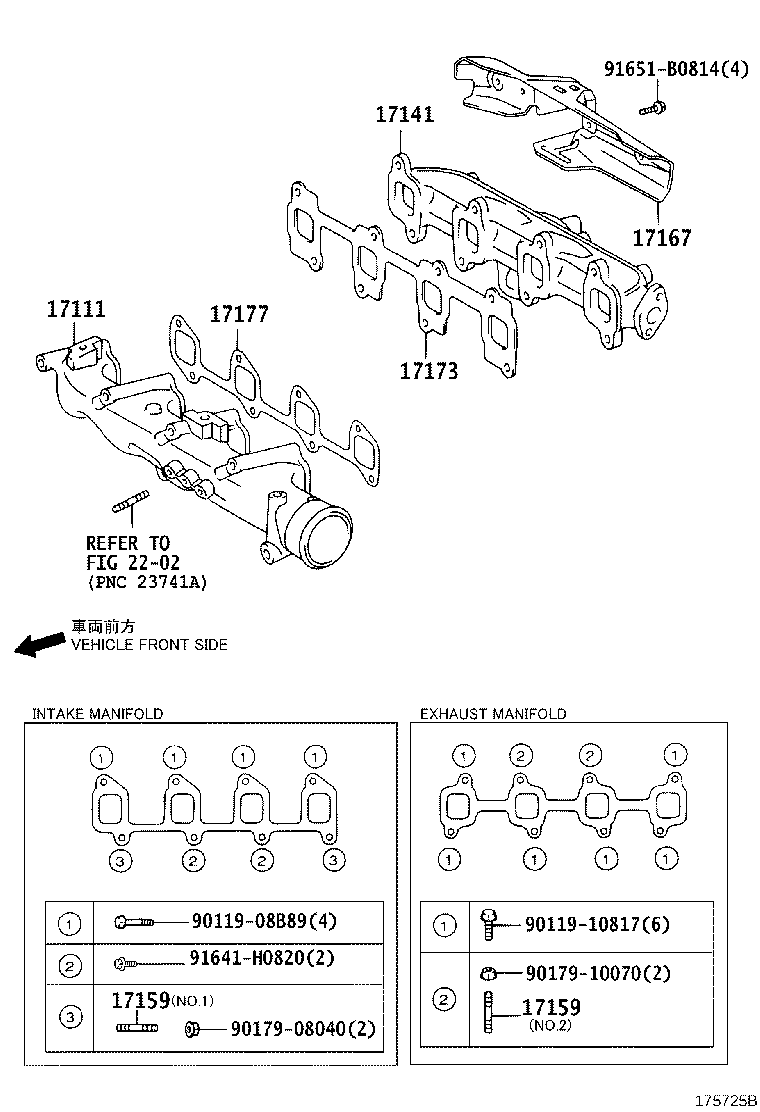

Click highlighted areas on diagram

diagram 17111 17141 17159 17159 17167 17173 17177 2202 9011908B89 9011910817 9017908040 9017910070 91641H0820 91651B0814
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-64150

2C..CE140

 1
17141 - MANIFOLD, EXHAUST
17141-64310

2C..CE140

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

2C..CE140

NO.1

 2
90126-10017

2C..CE140

NO.2

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

2C..CE140

NO.1

 2
90126-10017

2C..CE140

NO.2

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64120

2C..CE140

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-64060

2C..CE140

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-64020

2C..CE140

 1
Common parts
90119-08B89
90119-10817
90179-08040
90179-10070
91641-H0820
91651-B0814
Linked diagrams
2202
