CE140L-AEMDS (2007)
Toyota Corolla Sed/Wg

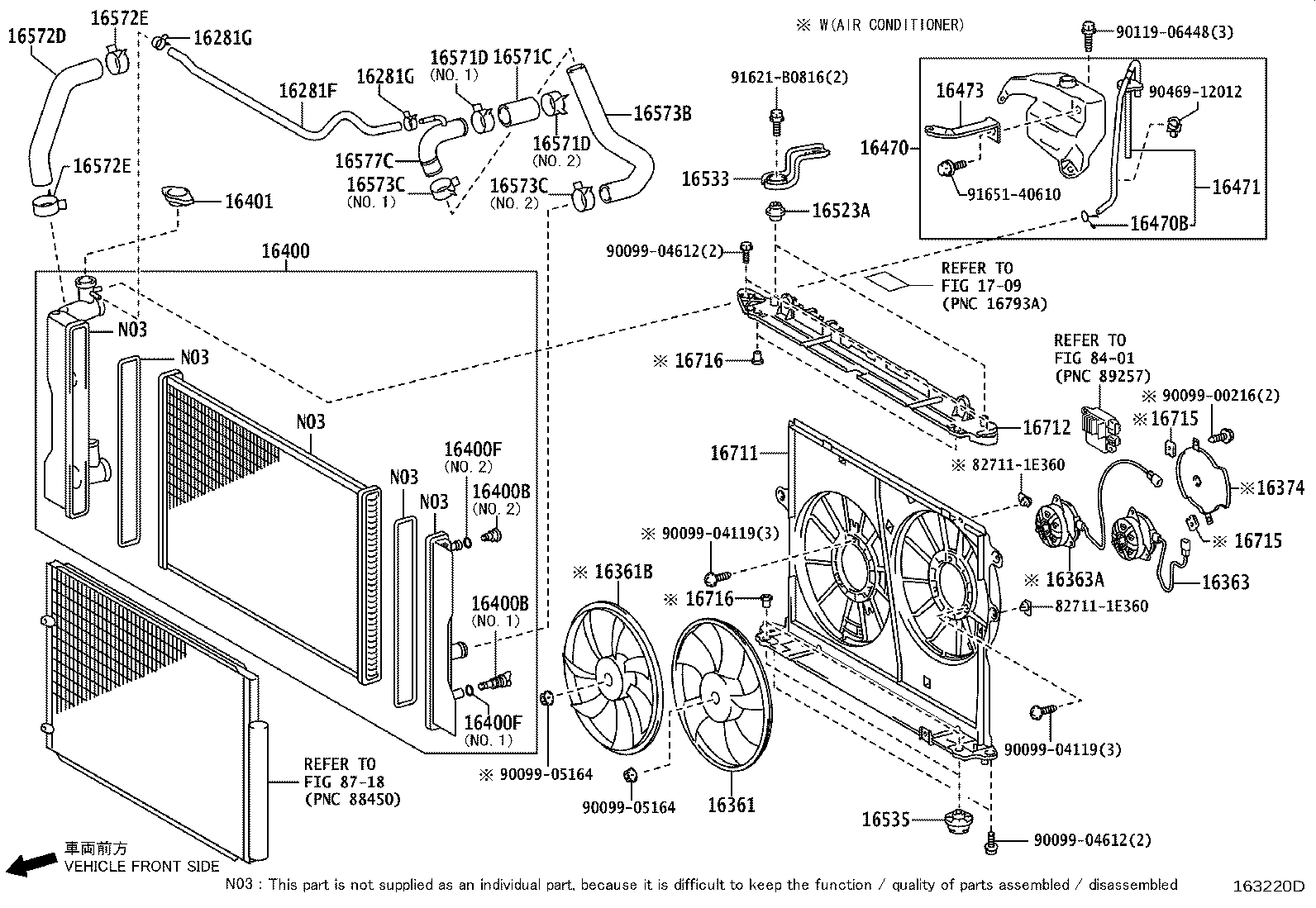

ILLUST NO. 1 OF 2(0708- )2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-64020 |
2C..CE140 |
1 | ||
| 16281-64021 |
2C..CE140 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2C..CE140 |
2 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2C..CE140 |
2 | ||
| 16361 - FAN | ||||
| 16361-28320 |
2C..CE140 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28330 |
2C..CE140 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-64220 |
2C..CE140 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-64250 |
2C..CE140 |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-28120 |
2C..CE140 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-64640 |
2C..CE140 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2C..CE140 NO.1 |
1 | ||
| 16417-28530 |
2C..CE140 NO.2 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2C..CE140 NO.1 |
1 | ||
| 16417-28530 |
2C..CE140 NO.2 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-20290 |
2C..CE140 NO.2 |
1 | ||
| 16492-21050 |
2C..CE140 NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-20290 |
2C..CE140 NO.2 |
1 | ||
| 16492-21050 |
2C..CE140 NO.1 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-20353 |
2C..CE140 |
1 | ||
| 16401-72090 |
2C..CE140 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64260 |
2C..CE140 |
1 | ||
| 16470-64261 |
2C..CE140 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11003 |
2C..CE140 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-64130 |
2C..CE140 |
1 | ||
| 16405-64130 |
2C..CE140 |
1 | ||
| 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) | ||||
| 16473-22090 |
2C..CE140 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21050 |
2C..CE140 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-22070 |
2C..CE140 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74230 |
2C..CE140 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-64360 |
2C..CE140 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-35001 |
2C..CE140 NO.1 |
1 | ||
| 96136-44301 |
2C..CE140 NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-35001 |
2C..CE140 NO.1 |
1 | ||
| 96136-44301 |
2C..CE140 NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-64360 |
2C..CE140 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2C..CE140 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
2C..CE140 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-64110 |
2C..CE140 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
2C..CE140 NO.2 |
1 | ||
| 90466-35001 |
2C..CE140 NO.1 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
2C..CE140 NO.2 |
1 | ||
| 90466-35001 |
2C..CE140 NO.1 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-64050 |
2C..CE140 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-64560 |
2C..CE140 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-64270 |
2C..CE140 |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 88688-18030 |
2C..CE140 |
2 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 88688-18030 |
2C..CE140 |
2 | ||
| 16716 - CUSHION, FAN SHROUD | ||||
| 16716-28010 |
2C..CE140 |
4 | ||
| 16716 - CUSHION, FAN SHROUD | ||||
| 16716-28010 |
2C..CE140 |
4 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-00216 | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06448 | ||||
| 90469-12012 | ||||
| 91621-B0816 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8718 | ||||

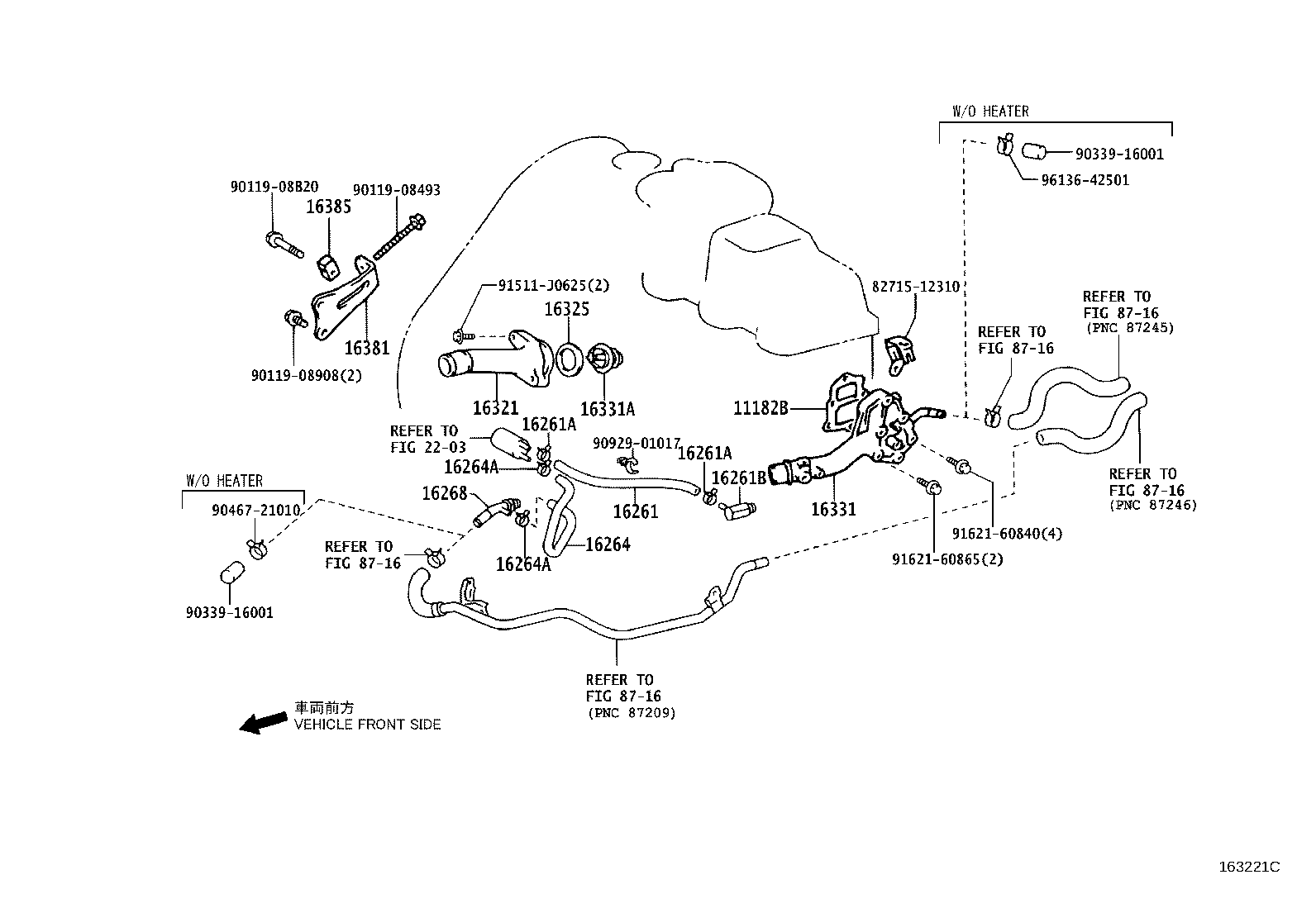

ILLUST NO. 2 OF 2(0708- )2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11182B - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
2C..CE140 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64060 |
2C..CE140 |
1 | ||
| 16261-64060 |
2C..CE140..LHD HEATER-BOOST VENTILATOR(WITH OUT HEATER COER) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2C..CE140 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2C..CE140 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53075 |
2C..CE140 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64090 |
2C..CE140 |
1 | ||
| 16264-64090 |
2C..CE140..LHD HEATER-BOOST VENTILATOR(WITH OUT HEATER COER) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2C..CE140 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2C..CE140 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64061 |
2C..CE140 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64020 |
2C..CE140 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
2C..CE140 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64150 |
2C..CE140 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2C..CE140 *WAX 82-95 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64080 |
2C..CE140 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
2C..CE140 |
1 | ||
| Common parts | ||||
| 82715-12310 | ||||
| 90119-08493 | ||||
| 90119-08908 | ||||
| 90119-08B20 | ||||
| 90339-16001 | ||||
| 90467-21010 | ||||
| 90929-01017 | ||||
| 91511-J0625 | ||||
| 91621-60840 | ||||
| 91621-60865 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 2203 | ||||
| 8716 | ||||
