AE112R-AEPNKQ (1998)
Toyota Corolla Sed/Wg

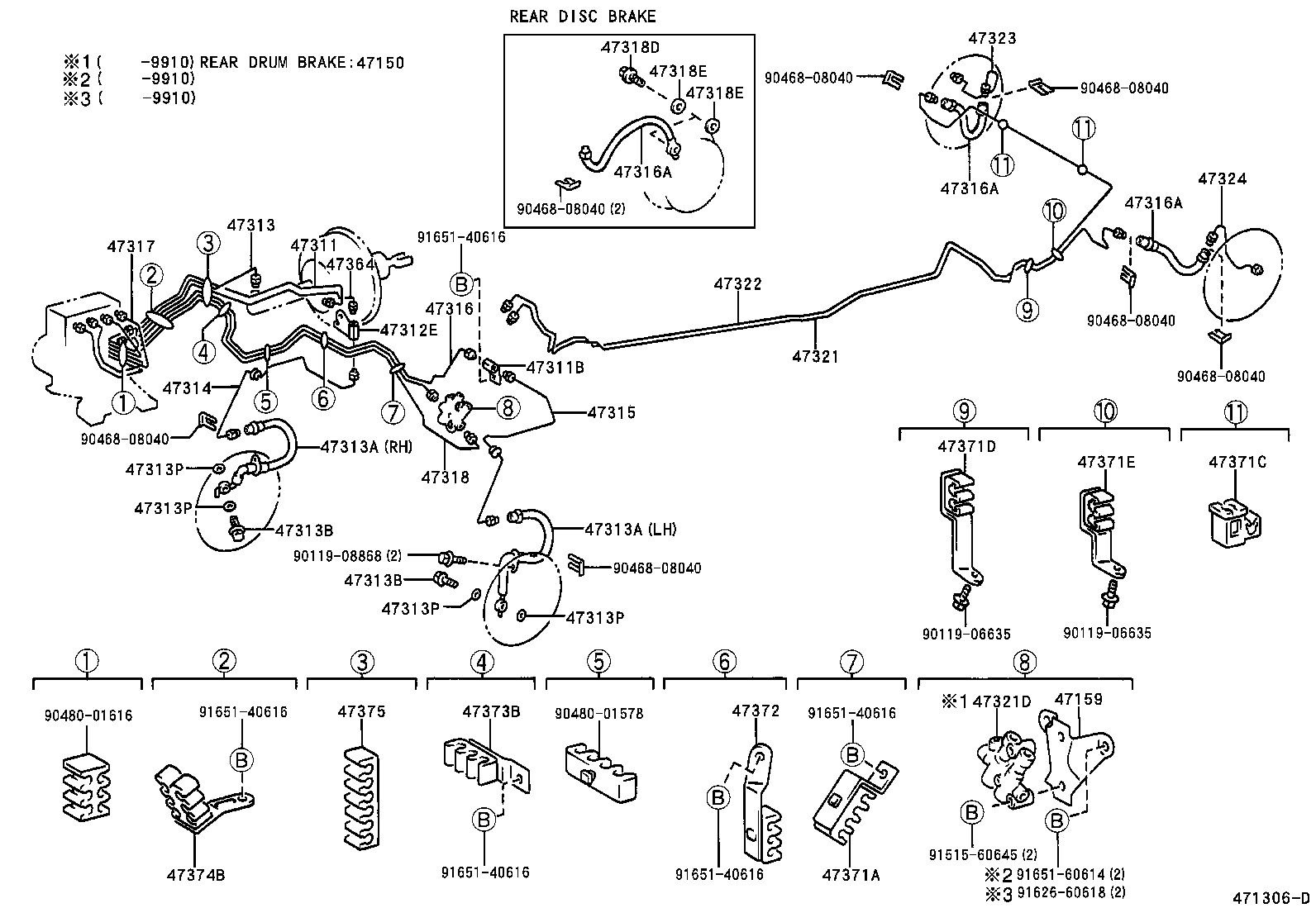

ILLUST NO. 1 OF 2(9808- )AE111..ARL ; (9808- )AE112..ARL,VEN
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12060 |
AE11#,EE11# |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12560 |
AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47311-12620 |
AE112..ARL W(ABS) |
1 | ||
| 47311-12560 |
AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) |
1 | ||
| 47311-12620 |
AE111,112..ARL W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-12010 |
AE11#,EE11# |
1 | ||
| 47391-12010 |
AE111..RHD..(GL,XL);AE112,CE110,EE110..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 47391-12010 |
AE11#..(GLI,XLI)..(ARL,TH);AE111,CE110,EE110..RHD..(GL,XL) |
1 | ||
| 47391-12010 |
AE11#,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12370 |
AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47313-12430 |
AE111,112..ARL W(ABS) |
1 | ||
| 47313-12370 |
AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) |
1 | ||
| 47313-12430 |
AE112..ARL W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02799 |
AE11#,EE11# LH |
1 | ||
| 90947-02798 |
AE11#,EE11# RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02799 |
AE11#,EE11# LH |
1 | ||
| 90947-02798 |
AE11#,EE11# RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 90401-10015 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 90401-10058 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 90401-10015 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 90401-10058 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
4 | ||
| 47389-50020 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 47389-50020 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 90430-10074 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
4 | ||
| 47389-50020 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 90430-10074 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
4 | ||
| 47389-50020 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
4 | ||
| 47389-50020 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
2 | ||
| 47389-50020 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12290 |
AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47314-12500 |
AE11#,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12460 |
AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) |
1 | ||
| 47315-12460 |
AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12320 |
AE111,112..ARL |
1 | ||
| 47316-12320 |
AE112..ARL |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02922 |
AE112..ARL |
2 | ||
| 90947-02921 |
EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN |
2 | ||
| 90947-02783 |
AE11#,EE11# |
2 | ||
| 90947-02921 |
EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02922 |
AE112..ARL |
2 | ||
| 90947-02921 |
EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN |
2 | ||
| 90947-02783 |
AE11#,EE11# |
2 | ||
| 90947-02921 |
EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02922 |
AE112..ARL |
2 | ||
| 90947-02921 |
EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN |
2 | ||
| 90947-02783 |
AE11#,EE11# |
2 | ||
| 90947-02921 |
EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12170 |
AE112..ARL |
1 | ||
| 47317-12170 |
AE111,112..ARL |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12310 |
AE112..ARL |
1 | ||
| 47318-12310 |
AE111,112..ARL |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE112..ARL |
2 | ||
| 90401-10058 |
AE112..ARL |
2 | ||
| 90401-10058 |
AE112..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE112..ARL |
2 | ||
| 90430-10074 |
AE112..ARL |
4 | ||
| 47389-50020 |
AE112..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AE112..ARL |
2 | ||
| 90430-10074 |
AE112..ARL |
4 | ||
| 47389-50020 |
AE112..ARL |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12130 |
AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
AE112..ARL |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12280 |
AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 47323-12250 |
EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN |
1 | ||
| 47324-12210 |
EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-12160 |
AE111,112..ARL |
1 | ||
| 47364-12160 |
AE112..ARL |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12100 |
AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN) |
1 | ||
| 47371-12100 |
AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-12150 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 90949-01B45 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47375-12040 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47375-12060 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-06119 |
EE111..GEN,VEN;EE110..LHD..3FC;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 90461-06119 |
AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..ARL,GCC,GEN |
1 | ||
| 90461-06119 |
CE110..XL;AE111..SED;AE110,EE11#;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47374-12030 |
AE111,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 47374-12030 |
AE110,112,EE111..ARL,GCC,GEN,VEN;AE111..(GLI,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47373-12010 |
AE11#,EE111..RHD..(GLI,XLI)..(ARL,GEN) |
1 | ||
| 47373-12010 |
AE111,112..RHD..(GLI,XLI)..(ARL,GEN) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01856 |
AE111,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| Common parts | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 90480-01578 | ||||
| 90480-01616 | ||||
| 91515-60645 | ||||
| 91626-60618 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
