AE112L-GEMDKG (1998)

Toyota Corolla Sed/Wg

Production Aug 1998 - Feb 2002
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )BZ

Click highlighted areas on diagram

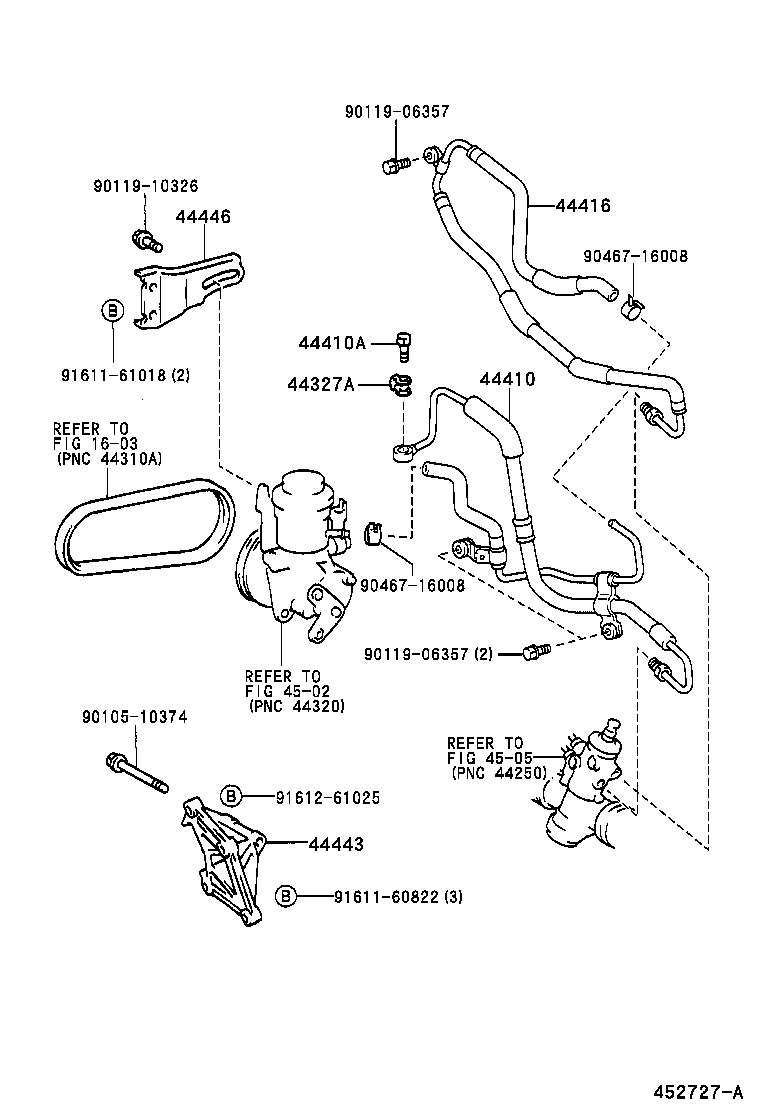

diagram 1603 44327A 44410 44410A 44416 44443 44446 4502 4505 9010510374 9011906357 9011906357 9011910326 9046716008 9046716008 9161160822 9161161018 9161261025
Part # Description Qty Price
44410 - TUBE ASSY, PRESSURE FEED
44410-12533

AE111,112..BZ,GENKD,PHL

 1
44410-12700

AE112..BZ

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44406-12220

AE111,112,EE11#..BZ,GENKD,PHL,VEN

 1
44406-12301

AE112..BZ

 1
44406-12160

EE110..GCC,GENKD,PHL,VEN;EE110..LHD..(GL,XL)..GEN;AE111,112,CE110,EE111..LHD..(BZ,GCC,GEN,GENKD,PHL,VEN)

 1
Common parts
90105-10374
90119-06357
90119-10326
90467-16008
91611-60822
91611-61018
91612-61025
Linked diagrams
1603
4502
4505
