AE112L-AWMDKV (1997)
Toyota Corolla Sed/Wg
ILLUST NO. 3 OF 8(9704- )LHD
COWL,INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1L570 |
AE112..GCC;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN) |
1 | ||
| 82131-1L570 |
AE112..GCC;AE111..LHD..(GLI,XLI)..(GCC,GEN,GENKD) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1N520 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82141-1N500 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 82141-1N500 |
EE111..VEN;AE111,112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 82141-1N500 |
EE110..LHD..(GCC,GEN,GENKD,VEN);AE111,112,CE110..LHD..(GCC,GEN,GENKD) |
1 | ||
| 82141-1N520 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82141-1N500 |
EE111..VEN;AE111,112,CE110,EE110..LHD..(GCC,GEN,GENKD) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-12010 |
AE11#,CE110,EE11#..ARL,GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82143-12010 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,PHL);AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,PHL,VEN) W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82143-12010 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08257 |
AE11#,EE11# 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE11#,EE111 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08228 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 50A,TERM.:MALE,RED |
1 | ||
| 90982-08228 |
ZZE11#;AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:MALE,RED |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE111,ZZE11#..LHD..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
AE110..TH;AE111..MA;AE110..GLI;AE111,EE110..LHD;AE112,CE110,EE111;AE111..RHD..(GLI,XLI) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE111;AE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,PHL,TUR) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08228 |
AE110,112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,TH,TUR;AE111..(GLI,SEG,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) 50A,TERM.:MALE,RED |
1 | ||
| 90982-08282 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
AE111..LHD;AE110,EE111;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..RHD..SED..(GLI,SEG,XLI);EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AE110,111,CE110..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN;AE112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR 100A,TERM.:MALE,BLUE |
1 | ||
| 82285E - WIRE, ILLUMINATION | ||||
| 82285-12020 |
AE110..TH;AE110,112..(GLI,SEG)..(GEN,TH);AE111..(GL,GLI,XL,XLI)..(GCC,GEN,TH,VEN);AE112,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,VEN) |
1 | ||
| 82285-12020 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 82285-12020 |
AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,TH);AE110,EE110..GCC,GEN,GENKD,PHL,TH;AE111,EE111..SED..(GCC,GEN,TH,VEN);AE112..(GLI,XLI)..(GCC,GEN,IDN,VEN) |
1 | ||
| 82285-12020 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE11#,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 82285-12020 |
EE111..GEN;AE11#,CE110,EE110..GCC,GEN,VEN |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12220 |
AE112..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 82666-12220 |
AE112..BZ,GCC,VEN;AE111,CE110,EE11#..LHD |
1 | ||
| 82666-12220 |
AE112,EE111..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..(GCC,GEN,TUR,VEN) |
1 | ||
| 82666-12220 |
AE112..BZ,GCC,VEN;AE111,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12170 |
AE112,EE111..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..(GCC,GEN,TUR,VEN) |
1 | ||
| 82666-12170 |
AE112..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 82666-12170 |
AE112..BZ,GCC,VEN;AE111,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) |
1 | ||
| 82666-12170 |
AE112..BZ,GCC,VEN;AE111,CE110,EE11#..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A620 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 82817-1A620 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 82817-1A620 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 82817-1A620 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AE111..RHD..WG;AE110..XLI..GEN;AE112,CE110,EE11#..ARL,GCC,GEN;AE111,ZZE11#..SED..(GCC,GEN,TUR) NO.2 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
EE111;AE111..5F..GLI;AE11#,EE110..(4FC,5F)..(SEG,XL,XLI) W(*66) OR W(AUTO AIR CONDITIONER) |
1 | ||
| 82824-12210 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN W(AUTO AIR CONDITIONER),BLACK |
3 | ||
| 82824-12220 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN NATURAL |
3 | ||
| 82824-12210 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12200 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 82824-12210 |
EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE111..SEG..GEN;EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..SED..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12220 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
3 | ||
| 82824-12220 |
AE112..GCC,GEN,VEN;AE111,EE110..(XL,XLI)..(GCC,VEN) NATURAL |
2 | ||
| 82824-12200 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.2 |
1 | ||
| 82824-12210 |
EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE111..LHD..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12220 |
AE112..GCC,GEN,VEN;AE111,EE110..(XL,XLI)..(GCC,VEN) HEATER CONTROL---PUSH TYPE |
2 | ||
| 82824-12220 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH NATURAL |
3 | ||
| 82824-12210 |
AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12200 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 82824-12210 |
AE111..ARL;AE112..ARL,GCC,GEN,VEN;EE110..LHD..(GCC,GEN,GENKD);AE111,CE110..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12210 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH W(AUTO AIR CONDITIONER),BLACK |
3 | ||
| 82824-12210 |
AE111..ARL;AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE110..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12220 |
AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
3 | ||
| 82824-12220 |
AE112..LHD;EE110..GCC,VEN;AE111..LHD..WG;AE111..GCC,PHL,VEN HEATER CONTROL---PUSH TYPE |
2 | ||
| 82824-12200 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.2 |
1 | ||
| 82824-12210 |
AE111..5F..ARL;AE112..ARL,GCC,GEN,VEN;AE111..4FC..(ARL,MA,TH);EE110..LHD..(GCC,GEN,GENKD);AE111..5F..(GLI,SEG)..(MA,TH);AE111,CE110,EE111..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12220 |
AE112..LHD;EE110..GCC;AE111..GCC,PHL,VEN NATURAL |
2 | ||
| 82824-12210 |
AE112..GCC,IDN,TH;AE110,111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH) W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
EE111;AE111..5F..GLI;AE11#,EE110..(4FC,5F)..(SEG,XL,XLI) W(*66) OR W(AUTO AIR CONDITIONER) |
1 | ||
| 82824-12210 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN W(AUTO AIR CONDITIONER),BLACK |
3 | ||
| 82824-12220 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN NATURAL |
3 | ||
| 82824-12210 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12200 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 82824-12210 |
EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE111..SEG..GEN;EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..SED..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12220 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
3 | ||
| 82824-12220 |
AE112..GCC,GEN,VEN;AE111,EE110..(XL,XLI)..(GCC,VEN) NATURAL |
2 | ||
| 82824-12200 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.2 |
1 | ||
| 82824-12210 |
EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE111..LHD..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12220 |
AE112..GCC,GEN,VEN;AE111,EE110..(XL,XLI)..(GCC,VEN) HEATER CONTROL---PUSH TYPE |
2 | ||
| 82824-12220 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH NATURAL |
3 | ||
| 82824-12210 |
AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12200 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 82824-12210 |
AE111..ARL;AE112..ARL,GCC,GEN,VEN;EE110..LHD..(GCC,GEN,GENKD);AE111,CE110..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12210 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH W(AUTO AIR CONDITIONER),BLACK |
3 | ||
| 82824-12210 |
AE111..ARL;AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE110..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12220 |
AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
3 | ||
| 82824-12220 |
AE112..LHD;EE110..GCC,VEN;AE111..LHD..WG;AE111..GCC,PHL,VEN HEATER CONTROL---PUSH TYPE |
2 | ||
| 82824-12200 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.2 |
1 | ||
| 82824-12210 |
AE111..5F..ARL;AE112..ARL,GCC,GEN,VEN;AE111..4FC..(ARL,MA,TH);EE110..LHD..(GCC,GEN,GENKD);AE111..5F..(GLI,SEG)..(MA,TH);AE111,CE110,EE111..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12220 |
AE112..LHD;EE110..GCC;AE111..GCC,PHL,VEN NATURAL |
2 | ||
| 82824-12210 |
AE112..GCC,IDN,TH;AE110,111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH) W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 82824-12200 |
EE111..VEN;AE111,112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 82824-12200 |
EE110..LHD..(GCC,GEN);AE111,112,CE110..LHD..(GCC,GEN,TUR,VEN) |
1 | ||
| 82824-12200 |
ZZE11#;AE111,112,CE110,EE11#..LHD..(GCC,GEN,VEN) |
1 | ||
| 82824-12200 |
EE110..LHD..(GCC,GEN,GENKD,TUR);AE111,112,CE110,EE111..LHD..(GL,GLI,XL,XLI) NATURAL |
1 | ||
| 82824-12200 |
EE110..LHD..(GCC,GEN);AE111,112,CE110..LHD..(GCC,GEN,TUR,VEN) NATURAL |
1 | ||
| 82824-12200 |
AE111,112,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,TUR) |
1 | ||
| 82824-12200 |
AE111,112,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,TUR,VEN) |
1 | ||
| Common parts | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

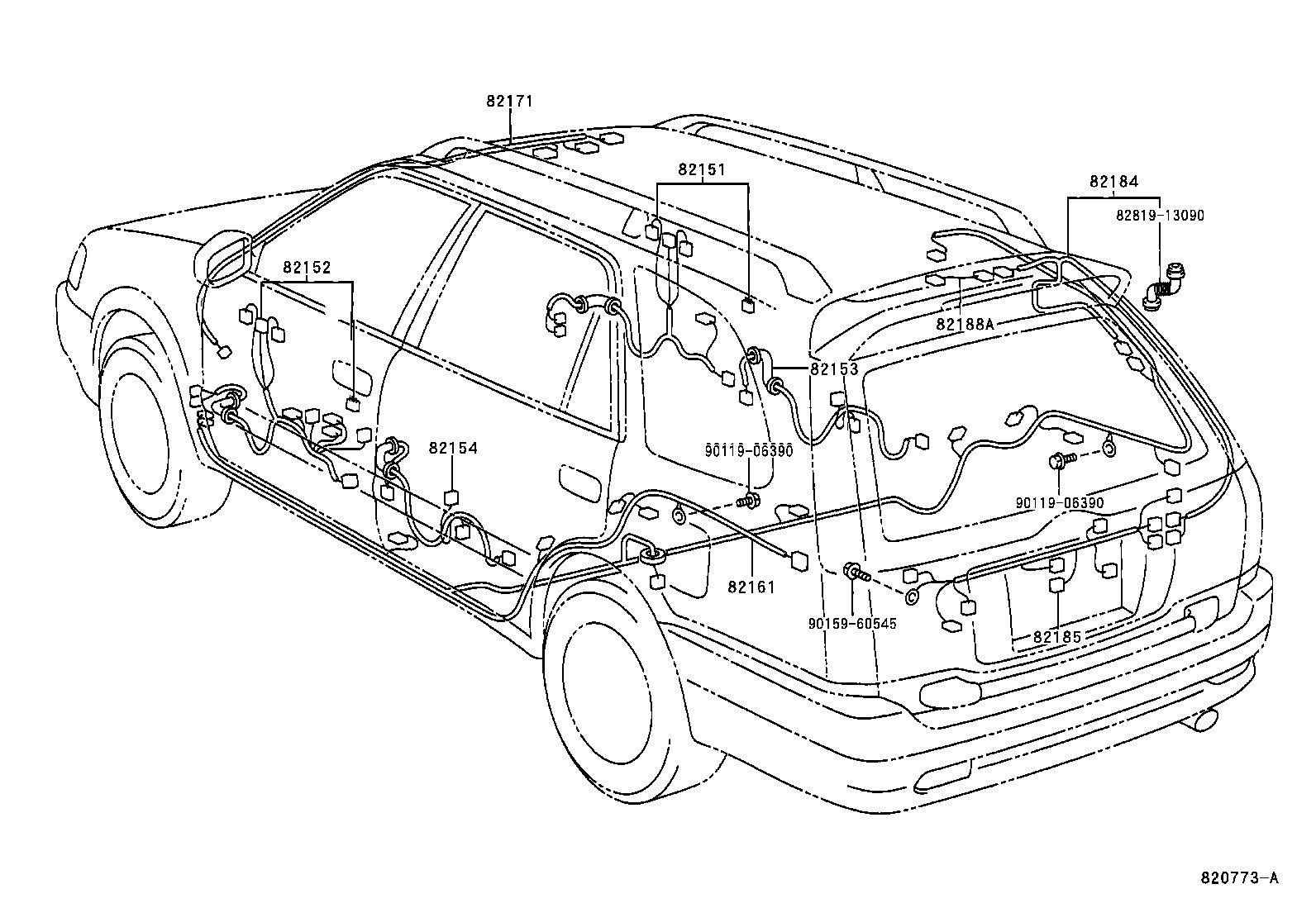

ILLUST NO. 4 OF 8(9704- )LHD..WG
ROOF,DOOR,FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1A710 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A710 |
AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A890 |
EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 82151-1A890 |
AE111..(XL,XLI)..(GCC,GEN);AE112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) W(RADIO) |
1 | ||
| 82151-1A890 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) |
1 | ||
| 82151-1A890 |
AE110..TH;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,VEN);AE111,112,CE110,EE111..(XL,XLI)..(BZ,GCC,GEN,TH) |
1 | ||
| 82151-1A710 |
AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN,GENKD,PHL) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1E010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4FC,5F)..(XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82151-1A890 |
AE111,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE110,112,CE110,EE111..(STD,XL,XLI)..(BZ,GCC,GEN,TH,VEN) |
1 | ||
| 82151-1A710 |
AE112..XLI..(GCC,GEN);AE111,CE110,EE111..LHD..(GL,GLI,XL,XLI);AE112,EE110..LHD..(GL,GLI,XL)..(BZ,GCC,GEN,PHL,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1E010 |
AE111,112,CE110,EE11#..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-1A890 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) |
1 | ||
| 82151-1E010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4FC,5F)..(XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82152-1A420 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82152-1A431 |
AE111,112,EE110..(XL,XLI)..GCC W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY) |
1 | ||
| 82152-1A420 |
AE111..GLI..TUR;AE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A890 |
EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 82152-1A420 |
AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN,GENKD,PHL) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A890 |
AE110..TH;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,VEN);AE111,112,CE110,EE111..(XL,XLI)..(BZ,GCC,GEN,TH) |
1 | ||
| 82151-1E010 |
AE111,112,CE110,EE11#..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82151-1A890 |
AE111..WG..5F;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL);AE110,112,EE111..(STD,XLI)..(BZ,GCC,GEN,TH,VEN) |
1 | ||
| 82152-1A430 |
AE111,112,EE110..(XL,XLI)..GCC W(POWER WINDOW---FRONT ONLY) |
1 | ||
| 82152-1A420 |
AE112..XLI..(GCC,GEN);AE111,112..GLI..(BZ,GCC,TUR,VEN);AE111,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12320 |
AE11#,EE110..XL,XLI W(*PW & *EL) |
1 | ||
| 82153-12310 |
AE111..RHD..WG;AE112..XLI..GCC;EE110..LHD..3FC;EE110..5F..XL..(GCC,GEN);AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL) |
1 | ||
| 82153-12310 |
AE110,112..XLI..(GCC,TH);AE111..RHD..5F..GLI..GEN;AE111,CE110,EE11#..(XL,XLI)..(GCC,GEN,NZ,PHL,TH) W(*EL) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12310 |
AE11#,EE110..XL,XLI W(*PW & *EL) |
1 | ||
| 82154-12320 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE111..SED..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..(4FC,5F)..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82153-12310 |
AE111..RHD..WG;AE112..XLI..GCC;EE110..LHD..3FC;EE110..5F..XL..(GCC,GEN);AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL) |
1 | ||
| 82153-12310 |
AE110,112..XLI..(GCC,TH);AE111..RHD..5F..GLI..GEN;AE111,CE110,EE11#..(XL,XLI)..(GCC,GEN,NZ,PHL,TH) W(*EL) |
1 | ||
| 82154-12320 |
AE111..GL,XL;AE111..WG..5F;AE111..LHD..GLI..GEN;AE111..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..(3FC,4FC,5F)..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1F510 |
AE111,112..LHD..WG W(ABS) |
1 | ||
| 82161-1F380 |
AE111,112,EE110..LHD..WG |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-13210 |
AE111,112,EE110..LHD..WG W(MOON ROOF) |
1 | ||
| 82171-13190 |
AE111,112,EE110..LHD..WG |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-13400 |
AE111,112,EE110..WG |
1 | ||
| 82184-13370 |
AE111,112,EE110..WG W(CENTER STOP LAMP) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-13520 |
AE111..RHD..WG;AE112,EE110..WG W/O(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-13470 |
AE111..RHD..WG;AE112,EE110..WG |
1 | ||
| 82185-13520 |
AE111,112,EE110..WG W/O(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-13470 |
AE111,112,EE110..WG |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-13010 |
AE111,112,EE110..WG |
1 | ||
| Common parts | ||||
| 82819-13090 | ||||
| 90119-06390 | ||||
| 90159-60545 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
