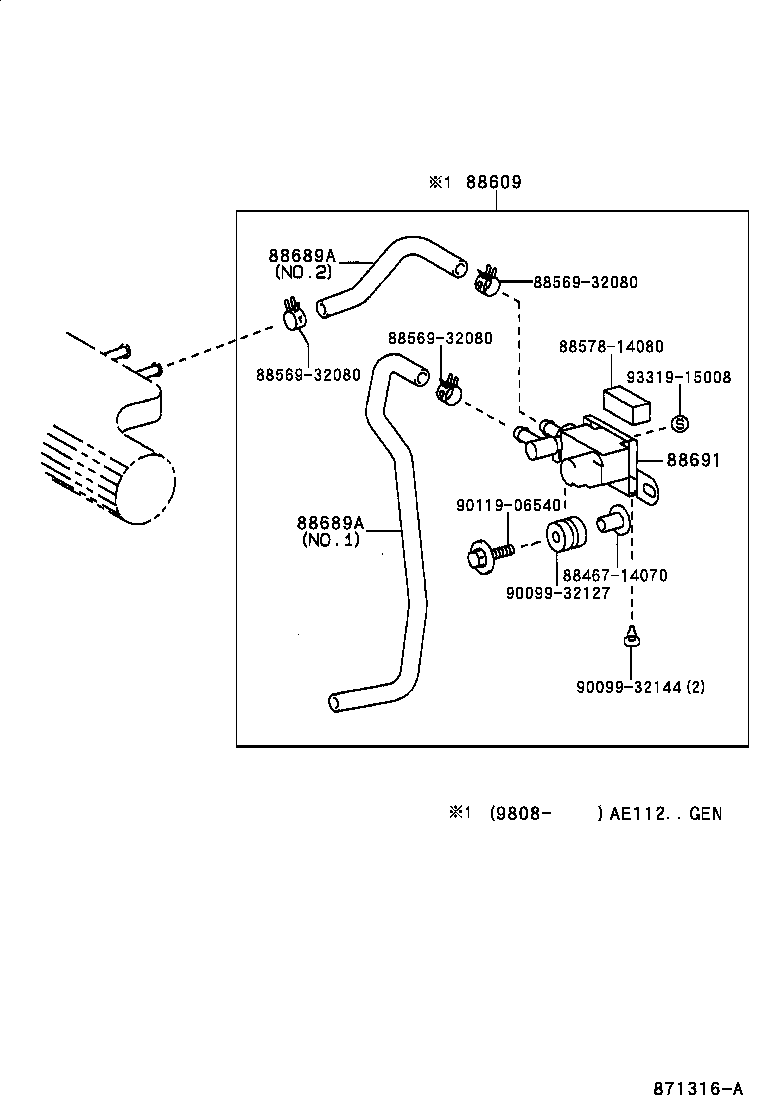

Toyota Corolla sed/wg AE112 HEATING & AIR CONDITIONING - VACUUM PIPING

Part #	Description	Period	Qty
88689A - HOSE, COOLER VACUUM NO.1
88689-12550	AE112..GCC,GEN,VEN NO.2(OUT)	04/1997 - 09/1999	1
88689-12540	AE112..GCC,GEN NO.1(IN)	09/1999 - 10/1999	1
88689-12540	AE112..GCC,GEN,VEN NO.1(IN)	04/1997 - 09/1999	1
88689-12550	AE112..GCC,GEN NO.2(OUT)	09/1999 - 10/1999	1
88689A - HOSE, COOLER VACUUM NO.1
88689-12550	AE112..GCC,GEN,VEN NO.2(OUT)	04/1997 - 09/1999	1
88689-12540	AE112..GCC,GEN NO.1(IN)	09/1999 - 10/1999	1
88689-12540	AE112..GCC,GEN,VEN NO.1(IN)	04/1997 - 09/1999	1
88689-12550	AE112..GCC,GEN NO.2(OUT)	09/1999 - 10/1999	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12180	AE112..GCC,GEN	09/1999 - 10/1999	1
88691-12180	AE112..GCC,GEN,IDN	09/1999 - 10/1999	1
88691-12180	AE112..GCC,GEN,VEN	04/1997 - 09/1999	1
88691-12180	AE112..GCC,GEN,IDN,VEN	04/1997 - 09/1999	1
Common parts
88467-14070
88569-32080
88578-14080
90099-32127
90099-32144
90119-06540
93319-15008

AE112L-AEPNKV (1997)
