AE112L-AEMNKV (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Aug 2000
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )LHD..GLI,SEG,XLI

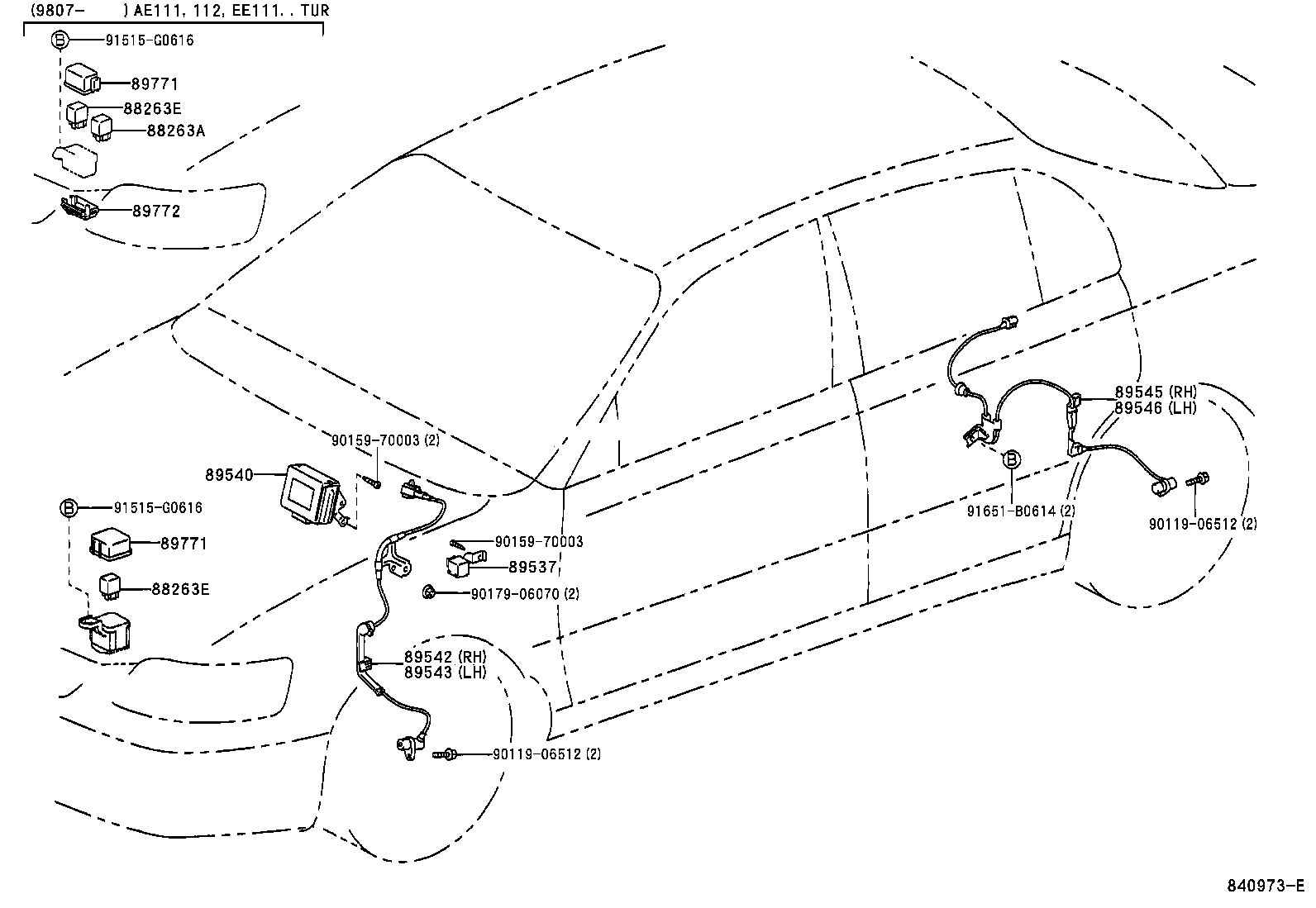

Click highlighted areas on diagram

diagram 88263A 88263E 88263E 89537 89540 89542 89543 89545 89546 89771 89771 89772 9011906512 9011906512 9015970003 9015970003 9017906070 91515G0616 91515G0616 91651B0614
Part # Description Qty Price
88263E - RELAY, SKID CONTROL NO.2
88263-24030

AE111..(GLI,XLI)..(GCC,GEN,TUR,VEN);AE110,112,EE111..(GLI,XLI)..(GCC,GEN,VEN)

 1
88263-24030

AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)

 1
88263-24030

AE110..TH;AE111..MA;AE110..GLI;AE112,EE111..GLI,SEG,XLI;AE111..(GLI,XLI)..(ARL,GCC,GEN,PHL,TH,TUR,VEN)

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

AE111..(GLI,XLI)..(GCC,GEN,TUR,VEN);AE110,112,EE111..(GLI,XLI)..(GCC,GEN,VEN)

 1
88263-24030

AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)

 1
88263-24030

AE110..TH;AE111..MA;AE110..GLI;AE112,EE111..GLI,SEG,XLI;AE111..(GLI,XLI)..(ARL,GCC,GEN,PHL,TH,TUR,VEN)

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12400

AE112..GCC;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN)

 1
89540-12400

AE111,112..LHD..(GLI,XLI)..(GCC,GEN,PHL)

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12040

AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)

 1
89543 - SENSOR, SPEED, FRONT LH
89543-12040

AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)

 1
89545 - SENSOR, SPEED, REAR RH
89545-12040

AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)

 1
89546 - SENSOR, SPEED, REAR LH
89546-12040

AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-13010

AE110..GLI;AE111..RHD..(GLI,XLI)..GEN;AE112,EE111..(GLI,XLI)..(GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-13010

AE110..GLI;AE111..RHD..(GLI,XLI)..GEN;AE112,EE111..(GLI,XLI)..(GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)

 1
Common parts
90119-06512
90159-70003
90179-06070
91515-G0616
91651-B0614
