AE111R-GEPEKE (1997)

Toyota Corolla Sed/Wg

Production Dec 1997 - Jul 2002
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9809)4FC ; (9809- )AE110,111..4FC ; (9809- )AE112..4FC..ARL,BZ,GCC,GEN,

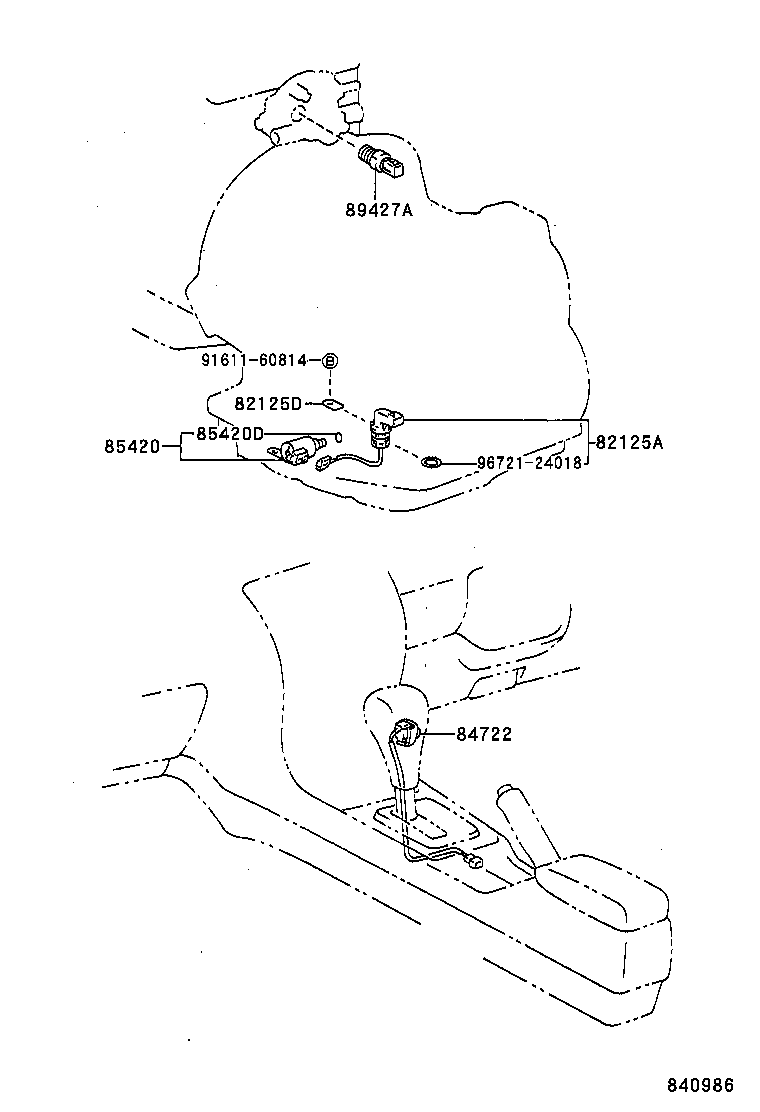

Click highlighted areas on diagram

diagram 82125A 82125D 84722 85420 85420D 89427A 9161160814 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20170

AE11#..4FC

 1
82125-20240

AE110,111..SED..4FC;AE112..LHD..4FC..XLI;AE112..4FC..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,VEN)

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

AE112..4FC..(BZ,IDN);AE111..4FC..(MA,PHL,TH)

 1
33485-30020

AE110,111..SED..4FC;AE112..LHD..4FC..XLI;AE112..4FC..(GLI,SEG)..(ARL,BZ,GCC,IDN,VEN)

 1
33485-30020

AE112..4FC..(BZ,IDN);AE111..4FC..(MA,PHL,TH)

 1
33485-30020

AE11#..4FC..(ARL,BZ,GCC,GEN,IDN,MA,NZ,PHL,TUR,VEN)

 1
33485-30020

AE112..4FC..(BZ,IDN);AE111..4FC..(MA,PHL,TH,TUR)

 1
33485-30020

AE112..4FC..(BZ,IDN);AE111..4FC..(MA,PHL,TH)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-12060B0

AE11#..4FC

SHADOW GRAY,TRIM1#

 1
84722-12060E0

AE110..4FC..GLI;AE111..4FC..SEG

OAK,TRIM4#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-10011

AE11#..4FC

 1
85420-20180

AE110,111..SED..4FC;AE112..LHD..4FC..XLI;AE112..4FC..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,VEN)

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AE110,111..SED..4FC;AE112..LHD..4FC..XLI;AE112..4FC..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,VEN)

 1
Common parts
91611-60814
96721-24018
