AE111R-GEPEKE (1997)

Toyota Corolla Sed/Wg

Production Dec 1997 - Jul 2002
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9809)4FC ; (9809- )AE110,111..4FC ; (9809- )AE112..4FC..ARL,BZ,GCC,GEN,

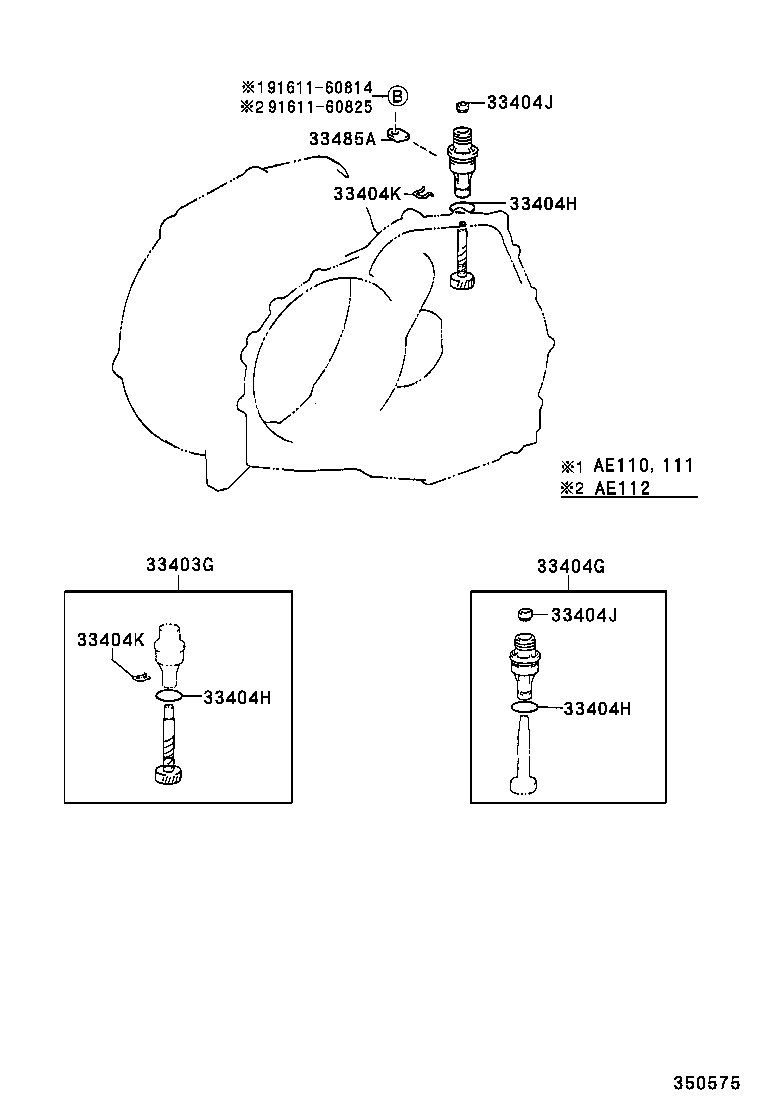

Click highlighted areas on diagram

A240L

diagram 33403G 33404G 33404H 33404H 33404H 33404J 33404J 33404K 33404K 33485A 9161160814 9161160825
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-19285

AE111..RHD..SED..4FC;AE110,112..RHD..4FC..GLI

N=31,MARK 31:35

 1
33403-19295

AE111..4FC..PHL;AE112..4FC..IDN;AE111..RHD..4FC..(GL,GLI,SEG)

N=30,MARK 30:35

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-12030

AE111..4FC..PHL;AE111..RHD..SED..4FC;AE110,112..4FC..(GLI,SEG)..(ARL,GEN,IDN,NZ)

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24030

AE111..4FC..PHL;AE111..RHD..SED..4FC;AE110,112..4FC..(GLI,SEG)..(ARL,GEN,IDN,NZ)

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24030

AE111..4FC..PHL;AE111..RHD..SED..4FC;AE110,112..4FC..(GLI,SEG)..(ARL,GEN,IDN,NZ)

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24030

AE111..4FC..PHL;AE111..RHD..SED..4FC;AE110,112..4FC..(GLI,SEG)..(ARL,GEN,IDN,NZ)

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AE111..4FC..PHL;AE111..ATM..(GL,SEG,XL);AE111,EE111..RHD..SED..ATM..(GLI,XLI);AE110,112,EE110..ATM..(GLI,SEG,XL)..(ARL,GEN,IDN,NZ)

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AE111..4FC..PHL;AE111..ATM..(GL,SEG,XL);AE111,EE111..RHD..SED..ATM..(GLI,XLI);AE110,112,EE110..ATM..(GLI,SEG,XL)..(ARL,GEN,IDN,NZ)

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE110..4FC..GEN;AE111,112,EE11#..ATM

 1
90468-12005

AE111..SED..ATM;AE112..LHD..4FC..XLI;AE110,EE11#..ATM..(GEN,MA,TUR);AE112..4FC..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL,VEN)

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE110..4FC..GEN;AE111,112,EE11#..ATM

 1
90468-12005

AE111..SED..ATM;AE112..LHD..4FC..XLI;AE110,EE11#..ATM..(GEN,MA,TUR);AE112..4FC..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL,VEN)

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

AE111..4FC..PHL;AE111..RHD..SED..4FC;AE110,112..4FC..(GLI,SEG)..(ARL,GEN,IDN,NZ)

 1
Common parts
91611-60814
91611-60825
