Toyota Corolla sed/wg AE111 AIR CLEANER

AE111R-AEPEK (1995)

Toyota Corolla Sed/Wg

Production May 1995 - Dec 1997

Engine 4AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )4AFE,5AFE,7AFE

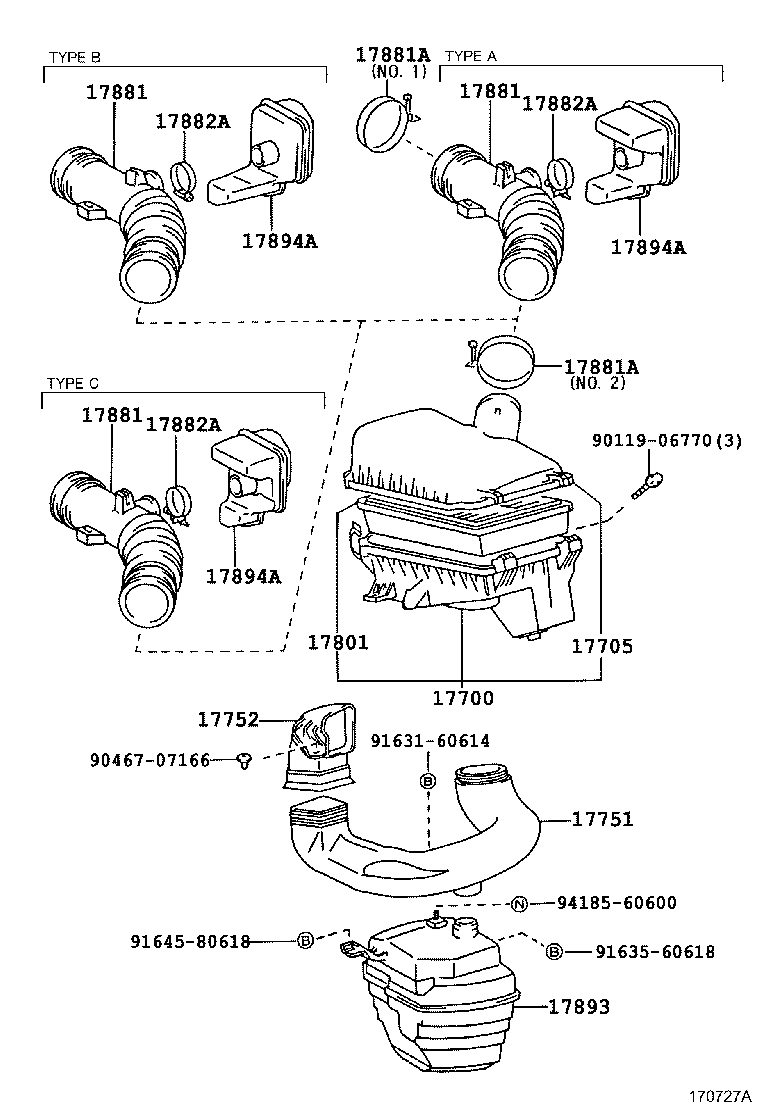

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-15340	5AFE..AE110..XLI;4AFE..AE111..SEG;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN MARK 1534	04/1997 - 11/1997	1
17700-15360	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	11/1997 - 12/2999	1
17700-15340	4AFE,5AFE..AE11#	05/1995 - 04/1997	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-15180	4AFE,5AFE..AE11#	05/1995 - 04/1997	1
17705-15180	5AFE..AE110..XLI;4AFE..AE111..SEG;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN MARK 1534	04/1997 - 11/1997	1
17705-15190	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	11/1997 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-15050	4AFE,5AFE..AE11#	05/1995 - 04/1997	1
17751-15050	5AFE..AE110..XLI;4AFE..AE111..SEG;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC	04/1997 - 11/1997	1
17751-15070	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	11/1997 - 12/2999	1
17752 - INLET, AIR CLEANER, NO.2
17752-15030	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-02030	4AFE..AE111..RHD;5AFE,7AFE..AE110,112;4AFE..AE111..LHD..SED (L)	05/1995 - 07/1997	1
17801-15070	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	07/1997 - 12/2999	1
17801-15070	4AFE..AE111..RHD;5AFE,7AFE..AE110,112;4AFE..AE111..LHD..SED (J)	05/1995 - 07/1997	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15190	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-02040	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-15200	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15190	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-02040	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-15200	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15190	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-02040	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-15200	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..SED..(ARL,GEN)	05/1995 - 12/2999	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..SED..(ARL,GEN)	05/1995 - 12/2999	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10380	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
90080-46146	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
96111-10480	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10380	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
90080-46146	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
96111-10480	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10380	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
90080-46146	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
96111-10480	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17893 - RESONATOR, INTAKE AIR
17893-15050	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-15040	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17894-02020	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17894-15050	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-15040	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17894-02020	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17894-15050	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-15040	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17894-02020	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17894-15050	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
Common parts
90119-06770
90467-07166
91631-60614
91635-60618
91645-80618
94185-60600

(9704- )4AF

Click highlighted areas on diagram

Part #	Description	Period	Qty

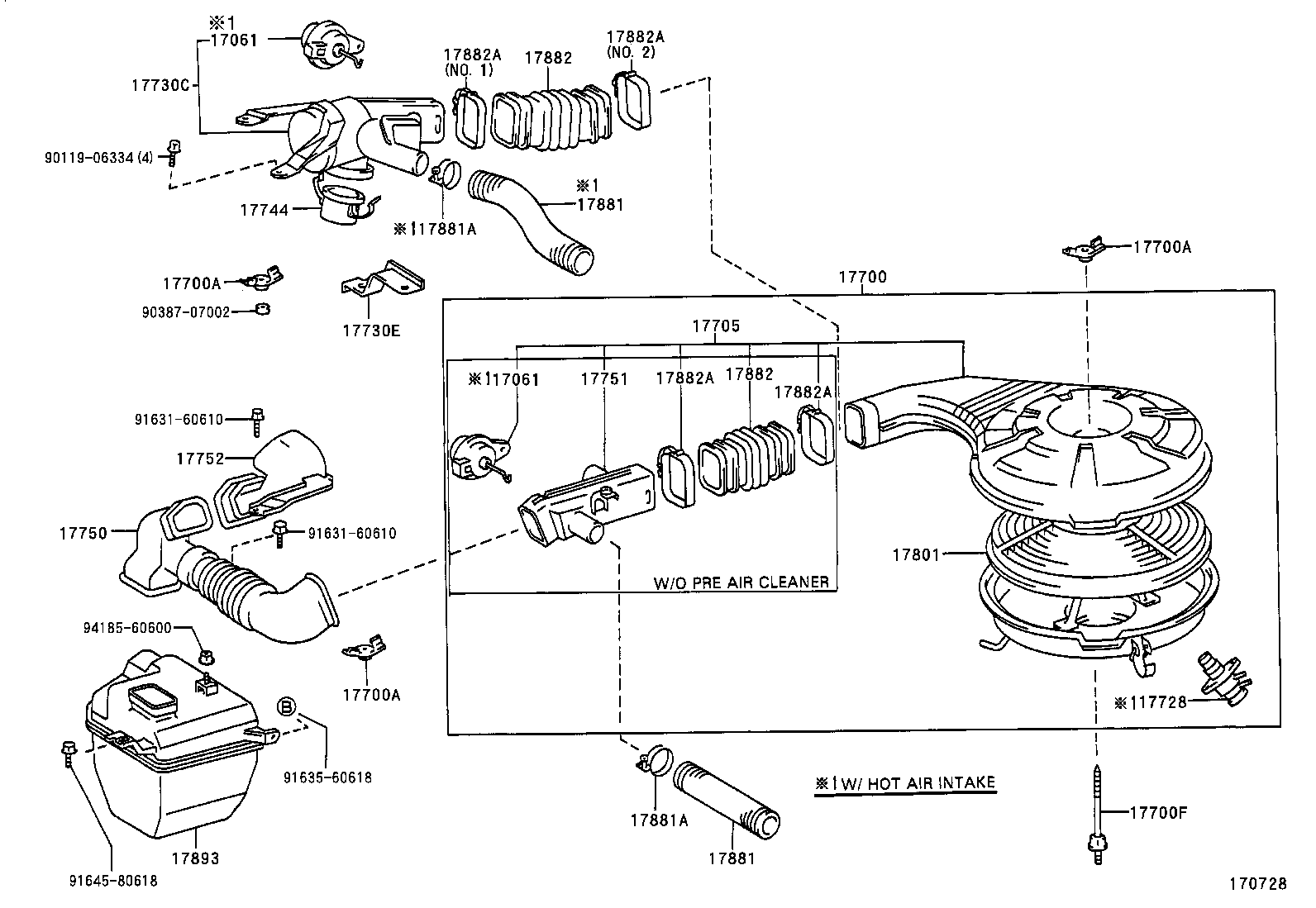

17700 - CLEANER ASSY, AIR
17700-15340	5AFE..AE110..XLI;4AFE..AE111..SEG;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN MARK 1534	04/1997 - 11/1997	1
17700-15360	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	11/1997 - 12/2999	1
17700-15340	4AFE,5AFE..AE11#	05/1995 - 04/1997	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-15180	4AFE,5AFE..AE11#	05/1995 - 04/1997	1
17705-15180	5AFE..AE110..XLI;4AFE..AE111..SEG;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN MARK 1534	04/1997 - 11/1997	1
17705-15190	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	11/1997 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-15050	4AFE,5AFE..AE11#	05/1995 - 04/1997	1
17751-15050	5AFE..AE110..XLI;4AFE..AE111..SEG;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC	04/1997 - 11/1997	1
17751-15070	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	11/1997 - 12/2999	1
17752 - INLET, AIR CLEANER, NO.2
17752-15030	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-02030	4AFE..AE111..RHD;5AFE,7AFE..AE110,112;4AFE..AE111..LHD..SED (L)	05/1995 - 07/1997	1
17801-15070	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	07/1997 - 12/2999	1
17801-15070	4AFE..AE111..RHD;5AFE,7AFE..AE110,112;4AFE..AE111..LHD..SED (J)	05/1995 - 07/1997	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15190	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-02040	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-15200	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-15190	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-02040	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
17881-15200	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..SED..(ARL,GEN)	05/1995 - 12/2999	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..SED..(ARL,GEN)	05/1995 - 12/2999	2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10380	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
90080-46146	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
96111-10480	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10380	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
90080-46146	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
96111-10480	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10380	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
90080-46146	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
96111-10480	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10380	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
90080-46146	5AFE..AE110;4AFE..AE111..RHD..(GLI,SEG);4AFE..AE111..RHD..SED..5F..XLI TYPE B:REFER TO ILLUSTRATION	05/1995 - 05/1997	1
96111-10480	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE C:REFER TO ILLUSTRATION	05/1997 - 12/2999	1
17893 - RESONATOR, INTAKE AIR
17893-15050	4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	1
Common parts
90119-06334
90387-07002
91631-60610
91635-60618
91645-80618
94185-60600

AE111R-AEPEK (1995)

(9505- )4AFE,5AFE,7AFE

(9704- )4AF
