Toyota Corolla sed/wg AE111 WIRING & CLAMP

AE111R-AEMEK (1995)

Toyota Corolla Sed/Wg

Production May 1995 - Dec 1997

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 7 OF 8(9505- )

Click highlighted areas on diagram

FUSIBLE LINK REPAIR

Part #	Description	Period	Qty	Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12070	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..ARL,GCC,GEN,VEN	05/1995 - 11/1998	1

Part #

Description

Qty

Price

82991 - WIRE, FUSIBLE LINK REPAIR

82991-12070

EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..ARL,GCC,GEN,VEN

ILLUST NO. 2 OF 8(9505- )AE11#,CE110,EE11#

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1H210	AE111;AE110..GLI W(*66)	05/1995 - 05/1996	1
82111-1H190	AE111;AE110..GLI	05/1995 - 05/1996	1
82111-1H211	AE111;AE110..GLI W(*66)	05/1996 - 04/1997	1
82111-1H191	AE111..SEG	04/1997 - 12/1997	1
82111-1H191	AE111;AE110..GLI	05/1996 - 04/1997	1
82210C - FUSIBLE LINK
90982-08228	AE111;AE110..GLI 50A,TERM.:MALE,RED	05/1995 - 04/1997	1
90982-08282	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED	05/1995 - 11/1998	1
90982-08257	AE11#,EE11# 40A,TERM.:MALE,GRN	05/1995 - 04/1997	1
90982-08246	AE11#,EE111 100A,TERM.:MALE,BLUE	05/1995 - 04/1997	1
90982-08280	AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	05/1995 - 11/1998	1
82210C - FUSIBLE LINK
90982-08228	AE111;AE110..GLI 50A,TERM.:MALE,RED	05/1995 - 04/1997	1
90982-08282	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED	05/1995 - 11/1998	1
90982-08257	AE11#,EE11# 40A,TERM.:MALE,GRN	05/1995 - 04/1997	1
90982-08246	AE11#,EE111 100A,TERM.:MALE,BLUE	05/1995 - 04/1997	1
90982-08280	AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	05/1995 - 11/1998	1
Common parts
90119-06390
90119-06539
91515-G0616
Linked diagrams
8401
8414

ILLUST NO. 5 OF 8(9505- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-14350
82711-16790
82711-1A750
82711-1A770
82711-1E100
82711-1E300
82711-1E310
82711-3H630
82715-05200
82715-12120
82715-12160
82715-12261
82715-12350
90159-60080
91611-60812
91621-40608
91631-40612

ILLUST NO. 5 OF 8(9505- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-12770
82711-16790
82711-1A040
82711-1A150
82711-1E260
82711-24420
82715-10010
82715-10130
82715-12020
82715-12150
82715-12180
82715-12230
82715-12380
82715-16350
82715-16390
82715-16440
90119-06539
91611-60612
91611-60812
91611-60816
91651-40816
91651-B0614

ILLUST NO. 3 OF 8(9505- )RHD

Click highlighted areas on diagram

COWL,INSTRUMENT PANEL

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1L420	AE111..SEG	05/1995 - 05/1996	1
82131-1L421	AE111..SEG	05/1996 - 12/1997	1
82141 - WIRE, INSTRUMENT PANEL
82141-1K670	AE111..GLI,SEG	05/1995 - 05/1996	1
82141-1H850	AE111..SEG HEATER CONTROL---PUSH TYPE	05/1995 - 05/1996	1
82141-1H851	AE111..SEG HEATER CONTROL---PUSH TYPE	05/1996 - 12/1997	1
82141-1K671	AE111..GLI,SEG	05/1996 - 04/1997	1
82210C - FUSIBLE LINK
90982-08228	AE111;AE110..GLI 50A,TERM.:MALE,RED	05/1995 - 04/1997	1
90982-08282	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED	05/1995 - 11/1998	1
90982-08257	AE11#,EE11# 40A,TERM.:MALE,GRN	05/1995 - 04/1997	1
90982-08246	AE11#,EE111 100A,TERM.:MALE,BLUE	05/1995 - 04/1997	1
90982-08280	AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	05/1995 - 11/1998	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	AE111..RHD..WG;AE110..XLI..GEN;AE112,CE110,EE11#..ARL,GCC,GEN;AE111,ZZE11#..SED..(GCC,GEN,TUR) NO.2	05/1995 - 01/2002	1
82824-24010	AE111;AE110..GLI NO.1	05/1995 - 04/1997	1
82824-24010	AE111..SEG	04/1997 - 12/1997	1
82824E - CONNECTOR, WIRING HARNESS
82824-12200	EE111;AE111..5F..GLI;AE11#,EE110..(4FC,5F)..(SEG,XL,XLI) W(*66) OR W(AUTO AIR CONDITIONER)	05/1995 - 05/1996	1
82824-12200	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
82824-12210	AE111,EE11#;AE110..5F..GLI BLACK	05/1995 - 04/1997	2
82824E - CONNECTOR, WIRING HARNESS
82824-12200	EE111;AE111..5F..GLI;AE11#,EE110..(4FC,5F)..(SEG,XL,XLI) W(*66) OR W(AUTO AIR CONDITIONER)	05/1995 - 05/1996	1
82824-12200	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
82824-12210	AE111,EE11#;AE110..5F..GLI BLACK	05/1995 - 04/1997	2
Common parts
90159-70003
Linked diagrams
8401

ILLUST NO. 4 OF 8(9505- )RHD..SED

Click highlighted areas on diagram

ROOF,DOOR,FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A480	AE111..SEG	05/1995 - 05/1996	1
82151-1A481	AE111..SEG	05/1996 - 12/1997	1
82152 - WIRE, FRONT DOOR, LH
82152-1A230	AE110..GLI;AE111..SEG	05/1995 - 05/1996	1
82152-1A231	AE111..SEG	04/1997 - 12/1997	1
82152-1A250	AE111..SEG W(ELECTRIC REMOTE CONTROL DOOR MIRROR)	05/1995 - 12/1997	1
82152-1A250	AE111..SEG W(PW & EL)	04/1997 - 12/1997	1
82152-1A231	AE110..GLI;AE111..SEG	05/1996 - 04/1997	1
82152-1A250	AE110..GLI;AE111..SEG W(PW & EL)	05/1996 - 04/1997	1
82153 - WIRE, REAR DOOR, NO.1
82153-12330	AE110..GLI;AE111..SEG	05/1995 - 04/1997	1
82153-12320	AE111..SEG FULL FABRIC TYPE TRIM-*99	05/1995 - 12/1997	1
82154 - WIRE, REAR DOOR, NO.2
82154-12310	AE111..SEG FULL FABRIC TYPE TRIM-*99	05/1995 - 12/1997	1
82154-12320	AE110..GLI;AE111..SEG	05/1995 - 04/1997	1
82161 - WIRE, FLOOR
82161-1L340	AE11#..GLI,SEG	05/1995 - 05/1996	1
82161-1L350	AE111;AE110..GLI W(*66)	05/1995 - 05/1996	1
82161-1L351	AE111;AE110..GLI W(*66)	05/1996 - 04/1997	1
82161-1L341	AE11#..GLI,SEG	05/1996 - 04/1997	1
82171 - WIRE, ROOF, NO.1
82171-12620	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
82171-12650	AE111..SEG..GEN;AE111..RHD..SED..5F..XLI..GEN W(SUSPENDED ROOF HEADLINING)	05/1995 - 10/1999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-12190	AE111..RHD..SED..GEN;AE110,EE110..RHD..(GL,GLI,XL);AE112,CE110,EE111..RHD..(ARL,GEN)	05/1995 - 12/2999	1
Common parts
90119-06390
90159-70003
Linked diagrams
8401

ILLUST NO. 6 OF 8(9505- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07351	EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M	05/1995 - 12/2999	1
90980-07299	AE111..RHD..WG;AE110,112..GCC,GEN,VEN;AE111..SED..(GCC,GEN,VEN) MANIFOLD	05/1995 - 07/1998	1
90980-07384	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,PLANT NO.M12	08/1995 - 12/2999	1
90980-07206	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,A31,A32,B11	05/1995 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07351	EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M	05/1995 - 12/2999	1
90980-07299	AE111..RHD..WG;AE110,112..GCC,GEN,VEN;AE111..SED..(GCC,GEN,VEN) MANIFOLD	05/1995 - 07/1998	1
90980-07384	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,PLANT NO.M12	08/1995 - 12/2999	1
90980-07206	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,A31,A32,B11	05/1995 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07299	AE111..RHD..WG;AE110,112..GCC,GEN,VEN;AE111..SED..(GCC,GEN,VEN) MANIFOLD	05/1995 - 07/1998	1
90980-07351	EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M	05/1995 - 12/2999	1
90980-07384	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,PLANT NO.M12	08/1995 - 12/2999	1
90980-07206	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,A31,A32,B11	05/1995 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07299	AE111..RHD..WG;AE110,112..GCC,GEN,VEN;AE111..SED..(GCC,GEN,VEN) MANIFOLD	05/1995 - 07/1998	1
90980-07351	EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M	05/1995 - 12/2999	1
90980-07384	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,PLANT NO.M12	08/1995 - 12/2999	1
90980-07206	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,A31,A32,B11	05/1995 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07299	AE111..RHD..WG;AE110,112..GCC,GEN,VEN;AE111..SED..(GCC,GEN,VEN) MANIFOLD	05/1995 - 07/1998	1
90980-07351	EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M	05/1995 - 12/2999	1
90980-07384	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,PLANT NO.M12	08/1995 - 12/2999	1
90980-07206	AE111..RHD..WG;AE110,112..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) FENDER,A31,A32,B11	05/1995 - 12/2999	1
Common parts
90119-06375
90119-06390

ILLUST NO. 5 OF 8(9505- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-10370
82711-1A410
82711-1A760
82711-1E350
82711-1E390
82711-1E440
82711-20330
82711-24420
82715-12010
82715-12140
82715-12171
82715-12420
82715-12440
82715-12450
82715-12500
82715-12510
82715-20430
82715-32390
82715-33140
82715-89113
90119-06316
90119-06539
91621-60612
91651-B0614

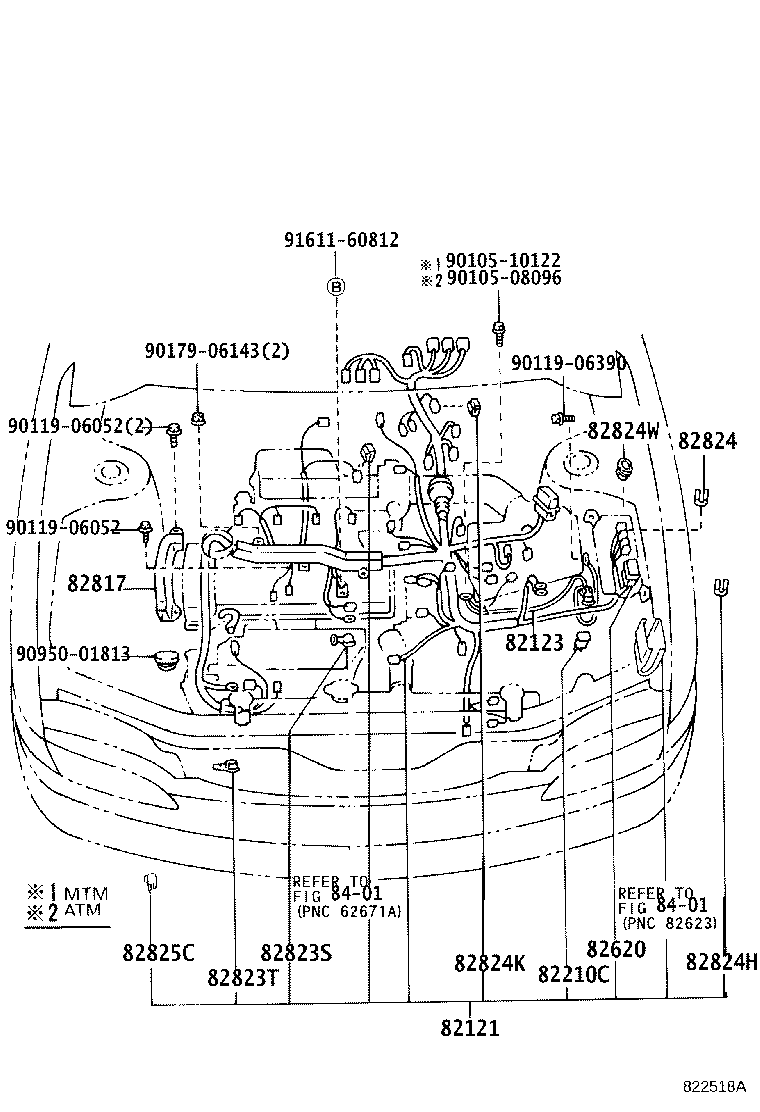

ILLUST NO. 1 OF 8(9505- )AE11#..GLI,SEG,XLI

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1L580	AE111..5F	05/1995 - 04/1997	1
82121-1L590	AE111..5F..SEG MALAYSIA SPEC	05/1995 - 12/1997	1
82123 - WIRE, ENGINE, NO.3
82123-12310	AE111..RHD..(GLI,SEG)..GEN;AE111..RHD..SED..5F..XLI..GEN;AE110,EE11#..RHD..(4FC,5F)..(XL,XLI)..GEN BATTERY=34B19L OR 32B24L	05/1995 - 09/2001	1
82123-12290	AE111..RHD..WG;AE111..SED..(4FC,5F)..(GCC,GEN);AE110,112,EE11#..(4F,4FC,5F)..(ARL,GCC,GEN)	05/1995 - 12/2999	1
82210C - FUSIBLE LINK
90982-08228	AE111;AE110..GLI 50A,TERM.:MALE,RED	05/1995 - 04/1997	1
90982-08282	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED	05/1995 - 11/1998	1
90982-08257	AE11#,EE11# 40A,TERM.:MALE,GRN	05/1995 - 04/1997	1
90982-08246	AE11#,EE111 100A,TERM.:MALE,BLUE	05/1995 - 04/1997	1
90982-08280	AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	05/1995 - 11/1998	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12240	AE111	05/1995 - 05/1996	1
82620-12240	AE111;AE110..GLI	05/1996 - 04/1997	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A070	AE110,112..ARL,GCC,GEN,VEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)	05/1995 - 11/1998	1
82823S - CAP, STARTER TERMINAL
82823-12090	AE110,111..RHD..(GLI,SEG);AE111,EE111..RHD..SED..(3FC,5F)..XLI	04/1997 - 05/1997	1
82823-12090	AE111;AE110..GLI	05/1995 - 04/1997	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22060	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
Common parts
90105-08096
90105-10122
90119-06052
90119-06390
90179-06143
90950-01813
91611-60812
Linked diagrams
8401

ILLUST NO. 8 OF 8(9505- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
90080-98001
90080-98128
90080-98138
90080-98140
90980-10619
90980-10795
90980-10860
90980-11020
90980-11095
90980-11096
90980-11156
90980-11159
90980-11162
90980-11314
