AE111R-AEMEK (1995)
Toyota Corolla Sed/Wg

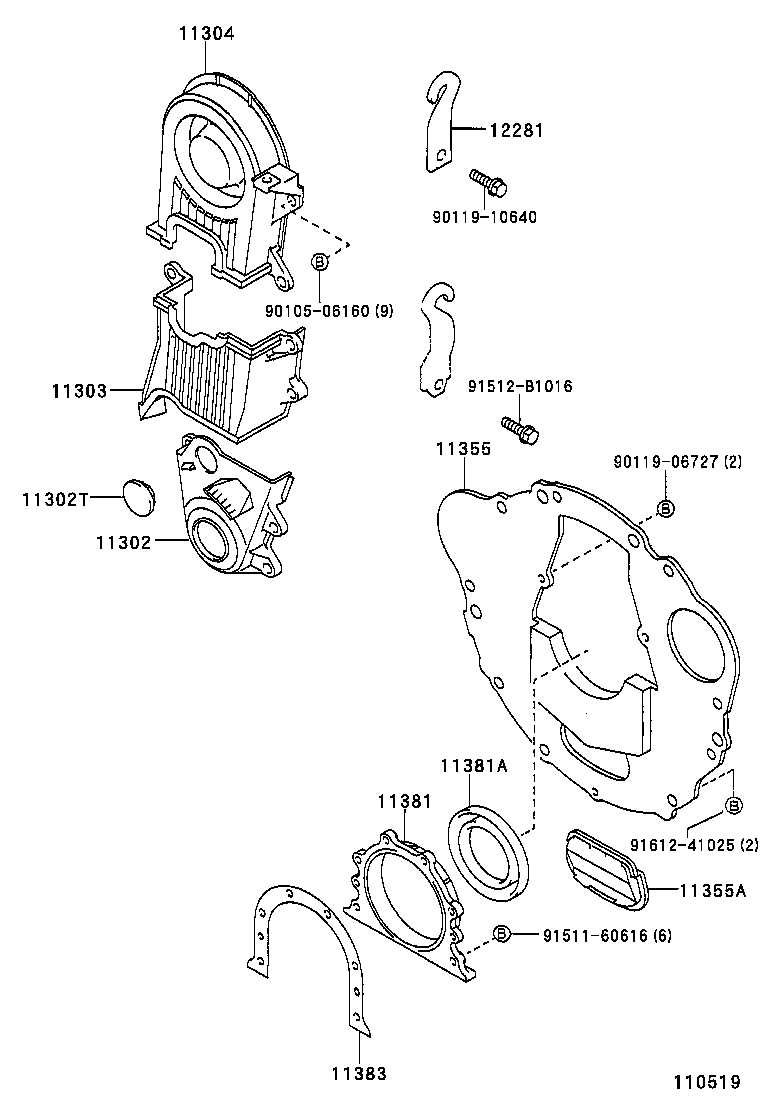

(9704- )4AF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-15050 |
4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 11302T - PLUG, HOLE | ||||
| 90950-01783 |
4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY | ||||
| 11303-15050 |
4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11304-15030 |
4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-15070 |
4AFE..AE111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN) |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-15010 |
4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-70007 |
4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-16010 |
4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-15050 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| Common parts | ||||
| 90105-06160 | ||||
| 90119-06727 | ||||
| 90119-10640 | ||||
| 91511-60616 | ||||
| 91512-B1016 | ||||
| 91612-41025 | ||||

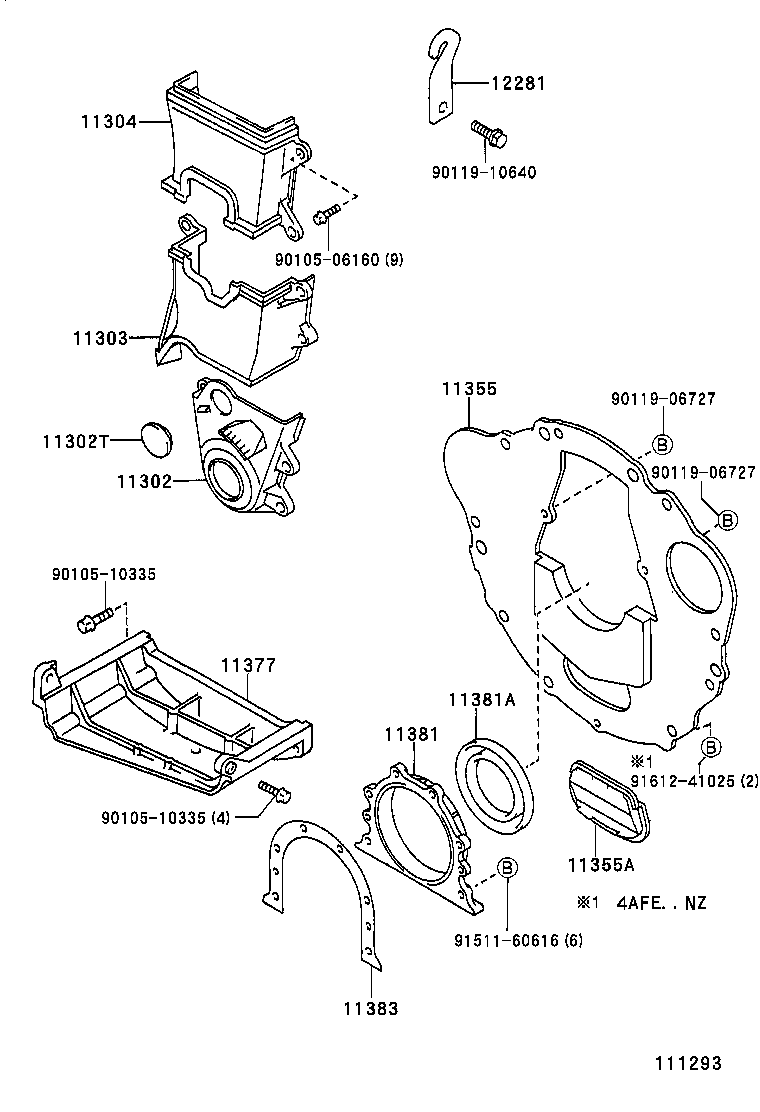

(9505- )4AFE,5AFE,7AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-15050 |
4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 11302T - PLUG, HOLE | ||||
| 90950-01783 |
4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY | ||||
| 11303-15050 |
4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11304-15030 |
4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-15070 |
4AFE..AE111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN) |
1 | ||
| 11377 - STIFFENER, REAR END PLATE | ||||
| 11377-15012 |
4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN) |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-15010 |
4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-70007 |
4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-16010 |
4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-15050 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| Common parts | ||||
| 90105-06160 | ||||
| 90105-10335 | ||||
| 90119-06727 | ||||
| 90119-10640 | ||||
| 91511-60616 | ||||
| 91612-41025 | ||||
