AE111R-AEMDK (1995)

Toyota Corolla Sed/Wg

Production May 1995 - Sep 2001
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

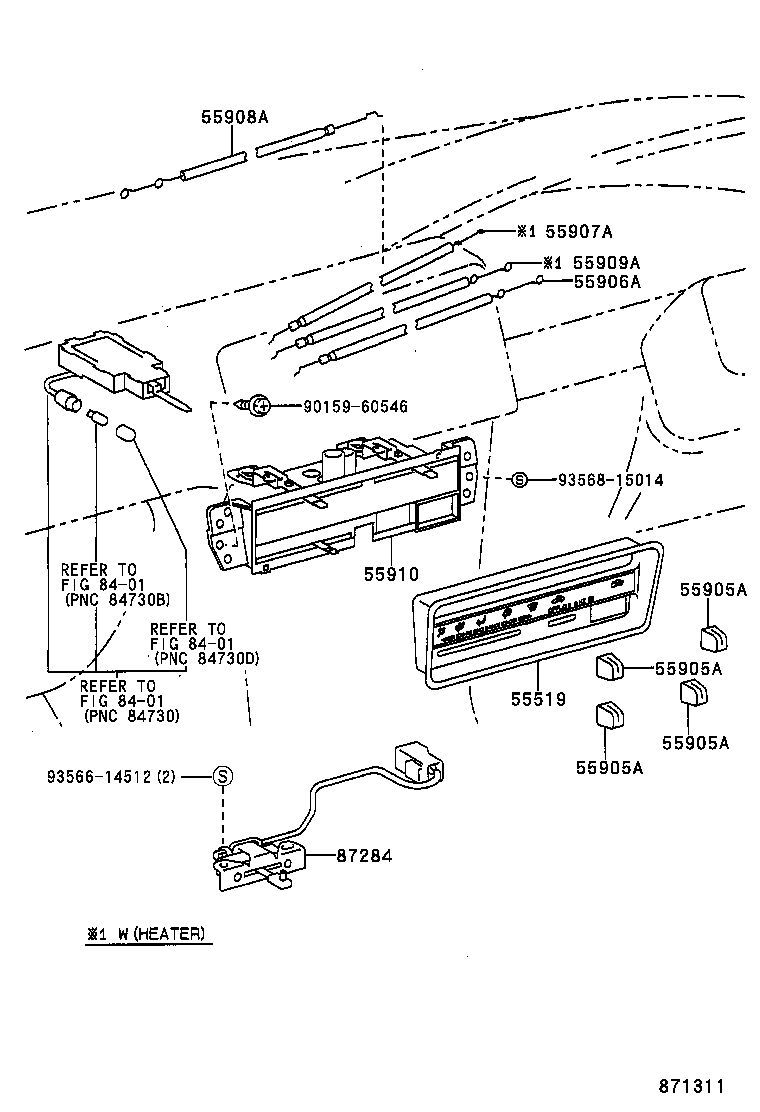

ILLUST NO. 1 OF 3(9505-9704)AE111 ; (9505-9704)AE110,EE11#..XL,XLI

Click highlighted areas on diagram

LEVER TYPE

diagram 55519 55905A 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 8401 8401 8401 87284 9015960546 9356614512 9356815014
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-12090

AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

W(AIR CONDITIONER)

 1
55519-12090

AE111..RHD..GLI;AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(XL,XLI)

W(AIR CONDITIONER)

 1
55519-12110

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

 1
55519-12110

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

 1
55519-12090

EE110..RHD..XL;AE111..RHD..GLI;AE111,EE111..RHD..SED..(3FC,5F)..XLI

W(AIR CONDITIONER)

 1
55519-12110

EE110..RHD..XL;AE111..RHD..GLI;AE111,EE111..RHD..SED..(3FC,5F)..XLI

 1
55519-12110

AE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(XL,XLI)

 1
55519-12090

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

W(AIR CONDITIONER)

 1
55905A - KNOB, HEATER CONTROL
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE,DEALER OPTION

 1
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE

 3
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE,W(HEATER)

 4
55905A - KNOB, HEATER CONTROL
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE,DEALER OPTION

 1
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE

 3
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE,W(HEATER)

 4
55905A - KNOB, HEATER CONTROL
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE,DEALER OPTION

 1
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE

 3
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE,W(HEATER)

 4
55905A - KNOB, HEATER CONTROL
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE,DEALER OPTION

 1
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE

 3
55905-89115

AE111;AE110,EE11#..XL,XLI

LEVER TYPE,W(HEATER)

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12390

AE112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..RHD..(4FC,5F)..(GL,GLI,XL,XLI)..GEN

 1
55906-12360

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55906-12360

AE111;AE110,EE11#..XL,XLI

 1
55906-12360

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12420

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55907-12420

AE11#,EE11#

 1
55907-12420

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55907-12470

AE112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..RHD..(4FC,5F)..(GL,GLI,XL,XLI)..GEN

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12310

AE111;AE110,EE11#..XL,XLI

 1
55908-12290

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN)

 1
55908-12310

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55908-12310

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12290

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55909-12290

AE11#,EE11#

 1
55909-12290

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55909-12280

AE110..TH;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN)

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12620

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC & W(COOLER)

 1
55910-12620

AE111;AE110,EE11#..XL,XLI

W(COOLER)

 1
55910-12660

AE112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..RHD..(4FC,5F)..(GL,GLI,XL,XLI)..GEN

W(HEATER)

 1
55910-12650

AE110..GLI;AE111..RHD..(GLI,XLI)..GEN

PUSH TYPE

 1
55910-12630

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55910-12670

EE110..RHD..5F;AE111,CE110,EE111..RHD..(GL,GLI,XL,XLI)..GEN

W(COOLER)

 1
55910-12650

AE111..WG..5F;AE110,111..RHD..SED..(GLI,XLI)..GEN

W(AIR CONDITIONER & BOOST VENTILATOR)

 1
55910-12630

AE11#,EE11#

 1
55910-12630

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55910-12680

EE110..RHD..5F;AE111,CE110,EE111..RHD..(GL,GLI,XL,XLI)..GEN

 1
55910-12650

AE111..MA;AE111..RHD..(GLI,XLI)..GEN;AE110,112..(GLI,SEG)..(GEN,IDN,TH)

PUSH TYPE

 1
55910-12620

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC & W(COOLER)

 1
55910-12680

AE111,CE110,EE11#..RHD..(GL,GLI,XL,XLI)..GEN

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-12160

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
88032-12160

AE111;AE110,EE11#..XL,XLI

 1
88032-12160

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
88032-12170

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)

 1
88032-12170

AE110..TH;AE111..MA;AE112..(GLI,XLI)..(GCC,GEN,IDN);AE111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH,VEN)

 1
88032-12170

AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,PHL);AE111,EE111..SED..(GEN,GENKD,MA,PHL,TH,VEN);AE110,112,EE110..(GL,STD,XL,XLI)..(GEN,GENKD,IDN,PHL,TH,VEN)

 1
Common parts
90159-60546
93566-14512
93568-15014
Linked diagrams
8401

ILLUST NO. 2 OF 3(9505-9704)

Click highlighted areas on diagram

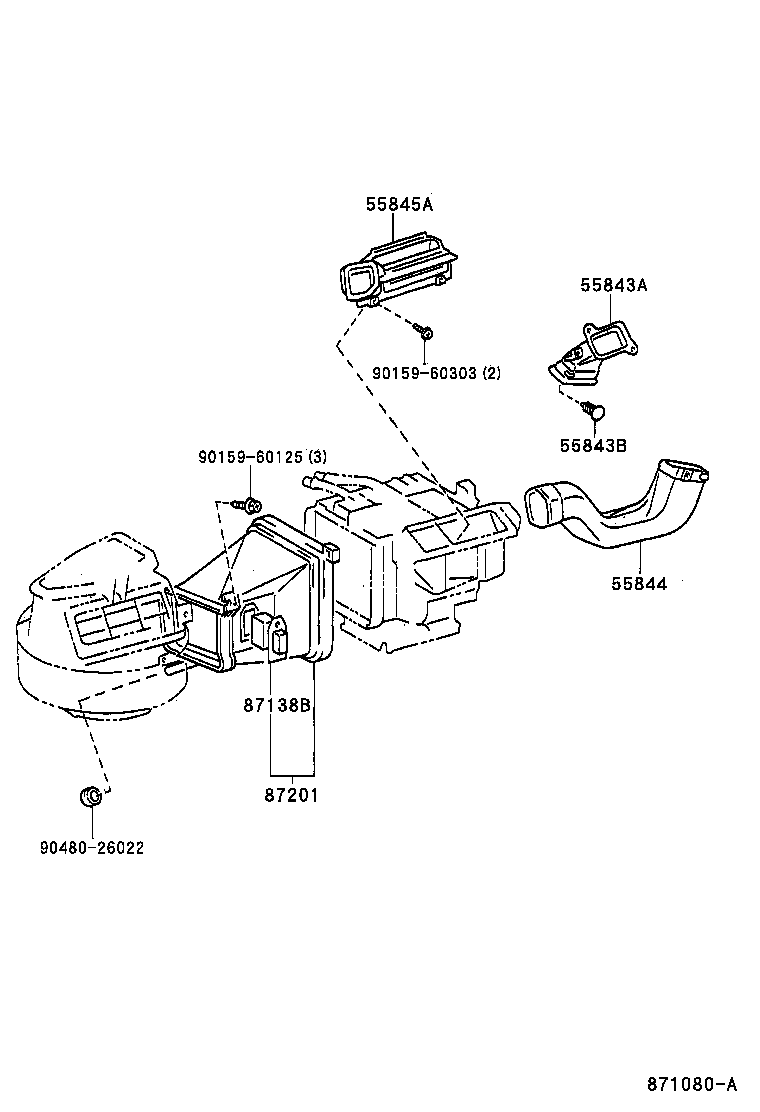

AIR DUCT

diagram 55843A 55843B 55844 55845A 87138B 87201 9015960125 9015960303 9048026022
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12240

AE11#,EE11#

 1
55843-12260

AE111..RHD..(GL,GLI,XL,XLI)..GEN;AE112,CE110,EE111..RHD..(ARL,GEN);AE110,EE110..RHD..(4FC,5F)..(GL,GLI,XL)

 1
55843-12240

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55843-12240

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55843B - CLIP, HEATER TO REGISTER DUCT
90467-0502022

EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..GCC,GEN,TUR,VEN

GRAPHITE,TRIM1#

 1
90467-05020B7

EE110..5F..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN

MD.CHARCOAL,TRIM10,14

 1
90467-0502022

AE111..GLI,XLI;AE110,EE11#..XL,XLI

GRAPHITE,TRIM1#

 1
90467-0502022

AE111..RHD..WG;AE110..XLI..GEN;EE110..LHD..3FC;AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN)

GRAPHITE,TRIM1#

 1
90467-05020B7

AE111..SED..GEN;CE110,EE110..(GL,XL)..GEN

MD.CHARCOAL,TRIM1#,9#

 1
90467-0502022

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN)

GRAPHITE,TRIM1#

 1
90467-05020B7

AE111,CE110,EE110..SED..(GL,GLI,XL,XLI)..GEN

MD.CHARCOAL,TRIM10,14

 1
90467-0502001

AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN

BLACK,TRIM1#,9#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12420

AE111..RHD..(GL,GLI,XL,XLI)..GEN;AE112,CE110,EE111..RHD..(ARL,GEN);AE110,EE110..RHD..(4FC,5F)..(GL,GLI,XL)

 1
55844-12400

AE11#,EE11#

 1
55844-12400

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55844-12400

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55870-12010

AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55870-12010

AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN

INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC

 1
55870-12010

AE11#,EE11#

 1
55870-12020

AE111..RHD..(GL,GLI,XL,XLI)..GEN;AE112,CE110,EE111..RHD..(ARL,GEN);AE110,EE110..RHD..(4FC,5F)..(GL,GLI,XL)

 1
87138B - RESISTOR, HEATER BLOWER
87138-12140

AE112..XLI..BZ;AE112,CE110,EE110..ARL,GCC,GEN,GENKD,NZ,TUR;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ)

 1
87138-12140

AE111..RHD..WG;AE110..XLI..GEN;AE111..SED..(GCC,GEN);AE112,CE110,EE11#..ARL,GCC,GEN

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-12470

AE111,112,CE110,EE11#..RHD..(GL,GLI,XL,XLI)..(ARL,GEN,NZ)

 1
87201-12470

AE110..XLI..GEN;AE111..RHD..GEN;AE112,CE110,EE11#..RHD..(ARL,GEN)

 1
Common parts
90159-60125
90159-60303
90480-26022
