AE111R-AEMDK (1995)
Toyota Corolla Sed/Wg
(9704- )CE110 ; (9704- )AE11#,EE111..GLI,SEG,STD,XLI ; (0005- )ZZE11#

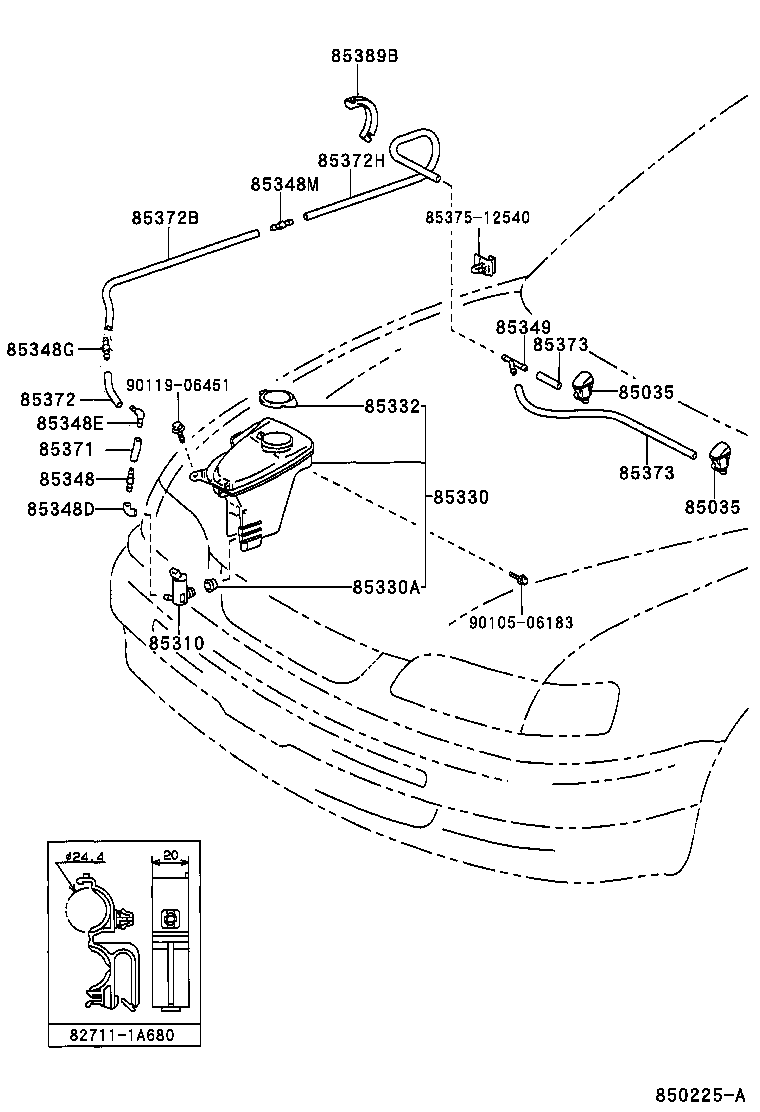

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12100 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 85381-12100 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 85381-12100 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 85381-12100 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN |
2 | ||
| 85381-12100 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 85381-12100 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12100 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 85381-12100 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 85381-12100 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 85381-12100 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN |
2 | ||
| 85381-12100 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 85381-12100 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
AE111..SED..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 85310-20210 |
AE11#,CE110,EE11#..SED..(GCC,GEN) |
1 | ||
| 85310-20210 |
AE111..SED..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 85310-20210 |
AE110,112,CE110,EE111..SED..(ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN);AE111..SED..(GLI,SEG,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) |
1 | ||
| 85330-10280 |
AE111..GL,XL;EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN) |
1 | ||
| 85310-20210 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL,GLI,XL,XLI) |
1 | ||
| 85330-10280 |
AE111,EE110..SED..(GL,STD,XL) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12221 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 85315-12281 |
AE111,EE110..GL,STD,XL |
1 | ||
| 85315-12282 |
AE111..GL,XL;EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN) |
1 | ||
| 85315-12221 |
AE110..TH;AE111..MA;AE110..GLI;AE111..GLI,XLI;AE112,CE110,EE111 |
1 | ||
| 85315-12220 |
AE11#,EE111 |
1 | ||
| 85315-12220 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85315-12281 |
AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN) |
1 | ||
| 85315-12220 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85315-12221 |
AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 85315-12282 |
AE111,EE110..SED..(GL,STD,XL) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 90099-32089 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 90099-32089 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 90099-32089 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-12221 |
AE110,112,CE110,EE111..GCC,GEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN) |
1 | ||
| 85316-20300 |
AE11#,EE111 |
1 | ||
| 85316-20300 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85316-12221 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85316-12221 |
AE110..TH;AE111..MA;AE110..GLI;AE111..GLI,XLI;AE112,CE110,EE111 |
1 | ||
| 85316-12290 |
AE111,EE110..GL,STD,XL |
1 | ||
| 85316-12221 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 85316-12221 |
EE110..SED;AE11#,CE110,EE111 |
1 | ||
| 85316-20300 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85316-12221 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 85316-12290 |
AE111,EE110..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) |
1 | ||
| 85375-10260 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 85375-10260 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85336-12230 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) |
1 | ||
| 85336-12230 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 85336-12230 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85317-12230 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 85317-12230 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) |
1 | ||
| 85317-12230 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85317-12230 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-12220 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 85317-12220 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) |
1 | ||
| 85317-12220 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
AE11#,EE11# |
1 | ||
| 85349-89122 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 85349-89122 |
EE111..GEN;AE11#,CE110,EE110..ARL,GCC,GEN,VEN |
1 | ||
| 85349-89122 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 85349-89122 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 85349-89122 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-14390 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 85348-14390 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 85348-14390 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 85348-14390 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85319-12421 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) H=95 |
1 | ||
| 85319-12421 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN H=95 |
1 | ||
| 90446-07001 |
AE11#,EE111 *H,L=100 |
1 | ||
| 85319-12421 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) H=95 |
1 | ||
| 90446-07001 |
AE111,EE110..GL,STD,XL *H,L=150 |
1 | ||
| 90446-07001 |
AE111,EE110..(GL,STD,XL)..(GCC,GEN) *H,L=150 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
AE11#,EE111 *H,L=100 |
1 | ||
| 85319-12221 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) H=100 |
1 | ||
| 85319-12221 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) H=100 |
1 | ||
| 85319-12221 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN H=100 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
AE11#,EE11# *H,L=40 |
1 | ||
| 90099-33080 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) *H,L=190 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN *H,L=190 |
1 | ||
| 90099-33080 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) *H,L=190 |
1 | ||
| 90099-33080 |
EE111..GEN;AE11#,CE110,EE110..ARL,GCC,GEN,VEN *H,L=190 |
1 | ||
| 90099-33080 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) *H,L=190 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
EE111..GEN;AE11#,CE110,EE110..ARL,GCC,GEN,VEN *H,L=1580 |
1 | ||
| 90446-07001 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN *H,L=1180 |
1 | ||
| 90446-07001 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) *H,L=1580 |
1 | ||
| 90446-07001 |
AE11#,EE11# *H,L=1180 |
1 | ||
| 90446-07001 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) *H,L=1580 |
1 | ||
| 90446-07001 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) *H,L=1580 |
1 | ||
| 90446-07001 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN *H,L=1180 |
1 | ||
| 90446-07001 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN *H,L=1580 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *H,L=40 |
1 | ||
| 90099-33080 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL *H,L=540 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN *H,L=540 |
1 | ||
| 90099-33080 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI *H,L=540 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *H,L=40 |
1 | ||
| 90099-33080 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL *H,L=540 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN *H,L=540 |
1 | ||
| 90099-33080 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI *H,L=540 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-12700 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 85389-12700 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 85389-12700 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 85389-12700 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 82711-1A680 | ||||
| 85375-12540 | ||||
| 90105-06183 | ||||
| 90119-06451 | ||||
(9704- )AE111,EE110..GL,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12100 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 85381-12100 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 85381-12100 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 85381-12100 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN |
2 | ||
| 85381-12100 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 85381-12100 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12100 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 85381-12100 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 85381-12100 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 85381-12100 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN |
2 | ||
| 85381-12100 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 85381-12100 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
AE111..SED..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 85310-20210 |
AE11#,CE110,EE11#..SED..(GCC,GEN) |
1 | ||
| 85310-20210 |
AE111..SED..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 85310-20210 |
AE110,112,CE110,EE111..SED..(ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN);AE111..SED..(GLI,SEG,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) |
1 | ||
| 85330-10280 |
AE111..GL,XL;EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN) |
1 | ||
| 85310-20210 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL,GLI,XL,XLI) |
1 | ||
| 85330-10280 |
AE111,EE110..SED..(GL,STD,XL) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12221 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 85315-12281 |
AE111,EE110..GL,STD,XL |
1 | ||
| 85315-12282 |
AE111..GL,XL;EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN) |
1 | ||
| 85315-12221 |
AE110..TH;AE111..MA;AE110..GLI;AE111..GLI,XLI;AE112,CE110,EE111 |
1 | ||
| 85315-12220 |
AE11#,EE111 |
1 | ||
| 85315-12220 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85315-12281 |
AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN) |
1 | ||
| 85315-12220 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85315-12221 |
AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 85315-12282 |
AE111,EE110..SED..(GL,STD,XL) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 90099-32089 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 90099-32089 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 90099-32089 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-12221 |
AE110,112,CE110,EE111..GCC,GEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN) |
1 | ||
| 85316-20300 |
AE11#,EE111 |
1 | ||
| 85316-20300 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85316-12221 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85316-12221 |
AE110..TH;AE111..MA;AE110..GLI;AE111..GLI,XLI;AE112,CE110,EE111 |
1 | ||
| 85316-12290 |
AE111,EE110..GL,STD,XL |
1 | ||
| 85316-12221 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 85316-12221 |
EE110..SED;AE11#,CE110,EE111 |
1 | ||
| 85316-20300 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85316-12221 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 85316-12290 |
AE111,EE110..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85317-12230 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 85317-12230 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) |
1 | ||
| 85317-12230 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85317-12230 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
AE11#,EE11# |
1 | ||
| 85349-89122 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 85349-89122 |
EE111..GEN;AE11#,CE110,EE110..ARL,GCC,GEN,VEN |
1 | ||
| 85349-89122 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 85349-89122 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 85349-89122 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-14390 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 85348-14390 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 85348-14390 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 85348-14390 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85319-12421 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) H=95 |
1 | ||
| 85319-12421 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN H=95 |
1 | ||
| 90446-07001 |
AE11#,EE111 *H,L=100 |
1 | ||
| 85319-12421 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) H=95 |
1 | ||
| 90446-07001 |
AE111,EE110..GL,STD,XL *H,L=150 |
1 | ||
| 90446-07001 |
AE111,EE110..(GL,STD,XL)..(GCC,GEN) *H,L=150 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
AE11#,EE11# *H,L=40 |
1 | ||
| 90099-33080 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) *H,L=190 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN *H,L=190 |
1 | ||
| 90099-33080 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) *H,L=190 |
1 | ||
| 90099-33080 |
EE111..GEN;AE11#,CE110,EE110..ARL,GCC,GEN,VEN *H,L=190 |
1 | ||
| 90099-33080 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) *H,L=190 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
EE111..GEN;AE11#,CE110,EE110..ARL,GCC,GEN,VEN *H,L=1580 |
1 | ||
| 90446-07001 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN *H,L=1180 |
1 | ||
| 90446-07001 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) *H,L=1580 |
1 | ||
| 90446-07001 |
AE11#,EE11# *H,L=1180 |
1 | ||
| 90446-07001 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) *H,L=1580 |
1 | ||
| 90446-07001 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) *H,L=1580 |
1 | ||
| 90446-07001 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN *H,L=1180 |
1 | ||
| 90446-07001 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN *H,L=1580 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *H,L=40 |
1 | ||
| 90099-33080 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL *H,L=540 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN *H,L=540 |
1 | ||
| 90099-33080 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI *H,L=540 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *H,L=40 |
1 | ||
| 90099-33080 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL *H,L=540 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN *H,L=540 |
1 | ||
| 90099-33080 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI *H,L=540 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-12700 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 85389-12700 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 85389-12700 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 85389-12700 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 82711-1A680 | ||||
| 85375-12540 | ||||
| 90105-06183 | ||||
| 90119-06451 | ||||
(9505-9704)AE11#,EE111 ; (9705-9910)SEG..GEN ; (9705-9910)AE110,EE111..XLI..GEN ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12100 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 85381-12100 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 85381-12100 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 85381-12100 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN |
2 | ||
| 85381-12100 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 85381-12100 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12100 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 85381-12100 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 85381-12100 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 85381-12100 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN |
2 | ||
| 85381-12100 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 85381-12100 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
AE111..SED..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 85310-20210 |
AE11#,CE110,EE11#..SED..(GCC,GEN) |
1 | ||
| 85310-20210 |
AE111..SED..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..SED..(ARL,GCC,GEN,VEN) |
1 | ||
| 85310-20210 |
AE110,112,CE110,EE111..SED..(ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN);AE111..SED..(GLI,SEG,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) |
1 | ||
| 85330-10280 |
AE111..GL,XL;EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN) |
1 | ||
| 85310-20210 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..SED;AE111..SED..(GL,GLI,XL,XLI) |
1 | ||
| 85330-10280 |
AE111,EE110..SED..(GL,STD,XL) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12221 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 85315-12281 |
AE111,EE110..GL,STD,XL |
1 | ||
| 85315-12282 |
AE111..GL,XL;EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN) |
1 | ||
| 85315-12221 |
AE110..TH;AE111..MA;AE110..GLI;AE111..GLI,XLI;AE112,CE110,EE111 |
1 | ||
| 85315-12220 |
AE11#,EE111 |
1 | ||
| 85315-12220 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85315-12281 |
AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN) |
1 | ||
| 85315-12220 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85315-12221 |
AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 85315-12282 |
AE111,EE110..SED..(GL,STD,XL) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 90099-32089 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 90099-32089 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 90099-32089 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-12221 |
AE110,112,CE110,EE111..GCC,GEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN) |
1 | ||
| 85316-20300 |
AE11#,EE111 |
1 | ||
| 85316-20300 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85316-12221 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85316-12221 |
AE110..TH;AE111..MA;AE110..GLI;AE111..GLI,XLI;AE112,CE110,EE111 |
1 | ||
| 85316-12290 |
AE111,EE110..GL,STD,XL |
1 | ||
| 85316-12221 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..SED..(GL,GLI,SEG,STD,XL) |
1 | ||
| 85316-12221 |
EE110..SED;AE11#,CE110,EE111 |
1 | ||
| 85316-20300 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN INDONESIA SPEC OR THAILAND SPEC OR MALAYSIA SPEC |
1 | ||
| 85316-12221 |
EE110..LHD..3FC;EE110..SED..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 85316-12290 |
AE111,EE110..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-12220 |
EE110..RHD..XL;AE110,111..RHD..GLI;AE111,EE111..RHD..SED..(3FC,5F)..XLI |
1 | ||
| 85336-12220 |
AE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI) |
1 | ||
| 85336-12220 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN |
1 | ||
| 85336-12220 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) |
1 | ||
| 85375-10260 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 85375-10260 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85336-12230 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) |
1 | ||
| 85336-12230 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 85336-12230 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85317-12230 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 85317-12230 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) |
1 | ||
| 85317-12230 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85317-12230 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
AE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI) |
1 | ||
| 85355-20200 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN |
1 | ||
| 85355-20200 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN |
1 | ||
| 85355-20200 |
EE110..RHD..XL;AE110,111..RHD..GLI;AE111,EE111..RHD..SED..(3FC,5F)..XLI |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-12220 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 85317-12220 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) |
1 | ||
| 85317-12220 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
AE11#,EE11# |
1 | ||
| 85349-89122 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 85349-89122 |
EE111..GEN;AE11#,CE110,EE110..ARL,GCC,GEN,VEN |
1 | ||
| 85349-89122 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 85349-89122 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 85349-89122 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-14390 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 85348-14390 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 85348-14390 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 85348-14390 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85319-12421 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) H=95 |
1 | ||
| 85319-12421 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN H=95 |
1 | ||
| 90446-07001 |
AE11#,EE111 *H,L=100 |
1 | ||
| 85319-12421 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) H=95 |
1 | ||
| 90446-07001 |
AE111,EE110..GL,STD,XL *H,L=150 |
1 | ||
| 90446-07001 |
AE111,EE110..(GL,STD,XL)..(GCC,GEN) *H,L=150 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
AE11#,EE111 *H,L=100 |
1 | ||
| 85319-12221 |
AE111..RHD..(GLI,SEG,XLI)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) H=100 |
1 | ||
| 85319-12221 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,NZ,TH,VEN;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) H=100 |
1 | ||
| 85319-12221 |
AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN H=100 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
AE11#,EE11# *H,L=40 |
1 | ||
| 90099-33080 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) *H,L=190 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN *H,L=190 |
1 | ||
| 90099-33080 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) *H,L=190 |
1 | ||
| 90099-33080 |
EE111..GEN;AE11#,CE110,EE110..ARL,GCC,GEN,VEN *H,L=190 |
1 | ||
| 90099-33080 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) *H,L=190 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
EE111..GEN;AE11#,CE110,EE110..ARL,GCC,GEN,VEN *H,L=1580 |
1 | ||
| 90446-07001 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN *H,L=1180 |
1 | ||
| 90446-07001 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) *H,L=1580 |
1 | ||
| 90446-07001 |
AE11#,EE11# *H,L=1180 |
1 | ||
| 90446-07001 |
AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL;AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) *H,L=1580 |
1 | ||
| 90446-07001 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN) *H,L=1580 |
1 | ||
| 90446-07001 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN *H,L=1180 |
1 | ||
| 90446-07001 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN *H,L=1580 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
EE110..RHD..XL;AE110,111..RHD..GLI;AE111,EE111..RHD..SED..(3FC,5F)..XLI *H,L=540 |
1 | ||
| 90099-33080 |
AE111..SEG..GEN;AE110,EE111..XLI..GEN;AE111..RHD..SED..5F..(GLI,XLI)..GEN *H,L=540 |
1 | ||
| 90099-33080 |
AE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI) *H,L=540 |
1 | ||
| 90099-33080 |
AE111,EE111..RHD..SED..(3FC,5F)..(GLI,XLI)..GEN *H,L=540 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *H,L=40 |
1 | ||
| 90099-33080 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL *H,L=540 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN *H,L=540 |
1 | ||
| 90099-33080 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI *H,L=540 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE111,112;AE110,CE110,EE11#..GCC,GEN,GENKD,MA,PHL,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN *H,L=40 |
1 | ||
| 90099-33080 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *H,L=40 |
1 | ||
| 90099-33080 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL *H,L=540 |
1 | ||
| 90099-33080 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN *H,L=540 |
1 | ||
| 90099-33080 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI *H,L=540 |
1 | ||
| Common parts | ||||
| 85375-12540 | ||||
| 90105-06183 | ||||
| 90119-06451 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
