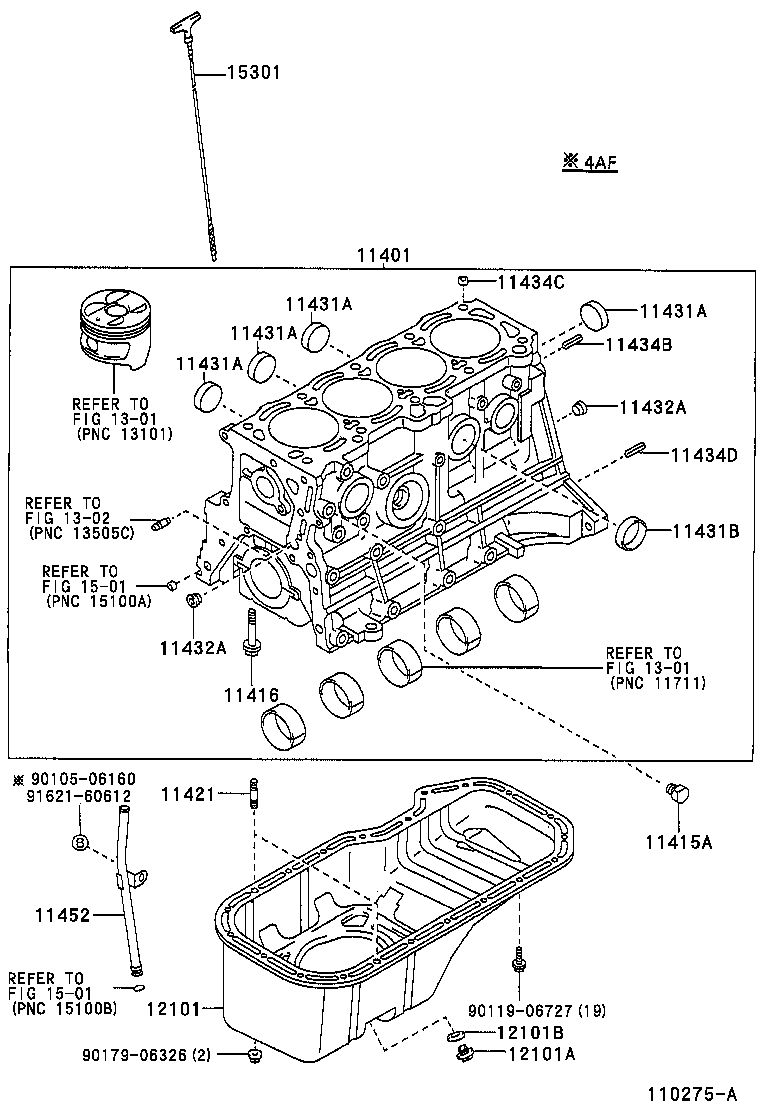

AE111R-AEMDK (1995)
Toyota Corolla Sed/Wg
(9505- )4AF#,5AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19506 |
4AF..AE111 |
1 | ||
| 11401-19755 |
4AFE..AE111 EXHAUST PIPE=W(CONVERTER) |
1 | ||
| 11401-19706 |
4AFE..AE111 |
1 | ||
| 11401-19506 |
4AF..AE111 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-52003 |
7AFE..AE112..ARL,GCC,GEN,VEN;4AF#,5AFE..AE110,111..GCC,GEN,TUR,VEN |
1 | ||
| 90345-52003 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 90345-52003 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AF,7AFE..AE111,112;4AFE..AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,PHL,TH,TUR,VEN) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10007 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06022 |
4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
6 | ||
| 96411-43500 |
4AFE..AE111..MA;4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF#..AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
6 | ||
| 96411-43500 |
4AFE..AE111..MA;4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF#..AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
6 | ||
| 96411-43500 |
4AFE..AE111..MA;4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF#..AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
6 | ||
| 96411-43500 |
4AFE..AE111..MA;4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF#..AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TH,VEN) |
6 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53008 |
4AFE,5AFE..AE11# |
2 | ||
| 90344-53006 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
2 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53008 |
4AFE,5AFE..AE11# |
2 | ||
| 90344-53006 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) L=12,OD=13 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) L=14,OD=6 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-15030 |
4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 11452-15030 |
7AFE..AE112..ARL,GCC,GEN,VEN;4AFE,5AFE..AE110,111..GCC,GEN,TUR,VEN |
1 | ||
| 11452-15030 |
4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;5AFE,7AFE..AE110,112..GCC,IDN,NZ,TH,VEN |
1 | ||
| 11452-15020 |
4AF..AE111 |
1 | ||
| 11452-15020 |
4AF..AE111 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-15070 |
4AF..AE111 |
1 | ||
| 12101-15070 |
4AF..AE111;4AFE..AE111..NZ |
1 | ||
| 12101-16100 |
4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GEN,VEN) |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 90341-12026 |
5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;7AFE..AE112..LHD..XLI;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);4AF,5AFE,7AFE..AE11#..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,NZ,PHL) |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 90430-12031 |
4AF#,5AFE,7AFE..AE11#..ARL,GCC,GEN,TUR,VEN |
1 | ||
| 90430-12031 |
5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;7AFE..AE112..LHD..XLI;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);4AF,5AFE,7AFE..AE11#..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,NZ,PHL) |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-15041 |
4AF..AE111 |
1 | ||
| 15301-15041 |
4AF..AE111 |
1 | ||
| 15301-15051 |
4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 15301-15051 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 15301-15051 |
4AFE,5AFE..AE110,111..GCC,GEN,VEN |
1 | ||
| Common parts | ||||
| 90105-06160 | ||||
| 90119-06727 | ||||
| 90179-06326 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
| 1501 | ||||
