AE111L-AWPDK (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Aug 1998
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )WG

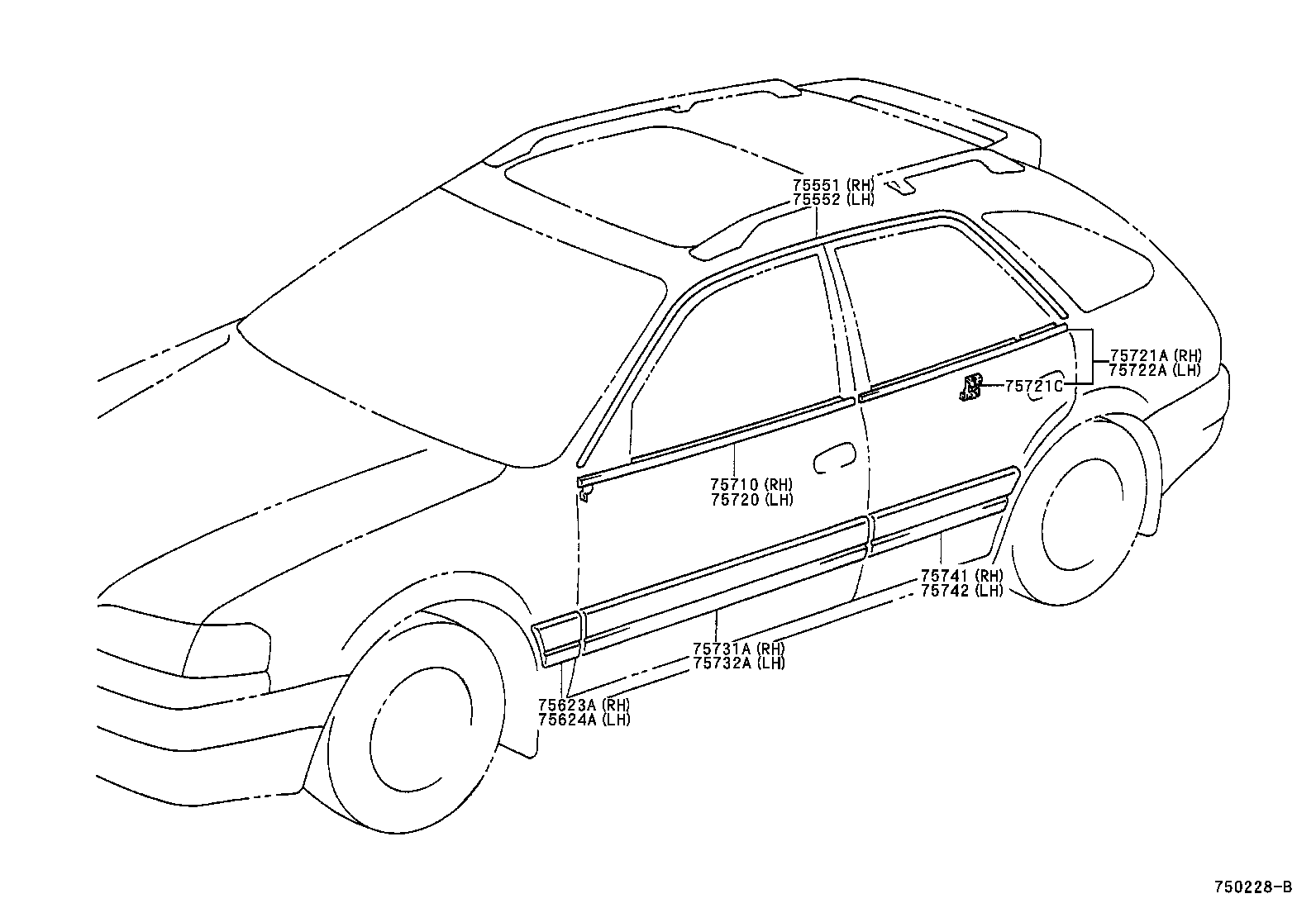

Click highlighted areas on diagram

diagram 75551 75552 75623A 75624A 75710 75720 75721A 75721C 75722A 75731A 75732A 75741 75742
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-12590

AE11#,EE11#..XL,XLI

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-12590

AE11#,EE11#..XL,XLI

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-12700

AE11#,EE11#

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-12700

AE11#,EE11#

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-12620

AE11#,EE11#..XL,XLI

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-12620

AE11#,EE11#..XL,XLI

 1
75721A - MOULDING, REAR DOOR BELT, RH
75721-12400

AE11#,EE11#..XL,XLI

 1
75721C - CLIP, DOOR GLASS WEATHERSTRIP
68211-12240

AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL

 12
75722A - MOULDING, REAR DOOR BELT, LH
75722-12400

AE11#,EE11#..XL,XLI

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-1A410

AE11#,EE11#

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-1A250

AE11#,EE11#

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-12890

AE11#,EE11#

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-12880

AE11#,EE11#

 1
