AE111L-AEPDKV (1997)
Toyota Corolla Sed/Wg
Production
Apr 1997
-
Aug 2000
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )4AF

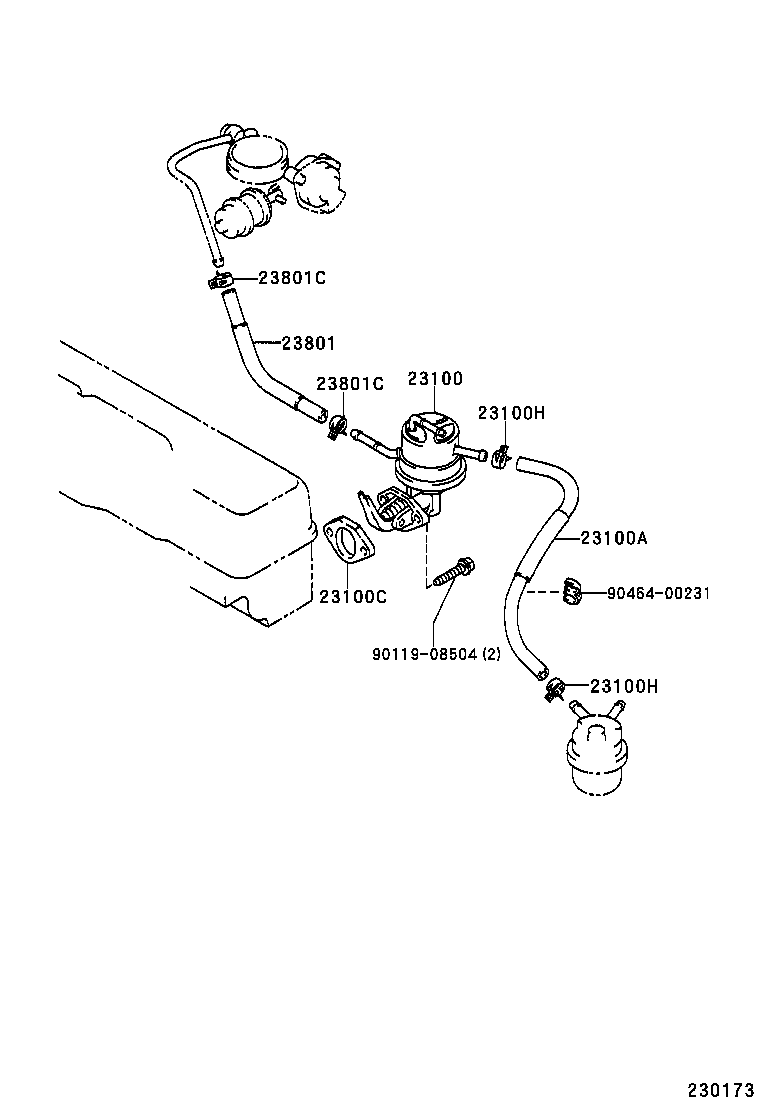

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-15082 |
4AF..AE111 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95334-06040 |
4AF..AE111 |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 23915-16010 |
4AF..AE111 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-41100 |
4AF..AE111 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-41100 |
4AF..AE111 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95333-06020 |
4AF..AE111 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4AF..AE111 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4AF..AE111 |
2 | ||
| Common parts | ||||
| 90119-08504 | ||||
| 90464-00231 | ||||
