Toyota Corolla sed/wg AE111 WIRING & CLAMP

AE111L-AEPDK (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001

Engine 4AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 8(9704- )LHD

Click highlighted areas on diagram

COWL,INSTRUMENT PANEL

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1L410	AE111..GLI,XLI	05/1995 - 05/1996	1
82131-1L420	AE111,EE111..GLI,XLI W(*EL)	05/1995 - 11/1995	1
82131-1L580	AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN)	04/1997 - 11/1998	1
82131-1L580	AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN)	11/1998 - 10/1999	1
82131-1L570	AE112..GCC;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN)	04/1997 - 10/1999	1
82131-1L571	AE111,112..LHD..(GLI,XLI)..(GCC,GEN)	10/1999 - 09/2001	1
82131-1L580	AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN,GENKD,PHL,VEN)	04/1997 - 11/1998	1
82131-1L581	AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN)	10/1999 - 09/2001	1
82131-1L570	AE112..GCC;AE111..LHD..(GLI,XLI)..(GCC,GEN,GENKD)	04/1997 - 10/1999	1
82131-1L580	AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN,GENKD,PHL)	11/1998 - 10/1999	1
82141 - WIRE, INSTRUMENT PANEL
82145-12520	AE111,112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE)	10/1999 - 09/2001	1
82141-1H840	AE111..XLI W(66),W(RWD),W(*EL),W(RHEOSTAT LIGHT CONTROL) OR W(CLOCK)	05/1995 - 05/1996	1
82141-1N520	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE)	04/1997 - 10/1999	1
82141-1N500	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(GCC,GEN)	04/1997 - 11/1998	1
82141-1N500	EE111..VEN;AE111,112,CE110,EE110..LHD..(GCC,GEN)	11/1998 - 10/1999	1
82141-1N521	AE111,CE110,EE110..LHD..GEN W(MULTI HEAD LAMP & *80,DRIVER SIDE & PASSENGER SIDE)	10/1999 - 08/2000	1
82141-1N501	AE111,CE110,EE110..LHD..GEN W(MULTI HEAD LAMP)	10/1999 - 08/2000	1
82145-12540	AE111,CE110,EE110..LHD..GEN W(MULTI HEAD LAMP & *80,DRIVER SIDE)	10/1999 - 08/2000	1
82145-12530	AE111,112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE)	10/1999 - 09/2001	1
82145-12510	AE111,112,CE110,EE110..LHD..GEN	10/1999 - 09/2001	1
82141-1N500	EE110..LHD..(GCC,GEN,GENKD,VEN);AE111,112,CE110..LHD..(GCC,GEN,GENKD)	04/1997 - 11/1998	1
82141-1N520	AE111,112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE)	04/1997 - 10/1999	1
82141-1N500	EE111..VEN;AE111,112,CE110,EE110..LHD..(GCC,GEN,GENKD)	11/1998 - 10/1999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-12010	AE11#,CE110,EE11#..ARL,GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE)	02/2000 - 12/2999	1
82143-12010	AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,PHL);AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,PHL,VEN) W(*80,DRIVER SIDE & PASSENGER SIDE)	04/1997 - 02/2000	1
82143-12010	AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE)	04/1997 - 02/2000	1
82143-12100	AE111,112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE)	10/1999 - 09/2001	1
82210C - FUSIBLE LINK
90982-08228	AE111;AE110..GLI 50A,TERM.:MALE,RED	05/1995 - 04/1997	1
90982-08282	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED	05/1995 - 11/1998	1
90982-08257	AE11#,EE11# 40A,TERM.:MALE,GRN	05/1995 - 04/1997	1
90982-08246	AE11#,EE111 100A,TERM.:MALE,BLUE	05/1995 - 04/1997	1
90982-08281	EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN) 40A,TERM.:FEMALE,GRN	04/1997 - 11/1998	1
90982-08228	AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN 50A,TERM.:MALE,RED	11/1998 - 08/1999	1
90982-08228	AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) 50A,TERM.:MALE,RED	04/1997 - 11/1998	1
90982-08280	AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) 30A,TERM.:FEMALE,PNK	11/1998 - 12/2999	1
90982-08280	AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	05/1995 - 11/1998	1
90982-08228	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 50A,TERM.:MALE,RED	04/1997 - 11/1998	1
90982-08228	ZZE11#;AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:MALE,RED	08/1999 - 12/2999	1
90982-08281	EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE111,ZZE11#..LHD..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 40A,TERM.:FEMALE,GRN	11/1998 - 12/2999	1
90982-08246	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN 100A,TERM.:MALE,BLUE	08/1999 - 12/2999	1
90982-08246	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 100A,TERM.:MALE,BLUE	04/1997 - 11/1998	1
90982-08246	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 100A,TERM.:MALE,BLUE	04/1997 - 11/1998	1
90982-08281	AE110..TH;AE111..MA;AE110..GLI;AE111,EE110..LHD;AE112,CE110,EE111;AE111..RHD..(GLI,XLI) 40A,TERM.:FEMALE,GRN	04/1997 - 11/1998	1
90982-08280	AE110..TH;AE111..MA;AE111..GL,XL;AE111..RHD..(GLI,XLI);AE112,CE110,EE111..RHD;AE110,EE110..GL,GLI,STD,XL 30A,TERM.:FEMALE,PNK	04/1997 - 11/1998	1
90982-08282	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN 50A,TERM.:FEMALE,RED	11/1998 - 12/2999	1
90982-08246	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN) 100A,TERM.:MALE,BLUE	11/1998 - 08/1999	1
90982-08282	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 50A,TERM.:FEMALE,RED	04/1997 - 11/1998	1
90982-08246	EE111;AE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,PHL,TUR) 100A,TERM.:MALE,BLUE	08/1999 - 12/2999	1
90982-08280	AE111..WG..5F;AE112..XLI..IDN;AE111..GL,SEG,XL;AE112,CE110..RHD..(GLI,SEG,XL);AE111,EE111..RHD..SED..(GLI,XLI);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 30A,TERM.:FEMALE,PNK	11/1998 - 12/2999	1
90982-08228	AE110,112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,TH,TUR;AE111..(GLI,SEG,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) 50A,TERM.:MALE,RED	11/1998 - 08/1999	1
90982-08282	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 50A,TERM.:FEMALE,RED	11/1998 - 12/2999	1
90982-08281	AE111..LHD;AE110,EE111;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..RHD..SED..(GLI,SEG,XLI);EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) 40A,TERM.:FEMALE,GRN	11/1998 - 12/2999	1
90982-08246	AE110,111,CE110..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN;AE112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR 100A,TERM.:MALE,BLUE	11/1998 - 08/1999	1
82285E - WIRE, ILLUMINATION
82285-12020	AE110..TH;AE110,112..(GLI,SEG)..(GEN,TH);AE111..(GL,GLI,XL,XLI)..(GCC,GEN,TH,VEN);AE112,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,VEN)	04/1997 - 11/1998	1
82285-12020	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 11/1998	1
82285-12020	AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,TH);AE110,EE110..GCC,GEN,GENKD,PHL,TH;AE111,EE111..SED..(GCC,GEN,TH,VEN);AE112..(GLI,XLI)..(GCC,GEN,IDN,VEN)	11/1998 - 02/2000	1
82285-12020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE11#,CE110,EE111..GCC,GEN,VEN	11/1998 - 02/2000	1
82285-12020	EE111..GEN;AE11#,CE110,EE110..GCC,GEN,VEN	02/2000 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-12220	AE112..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 11/1998	1
82666-12220	AE112..BZ,GCC,VEN;AE111,CE110,EE11#..LHD	04/1997 - 11/1998	1
82666-12220	AE112,EE111..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..(GCC,GEN,TUR,VEN)	11/1998 - 10/1999	1
82666-12220	AE112..BZ,GCC,VEN;AE111,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 10/1999	1
82666C - HOLDER, CONNECTOR NO.4
82666-12170	AE112,EE111..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..(GCC,GEN,TUR,VEN)	11/1998 - 10/1999	1
82666-12170	AE112..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 11/1998	1
82666-12170	AE112..BZ,GCC,VEN;AE111,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 10/1999	1
82666-12170	AE112..BZ,GCC,VEN;AE111,CE110,EE11#..LHD	04/1997 - 11/1998	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-1A620	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	1
82817-1A620	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 11/1998	1
82817-1A620	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	11/1998 - 12/2999	1
82817-1A620	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR	11/1998 - 12/2999	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	AE111..RHD..WG;AE110..XLI..GEN;AE112,CE110,EE11#..ARL,GCC,GEN;AE111,ZZE11#..SED..(GCC,GEN,TUR) NO.2	05/1995 - 01/2002	1
82824-24010	AE111;AE110..GLI NO.1	05/1995 - 04/1997	1
82824E - CONNECTOR, WIRING HARNESS
82824-12200	EE111;AE111..5F..GLI;AE11#,EE110..(4FC,5F)..(SEG,XL,XLI) W(*66) OR W(AUTO AIR CONDITIONER)	05/1995 - 05/1996	1
82824-12200	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
82824-12210	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN W(AUTO AIR CONDITIONER),BLACK	04/1997 - 08/1998	3
82824-12220	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN NATURAL	04/1997 - 08/1998	3
82824-12210	AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK	08/1998 - 12/1998	3
82824-12210	AE111,EE11#;AE110..5F..GLI BLACK	05/1995 - 04/1997	2
82824-12200	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	04/1997 - 11/1998	1
82824-12210	EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..(GCC,GEN,VEN) BLACK	11/1998 - 12/1998	2
82824-12210	AE111..SEG..GEN;EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..SED..(GCC,GEN,VEN) BLACK	04/1997 - 11/1998	2
82824-12210	AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK	12/1998 - 10/1999	3
82824-12220	AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL	08/1998 - 10/1999	3
82824-12220	AE111..RHD..(GLI,XLI)..GEN;AE111,CE110,EE110..LHD..GEN W(HEATER CONTROL--PUSH TYPE & *80,DRIVER SIDE & PASSENGER SIDE),NATURAL	10/1999 - 09/2001	2
82824-12200	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.2	11/1998 - 08/2000	1
82824-12210	EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE111..LHD..(GCC,GEN,VEN) BLACK	12/1998 - 10/1999	2
82824-12220	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH NATURAL	04/1997 - 08/1998	3
82824-12210	AE111,112,CE110,EE11#..LHD..(GEN,VEN) BLACK	10/1999 - 02/2000	2
82824-12210	AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK	08/1998 - 12/1998	3
82824-12220	AE111,CE110,EE110..LHD..SED..GEN W(HEATER CONTROL--PUSH TYPE & *80,DRIVER SIDE & PASSENGER SIDE),NATURAL	04/1997 - 10/1999	2
82824-12200	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	1
82824-12210	AE111,112,CE110,EE110..LHD..GEN BLACK	02/2000 - 09/2001	2
82824-12210	AE111..ARL;AE112..ARL,GCC,GEN,VEN;EE110..LHD..(GCC,GEN,GENKD);AE111,CE110..LHD..(GCC,GEN,GENKD,VEN) BLACK	11/1998 - 12/1998	2
82824-12210	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH W(AUTO AIR CONDITIONER),BLACK	04/1997 - 08/1998	3
82824-12210	AE111..ARL;AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE110..LHD..(GCC,GEN,GENKD,VEN) BLACK	04/1997 - 11/1998	2
82824-12220	AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL	08/1998 - 10/1999	3
82824-12200	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.2	11/1998 - 08/2000	1
82824-12210	AE111..5F..ARL;AE112..ARL,GCC,GEN,VEN;AE111..4FC..(ARL,MA,TH);EE110..LHD..(GCC,GEN,GENKD);AE111..5F..(GLI,SEG)..(MA,TH);AE111,CE110,EE111..LHD..(GCC,GEN,GENKD,VEN) BLACK	12/1998 - 10/1999	2
82824-12210	AE112..GCC,IDN,TH;AE110,111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH) W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK	12/1998 - 10/1999	3
82824E - CONNECTOR, WIRING HARNESS
82824-12200	EE111;AE111..5F..GLI;AE11#,EE110..(4FC,5F)..(SEG,XL,XLI) W(*66) OR W(AUTO AIR CONDITIONER)	05/1995 - 05/1996	1
82824-12200	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
82824-12210	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN W(AUTO AIR CONDITIONER),BLACK	04/1997 - 08/1998	3
82824-12220	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN NATURAL	04/1997 - 08/1998	3
82824-12210	AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK	08/1998 - 12/1998	3
82824-12210	AE111,EE11#;AE110..5F..GLI BLACK	05/1995 - 04/1997	2
82824-12200	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	04/1997 - 11/1998	1
82824-12210	EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..(GCC,GEN,VEN) BLACK	11/1998 - 12/1998	2
82824-12210	AE111..SEG..GEN;EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..SED..(GCC,GEN,VEN) BLACK	04/1997 - 11/1998	2
82824-12210	AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK	12/1998 - 10/1999	3
82824-12220	AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL	08/1998 - 10/1999	3
82824-12220	AE111..RHD..(GLI,XLI)..GEN;AE111,CE110,EE110..LHD..GEN W(HEATER CONTROL--PUSH TYPE & *80,DRIVER SIDE & PASSENGER SIDE),NATURAL	10/1999 - 09/2001	2
82824-12200	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.2	11/1998 - 08/2000	1
82824-12210	EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE111..LHD..(GCC,GEN,VEN) BLACK	12/1998 - 10/1999	2
82824-12220	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH NATURAL	04/1997 - 08/1998	3
82824-12210	AE111,112,CE110,EE11#..LHD..(GEN,VEN) BLACK	10/1999 - 02/2000	2
82824-12210	AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK	08/1998 - 12/1998	3
82824-12220	AE111,CE110,EE110..LHD..SED..GEN W(HEATER CONTROL--PUSH TYPE & *80,DRIVER SIDE & PASSENGER SIDE),NATURAL	04/1997 - 10/1999	2
82824-12200	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	1
82824-12210	AE111,112,CE110,EE110..LHD..GEN BLACK	02/2000 - 09/2001	2
82824-12210	AE111..ARL;AE112..ARL,GCC,GEN,VEN;EE110..LHD..(GCC,GEN,GENKD);AE111,CE110..LHD..(GCC,GEN,GENKD,VEN) BLACK	11/1998 - 12/1998	2
82824-12210	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH W(AUTO AIR CONDITIONER),BLACK	04/1997 - 08/1998	3
82824-12210	AE111..ARL;AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE110..LHD..(GCC,GEN,GENKD,VEN) BLACK	04/1997 - 11/1998	2
82824-12220	AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL	08/1998 - 10/1999	3
82824-12200	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.2	11/1998 - 08/2000	1
82824-12210	AE111..5F..ARL;AE112..ARL,GCC,GEN,VEN;AE111..4FC..(ARL,MA,TH);EE110..LHD..(GCC,GEN,GENKD);AE111..5F..(GLI,SEG)..(MA,TH);AE111,CE110,EE111..LHD..(GCC,GEN,GENKD,VEN) BLACK	12/1998 - 10/1999	2
82824-12210	AE112..GCC,IDN,TH;AE110,111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH) W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK	12/1998 - 10/1999	3
82824F - CONNECTOR, WIRING HARNESS
82824-12200	EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 11/1998	1
82824-12200	EE111..VEN;AE111,112,CE110,EE110..LHD..(GCC,GEN)	10/1999 - 02/2000	1
82824-12200	EE110..LHD..(GCC,GEN);AE111,112,CE110..LHD..(GCC,GEN,TUR,VEN)	11/1998 - 12/1998	1
82824-12200	ZZE11#;AE111,112,CE110,EE11#..LHD..(GCC,GEN,VEN)	02/2000 - 08/2000	1
82824-12200	AE111,CE110,EE110..LHD..(GEN,VEN);AE110,112,EE111,ZZE11#..GEN,TUR,VEN	08/2000 - 12/2999	1
82824-12200	EE110..LHD..(GCC,GEN,GENKD,TUR);AE111,112,CE110,EE111..LHD..(GL,GLI,XL,XLI) NATURAL	12/1998 - 10/1999	1
82824-12200	EE110..LHD..(GCC,GEN);AE111,112,CE110..LHD..(GCC,GEN,TUR,VEN) NATURAL	12/1998 - 10/1999	1
82824-12200	AE111,112,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,TUR)	11/1998 - 12/1998	1
82824-12200	AE111,112,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,TUR,VEN)	04/1997 - 11/1998	1
Common parts
90159-70003
Linked diagrams
8121
8401

ILLUST NO. 4 OF 8(9704- )LHD..SED

Click highlighted areas on diagram

ROOF,DOOR,FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A440	AE111..GLI,XLI;AE110,EE11#..XL,XLI W(*EL)	05/1995 - 05/1996	1
82151-1A480	AE111,EE11#..GLI,XL,XLI W(PW & EL)	05/1995 - 11/1995	1
82151-1A400	AE111..GLI,XLI;AE110,EE11#..XL,XLI W(DOOR SPEAKER)	05/1995 - 04/1997	1
82151-1A410	AE111,EE111..GLI,XLI W(ELECTRIC REMOTE CONTROL DOOR MIRROR)	05/1995 - 04/1997	1
82151-1A710	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	04/1997 - 07/1998	1
82151-1A710	AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	07/1998 - 10/1999	1
82151-1A890	EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)	11/1998 - 10/1999	1
82151-1A890	AE111..(XL,XLI)..(GCC,GEN);AE112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) W(RADIO)	10/1999 - 02/2000	1
82151-1A890	AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	04/1997 - 11/1998	1
82151-1E010	CE110,EE110..XL..(GCC,GEN);AE111,112,EE111..(XL,XLI)..(ARL,GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL)	10/1999 - 09/2001	1
82151-1A890	AE110..TH;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,VEN);AE111,112,CE110,EE111..(XL,XLI)..(BZ,GCC,GEN,TH)	04/1997 - 11/1998	1
82151-1A700	AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN W(POWER DOOR LOCK)	05/2001 - 09/2001	1
82151-1A890	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(GCC,GEN,VEN) W(RADIO)	02/2000 - 05/2001	1
82151-1E170	AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	10/1999 - 09/2001	1
82151-1A710	AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN,GENKD,PHL) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	04/1997 - 07/1998	1
82151-1A700	AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER DOOR LOCK)	04/1997 - 05/2001	1
82151-1E010	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4FC,5F)..(XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL)	04/1997 - 10/1999	1
82151-1A700	EE110..LHD..XL;AE111,112,CE110..LHD..(XL,XLI)..(BZ,GCC,GEN) W(POWER DOOR LOCK)	04/1997 - 05/2001	1
82151-1A890	AE111,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE110,112,CE110,EE111..(STD,XL,XLI)..(BZ,GCC,GEN,TH,VEN)	11/1998 - 10/1999	1
82151-1A710	AE112..XLI..(GCC,GEN);AE111,CE110,EE111..LHD..(GL,GLI,XL,XLI);AE112,EE110..LHD..(GL,GLI,XL)..(BZ,GCC,GEN,PHL,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	07/1998 - 10/1999	1
82151-1E010	AE111,112,CE110,EE11#..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL)	04/1997 - 10/1999	1
82152 - WIRE, FRONT DOOR, LH
82152-1A210	AE111..GLI,XLI;AE110,EE11#..XL,XLI W(*EL)	05/1995 - 05/1996	1
82151-1A400	AE111..GLI,XLI;AE110,EE11#..XL,XLI W(DOOR SPEAKER)	05/1995 - 04/1997	1
82152-1A220	AE111..GLI,XLI;AE110,EE11#..XL,XLI W(PW & EL)	05/1995 - 05/1996	1
82151-1A410	AE111,EE111..GLI,XLI W(ELECTRIC REMOTE CONTROL DOOR MIRROR)	05/1995 - 04/1997	1
82151-1A890	AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	04/1997 - 11/1998	1
82151-1E010	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4FC,5F)..(XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL)	04/1997 - 10/1999	1
82152-1A420	AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	04/1997 - 07/1998	1
82152-1A420	AE111..GLI..TUR;AE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	07/1998 - 10/1999	1
82151-1A890	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(GCC,GEN,VEN)	02/2000 - 05/2001	1
82152-1A730	AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	10/1999 - 09/2001	1
82151-1A890	EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)	11/1998 - 02/2000	1
82152-1A420	AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN,GENKD,PHL) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	04/1997 - 07/1998	1
82152-1A410	AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER DOOR LOCK)	04/1997 - 05/2001	1
82151-1E010	CE110,EE110..XL..(GCC,GEN);AE111,112,EE111..(XL,XLI)..(ARL,GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL)	10/1999 - 09/2001	1
82152-1A410	AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN W(POWER DOOR LOCK)	05/2001 - 09/2001	1
82151-1A890	AE110..TH;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,VEN);AE111,112,CE110,EE111..(XL,XLI)..(BZ,GCC,GEN,TH)	04/1997 - 11/1998	1
82151-1E010	AE111,112,CE110,EE11#..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL)	04/1997 - 10/1999	1
82151-1A890	AE111..WG..5F;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL);AE110,112,EE111..(STD,XLI)..(BZ,GCC,GEN,TH,VEN)	11/1998 - 02/2000	1
82152-1A410	EE110..LHD..XL;AE111,112,CE110..LHD..(XL,XLI)..(BZ,GCC,GEN) W(POWER DOOR LOCK)	04/1997 - 05/2001	1
82152-1A420	AE112..XLI..(GCC,GEN);AE111,112..GLI..(BZ,GCC,TUR,VEN);AE111,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH)	07/1998 - 10/1999	1
82153 - WIRE, REAR DOOR, NO.1
82153-12320	AE11#,EE110..XL,XLI W(PW & EL)	05/1995 - 05/1996	1
82153-12310	AE111..GLI,XLI;AE110,EE11#..XL,XLI W(*EL)	05/1995 - 04/1997	1
82153-12330	AE111,EE111..XLI W(PW & EL) & HOLD TYPE TRIM-*99	05/1995 - 04/1997	1
82153-12310	AE111..RHD..WG;AE112..XLI..GCC;EE110..LHD..3FC;EE110..5F..XL..(GCC,GEN);AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL)	04/1997 - 10/1999	1
82153-12310	AE111..WG..5F;AE112..XLI..GCC;CE110,EE110..XL..(GCC,GEN);AE111,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL)	10/1999 - 09/2001	1
82153-12310	AE110,112..XLI..(GCC,TH);AE111..RHD..5F..GLI..GEN;AE111,CE110,EE11#..(XL,XLI)..(GCC,GEN,NZ,PHL,TH) W(*EL)	04/1997 - 10/1999	1
82154 - WIRE, REAR DOOR, NO.2
82154-12310	AE11#,EE110..XL,XLI W(PW & EL)	05/1995 - 05/1996	1
82153-12310	AE111..GLI,XLI;AE110,EE11#..XL,XLI W(*EL)	05/1995 - 04/1997	1
82154-12320	AE111,EE111..XLI W(PW & EL) & MOLD TYPE TRIM -*99	05/1995 - 04/1997	1
82154-12320	AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE111..SED..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..(4FC,5F)..(GCC,GEN) W(POWER WINDOW)	04/1997 - 07/1998	1
82153-12310	AE111..WG..5F;AE112..XLI..GCC;CE110,EE110..XL..(GCC,GEN);AE111,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL)	10/1999 - 09/2001	1
82153-12310	AE111..RHD..WG;AE112..XLI..GCC;EE110..LHD..3FC;EE110..5F..XL..(GCC,GEN);AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL)	04/1997 - 10/1999	1
82153-12310	AE110,112..XLI..(GCC,TH);AE111..RHD..5F..GLI..GEN;AE111,CE110,EE11#..(XL,XLI)..(GCC,GEN,NZ,PHL,TH) W(*EL)	04/1997 - 10/1999	1
82154-12320	AE111..GL,XL;AE111..WG..5F;AE111..LHD..GLI..GEN;AE111..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..(3FC,4FC,5F)..(GCC,GEN) W(POWER WINDOW)	04/1997 - 07/1998	1
82161 - WIRE, FLOOR
82161-1L350	AE111;AE110..GLI W(*66)	05/1995 - 05/1996	1
82161-1L330	AE111,EE11#..XL,XLI	05/1995 - 05/1996	1
82161-1L790	AE112,EE110..LHD..SED..(GCC,GEN);AE111,CE110,EE111..LHD..(GCC,GEN,VEN)	11/1998 - 10/1999	1
82161-1L790	AE112,EE110..LHD..SED..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,VEN)	04/1997 - 11/1998	1
82161-1L340	AE111,EE11#..XL,XLI W(*RWD) OR W(BULB TYPE CENTER STOP LAMP)	05/1995 - 05/1996	1
82161-1L790	AE112..SED..GCC;AE111,CE110,EE110..LHD..SED..(GCC,GEN,GENKD,VEN)	04/1997 - 11/1998	1
82161-1L790	AE112,EE110..LHD..SED..(GCC,GEN,GENKD);AE111,CE110,EE111..LHD..(GCC,GEN,GENKD,VEN)	11/1998 - 10/1999	1
82161-1L800	AE111,112..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) W(ABS)	04/1997 - 02/2000	1
82171 - WIRE, ROOF, NO.1
82171-12620	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
82171-12740	AE111,112,CE110,EE110..LHD..SED..(3FC,4FC,5F)..(GCC,GEN) W(MOON ROOF)	04/1997 - 09/2001	1
82171-12730	EE110..LHD..SED..(GCC,GEN);AE111,112,CE110..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 11/1998	1
82171-12730	AE111,112,CE110,EE11#..LHD..SED	04/1997 - 11/1998	1
82171-12740	AE111,112,CE110,EE110..LHD..SED..(3FC,4FC,5F)..(GCC,GEN) W(MOON ROOF)	04/1997 - 10/1999	1
82171-12730	AE111,112,CE110,EE111..LHD..SED;EE110..LHD..SED..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 12/2999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-12160	AE111,112,CE110,EE111..LHD..SED;EE110..LHD..SED..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 12/2999	1
82187-12160	AE111,112,CE110,EE11#..LHD..SED	04/1997 - 11/1998	1
82187-12160	EE110..LHD..SED..(GCC,GEN);AE111,112,CE110..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 11/1998	1
Common parts
90119-06390
90159-60545
90950-06107
90950-06108
Linked diagrams
8401

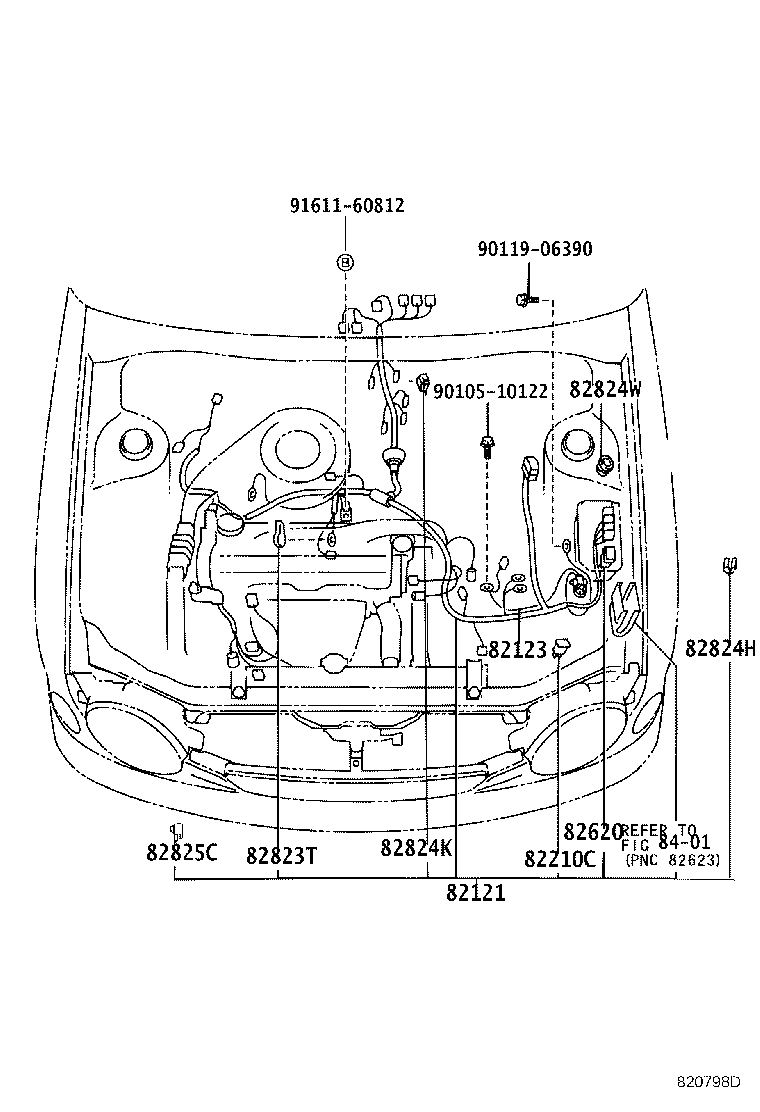

ILLUST NO. 1 OF 8(9704- )AE111..GL,XL

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1L600	AE111..4FC	05/1995 - 04/1997	1
82121-1N640	AE111..LHD..SED..4FC..GEN MIDDLE EAST SPEC	04/1997 - 11/1998	1
82121-1N620	AE111..LHD..SED..4FC..(GCC,GEN)	04/1997 - 10/1999	1
82121-1T010	AE111..4FC..(GL,XL)	04/1997 - 09/2001	1
82121-1N620	AE111..LHD..4FC..(GCC,GEN)	10/1999 - 09/2001	1
82121-1N640	AE111..LHD..4FC..GEN MIDDLE EAST SPEC	04/1997 - 11/1998	1
82121-1T010	AE111..4FC..(GL,XL)	04/1997 - 10/1999	1
82121-1N620	AE111..LHD..4FC..(GCC,GEN,PHL)	04/1997 - 10/1999	1
82121-1N641	AE111..LHD..4FC..(GEN,VEN) MIDDLE EAST SPEC	11/1998 - 02/2000	1
82123 - WIRE, ENGINE, NO.3
82123-12310	AE111..RHD..WG;EE110..(GL,STD)..GEN;AE112..ARL,GCC,GEN,VEN;AE111..LHD..SED..5F..XLI;AE111..(4FC,5F)..(GL,XL);AE111..LHD..GLI..(GEN,TUR);EE110..LHD..5F..XL..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN,TUR,VEN) W(BATTERY=32B24L OR 34B19L)	07/1998 - 11/1998	1
82123-12310	AE111..RHD..WG;AE111..LHD..GLI..GEN;AE111..(4FC,5F)..(GL,XL);EE110..LHD..5F..XL..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,EE110..(GL,GLI,STD,XLI)..(GCC,GEN) W(BATTERY=32B24L OR 34B19L)	04/1997 - 07/1998	1
82123-12290	AE111..RHD..WG;AE111..SED..(4FC,5F)..(GCC,GEN);AE110,112,EE11#..(4F,4FC,5F)..(ARL,GCC,GEN)	05/1995 - 12/2999	1
82123-12310	AE112;AE111..WG..5F;EE110..RHD..GL;EE110..LHD..MTM;AE111..4FC..XLI;AE111..LHD..GLI..GEN;AE111..4FC..GLI..TUR;AE110,111..GENKD,PHL,TH;AE111..(4FC,5F)..(GL,SEG,XL);AE111..LHD..SED..5F..XLI..GEN;AE111,EE111..5F..(GLI,XLI)..(ARL,GCC,MA,NZ,TUR,VEN) W(BATTERY=32B24L OR 34B19L)	07/1998 - 11/1998	1
82123-12310	AE111..WG..5F;EE110..RHD..GL;AE111..5F..(GCC,NZ);AE111..LHD..GLI..GEN;AE111..GENKD,MA,PHL,TH;AE111..(4FC,5F)..(GL,XL);AE111..LHD..SED..5F..XLI..GEN;AE111..4FC..XLI..(GCC,GEN,NZ);EE110..LHD..MTM..(GCC,GEN,GENKD,PHL);AE110,112,EE111..(4FC,5F)..(GCC,IDN,MA,NZ,TH) W(BATTERY=32B24L OR 34B19L)	04/1997 - 07/1998	1
82123-12290	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(4FC,5F)..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH);AE110,112,EE110..(4F,4FC,5F)..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,PHL,TH)	04/1997 - 12/2999	1
82123-12310	AE111..WG..5F;AE111..5F..ARL;AE112..GLI,SEG;EE110..RHD..GL;AE111..LHD..5F..XLI;AE111..SED..4FC..XLI;AE110,111..GENKD,PHL,TH;EE111..5F..(MA,TUR,VEN);AE111..LHD..GLI..(GEN,TUR);AE111..(4FC,5F)..(GL,SEG,XL);AE112..XLI..(BZ,GCC,GEN,IDN);EE110..LHD..MTM..(GCC,GEN,GENKD,PHL,TUR) W(BATTERY=32B24L OR 34B19L)	11/1998 - 12/2999	1
82210C - FUSIBLE LINK
90982-08228	AE111;AE110..GLI 50A,TERM.:MALE,RED	05/1995 - 04/1997	1
90982-08282	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED	05/1995 - 11/1998	1
90982-08257	AE11#,EE11# 40A,TERM.:MALE,GRN	05/1995 - 04/1997	1
90982-08246	AE11#,EE111 100A,TERM.:MALE,BLUE	05/1995 - 04/1997	1
90982-08281	EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN) 40A,TERM.:FEMALE,GRN	04/1997 - 11/1998	1
90982-08228	AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN 50A,TERM.:MALE,RED	11/1998 - 08/1999	1
90982-08228	AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) 50A,TERM.:MALE,RED	04/1997 - 11/1998	1
90982-08280	AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) 30A,TERM.:FEMALE,PNK	11/1998 - 12/2999	1
90982-08280	AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	05/1995 - 11/1998	1
90982-08228	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111;AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 50A,TERM.:MALE,RED	04/1997 - 11/1998	1
90982-08228	ZZE11#;AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:MALE,RED	08/1999 - 12/2999	1
90982-08281	EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE111,ZZE11#..LHD..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 40A,TERM.:FEMALE,GRN	11/1998 - 12/2999	1
90982-08246	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN 100A,TERM.:MALE,BLUE	08/1999 - 12/2999	1
90982-08246	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 100A,TERM.:MALE,BLUE	04/1997 - 11/1998	1
90982-08246	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 100A,TERM.:MALE,BLUE	04/1997 - 11/1998	1
90982-08281	AE110..TH;AE111..MA;AE110..GLI;AE111,EE110..LHD;AE112,CE110,EE111;AE111..RHD..(GLI,XLI) 40A,TERM.:FEMALE,GRN	04/1997 - 11/1998	1
90982-08280	AE110..TH;AE111..MA;AE111..GL,XL;AE111..RHD..(GLI,XLI);AE112,CE110,EE111..RHD;AE110,EE110..GL,GLI,STD,XL 30A,TERM.:FEMALE,PNK	04/1997 - 11/1998	1
90982-08282	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN 50A,TERM.:FEMALE,RED	11/1998 - 12/2999	1
90982-08246	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN) 100A,TERM.:MALE,BLUE	11/1998 - 08/1999	1
90982-08282	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 50A,TERM.:FEMALE,RED	04/1997 - 11/1998	1
90982-08246	EE111;AE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,PHL,TUR) 100A,TERM.:MALE,BLUE	08/1999 - 12/2999	1
90982-08280	AE111..WG..5F;AE112..XLI..IDN;AE111..GL,SEG,XL;AE112,CE110..RHD..(GLI,SEG,XL);AE111,EE111..RHD..SED..(GLI,XLI);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 30A,TERM.:FEMALE,PNK	11/1998 - 12/2999	1
90982-08228	AE110,112,CE110,EE111..ARL,BZ,GCC,GEN,IDN,MA,TH,TUR;AE111..(GLI,SEG,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) 50A,TERM.:MALE,RED	11/1998 - 08/1999	1
90982-08282	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 50A,TERM.:FEMALE,RED	11/1998 - 12/2999	1
90982-08281	AE111..LHD;AE110,EE111;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..RHD..SED..(GLI,SEG,XLI);EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) 40A,TERM.:FEMALE,GRN	11/1998 - 12/2999	1
90982-08246	AE110,111,CE110..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN;AE112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR 100A,TERM.:MALE,BLUE	11/1998 - 08/1999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12240	AE111	05/1995 - 05/1996	1
82620-02020	AE111..(GLI,XLI)..(GCC,GEN);AE110,112,CE110,EE111..ARL,GCC,GEN (L)	10/1999 - 02/2000	1
82620-13020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN	08/1999 - 10/1999	1
82620-13020	AE111,112,EE111..VEN;AE111,EE110..(GL,STD,XL)..(GCC,GEN)	10/1999 - 02/2000	1
82620-13020	ZZE11#;AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN (J)	02/2000 - 12/2999	1
82620-13020	AE111,EE110..(GL,STD,XL)..(GCC,GEN)	02/2000 - 09/2001	1
82620-13020	AE110,111,CE110..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN;AE112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR	11/1998 - 08/1999	1
82620-13020	AE111..(GLI,XLI)..(GCC,GEN);AE110,112,CE110,EE111..ARL,GCC,GEN (J)	10/1999 - 02/2000	1
82620-13020	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 11/1998	1
82620-13020	EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN)	11/1998 - 08/1999	1
82620-13020	EE111;EE110..GCC,GEN,GENKD,PHL,TUR;AE11#,CE110..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN	08/1999 - 10/1999	1
82620-02020	ZZE11#;AE111..(GLI,XLI)..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN (L)	02/2000 - 12/2999	1
82620-13020	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)	04/1997 - 11/1998	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22060	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
82823-22060	EE111..GEN;AE110..4FC..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,CE110..(GL,XL)..GEN	07/1998 - 11/1998	1
82823-22060	AE111..GL,XL;AE110..4FC..GEN;EE110..LHD..3FC;CE110,EE111..GEN,VEN;EE110..MTM..(GCC,GEN)	11/1998 - 12/2999	1
82823-22060	EE111..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,CE110..(GL,XL)..GEN	04/1997 - 07/1998	1
82824K - CONNECTOR, WIRING HARNESS
82824-12210	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 11/1998	1
82824-12210	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN)	11/1998 - 02/2000	1
82824-12210	AE112,EE11#..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	02/2000 - 08/2000	1
82824-12210	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	1
82824-12210	AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR	11/1998 - 02/2000	1
82824W - CONNECTOR, WIRING HARNESS
82824-30130	AE111..GLI,XLI;AE110,EE11#..XL,XLI	05/1995 - 04/1997	1
82824-30130	AE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4FC,5F)..(XL,XLI)..(ARL,GCC,GEN) ELECTORIC DOOR LOCK	04/1997 - 05/2001	2
82824-30130	AE111,112,CE110,EE110..(XL,XLI)..(ARL,GEN) ELECTORIC DOOR LOCK	05/2001 - 09/2001	2
82824-30130	AE110..TH;AE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN,TH);AE112,EE110..(XL,XLI)..(BZ,GCC,GEN,PHL,TUR) ELECTORIC DOOR LOCK	04/1997 - 05/2001	2
82825C - CONNECTOR, WIRING HARNESS
82824-30130	EE110..LHD..(GL,XL)..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,ZZE11#..LHD..(GCC,GEN,TUR,VEN)	04/1997 - 05/2001	1
82824-30130	AE112..XLI..(GCC,GEN);AE111,CE110,EE111..LHD..(GL,GLI,XL,XLI);AE112,EE110..LHD..(GL,GLI,XL)..(BZ,GCC,GEN,PHL,VEN)	04/1997 - 05/2001	1
82824-30130	AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) ELECTORIC DOOR LOCK	04/1997 - 05/2001	2
82824-30130	AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN ELECTORIC DOOR LOCK	05/2001 - 09/2001	2
82824-30130	EE110..LHD..XL;AE112..5F..XLI..BZ;AE112..4FC..GLI..BZ;AE111,112,CE110..LHD..(XL,XLI)..(GCC,GEN) ELECTORIC DOOR LOCK	04/1997 - 05/2001	2
Common parts
90105-10122
90119-06390
91611-60812
Linked diagrams
8401

AE111L-AEPDK (1997)

ILLUST NO. 3 OF 8(9704- )LHD

ILLUST NO. 4 OF 8(9704- )LHD..SED

ILLUST NO. 1 OF 8(9704- )AE111..GL,XL

Part Price Details
