Toyota Corolla sed/wg AE111 EXHAUST PIPE

AE111L-AEPDK (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001

Engine 4AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

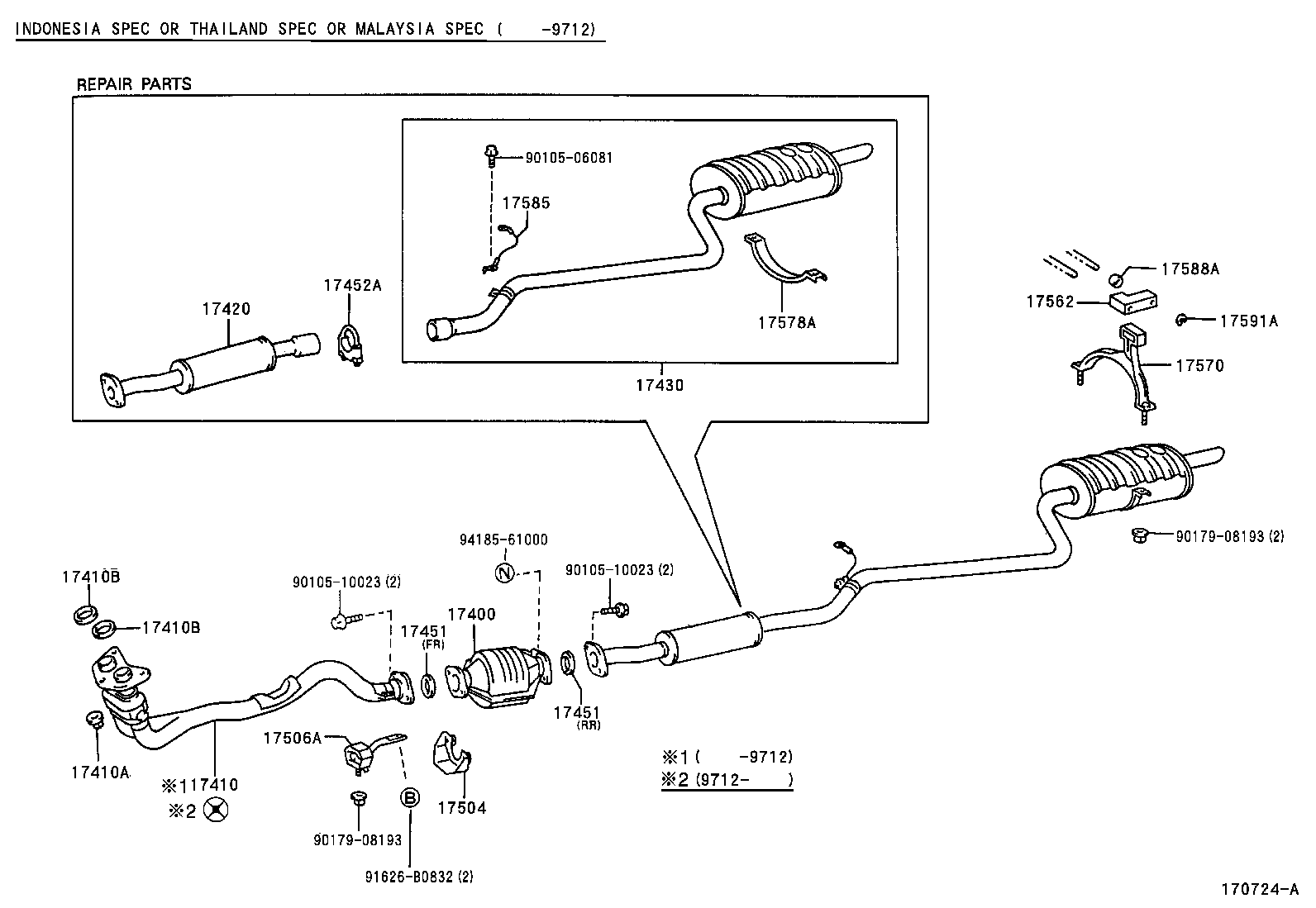

(9704-9712)4AFE..GCC,GEN,GENKD,NZ,PHL ; (9712-)4AFE..MA

Click highlighted areas on diagram

W(CONVERTER)

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-1A480	4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17410-1A480	4AFE..AE111..5F..GEN;4AFE..AE111..LHD..4FC..GEN W(CONVERTER)	08/1998 - 08/2000	1
17410-1A260	4AFE..AE111 W/O(CONVERTER),REAR	05/1995 - 04/1997	1
17410-1A330	4AFE..AE111..RHD..WG..5F;4AFE..AE111..SED..(GCC,GEN);4AF,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	05/1995 - 09/2001	1
17410-1A550	4AFE..AE111..RHD..WG..5F;4AF#..AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN) W/O(CONVERTER),REAR	04/1997 - 09/2001	1
17410-1A480	4AFE..AE111..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17410-1A480	4AFE..AE111..WG..5F;4AFE..AE111..LHD..GEN W(CONVERTER)	08/2000 - 09/2001	1
17410-1A330	4AF#,7AFE..AE111,112..(GL,GLI,XL,XLI)..(GCC,GEN) W/O(CONVERTER),FRONT	04/1997 - 10/1999	1
17410-1A550	4AF#..AE111..(GL,GLI,XL,XLI)..(GCC,GEN) W/O(CONVERTER),REAR	04/1997 - 10/1999	1
17410-1A480	4AFE..AE111..5F..GEN;4AFE..AE111..LHD..4FC..GEN W(CONVERTER)	08/1998 - 10/1999	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	4AF#..AE111..GCC,GEN,TUR;7AFE,2E..AE112,EE110..ARL,GCC,GEN,VEN	10/1999 - 02/2000	3
90179-10070	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 01/1999	3
90179-10070	2E..EE110..LHD..3FC;4AF#..AE111..GCC,GEN,TUR;7AFE,2E..AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN,VEN)	09/1999 - 10/1999	3
90179-10070	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF#..AE111..GCC,GEN,TUR,VEN;7AFE..AE112..ARL,GCC,GEN,VEN	01/1999 - 09/1999	3
90179-10070	4AFE,7AFE..AE111,112..5F..TH;4AF#,7AFE,2E..AE111,112,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TUR,VEN	01/1999 - 09/1999	3
90179-10070	4AFE,7AFE..AE111,112..5F..TH;7AFE..AE112..ARL,BZ,GCC,GEN,IDN,VEN;4AF#,2E..AE111,EE110..ARL,GCC,GEN,GENKD,MA,PHL,TUR	09/1999 - 10/1999	3
90179-10070	4AFE..AE111..MA;4AFE..AE111..GLI,XLI;4AF,7AFE,2E..AE111,112,EE110	04/1997 - 01/1999	3
17410B - GASKET, EXHAUST PIPE
90917-06064	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER),FRONT	05/1995 - 09/1999	2
90917-06061	7AFE..AE112..ARL,GEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	08/1998 - 01/1999	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),REAR	09/1999 - 10/1999	1
90917-06061	7AFE..AE112..ARL,GEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	01/1999 - 10/1999	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	09/1999 - 10/1999	2
90917-06061	7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	10/1999 - 08/2000	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),REAR	10/1999 - 09/2001	1
17451-16030	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER),REAR	05/1995 - 09/1999	1
90917-06061	4AFE..AE111..WG..5F;7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..LHD..(GEN,VEN) W(CONVERTER)	08/2000 - 10/2000	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	10/1999 - 09/2001	2
90917-06061	4AFE..AE111..LHD..4FC..GEN;7AFE..AE112..ARL,BZ,GEN,NZ,TH;4AFE..AE111..4FC..(ARL,MA,NZ,TH,TUR,VEN);4AFE..AE111..5F..(ARL,GEN,MA,NZ,TH,TUR,VEN) W(CONVERTER)	08/1998 - 01/1999	2
17451-16030	4AF,7AFE..AE111,112..GCC,GEN,IDN,VEN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN) W/O(CONVERTER),REAR	04/1997 - 09/1999	1
90917-06061	4AFE..AE111..MA;7AFE..AE112..NZ,TH;4AFE..AE111..(GLI,XLI)..(GEN,NZ,TH,TUR,VEN) W(CONVERTER)	04/1997 - 08/1998	2
90917-06061	7AFE..AE112..5F..TH;7AFE..AE112..ARL,BZ,GEN;4AFE..AE111..LHD..4FC..GEN;4AFE..AE111..4FC..(ARL,MA,TUR,VEN);4AFE..AE111..5F..(ARL,GEN,MA,TH,TUR,VEN) W(CONVERTER)	01/1999 - 10/1999	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER),REAR	09/1999 - 10/1999	1
90917-06064	4AF,7AFE..AE111,112..GCC,GEN,IDN,VEN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN) W/O(CONVERTER),FRONT	04/1997 - 09/1999	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER),FRONT	09/1999 - 10/1999	2
17410B - GASKET, EXHAUST PIPE
90917-06064	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER),FRONT	05/1995 - 09/1999	2
90917-06061	7AFE..AE112..ARL,GEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	08/1998 - 01/1999	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),REAR	09/1999 - 10/1999	1
90917-06061	7AFE..AE112..ARL,GEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	01/1999 - 10/1999	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	09/1999 - 10/1999	2
90917-06061	7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	10/1999 - 08/2000	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),REAR	10/1999 - 09/2001	1
17451-16030	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER),REAR	05/1995 - 09/1999	1
90917-06061	4AFE..AE111..WG..5F;7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..LHD..(GEN,VEN) W(CONVERTER)	08/2000 - 10/2000	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	10/1999 - 09/2001	2
90917-06061	4AFE..AE111..LHD..4FC..GEN;7AFE..AE112..ARL,BZ,GEN,NZ,TH;4AFE..AE111..4FC..(ARL,MA,NZ,TH,TUR,VEN);4AFE..AE111..5F..(ARL,GEN,MA,NZ,TH,TUR,VEN) W(CONVERTER)	08/1998 - 01/1999	2
17451-16030	4AF,7AFE..AE111,112..GCC,GEN,IDN,VEN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN) W/O(CONVERTER),REAR	04/1997 - 09/1999	1
90917-06061	4AFE..AE111..MA;7AFE..AE112..NZ,TH;4AFE..AE111..(GLI,XLI)..(GEN,NZ,TH,TUR,VEN) W(CONVERTER)	04/1997 - 08/1998	2
90917-06061	7AFE..AE112..5F..TH;7AFE..AE112..ARL,BZ,GEN;4AFE..AE111..LHD..4FC..GEN;4AFE..AE111..4FC..(ARL,MA,TUR,VEN);4AFE..AE111..5F..(ARL,GEN,MA,TH,TUR,VEN) W(CONVERTER)	01/1999 - 10/1999	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER),REAR	09/1999 - 10/1999	1
90917-06064	4AF,7AFE..AE111,112..GCC,GEN,IDN,VEN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN) W/O(CONVERTER),FRONT	04/1997 - 09/1999	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER),FRONT	09/1999 - 10/1999	2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-16730	4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17420-11340	7AFE..AE112..GCC;4AF#..AE111..(GL,GLI,XL,XLI)..(GCC,GEN) W/O(CONVERTER)	04/1997 - 10/1999	1
17420-16730	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 09/2001	1
17420-16730	4AFE..AE111..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17420-16730	4AFE..AE111..WG;4AFE..AE111..ARL;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 10/1999	1
17420-11340	7AFE..AE112..GCC;4AFE..AE111..RHD..WG..5F;4AF#..AE111..SED..(GCC,GEN) W/O(CONVERTER)	05/1995 - 09/2001	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11820	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER)	05/1995 - 11/1998	1
17430-11821	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF#,7AFE..AE111,112..GCC,GEN,VEN W/O(CONVERTER)	11/1998 - 09/1999	1
17430-11821	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER)	09/1999 - 10/1999	1
17430-1A601	4AFE..AE111..WG..5F;7AFE..AE112..GLI..ARL;4AFE,7AFE..AE111,112..LHD..GEN W(CONVERTER)	11/1998 - 09/2001	1
17430-1A600	4AFE..AE111..MA;4AFE..AE111..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17430-11820	4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN);4AF,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL,VEN W/O(CONVERTER)	04/1997 - 11/1998	1
17430-11821	4AF#,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL,VEN W/O(CONVERTER)	11/1998 - 09/1999	1
17430-1A601	4AFE..AE111..ARL,MA;4AFE..AE111..WG..5F;7AFE..AE112..GLI..ARL;4AFE,7AFE..AE111,112..LHD..GEN W(CONVERTER)	11/1998 - 09/2001	1
17430-11821	4AF#,7AFE,2E..AE111,112,EE110..GCC,GEN W/O(CONVERTER)	10/1999 - 09/2001	1
17430-11821	4AF#,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER)	09/1999 - 10/1999	1
17430-1A600	4AFE..AE111..WG;4AFE..AE111..LHD..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 11/1998	1
17451 - GASKET, EXHAUST PIPE
90917-06084	4AFE..AE111..WG;7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..LHD..(GEN,VEN) W(CONVERTER)	08/2000 - 10/2000	1
90917-06084	4AFE,7AFE..AE111,112..ARL,GEN,TUR,VEN W(CONVERTER)	10/1999 - 08/2000	1
90917-06084	7AFE..AE112..ARL,BZ,GEN,NZ,TH;4AFE..AE111..(GLI,XLI)..(ARL,GEN,NZ,TH,TUR,VEN) W(CONVERTER)	04/1997 - 10/1999	1
90917-06082	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN) W/O(CONVERTER)	05/1995 - 07/1998	1
90917-06084	7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LHD..SED..(GEN,TUR,VEN) W(CONVERTER)	04/1997 - 10/1999	1
90917-06082	4AF,7AFE..AE111,112..GCC,GEN,IDN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD) W/O(CONVERTER)	04/1997 - 07/1998	1
90917-06082	2E..EE110..LHD..3FC;4EFE..EE111..GEN,VEN;4AFE..AE111..RHD..GEN;2E..EE110..MTM..(GCC,GEN);4AFE..AE111..LHD..SED..(GCC,GEN);4AF,5AFE,7AFE,2C..AE11#,CE110..GCC,GEN W/O(CONVERTER)	07/1998 - 12/2999	1
17451 - GASKET, EXHAUST PIPE
90917-06084	4AFE..AE111..WG;7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..LHD..(GEN,VEN) W(CONVERTER)	08/2000 - 10/2000	1
90917-06084	4AFE,7AFE..AE111,112..ARL,GEN,TUR,VEN W(CONVERTER)	10/1999 - 08/2000	1
90917-06084	7AFE..AE112..ARL,BZ,GEN,NZ,TH;4AFE..AE111..(GLI,XLI)..(ARL,GEN,NZ,TH,TUR,VEN) W(CONVERTER)	04/1997 - 10/1999	1
90917-06082	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN) W/O(CONVERTER)	05/1995 - 07/1998	1
90917-06084	7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LHD..SED..(GEN,TUR,VEN) W(CONVERTER)	04/1997 - 10/1999	1
90917-06082	4AF,7AFE..AE111,112..GCC,GEN,IDN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD) W/O(CONVERTER)	04/1997 - 07/1998	1
90917-06082	2E..EE110..LHD..3FC;4EFE..EE111..GEN,VEN;4AFE..AE111..RHD..GEN;2E..EE110..MTM..(GCC,GEN);4AFE..AE111..LHD..SED..(GCC,GEN);4AF,5AFE,7AFE,2C..AE11#,CE110..GCC,GEN W/O(CONVERTER)	07/1998 - 12/2999	1
17452A - CLAMP, EXHAUST PIPE
17452-16120	4AFE,2E..AE111,EE110	05/1995 - 04/1997	1
17452-16120	4AF..AE111;7AFE..AE112..GCC;4AFE..AE111..LHD..(GCC,GEN) W/O(CONVERTER)	08/1998 - 09/1999	1
17452-16120	7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER),REAR	04/1997 - 08/2000	1
17452-16120	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN) W/O(CONVERTER)	04/1997 - 08/1998	1
17452-16160	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN W(CONVERTER),FRONT	08/2000 - 09/2001	1
17452-16120	4AF..AE111;7AFE..AE112..GCC,IDN;4AFE..AE111..LHD..(GCC,GEN,GENKD,PHL) W/O(CONVERTER)	08/1998 - 09/1999	1
17452-16120	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN W(CONVERTER),REAR	08/2000 - 09/2001	1
17452-16120	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AFE..AE111..LHD..(GCC,GEN);4AF,7AFE..AE111,112..GCC,GEN W/O(CONVERTER)	09/1999 - 10/1999	1
17452-16120	4AFE,7AFE..AE111,112..(GLI,XLI)..(ARL,GEN) W(CONVERTER),REAR	04/1997 - 10/1999	1
17452-16120	4AFE..AE111..WG..4FC;4AFE..AE111..LHD..(GCC,GEN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..GCC,GEN W/O(CONVERTER)	10/1999 - 09/2001	1
17452-16160	7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER),FRONT	04/1997 - 08/2000	1
17452-16120	4AF,7AFE..AE111,112..GCC,GEN,IDN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL) W/O(CONVERTER)	04/1997 - 08/1998	1
17452-16160	4AFE,7AFE..AE111,112..(GLI,XLI)..(ARL,GEN) W(CONVERTER),FRONT	04/1997 - 10/1999	1
17452-16120	4AFE..AE111..LHD..GEN;4AFE..AE111..GCC,GENKD,MA,PHL;4AF,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER)	09/1999 - 10/1999	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-15080	4AFE,5AFE,2E,4EFE..AE11#,EE11#	05/1995 - 04/1997	1
17506-11100	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF,5AFE..AE110,111..GL,GLI,XL;4AFE..AE111..RHD..(GLI,XLI)..GEN;7AFE,4EFE..AE112,EE111..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 12/2999	1
17506-11100	5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AF,2E,4EFE..AE111,EE11#;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);5AFE,7AFE..AE110,112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN)	04/1997 - 12/2999	1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-16240	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	1
17562-16240	5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT
17570-16020	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	1
17578A - CLAMP, MUFFLER
17578-16040	2E..EE110..LHD..3FC;4AFE..AE111..GCC,VEN;4AFE..AE111..4FC..TUR;2E..EE110..MTM..(GCC,GEN);4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN	08/1998 - 11/1998	1
17578-16040	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..4FC..TUR;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)	05/1995 - 08/1998	1
17578-16040	4AFE..AE111..4FC..TUR;4AFE..AE111..ARL,GCC,GENKD,MA,NZ,PHL,VEN;4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,VEN	08/1998 - 11/1998	1
17578-16040	4AFE..AE111..MA;4AFE..AE111..4FC..TUR;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,VEN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..GCC,GEN,GENKD,IDN,NZ,PHL,VEN	04/1997 - 08/1998	1
17578-16040	4AFE..AE111..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 11/1998	1
17578-11030	4AFE..AE111..LHD..GEN;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..ARL,GCC,GENKD,MA,PHL,VEN;4AF,7AFE,2E..AE111,112,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,PHL,VEN)	11/1998 - 12/2999	1
17585 - HANGER, EXHAUST PIPE
17585-16060	2E..EE110..LHD..3FC;4AFE..AE111..4FC..TUR;4AFE,2E..AE111,EE110..(4F,4FC,5F)..(GCC,GEN);4AF,5AFE,7AFE,4EFE..AE11#,EE111..ARL,GCC,GEN,VEN	09/1999 - 02/2000	1
17585-16060	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..4FC..TUR;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE,4EFE..AE11#,EE111..ARL,GCC,GEN,VEN	05/1995 - 09/1999	1
17585-16060	4AFE..AE111..4FC..TUR;4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,GCC,GEN,VEN	02/2000 - 12/2999	1
17585-16060	5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..4FC..TUR;4AFE..AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN);4AF,7AFE,2E,4EFE..AE111,112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN	04/1997 - 09/1999	1
17585-16060	4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..4FC..TUR;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH);4AF,5AFE,2E,4EFE..AE110,111,EE11#..GCC,GEN,GENKD,MA,PHL,VEN	09/1999 - 02/2000	1
17588A - SPACER, EXHAUST PIPE HANGER
17588-16020	5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
17588-16020	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-16020	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	2
17591-16020	5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	2
Common parts
90105-06081
90105-10023
90179-08193
91626-B0832
94185-61000

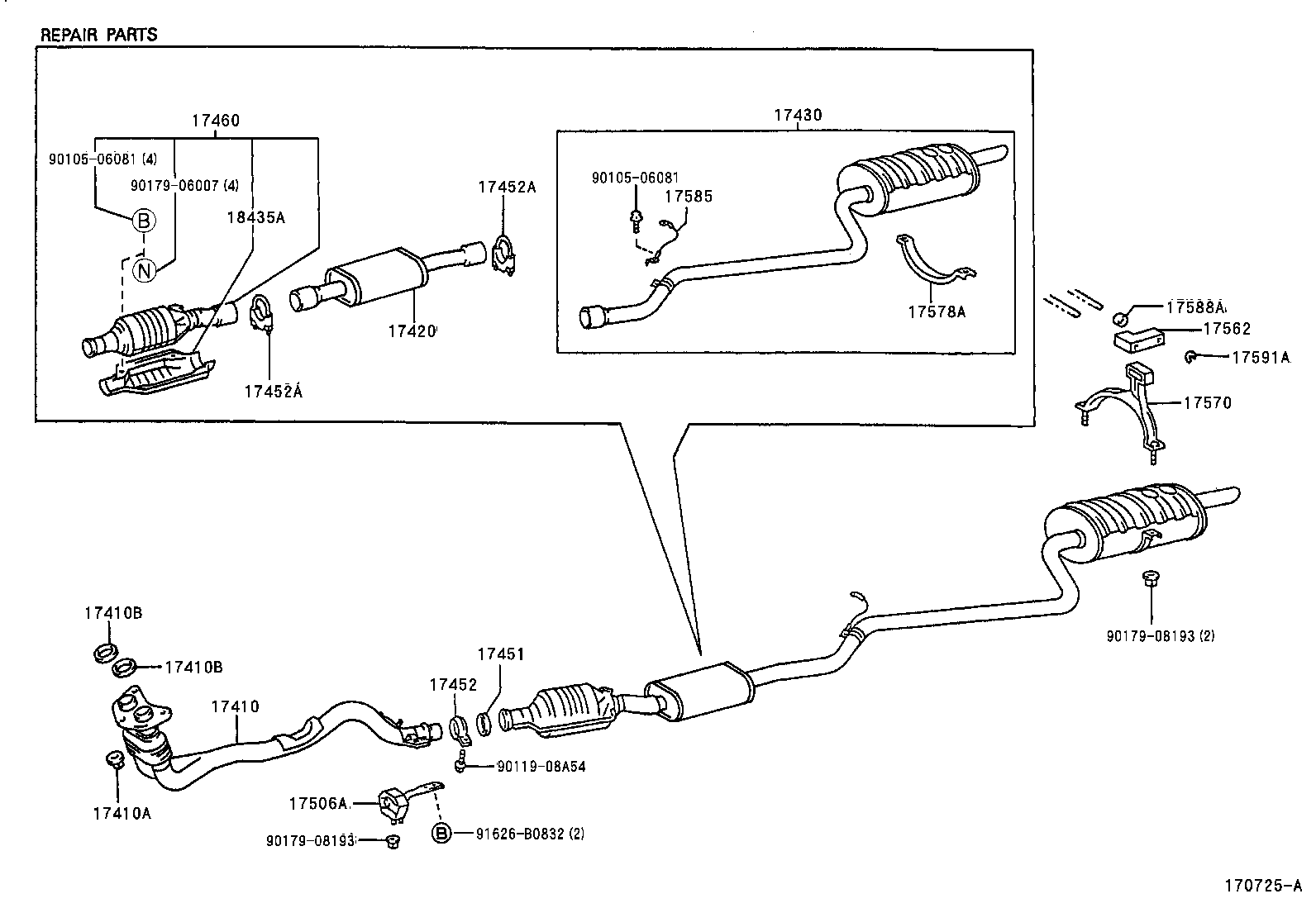

(9704-9808)4AFE..GEN ; (9808- )4AFE..WG ; (9808- )4AFE..ARL ; (9808- )7AFE

Click highlighted areas on diagram

W(CONVERTER):TYPE A

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-1A480	4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17410-1A480	4AFE..AE111..5F..GEN;4AFE..AE111..LHD..4FC..GEN W(CONVERTER)	08/1998 - 08/2000	1
17410-1A260	4AFE..AE111 W/O(CONVERTER),REAR	05/1995 - 04/1997	1
17410-1A330	4AFE..AE111..RHD..WG..5F;4AFE..AE111..SED..(GCC,GEN);4AF,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	05/1995 - 09/2001	1
17410-1A550	4AFE..AE111..RHD..WG..5F;4AF#..AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN) W/O(CONVERTER),REAR	04/1997 - 09/2001	1
17410-1A480	4AFE..AE111..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17410-1A480	4AFE..AE111..WG..5F;4AFE..AE111..LHD..GEN W(CONVERTER)	08/2000 - 09/2001	1
17410-1A330	4AF#,7AFE..AE111,112..(GL,GLI,XL,XLI)..(GCC,GEN) W/O(CONVERTER),FRONT	04/1997 - 10/1999	1
17410-1A550	4AF#..AE111..(GL,GLI,XL,XLI)..(GCC,GEN) W/O(CONVERTER),REAR	04/1997 - 10/1999	1
17410-1A480	4AFE..AE111..5F..GEN;4AFE..AE111..LHD..4FC..GEN W(CONVERTER)	08/1998 - 10/1999	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	4AF#..AE111..GCC,GEN,TUR;7AFE,2E..AE112,EE110..ARL,GCC,GEN,VEN	10/1999 - 02/2000	3
90179-10070	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 01/1999	3
90179-10070	2E..EE110..LHD..3FC;4AF#..AE111..GCC,GEN,TUR;7AFE,2E..AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN,VEN)	09/1999 - 10/1999	3
90179-10070	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF#..AE111..GCC,GEN,TUR,VEN;7AFE..AE112..ARL,GCC,GEN,VEN	01/1999 - 09/1999	3
90179-10070	4AFE,7AFE..AE111,112..5F..TH;4AF#,7AFE,2E..AE111,112,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TUR,VEN	01/1999 - 09/1999	3
90179-10070	4AFE,7AFE..AE111,112..5F..TH;7AFE..AE112..ARL,BZ,GCC,GEN,IDN,VEN;4AF#,2E..AE111,EE110..ARL,GCC,GEN,GENKD,MA,PHL,TUR	09/1999 - 10/1999	3
90179-10070	4AFE..AE111..MA;4AFE..AE111..GLI,XLI;4AF,7AFE,2E..AE111,112,EE110	04/1997 - 01/1999	3
17410B - GASKET, EXHAUST PIPE
90917-06064	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER),FRONT	05/1995 - 09/1999	2
90917-06061	7AFE..AE112..ARL,GEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	08/1998 - 01/1999	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),REAR	09/1999 - 10/1999	1
90917-06061	7AFE..AE112..ARL,GEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	01/1999 - 10/1999	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	09/1999 - 10/1999	2
90917-06061	7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	10/1999 - 08/2000	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),REAR	10/1999 - 09/2001	1
17451-16030	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER),REAR	05/1995 - 09/1999	1
90917-06061	4AFE..AE111..WG..5F;7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..LHD..(GEN,VEN) W(CONVERTER)	08/2000 - 10/2000	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	10/1999 - 09/2001	2
90917-06061	4AFE..AE111..LHD..4FC..GEN;7AFE..AE112..ARL,BZ,GEN,NZ,TH;4AFE..AE111..4FC..(ARL,MA,NZ,TH,TUR,VEN);4AFE..AE111..5F..(ARL,GEN,MA,NZ,TH,TUR,VEN) W(CONVERTER)	08/1998 - 01/1999	2
17451-16030	4AF,7AFE..AE111,112..GCC,GEN,IDN,VEN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN) W/O(CONVERTER),REAR	04/1997 - 09/1999	1
90917-06061	4AFE..AE111..MA;7AFE..AE112..NZ,TH;4AFE..AE111..(GLI,XLI)..(GEN,NZ,TH,TUR,VEN) W(CONVERTER)	04/1997 - 08/1998	2
90917-06061	7AFE..AE112..5F..TH;7AFE..AE112..ARL,BZ,GEN;4AFE..AE111..LHD..4FC..GEN;4AFE..AE111..4FC..(ARL,MA,TUR,VEN);4AFE..AE111..5F..(ARL,GEN,MA,TH,TUR,VEN) W(CONVERTER)	01/1999 - 10/1999	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER),REAR	09/1999 - 10/1999	1
90917-06064	4AF,7AFE..AE111,112..GCC,GEN,IDN,VEN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN) W/O(CONVERTER),FRONT	04/1997 - 09/1999	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER),FRONT	09/1999 - 10/1999	2
17410B - GASKET, EXHAUST PIPE
90917-06064	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER),FRONT	05/1995 - 09/1999	2
90917-06061	7AFE..AE112..ARL,GEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	08/1998 - 01/1999	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),REAR	09/1999 - 10/1999	1
90917-06061	7AFE..AE112..ARL,GEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	01/1999 - 10/1999	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	09/1999 - 10/1999	2
90917-06061	7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..5F..(GEN,TUR,VEN);4AFE..AE111..LHD..4FC..(GEN,TUR,VEN) W(CONVERTER)	10/1999 - 08/2000	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),REAR	10/1999 - 09/2001	1
17451-16030	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER),REAR	05/1995 - 09/1999	1
90917-06061	4AFE..AE111..WG..5F;7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..LHD..(GEN,VEN) W(CONVERTER)	08/2000 - 10/2000	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER),FRONT	10/1999 - 09/2001	2
90917-06061	4AFE..AE111..LHD..4FC..GEN;7AFE..AE112..ARL,BZ,GEN,NZ,TH;4AFE..AE111..4FC..(ARL,MA,NZ,TH,TUR,VEN);4AFE..AE111..5F..(ARL,GEN,MA,NZ,TH,TUR,VEN) W(CONVERTER)	08/1998 - 01/1999	2
17451-16030	4AF,7AFE..AE111,112..GCC,GEN,IDN,VEN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN) W/O(CONVERTER),REAR	04/1997 - 09/1999	1
90917-06061	4AFE..AE111..MA;7AFE..AE112..NZ,TH;4AFE..AE111..(GLI,XLI)..(GEN,NZ,TH,TUR,VEN) W(CONVERTER)	04/1997 - 08/1998	2
90917-06061	7AFE..AE112..5F..TH;7AFE..AE112..ARL,BZ,GEN;4AFE..AE111..LHD..4FC..GEN;4AFE..AE111..4FC..(ARL,MA,TUR,VEN);4AFE..AE111..5F..(ARL,GEN,MA,TH,TUR,VEN) W(CONVERTER)	01/1999 - 10/1999	2
17451-16030	4AF#,7AFE..AE111,112..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER),REAR	09/1999 - 10/1999	1
90917-06064	4AF,7AFE..AE111,112..GCC,GEN,IDN,VEN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN) W/O(CONVERTER),FRONT	04/1997 - 09/1999	2
90917-06064	4AF#,7AFE..AE111,112..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER),FRONT	09/1999 - 10/1999	2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-16730	4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17420-11340	7AFE..AE112..GCC;4AF#..AE111..(GL,GLI,XL,XLI)..(GCC,GEN) W/O(CONVERTER)	04/1997 - 10/1999	1
17420-16730	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 09/2001	1
17420-16730	4AFE..AE111..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17420-16730	4AFE..AE111..WG;4AFE..AE111..ARL;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 10/1999	1
17420-11340	7AFE..AE112..GCC;4AFE..AE111..RHD..WG..5F;4AF#..AE111..SED..(GCC,GEN) W/O(CONVERTER)	05/1995 - 09/2001	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11820	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN) W/O(CONVERTER)	05/1995 - 11/1998	1
17430-11821	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF#,7AFE..AE111,112..GCC,GEN,VEN W/O(CONVERTER)	11/1998 - 09/1999	1
17430-11821	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF#,7AFE..AE111,112..GCC,GEN W/O(CONVERTER)	09/1999 - 10/1999	1
17430-1A601	4AFE..AE111..WG..5F;7AFE..AE112..GLI..ARL;4AFE,7AFE..AE111,112..LHD..GEN W(CONVERTER)	11/1998 - 09/2001	1
17430-1A600	4AFE..AE111..MA;4AFE..AE111..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 08/1998	1
17430-11820	4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL,VEN);4AF,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL,VEN W/O(CONVERTER)	04/1997 - 11/1998	1
17430-11821	4AF#,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL,VEN W/O(CONVERTER)	11/1998 - 09/1999	1
17430-1A601	4AFE..AE111..ARL,MA;4AFE..AE111..WG..5F;7AFE..AE112..GLI..ARL;4AFE,7AFE..AE111,112..LHD..GEN W(CONVERTER)	11/1998 - 09/2001	1
17430-11821	4AF#,7AFE,2E..AE111,112,EE110..GCC,GEN W/O(CONVERTER)	10/1999 - 09/2001	1
17430-11821	4AF#,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER)	09/1999 - 10/1999	1
17430-1A600	4AFE..AE111..WG;4AFE..AE111..LHD..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 11/1998	1
17451 - GASKET, EXHAUST PIPE
90917-06084	4AFE..AE111..WG;7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..LHD..(GEN,VEN) W(CONVERTER)	08/2000 - 10/2000	1
90917-06084	4AFE,7AFE..AE111,112..ARL,GEN,TUR,VEN W(CONVERTER)	10/1999 - 08/2000	1
90917-06084	7AFE..AE112..ARL,BZ,GEN,NZ,TH;4AFE..AE111..(GLI,XLI)..(ARL,GEN,NZ,TH,TUR,VEN) W(CONVERTER)	04/1997 - 10/1999	1
90917-06082	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN) W/O(CONVERTER)	05/1995 - 07/1998	1
90917-06084	7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LHD..SED..(GEN,TUR,VEN) W(CONVERTER)	04/1997 - 10/1999	1
90917-06082	4AF,7AFE..AE111,112..GCC,GEN,IDN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD) W/O(CONVERTER)	04/1997 - 07/1998	1
90917-06082	2E..EE110..LHD..3FC;4EFE..EE111..GEN,VEN;4AFE..AE111..RHD..GEN;2E..EE110..MTM..(GCC,GEN);4AFE..AE111..LHD..SED..(GCC,GEN);4AF,5AFE,7AFE,2C..AE11#,CE110..GCC,GEN W/O(CONVERTER)	07/1998 - 12/2999	1
17452 - CLAMP, EXHAUST PIPE
90461-15013	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN) W/O(CONVERTER)	04/1997 - 07/1998	1
90461-15016	4AFE..AE111..WG;7AFE..AE112..ARL,GEN,VEN;4AFE..AE111..LHD..(GEN,VEN) W(CONVERTER)	08/2000 - 10/2000	1
90461-15016	4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 10/1998	1
90461-15013	4AF,7AFE..AE111,112..GCC,GEN,IDN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD) W/O(CONVERTER)	04/1997 - 07/1998	1
90461-15013	4AFE,5AFE,2E,4EFE..AE11#,EE11#	05/1995 - 04/1997	1
90461-15016	7AFE..AE112..ARL,GEN;4AFE..AE111..GEN,TUR,VEN W(CONVERTER)	10/1998 - 10/1999	1
90461-15016	4AFE,7AFE..AE111,112..ARL,GEN,TUR,VEN W(CONVERTER)	10/1999 - 08/2000	1
90461-15016	4AFE..AE111..(GLI,XLI)..GEN W(CONVERTER)	04/1997 - 10/1998	1
90461-15013	2E..EE110..LHD..3FC;4EFE..EE111..GEN,VEN;4AFE..AE111..RHD..GEN;2E..EE110..MTM..(GCC,GEN);4AFE..AE111..LHD..SED..(GCC,GEN);4AF,5AFE,7AFE,2C..AE11#,CE110..GCC,GEN W/O(CONVERTER)	07/1998 - 12/2999	1
90461-15016	7AFE..AE112..ARL,BZ,GEN,TH;4AFE..AE111..ARL,GEN,TH,TUR,VEN W(CONVERTER)	10/1998 - 10/1999	1
17452A - CLAMP, EXHAUST PIPE
17452-16120	4AFE,2E..AE111,EE110	05/1995 - 04/1997	1
17452-16120	4AF..AE111;7AFE..AE112..GCC;4AFE..AE111..LHD..(GCC,GEN) W/O(CONVERTER)	08/1998 - 09/1999	1
17452-16120	7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER),REAR	04/1997 - 08/2000	1
17452-16120	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN) W/O(CONVERTER)	04/1997 - 08/1998	1
17452-16160	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN W(CONVERTER),FRONT	08/2000 - 09/2001	1
17452-16120	4AF..AE111;7AFE..AE112..GCC,IDN;4AFE..AE111..LHD..(GCC,GEN,GENKD,PHL) W/O(CONVERTER)	08/1998 - 09/1999	1
17452-16120	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN W(CONVERTER),REAR	08/2000 - 09/2001	1
17452-16120	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AFE..AE111..LHD..(GCC,GEN);4AF,7AFE..AE111,112..GCC,GEN W/O(CONVERTER)	09/1999 - 10/1999	1
17452-16120	4AFE,7AFE..AE111,112..(GLI,XLI)..(ARL,GEN) W(CONVERTER),REAR	04/1997 - 10/1999	1
17452-16120	4AFE..AE111..WG..4FC;4AFE..AE111..LHD..(GCC,GEN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..GCC,GEN W/O(CONVERTER)	10/1999 - 09/2001	1
17452-16160	7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER),FRONT	04/1997 - 08/2000	1
17452-16120	4AF,7AFE..AE111,112..GCC,GEN,IDN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL) W/O(CONVERTER)	04/1997 - 08/1998	1
17452-16160	4AFE,7AFE..AE111,112..(GLI,XLI)..(ARL,GEN) W(CONVERTER),FRONT	04/1997 - 10/1999	1
17452-16120	4AFE..AE111..LHD..GEN;4AFE..AE111..GCC,GENKD,MA,PHL;4AF,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER)	09/1999 - 10/1999	1
17452A - CLAMP, EXHAUST PIPE
17452-16120	4AFE,2E..AE111,EE110	05/1995 - 04/1997	1
17452-16120	4AF..AE111;7AFE..AE112..GCC;4AFE..AE111..LHD..(GCC,GEN) W/O(CONVERTER)	08/1998 - 09/1999	1
17452-16120	7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER),REAR	04/1997 - 08/2000	1
17452-16120	4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN) W/O(CONVERTER)	04/1997 - 08/1998	1
17452-16160	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN W(CONVERTER),FRONT	08/2000 - 09/2001	1
17452-16120	4AF..AE111;7AFE..AE112..GCC,IDN;4AFE..AE111..LHD..(GCC,GEN,GENKD,PHL) W/O(CONVERTER)	08/1998 - 09/1999	1
17452-16120	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN W(CONVERTER),REAR	08/2000 - 09/2001	1
17452-16120	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AFE..AE111..LHD..(GCC,GEN);4AF,7AFE..AE111,112..GCC,GEN W/O(CONVERTER)	09/1999 - 10/1999	1
17452-16120	4AFE,7AFE..AE111,112..(GLI,XLI)..(ARL,GEN) W(CONVERTER),REAR	04/1997 - 10/1999	1
17452-16120	4AFE..AE111..WG..4FC;4AFE..AE111..LHD..(GCC,GEN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..GCC,GEN W/O(CONVERTER)	10/1999 - 09/2001	1
17452-16160	7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN W(CONVERTER),FRONT	04/1997 - 08/2000	1
17452-16120	4AF,7AFE..AE111,112..GCC,GEN,IDN;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,PHL) W/O(CONVERTER)	04/1997 - 08/1998	1
17452-16160	4AFE,7AFE..AE111,112..(GLI,XLI)..(ARL,GEN) W(CONVERTER),FRONT	04/1997 - 10/1999	1
17452-16120	4AFE..AE111..LHD..GEN;4AFE..AE111..GCC,GENKD,MA,PHL;4AF,7AFE,2E..AE111,112,EE110..GCC,GEN,GENKD,IDN,PHL W/O(CONVERTER)	09/1999 - 10/1999	1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-16180	4AFE..AE111..LHD..SED..GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN	04/1997 - 08/1998	1
17460-16180	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 09/2001	1
17460-16180	4AFE..AE111..WG;4AFE..AE111..ARL;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 10/1999	1
17460-16180	4AFE..AE111..(GLI,XLI)..GEN	04/1997 - 08/1998	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-15080	4AFE,5AFE,2E,4EFE..AE11#,EE11#	05/1995 - 04/1997	1
17506-11100	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF,5AFE..AE110,111..GL,GLI,XL;4AFE..AE111..RHD..(GLI,XLI)..GEN;7AFE,4EFE..AE112,EE111..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 12/2999	1
17506-11100	5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AF,2E,4EFE..AE111,EE11#;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);5AFE,7AFE..AE110,112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN)	04/1997 - 12/2999	1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-16240	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	1
17562-16240	5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT
17570-16020	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	1
17578A - CLAMP, MUFFLER
17578-16040	2E..EE110..LHD..3FC;4AFE..AE111..GCC,VEN;4AFE..AE111..4FC..TUR;2E..EE110..MTM..(GCC,GEN);4AF,7AFE..AE111,112..ARL,GCC,GEN,VEN	08/1998 - 11/1998	1
17578-16040	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..4FC..TUR;4AF,7AFE..AE111,112..GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)	05/1995 - 08/1998	1
17578-16040	4AFE..AE111..4FC..TUR;4AFE..AE111..ARL,GCC,GENKD,MA,NZ,PHL,VEN;4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,VEN	08/1998 - 11/1998	1
17578-16040	4AFE..AE111..MA;4AFE..AE111..4FC..TUR;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,VEN);4AF,7AFE,2CE,2E..AE111,112,CE110,EE110..GCC,GEN,GENKD,IDN,NZ,PHL,VEN	04/1997 - 08/1998	1
17578-16040	4AFE..AE111..GEN TYPE A:REFER TO ILLUSTRATION & W(CONVERTER)	08/1998 - 11/1998	1
17578-11030	4AFE..AE111..LHD..GEN;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..ARL,GCC,GENKD,MA,PHL,VEN;4AF,7AFE,2E..AE111,112,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,PHL,VEN)	11/1998 - 12/2999	1
17585 - HANGER, EXHAUST PIPE
17585-16060	2E..EE110..LHD..3FC;4AFE..AE111..4FC..TUR;4AFE,2E..AE111,EE110..(4F,4FC,5F)..(GCC,GEN);4AF,5AFE,7AFE,4EFE..AE11#,EE111..ARL,GCC,GEN,VEN	09/1999 - 02/2000	1
17585-16060	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..4FC..TUR;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE,4EFE..AE11#,EE111..ARL,GCC,GEN,VEN	05/1995 - 09/1999	1
17585-16060	4AFE..AE111..4FC..TUR;4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,GCC,GEN,VEN	02/2000 - 12/2999	1
17585-16060	5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..4FC..TUR;4AFE..AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN);4AF,7AFE,2E,4EFE..AE111,112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN	04/1997 - 09/1999	1
17585-16060	4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..4FC..TUR;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH);4AF,5AFE,2E,4EFE..AE110,111,EE11#..GCC,GEN,GENKD,MA,PHL,VEN	09/1999 - 02/2000	1
17588A - SPACER, EXHAUST PIPE HANGER
17588-16020	5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
17588-16020	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-16020	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE,2C#,4EFE..AE11#,CE110,EE111..ARL,GCC,GEN,VEN;4AFE,3ZZFE,4ZZFE..AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)	05/1995 - 12/2999	2
17591-16020	5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE,4EFE..AE111,EE111..SED..(GLI,STD,XLI);4AF,5AFE,7AFE,2C#,2E..AE11#,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	2
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-16170	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..(GEN,TUR,VEN) TYPE A:REFER TO ILLUSTRATION	01/1999 - 07/1999	1
18435-16190	4AFE..AE111..WG;7AFE..AE112..ARL,GEN;4AFE..AE111..LHD..(GEN,TUR,VEN) TYPE A:REFER TO ILLUSTRATION	07/1999 - 09/1999	1
18435-16170	7AFE..AE112..ARL,GEN;4AFE..AE111..RHD..(GLI,XLI)..GEN;4AFE..AE111..LHD..SED..(GEN,TUR,VEN)	04/1997 - 01/1999	1
18435-16170	4AFE..AE111..WG;4AFE..AE111..LHD..GEN;7AFE..AE112..ARL,BZ,GEN;4AFE..AE111..ARL,TUR,VEN TYPE A:REFER TO ILLUSTRATION	01/1999 - 07/1999	1
18435-16170	7AFE..AE112..ARL,BZ,GEN,NZ,TH;4AFE..AE111..(GLI,XLI)..(ARL,GEN,NZ,TH,TUR,VEN)	04/1997 - 01/1999	1
18435-16190	4AFE..AE111..WG;4AFE..AE111..LHD..GEN;7AFE..AE112..ARL,BZ,GEN;4AFE..AE111..ARL,TUR,VEN TYPE A:REFER TO ILLUSTRATION	07/1999 - 09/1999	1
Common parts
90105-06081
90119-08A54
90179-06007
90179-08193
91626-B0832

AE111L-AEPDK (1997)

(9704-9712)4AFE..GCC,GEN,GENKD,NZ,PHL ; (9712-)4AFE..MA

(9704-9808)4AFE..GEN ; (9808- )4AFE..WG ; (9808- )4AFE..ARL ; (9808- )7AFE

Part Price Details
