AE111L-AEMNU (1997)
Toyota Corolla Sed/Wg
(9704- )4AF
12V 70A

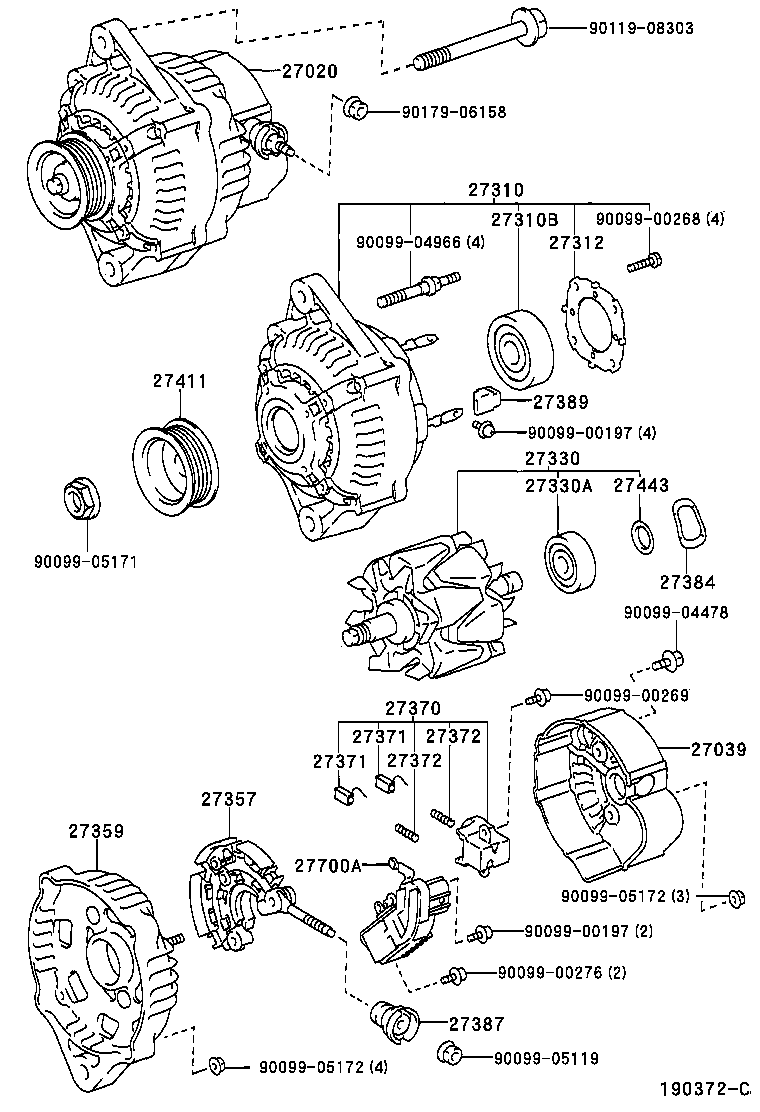

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16420 |
4AF..AE111 12V 70A |
1 | ||
| 27060-16420 |
4AF..AE111 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
5AFE..AE110..5F..GLI;4AF,4EFE..AE111,EE111;4AFE,2E..AE111,EE110..5F..(SEG,XL)..(MA,TUR);5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 27039-16380 |
7AFE..AE112..LHD..5F;4AFE..AE111..SEG..GEN;4AF,4EFE..AE111,EE111..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN);4AFE,5AFE..AE110,111..RHD..5F..(GLI,XLI)..GEN |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16190 |
4AF..AE111 12V 70A |
1 | ||
| 27310-16190 |
4AF..AE111 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
7AFE..AE112..LHD..5F;4AF,4EFE..AE111,EE111..GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
1 | ||
| 90099-10178 |
5AFE..AE110..5F..GLI;4AF,4EFE..AE111,EE111;7AFE..AE112..5F..(GCC,IDN,NZ,VEN);4AFE,2E..AE111,EE110..5F..(SEG,XL)..(MA,TUR);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,VEN) |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
7AFE..AE112..LHD..5F;4AF,4EFE..AE111,EE111..GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
1 | ||
| 27312-70200 |
5AFE..AE110..5F..GLI;4AF,4EFE..AE111,EE111;4AFE,2E..AE111,EE110..5F..(SEG,XL)..(MA,TUR);5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64570 |
7AFE..AE112..LHD..5F;4AF,4EFE..AE111,EE111..GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
1 | ||
| 27330-64570 |
5AFE..AE110..5F..GLI;4AF,4EFE..AE111,EE111;7AFE..AE112..5F..(GCC,IDN,NZ,VEN);4AFE,2E..AE111,EE110..5F..(SEG,XL)..(MA,TUR);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,VEN) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
7AFE..AE112..ARL,GCC,GEN,VEN;4AF#,5AFE,2C#,4EFE..AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 90099-10140 |
4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE,2C,4EFE..AE11#,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 90099-10140 |
5AFE..AE110..GLI;4AFE,5AFE,7AFE..AE11#..4FC..(MA,TH);4AFE,2E..AE111,EE110..5F..(SEG,XL)..(MA,TUR);4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,VEN);4AF,7AFE,2C#,4EFE..AE111,112,CE110,EE111..GCC,GEN,IDN,MA,NZ,TUR,VEN |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
7AFE..AE112..LHD..5F;4AF,4EFE..AE111,EE111..GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
1 | ||
| 27357-16380 |
5AFE..AE110..5F..GLI;4AF,4EFE..AE111,EE111;4AFE,2E..AE111,EE110..5F..(SEG,XL)..(MA,TUR);5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16153 |
4AF..AE111 |
1 | ||
| 27359-16153 |
4AF..AE111 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
4AF..AE111;4AFE..AE111..5F..MA;5AFE..AE110..5F..GLI;5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 27370-35060 |
4AF..AE111;7AFE..AE112..LHD..5F;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
7AFE..AE112..LHD..5F;4AF,2E,4EFE..AE111,EE11#..GCC,GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
2 | ||
| 27371-70300 |
4AF..AE111;5AFE,2E,4EFE..AE110,EE11#..3FC,4F,5F;7AFE..AE112..5F..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..5F..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);7AFE..AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL,TH,VEN) |
2 | ||
| 27371-70300 |
4AFE..AE111..5F..MA;5AFE..AE110..5F..GLI;4AF,2E,4EFE..AE111,EE11#;5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
7AFE..AE112..LHD..5F;4AF,2E,4EFE..AE111,EE11#..GCC,GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
2 | ||
| 27371-70300 |
4AF..AE111;5AFE,2E,4EFE..AE110,EE11#..3FC,4F,5F;7AFE..AE112..5F..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..5F..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);7AFE..AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL,TH,VEN) |
2 | ||
| 27371-70300 |
4AFE..AE111..5F..MA;5AFE..AE110..5F..GLI;4AF,2E,4EFE..AE111,EE11#;5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
4AF..AE111;5AFE,2E,4EFE..AE110,EE11#..3FC,4F,5F;7AFE..AE112..5F..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..5F..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);7AFE..AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL,TH,VEN) |
2 | ||
| 27372-63020 |
2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF,4EFE..AE111,EE111..GEN,VEN;7AFE..AE112..5F..(ARL,GCC,GEN,VEN);4AFE,5AFE..AE110,111..5F..(GCC,GEN,VEN) |
2 | ||
| 27372-63020 |
7AFE..AE112..LHD..5F;4AF,2E,4EFE..AE111,EE11#..GCC,GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
2 | ||
| 27372-63020 |
4AFE..AE111..5F..MA;5AFE..AE110..5F..GLI;4AF,2E,4EFE..AE111,EE11#;5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
4AF..AE111;5AFE,2E,4EFE..AE110,EE11#..3FC,4F,5F;7AFE..AE112..5F..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..5F..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);7AFE..AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL,TH,VEN) |
2 | ||
| 27372-63020 |
2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);4AF,4EFE..AE111,EE111..GEN,VEN;7AFE..AE112..5F..(ARL,GCC,GEN,VEN);4AFE,5AFE..AE110,111..5F..(GCC,GEN,VEN) |
2 | ||
| 27372-63020 |
7AFE..AE112..LHD..5F;4AF,2E,4EFE..AE111,EE11#..GCC,GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
2 | ||
| 27372-63020 |
4AFE..AE111..5F..MA;5AFE..AE110..5F..GLI;4AF,2E,4EFE..AE111,EE11#;5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
5AFE..AE110..5F..GLI;4AF,4EFE..AE111,EE111;4AFE,2E..AE111,EE110..5F..(SEG,XL)..(MA,TUR);5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
4AF..AE111;4AFE..AE111..RHD..5F;4AFE..AE111..LHD..SED..5F..(GCC,GEN);5AFE,7AFE,4EFE..AE110,112,EE111..3FC,5F |
1 | ||
| 27387-70171 |
7AFE..AE112..LHD..5F;4AF,4EFE..AE111,EE111..GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
1 | ||
| 27387-70170 |
5AFE..AE110..5F..GLI;4AF,4EFE..AE111,EE111;4AFE,7AFE..AE111,112..5F..(GLI,XLI) |
1 | ||
| 27387-70171 |
4AFE..AE111..5F..MA;5AFE..AE110..5F..GLI;4AF,4EFE..AE111,EE111;7AFE..AE112..5F..(GCC,IDN,NZ,VEN);5AFE,2E..AE110,EE110..5F..(TH,TUR);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-63020 |
7AFE..AE112..LHD..5F;4AF,4EFE..AE111,EE111..GEN;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
4 | ||
| 27389-63020 |
5AFE..AE110..5F..GLI;4AF,4EFE..AE111,EE111;4AFE,2E..AE111,EE110..5F..(SEG,XL)..(MA,TUR);5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
4AF..AE111;7AFE..AE112..LHD..5F;4AFE,5AFE..AE110,111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN) |
1 | ||
| 27411-16180 |
4AF..AE111;4AFE..AE111..5F..MA;5AFE..AE110..5F..GLI;5AFE,7AFE..AE110,112..5F..(GCC,IDN,NZ,TH,VEN);4AFE..AE111..5F..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);7AFE..AE112..ARL,GCC,GEN,VEN;4AF#,5AFE,2C#,4EFE..AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 27443-63020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AF,7AFE,2C#,2E,4EFE..AE111,112,CE110,EE11#;4AFE..AE111..(GLI,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 27443-63020 |
2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE,2C,4EFE..AE11#,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 27443-63020 |
4AFE..AE111..WG..5F;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,2C,2E,4EFE..AE110,111,CE110,EE11#;7AFE..AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL,TH,VEN);4AFE..AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16030 |
4AF..AE111 |
1 | ||
| 27700-16030 |
4AF..AE111 |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08303 | ||||
| 90179-06158 | ||||
