AE111L-AEHNU (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )4AF

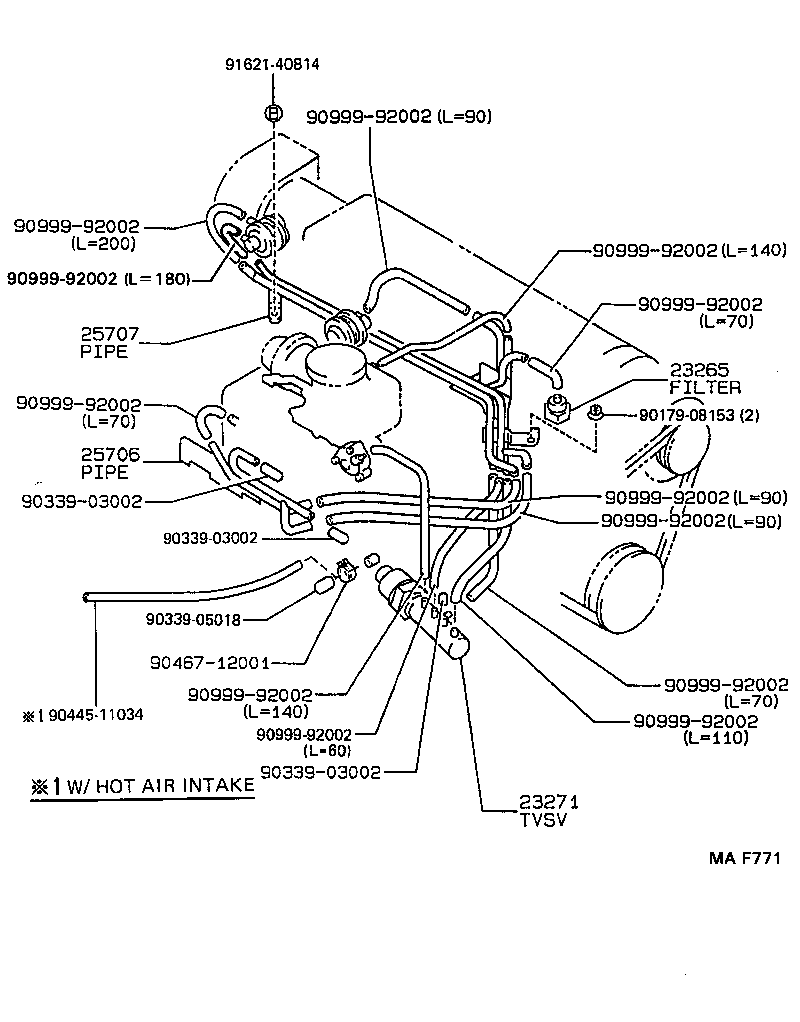

Click highlighted areas on diagram

diagram 23265 23271 25706 25707 9017908153 9033903002 9033903002 9033903002 9033905018 9044511034 9046712001 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162140814
Part # Description Qty Price
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AE111

 1
90925-02076

4AF..AE111

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AE111

 1
25706-16210

4AF..AE111

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16061

4AF..AE111

 1
25707-16061

4AF..AE111

 1
Common parts
90179-08153
90339-03002
90339-05018
90445-11034
90467-12001
90999-92002
91621-40814
