AE110R-AEMDK (1995)

Toyota Corolla Sed/Wg

Production May 1995 - Nov 1997
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )AE11#..RHD

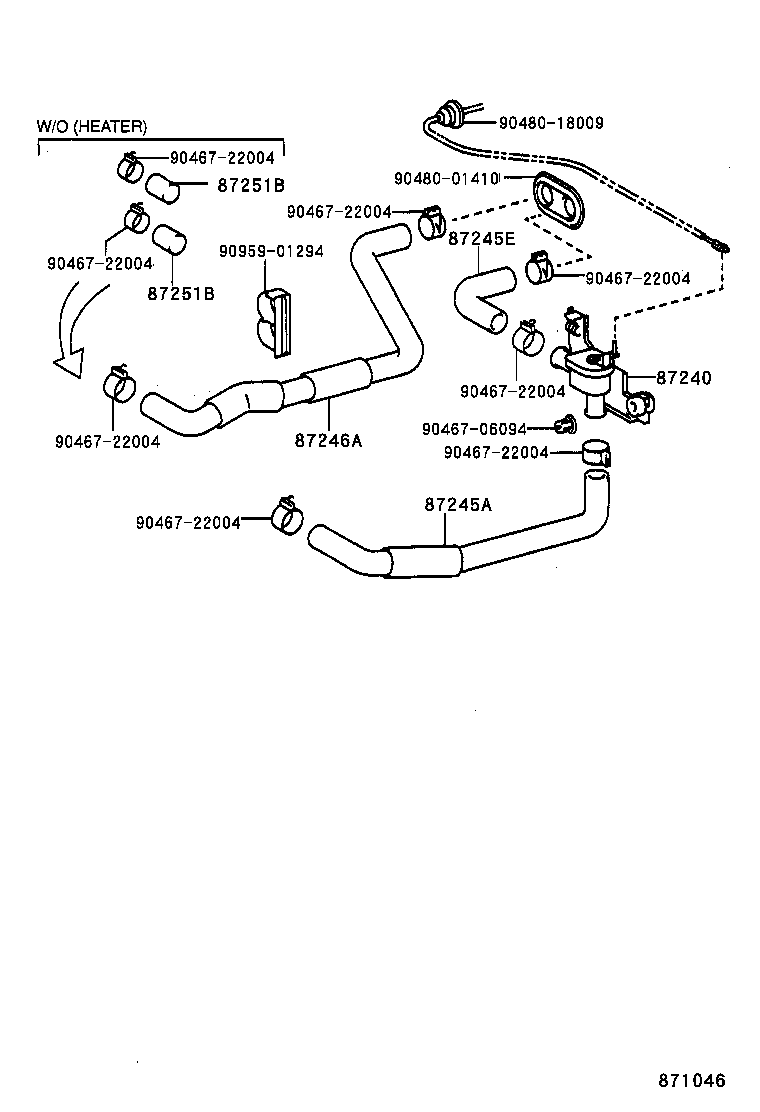

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 87251B 87251B 9046706094 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9048001410 9048018009 9095901294
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-12250

AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1A640

AE110,112..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1A440

AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1A630

AE110,112..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN

 1
87251B - PLUG, HEATER WATER
90339-16001

AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE112,CE110,EE110..GCC,GEN;AE110,EE111..(STD,XLI)..(GEN,VEN)

 2
87251B - PLUG, HEATER WATER
90339-16001

AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE112,CE110,EE110..GCC,GEN;AE110,EE111..(STD,XLI)..(GEN,VEN)

 2
Common parts
90467-06094
90467-22004
90480-01410
90480-18009
90959-01294
