AE110R-AEMDK (1995)
Toyota Corolla Sed/Wg
ILLUST NO. 1 OF 3(9505-9910)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12370 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12370 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1H490B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E350B0 |
AE11#,EE11#..XL,XLI W(SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H490B0 |
AE110..XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E610B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E620B0 |
AE110,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E350B0 |
AE110..XLI W(SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E760B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E620B0 |
AE110,EE111..XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E610B0 |
AE110,EE111..XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E770B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1H490B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E350B0 |
AE11#,EE11#..XL,XLI W(SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H490B0 |
AE110..XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E610B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E620B0 |
AE110,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E350B0 |
AE110..XLI W(SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E760B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E620B0 |
AE110,EE111..XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E610B0 |
AE110,EE111..XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E770B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133B0 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133B0 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16170 |
AE111;AE110,EE11#..XL,XLI SABLE |
4 | ||
| 67771-12050 |
AE111;AE110,EE11#..XL,XLI RED |
12 | ||
| 67771-12050 |
AE110..5F..XLI RED |
12 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16170 |
AE111;AE110,EE11#..XL,XLI SABLE |
4 | ||
| 67771-12050 |
AE111;AE110,EE11#..XL,XLI RED |
12 | ||
| 67771-12050 |
AE110..5F..XLI RED |
12 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1K300B0 |
AE110,EE11#..XL,XLI LEATHER & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L310B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K270B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K300B0 |
AE110..XLI LEATHER & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N240B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K730B0 |
AE11#,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K270B0 |
AE110..XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L350B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N240B0 |
AE110..XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K730B0 |
AE110..XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1L310B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K270B0 |
AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K300B0 |
AE110,EE11#..XL,XLI LEATHER & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K300B0 |
AE110..XLI LEATHER & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N240B0 |
AE11#,EE11#..XL,XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K730B0 |
AE11#,EE11#..XL,XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K270B0 |
AE110..XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L350B0 |
AE11#,EE11#..XL,XLI W(*PW & *EL & SPEAKER) & FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N240B0 |
AE110..XLI FABRIC TYPE-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K730B0 |
AE110..XLI W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-12050 |
AE111..GLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-16170 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-16170 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-12050 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-16170 |
AE111..GLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-12050 |
AE112;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE110,CE110,EE110..GL,GLI,XL;AE111,112..(GL,GLI,XL,XLI)..(GCC,GEN) MOLDED DOOR TRIM,RED |
6 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-12050 |
AE111..GLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-16170 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-16170 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-12050 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI RED |
1 | ||
| 67771-16170 |
AE111..GLI;AE110,EE11#..XL,XLI SABLE |
7 | ||
| 67771-12050 |
AE112;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL) MOLDED DOOR TRIM,RED |
6 | ||
| 67771-12050 |
AE110,CE110,EE110..GL,GLI,XL;AE111,112..(GL,GLI,XL,XLI)..(GCC,GEN) MOLDED DOOR TRIM,RED |
6 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-12030B0 |
AE111;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-12030B0 |
AE111;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12250 |
AE11#,EE11# RH |
1 | ||
| 68172-12170 |
AE11#,EE11# LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12250 |
AE11#,EE11# RH |
1 | ||
| 68172-12170 |
AE11#,EE11# LH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11#,EE11# SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90901-89022 | ||||
| 90950-06105 | ||||
ILLUST NO. 3 OF 3(9505-9704)

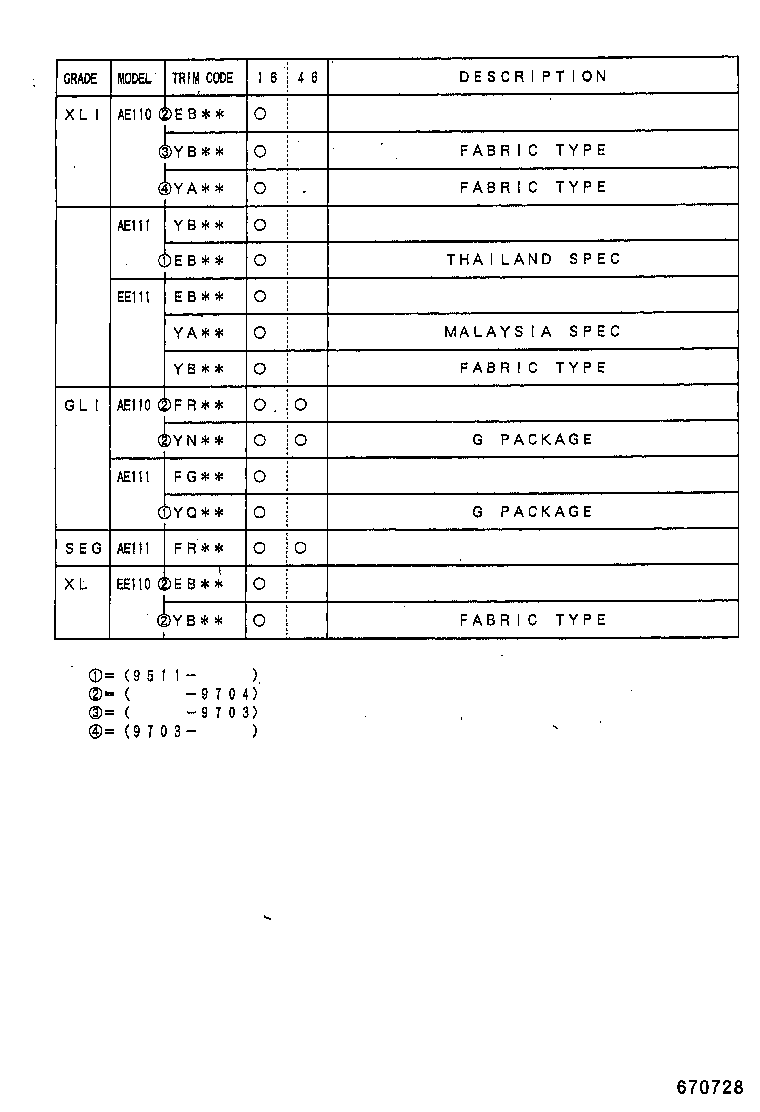

TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A560 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67001-1A460 |
AE11#,EE11# |
1 | ||
| 67001-1A560 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A540 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 67002-1A440 |
AE11#,EE11# |
1 | ||
| 67002-1A540 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12600 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67111-12600 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12590 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 67112-12590 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67165 - EXTENSION,FRONT DOOR INSIDE PANEL REINFORCEMENT, FRONT | ||||
| 67165-12010 |
AE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI) |
2 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12210 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67403-12210 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 67403-12200 |
AE11#,EE11# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12160 |
AE11#,EE11# |
1 | ||
| 67404-12210 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 67404-12210 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12550 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67831-12550 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12350 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 67832-12350 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 67833C - COVER, FRONT DOOR SPEAKER HOLE | ||||
| 67833-12050 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN |
2 | ||
| 67833-12050 |
AE111;AE110,EE11#..XL,XLI |
2 | ||
| 67833-12050 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,PHL);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,PHL) |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12850 |
AE111..5F..GLI;AE11#,EE111..SEG,XLI |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12810 |
AE111..5F..GLI;AE11#,EE111..SEG,XLI |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN |
14 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12050 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..GCC,GEN |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12820 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TUR,VEN) *TT,T=3.5,GREEN |
1 | ||
| 68101-12820 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12820 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN *TT,T=3.5,GREEN |
1 | ||
| 68102-12820 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TUR,VEN) *TT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12470 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 68141-12470 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12180 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 68151-12180 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-12060 |
AE111..SED;AE111..RHD..WG;AE110,112,CE110,EE11# LH |
1 | ||
| 68610-12150 |
AE111..SED;AE111..RHD..WG;AE110,112,CE110,EE11# RH |
1 | ||
| 68610-12150 |
AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL RH |
1 | ||
| 68620-12060 |
AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL LH |
1 | ||
| Common parts | ||||
| 90105-06229 | ||||
| 90109-08295 | ||||
| 90149-80030 | ||||
| 90159-60550 | ||||
| 90269-05035 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 90950-01429 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
