AE110R-AEMDK (1995)

Toyota Corolla Sed/Wg

Production May 1995 - Nov 1997
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9704)4AFE,5AFE..5F

Click highlighted areas on diagram

diagram 12311A 12315A 12318 12321A 12325A 12351 12361A 12362 12371A 12372A 12511 12511 1903 1903 9010508040 9010508275 9010508336 9010510051 9010510143 9010510328 9010510348 9010510355 9010512153 9010512155 9011908633 9011910499 9011910499 9011910499 9011910592 9011910592 9017906007 9017910108 9017910115 9017910116 9017910169 9151180825
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15130

4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15081

4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-16110

4AFE,5AFE..AE11#..5F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15120

4AFE..AE111..RHD..5F..GEN;4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN);4AFE..AE111..LHD..SED..5F..(GCC,GEN,TUR,VEN)

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16120

4AFE,5AFE..AE11#..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-15060

4AFE,5AFE..AE11#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15170

4AFE..AE111..RHD..5F..GEN;4AF,5AFE,7AFE..AE11#..5F..(GCC,GEN);4AFE..AE111..LHD..SED..5F..(GCC,GEN)

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-15040

4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)

TYPE A:REFER TO ILLUSTRATION

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15240

4AFE,5AFE..AE11#..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15171

4AFE,5AFE..AE11#..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15050

4AFE,5AFE..AE11#

 1
12511-15060

4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15050

4AFE,5AFE..AE11#

 1
12511-15060

4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)

 1
Common parts
90105-08040
90105-08275
90105-08336
90105-10051
90105-10143
90105-10328
90105-10348
90105-10355
90105-12153
90105-12155
90119-08633
90119-10499
90119-10592
90179-06007
90179-10108
90179-10115
90179-10116
90179-10169
91511-80825
Linked diagrams
1903

(9704- )4AF#,5AFE,7AFE

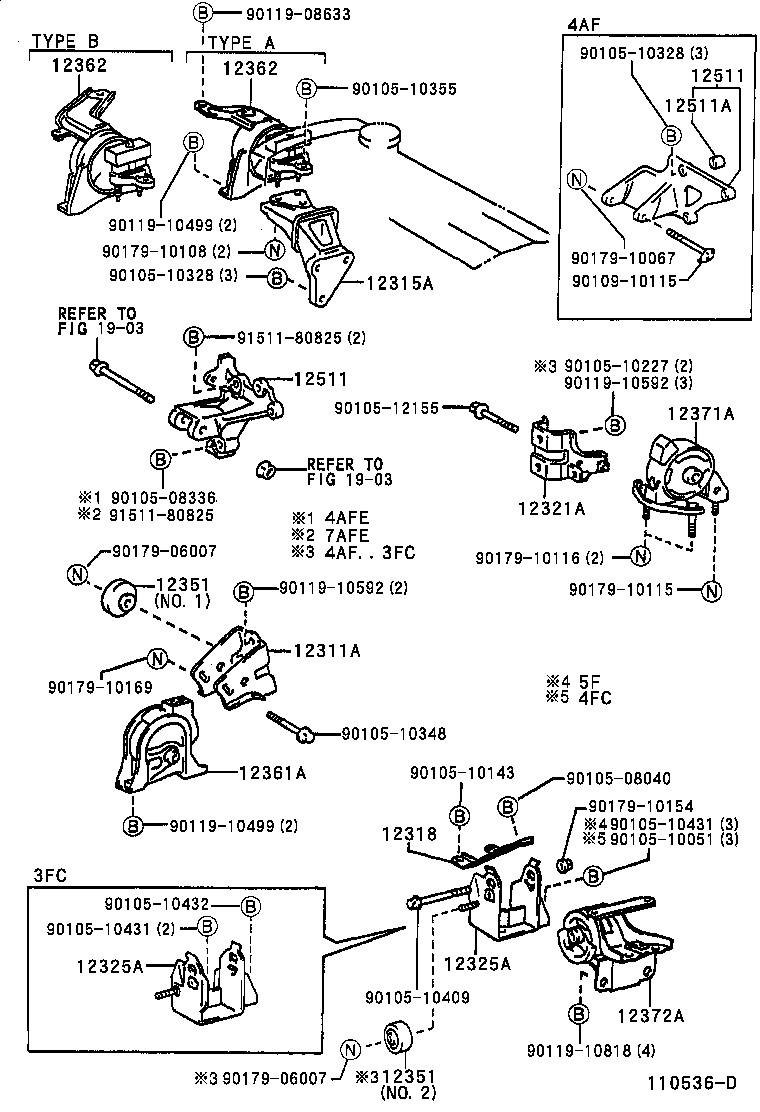

Click highlighted areas on diagram

diagram 12311A 12315A 12318 12321A 12325A 12325A 12351 12351 12361A 12362 12362 12371A 12372A 12511 12511 12511A 1903 1903 9010508040 9010508336 9010510051 9010510143 9010510227 9010510328 9010510328 9010510348 9010510355 9010510409 9010510431 9010510431 9010510432 9010512155 9010910115 9011908633 9011910499 9011910499 9011910592 9011910592 9011910818 9017906007 9017906007 9017910067 9017910108 9017910115 9017910116 9017910154 9017910169 9151180825 9151180825
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15130

4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15081

4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-16110

4AFE,5AFE..AE11#..5F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15120

4AFE..AE111..RHD..5F..GEN;4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN);4AFE..AE111..LHD..SED..5F..(GCC,GEN,TUR,VEN)

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16120

4AFE,5AFE..AE11#..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16120

4AFE,5AFE..AE11#..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-15060

4AFE,5AFE..AE11#

 1
12351 - DAMPER, ENGINE MOUNTING
12351-15060

4AFE,5AFE..AE11#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15170

4AFE..AE111..RHD..5F..GEN;4AF,5AFE,7AFE..AE11#..5F..(GCC,GEN);4AFE..AE111..LHD..SED..5F..(GCC,GEN)

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-15040

4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)

TYPE A:REFER TO ILLUSTRATION

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-15040

4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)

TYPE A:REFER TO ILLUSTRATION

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15240

4AFE,5AFE..AE11#..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15171

4AFE,5AFE..AE11#..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15050

4AFE,5AFE..AE11#

 1
12511-15060

4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15050

4AFE,5AFE..AE11#

 1
12511-15060

4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)

 1
Common parts
90105-08040
90105-08336
90105-10051
90105-10143
90105-10227
90105-10328
90105-10348
90105-10355
90105-10409
90105-10431
90105-10432
90105-12155
90109-10115
90119-08633
90119-10499
90119-10592
90119-10818
90179-06007
90179-10067
90179-10108
90179-10115
90179-10116
90179-10154
90179-10169
91511-80825
Linked diagrams
1903
