EE80R-EEKDS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EE80..RHD

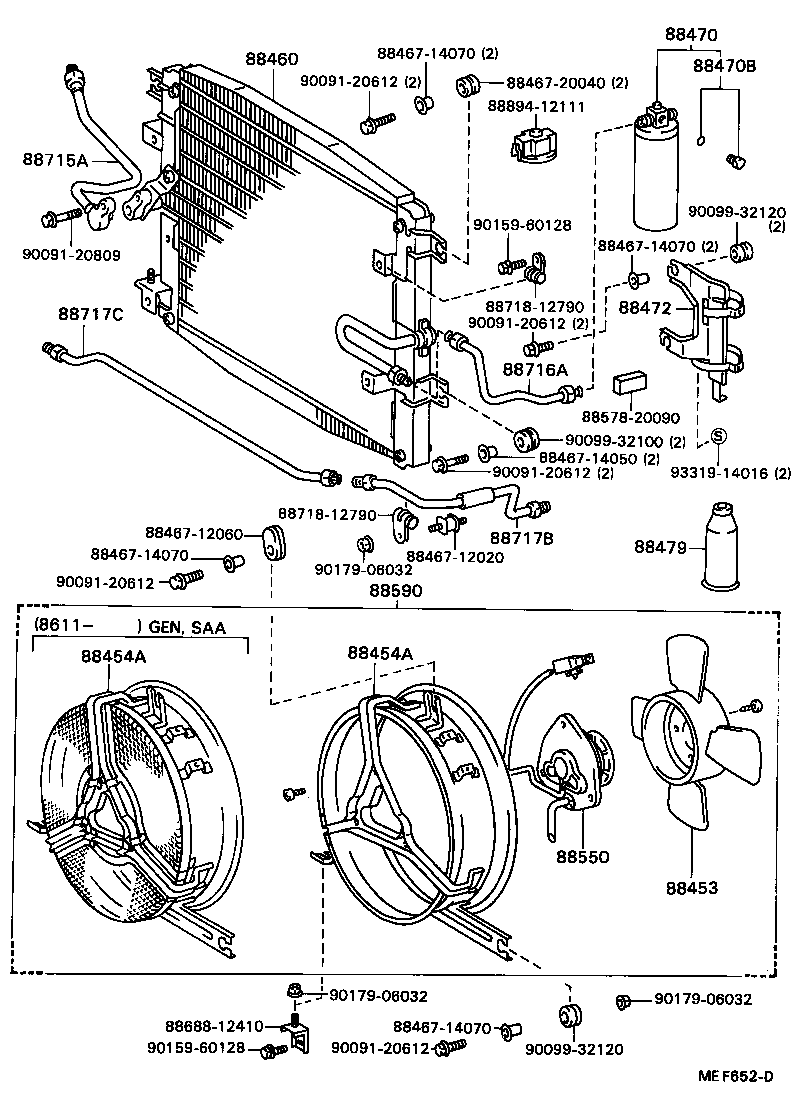

Click highlighted areas on diagram

diagram 88453 88454A 88454A 88460 8846712020 8846712060 8846714050 8846714070 8846714070 8846714070 8846714070 8846720040 88470 88470B 88472 88479 88550 8857820090 88590 8868812410 88715A 88716A 88717B 88717C 8871812790 8871812790 8889412111 9009120612 9009120612 9009120612 9009120612 9009120612 9009120809 9009932100 9009932120 9009932120 9015960128 9015960128 9017906032 9017906032 9017906032 9331914016
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010

EE80..GEN,SAA

 1
88454A - SHROUD, FAN
88454-12080

EE80..GEN,SAA

 1
88454A - SHROUD, FAN
88454-12080

EE80..GEN,SAA

 1
88460 - CONDENSER ASSY, COOLER
88460-12280

EE80..RHD..(GEN,SA)

B TYPE

 1
88460-12310

EE80..RHD..GEN

A TYPE

 1
88460-12281

EE80..GEN

B TYPE

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20010

AE8#,CE80,EE80..ARL,GEN,SA,SAA

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AE8#,CE80,EE80..ARL,GEN,SA,SAA

400G

 2
88590 - BLOWER ASSY, W/SHROUD
88590-12070

EE80..GEN,SAA

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12280

EE80..GEN,SA,SAA

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12870

EE80..GEN,SA,SAA

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-12360

AE82,EE80..RHD..(GL,STD,XL)..GEN

A TYPE

 1
Common parts
88467-12020
88467-12060
88467-14050
88467-14070
88467-20040
88578-20090
88688-12410
88718-12790
88894-12111
90091-20612
90091-20809
90099-32100
90099-32120
90159-60128
90179-06032
93319-14016

(8410- )EE80..RHD

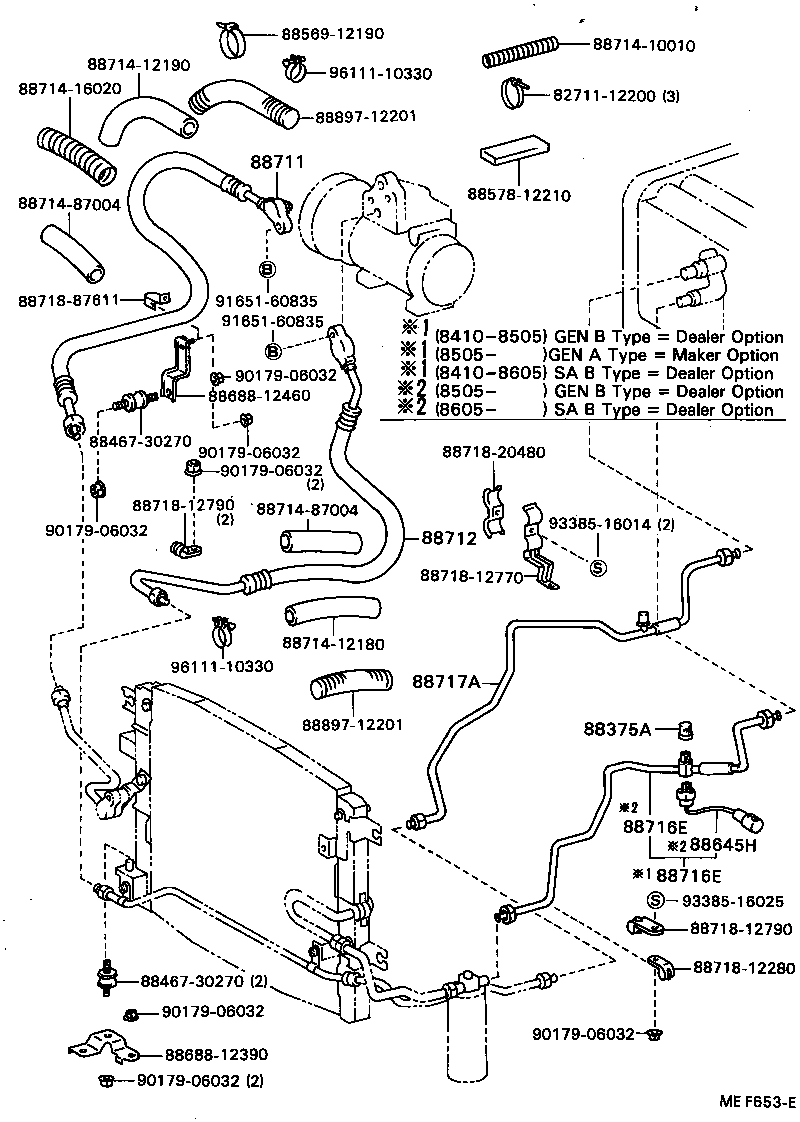

Click highlighted areas on diagram

diagram 8271112200 88375A 8846730270 8846730270 8856912190 8857812210 88645H 8868812390 8868812460 88711 88712 8871410010 8871412180 8871412190 8871416020 8871487004 8871487004 88716E 88716E 88717A 8871812280 8871812770 8871812790 8871812790 8871820480 8871887611 8889712201 8889712201 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9165160835 9165160835 9338516014 9338516025 9611110330 9611110330
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270

AE82,CE80,EE80..(GL,STD,XL)..(GEN,SAA)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12350

EE80..GEN,SA,SAA

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12560

EE80..RHD..GEN

A TYPE

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-12140

AE82,EE80..RHD..(GL,STD,XL)..GEN

B TYPE

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-12140

AE82,EE80..RHD..(GL,STD,XL)..GEN

B TYPE

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88710-12140

AE82,EE80..RHD..(GL,STD,XL)..GEN

A TYPE

 1
88717-12220

AE8#,EE80..RHD..(DX,GL,STD,XL)..(GEN,SA)

B TYPE

 1
88717-12221

AE82,EE80..RHD..(GL,STD,XL)..GEN

B TYPE

 1
Common parts
82711-12200
88467-30270
88569-12190
88578-12210
88688-12390
88688-12460
88714-10010
88714-12180
88714-12190
88714-16020
88714-87004
88718-12280
88718-12770
88718-12790
88718-20480
88718-87611
88897-12201
90179-06032
91651-60835
93385-16014
93385-16025
96111-10330
