EE80L-ELHDS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EE80..LHD

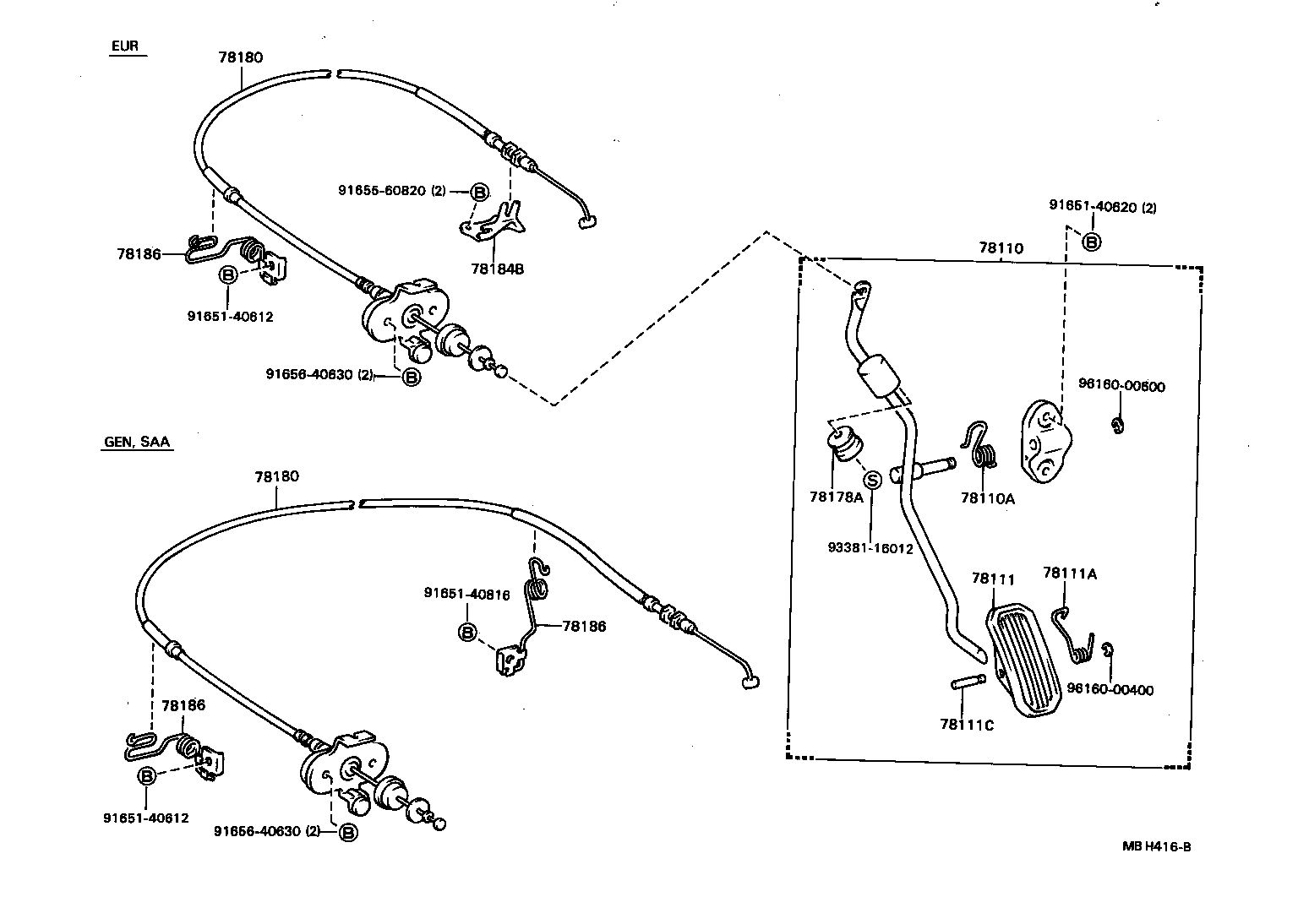

Click highlighted areas on diagram

diagram 78110 78110A 78111 78111A 78111C 78178A 78180 78180 78184B 78186 78186 78186 9165140612 9165140612 9165140620 9165140816 9165560820 9165640630 9165640630 9338116012 9616000400 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-12040

AE80..LHD..(EUR,GEN);AE82,EE80..LHD..(GL,STD,XL)..GEN;AE82,EE80..LHD..(DX,GL,STD)..(EUG,SDZ)

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18025

EE80..RHD;EE80..LHD..GEN;AE80..ARL,EUR,GEN,SA;AE82,EE80..LHD..(DX,GL,STD)..(EUG,SDZ);AE82..(CS,CSX,DX,GL,S,SE,STD,XL)..(ARL,GEN,SA)

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AE8#,CE80,EE80

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056

AE8#,CE80,EE80

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE8#,CE80,EE80

 1
Common parts
91651-40612
91651-40620
91651-40816
91655-60820
91656-40630
93381-16012
96160-00400
96160-00600
