EE80L-EGKDSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )3DS,5DS

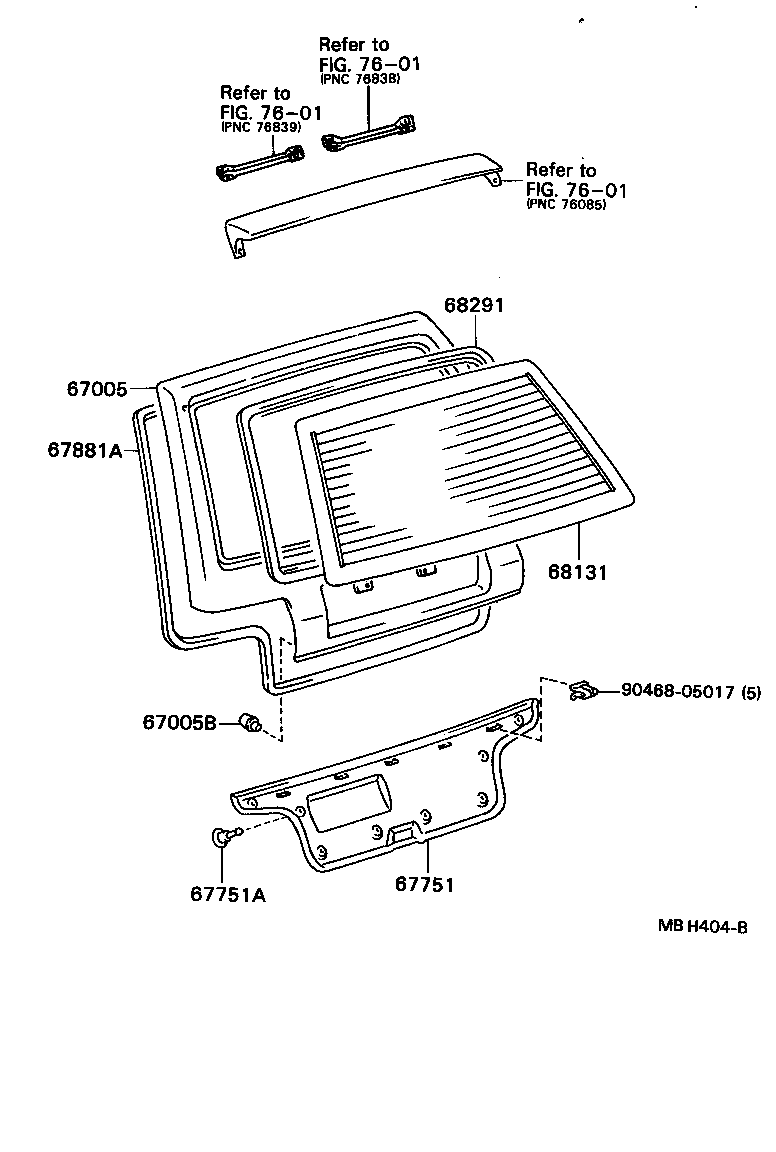

Click highlighted areas on diagram

diagram 67005 67005B 67751 67751A 67881A 68131 68291 7601 7601 7601 9046805017
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-12800

CE80,EE80..(3DS,5DS)..LHD..(DX,GL)..EUG

W/O RR WIPER,BELGIUM SPEC

 1
67005-12860

CE80,EE80..(3DS,5DS)..(EUR,GEN)

W/O RR WIPER

 1
67005-1A020

CE80,EE80..(3DS,5DS)..(EUR,GEN)

W/RR WIPER

 1
67005-12810

CE80,EE80..(3DS,5DS)..LHD..(DX,GL)..EUG

W/RR WIPER,BELGIUM SPEC

 1
67005-12801

CE80,EE80..(3DS,5DS)..LHD..(DX,GL)..EUG

W/O RR WIPER,BELGIUM SPEC

 1
67005-12811

CE80,EE80..(3DS,5DS)..LHD..(DX,GL)..EUG

W/RR WIPER,BELGIUM SPEC

 1
67005-12861

CE80,EE80..(3DS,5DS)..(EUR,GEN)

W/O RR WIPER

 1
67005-1A021

CE80,EE80..(3DS,5DS)..(EUR,GEN)

W/RR WIPER

 1
67751 - BOARD, BACK DOOR TRIM
67751-1205006

AE8#,CE80,EE80..3DS,5DS

BROWN,BROWN,TRIM4#

 1
67751-1205003

AE8#,CE80,EE80..3DS,5DS

GRAY,SHADOW GRAY,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0704103

AE8#,CE80,EE80..3DS,5D,5DS

GRAY,GRAY,TRIM1#

 8
68131 - GLASS, BACK DOOR
68105-12210

AE82,CE80,EE80..(3DS,5DS)..DX..EUR

*EHT,T=3.5

 1
68105-12190

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)

*EHTT,T=3.5

 1
68105-12210

AE82,CE80,EE80..(3DS,5DS)..(DX,STD)..EUR

*EHT,T=3.5

 1
68105-12220

AE82,CE80,EE80..(3DS,5DS)..(DX,STD)..EUR

*EHT,T=3.5,HEAVY

 1
68105-12200

AE82,CE80,EE80..(3DS,5DS)..LHD..EUR

*EHTT,T=3.5,HEAVY

 1
Common parts
90468-05017
Linked diagrams
7601
