EE80L-EGKDSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )3DS

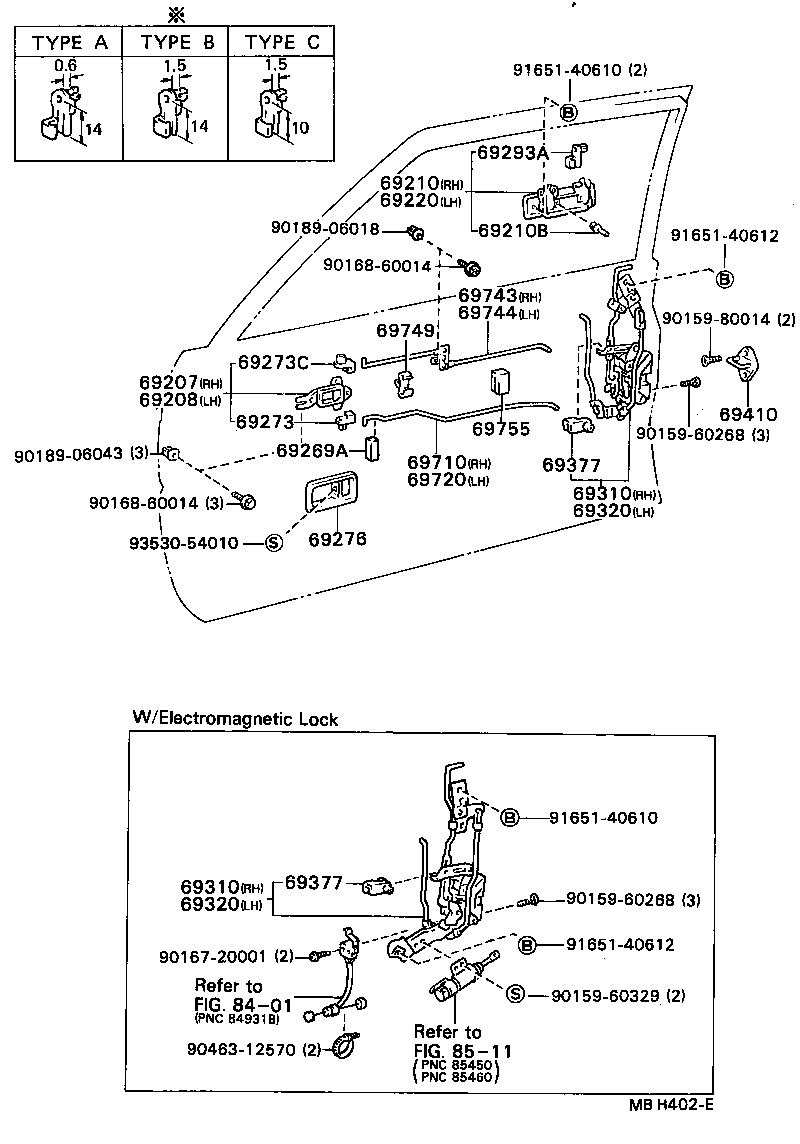

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69269A 69273 69273C 69276 69293A 69310 69310 69320 69320 69377 69377 69410 69710 69720 69743 69744 69749 69755 8401 8511 9015960268 9015960268 9015960329 9015980014 9016720001 9016860014 9016860014 9018906018 9018906043 9046312570 9165140610 9165140610 9165140612 9165140612 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1209003

AE82,CE80,EE80..3DS

GRAY,GRAY,TRIM1#

 1
69205-1209006

AE82,CE80,EE80..3DS

BROWN,BROWN,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1209006

AE82,CE80,EE80..3DS

BROWN,BROWN,TRIM4#

 1
69206-1209003

AE82,CE80,EE80..3DS

GRAY,GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69240-12070

AE8#,CE80,EE80..ARL,EUR,GEN,SA

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

AE8#,CE80,EE80

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69230-12070

AE8#,CE80,EE80..ARL,EUR,GEN,SA

 1
69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69289-12010

AE82,CE80,EE80..3DS..EUR

 2
69273 - SNAP, DOOR INSIDE HANDLE ROD
69759-20060

AE82,CE80,EE80..3DS

LH

 1
69759-20070

AE82,CE80,EE80..3DS

RH

 1
69273C - SNAP, DOOR INSIDE HANDLE LINK
69759-20060

AE82,CE80,EE80..3DS

RH

 1
69759-20070

AE82,CE80,EE80..3DS

LH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1403026

AE82,CE80,EE80..3DS

BROWN,SEPIA BROWN,TRIM4#

 2
69277-1403013

AE82,CE80,EE80..3DS

GRAY,GRAY,TRIM1#

 2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

AE8#,CE80,EE80..ARL,EUR,GEN,SA

LH

 1
69293-12030

AE8#,CE80,EE80..ARL,EUR,GEN,SA

RH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12210

AE82,CE80,EE80..3DS

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12210

AE82,CE80,EE80..3DS

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12230

AE82,CE80,EE80..3DS

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12230

AE82,CE80,EE80..3DS

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20050

AE82,CE80,EE80..3DS

TYPE B,RH

 1
69759-20040

AE82,CE80,EE80..3DS

TYPE B,LH

 1
69759-20030

AE82,CE80,EE80..3DS

TYPE A,RH

 2
69759-20020

AE82,CE80,EE80..3DS

TYPE A,LH

 2
69759-20100

AE82,CE80,EE80..3DS

TYPE C,RH

 2
69759-20110

AE82,CE80,EE80..3DS

TYPE C,LH

 2
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20050

AE82,CE80,EE80..3DS

TYPE B,RH

 1
69759-20040

AE82,CE80,EE80..3DS

TYPE B,LH

 1
69759-20030

AE82,CE80,EE80..3DS

TYPE A,RH

 2
69759-20020

AE82,CE80,EE80..3DS

TYPE A,LH

 2
69759-20100

AE82,CE80,EE80..3DS

TYPE C,RH

 2
69759-20110

AE82,CE80,EE80..3DS

TYPE C,LH

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

AE8#,CE80,EE80

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-12090

AE82,CE80,EE80..3DS

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-12100

AE82,CE80,EE80..3DS

 1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69750-12010

AE82,CE80,EE80..3DS

 1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69760-12010

AE82,CE80,EE80..3DS

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12040

AE82,CE80,EE80..3DS

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-14010

AE82,CE80,EE80..3DS

 2
Common parts
90159-60268
90159-60329
90159-80014
90167-20001
90168-60014
90189-06018
90189-06043
90463-12570
91651-40610
91651-40612
93530-54010
Linked diagrams
8401
8511
