EE80L-EGKDSW (1984)
Toyota Corolla Sed/Lb
(8305- )2AL,4AL#..EUG,SDZ ; (8401-8505)2AL..SAA ; (8402- )4AL..GEN,SA ; (8402
..NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-11090 |
2EL#..EE80..EUR |
1 | ||
| 21209-11090 |
2EL#..EE80..EUR |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-11090 |
2EL..EE80..EUG |
1 | ||
| 21251-11090 |
2EL..EE80..EUG |
1 | ||
| 21251-15460 |
2EL#..EE80..EUR |
1 | ||
| 21251-15460 |
2EL#..EE80..EUR |
1 | ||
| 21251-15461 |
2EL#..EE80..EUR |
1 | ||
| 21251-15461 |
2EL#..EE80..EUR |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-11150 |
2EL#..EE80..EUR |
1 | ||
| 21271-11150 |
2EL#..EE80..EUR |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21828-11180 |
2EL..EE80..EUG |
1 | ||
| 21828-11180 |
2EL..EE80..EUG |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-11090 |
2EL#..EE80..EUR |
1 | ||
| 21273-11090 |
2EL#..EE80..EUR |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21273-60151 |
2EL#..EE80..EUR |
1 | ||
| 21273-60151 |
2EL#..EE80..EUR |
1 | ||
| 21844-33010 |
2EL#..EE80..EUR |
1 | ||
| 21844-33010 |
2EL#..EE80..EUR |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-11140 |
2EL#..EE80..EUR |
1 | ||
| 21301-11140 |
2EL#..EE80..EUR |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-11140 |
2EL#..EE80..EUR |
1 | ||
| 21353-11140 |
2EL#..EE80..EUR |
1 | ||
| 21353-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21353-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-15250 |
2EL#..EE80..EUR |
1 | ||
| 21611-15250 |
2EL#..EE80..EUR |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-15250 |
2EL#..EE80..EUR |
1 | ||
| 21611-15250 |
2EL#..EE80..EUR |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2EL#..EE80 |
1 | ||
| 21618-14010 |
2EL#..EE80 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2EL#..EE80 |
2 | ||
| 21633-24030 |
2EL#..EE80 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2EL#..EE80 |
2 | ||
| 21633-24030 |
2EL#..EE80 |
2 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-11150 |
2EL..EE80..EUG |
1 | ||
| 21667-11150 |
2EL..EE80..EUG |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2EL#..EE80 |
1 | ||
| 21722-22010 |
2EL#..EE80 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-11041 |
2EL#..EE80..EUR |
1 | ||
| 21723-11041 |
2EL#..EE80..EUR |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38010 |
2EL#..EE80..EUR |
1 | ||
| 21723-38010 |
2EL#..EE80..EUR |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-38010 |
2EL..EE80..EUG |
1 | ||
| 21723-38010 |
2EL..EE80..EUG |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-15250 |
2EL#..EE80..EUR |
1 | ||
| 21735-15250 |
2EL#..EE80..EUR |
1 | ||
| 21735-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21735-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21735-21032 |
2EL..EE80..MTM..EUG |
1 | ||
| 21735-21032 |
2EL..EE80..MTM..EUG |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-11150 |
2EL#..EE80..EUR |
1 | ||
| 21894-11150 |
2EL#..EE80..EUR |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-15250 |
2EL#..EE80..EUR |
1 | ||
| 21756-15250 |
2EL#..EE80..EUR |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-11090 |
2EL#..EE80..EUR |
1 | ||
| 21781-11090 |
2EL#..EE80..EUR |
1 | ||
| 21781-15460 |
2EL#..EE80..EUR |
1 | ||
| 21781-15460 |
2EL#..EE80..EUR |
1 | ||
| 21781-15461 |
2EL#..EE80..EUR |
1 | ||
| 21781-15461 |
2EL#..EE80..EUR |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-11090 |
2EL#..EE80..EUR |
1 | ||
| 21781-11090 |
2EL#..EE80..EUR |
1 | ||
| 21781-15460 |
2EL#..EE80..EUR |
1 | ||
| 21781-15460 |
2EL#..EE80..EUR |
1 | ||
| 21781-15461 |
2EL#..EE80..EUR |
1 | ||
| 21781-15461 |
2EL#..EE80..EUR |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2EL#..EE80..EUR |
2 | ||
| 21791-60010 |
2EL#..EE80..EUR |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2EL#..EE80..EUR |
2 | ||
| 21791-60010 |
2EL#..EE80..EUR |
2 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2EL#..EE80..EUR |
1 | ||
| 21811-11060 |
2EL#..EE80..EUR |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-24470 |
2EL#..EE80..EUR |
1 | ||
| 21826-24470 |
2EL#..EE80..EUR |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-31012 |
2EL#..EE80..EUR |
1 | ||
| 21833-31012 |
2EL#..EE80..EUR |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-11180 |
2EL#..EE80..EUR |
1 | ||
| 21062-11180 |
2EL#..EE80..EUR |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21656-15250 |
2EL#..EE80..EUR |
1 | ||
| 21656-15250 |
2EL#..EE80..EUR |
1 | ||
| 21934F - GASKET | ||||
| 21633-15250 |
2EL#..EE80..EUR |
1 | ||
| 21633-15250 |
2EL#..EE80..EUR |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-15320 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-28010 | ||||
| 21821-31140 | ||||
| 21831-38010 | ||||
| 21832-15320 | ||||
| 21832-38010 | ||||
| 21844-26350 | ||||
| 21845-38010 | ||||
| 21864-45100 | ||||
| 21887-38010 | ||||
| 90507-12005 | ||||
| 91111-40618 | ||||
| 93319-13012 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 94612-10500 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 1708 | ||||

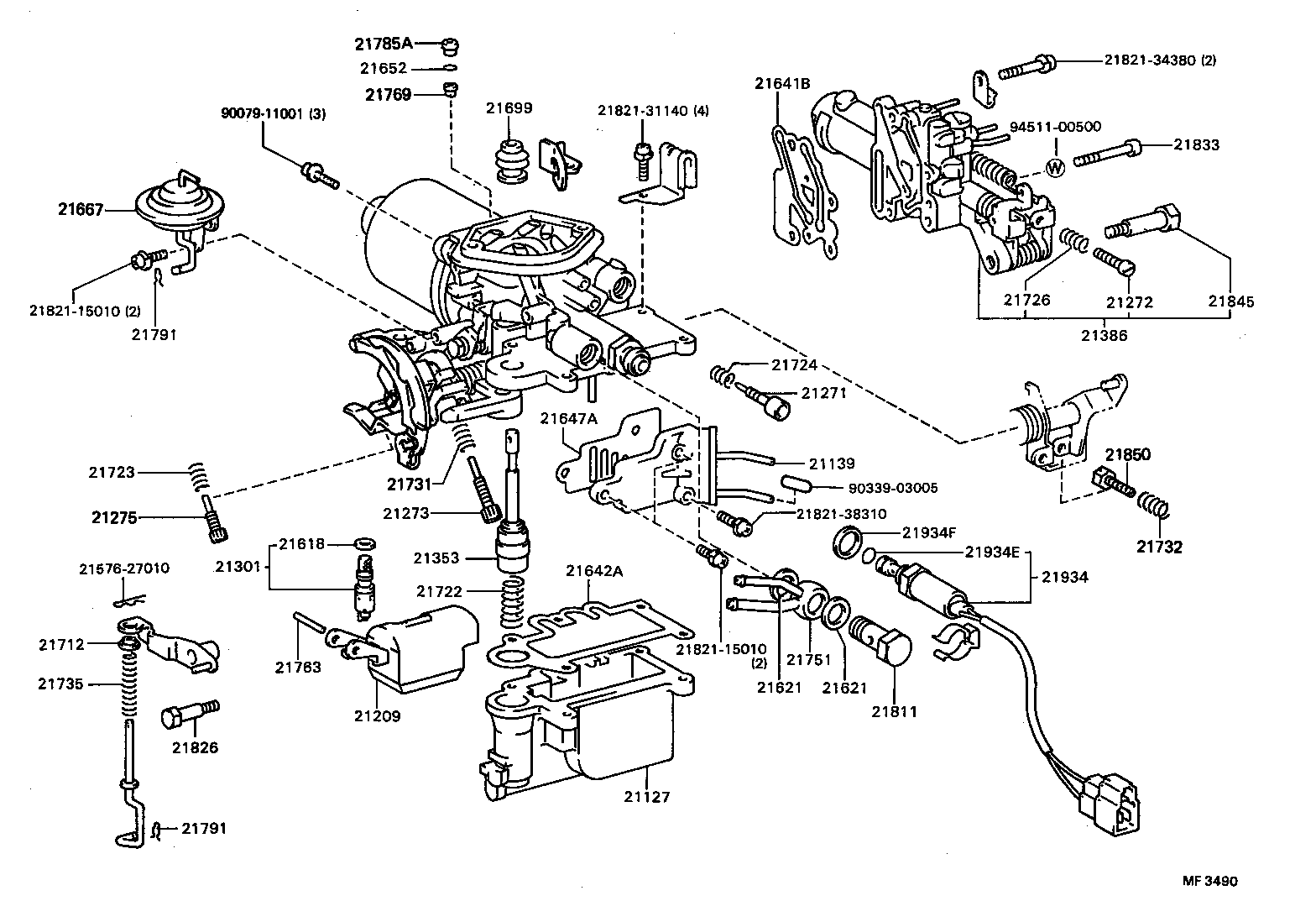

(8410-8502)2EL..EUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21127 - BOWL, FLOAT | ||||
| 21127-11150 |
2EL#..EE80..MTM..EUR |
1 | ||
| 21127-11090 |
2EL..EE80..EUG |
1 | ||
| 21127-11090 |
2EL#..EE80..MTM..EUR |
1 | ||
| 21127-11270 |
2EL..EE80..MTM..EUG |
1 | ||
| 21139 - ADAPTER(FOR CARBURETOR CONNECTING PIPE) | ||||
| 21139-11150 |
2EL#..EE80..EUR |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-11090 |
2EL#..EE80..EUR |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-11150 |
2EL#..EE80..EUR |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21828-11180 |
2EL..EE80..EUG |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-11090 |
2EL#..EE80..EUR |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21273-60151 |
2EL#..EE80..EUR |
1 | ||
| 21844-33010 |
2EL#..EE80..EUR |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-11140 |
2EL#..EE80..EUR |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-11140 |
2EL#..EE80..EUR |
1 | ||
| 21353-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21386 - COMPENSATOR | ||||
| 21386-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21386-11150 |
2EL..EE80..EUG |
1 | ||
| 21386-11290 |
2EL..EE80..MTM..EUG |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2EL#..EE80 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2EL#..EE80 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2EL#..EE80 |
2 | ||
| 21641B - GASKET, COMPENSATOR | ||||
| 21641-11090 |
2EL#..EE80..EUR |
1 | ||
| 21642A - GASKET, FLOAT BOWL | ||||
| 21642-11090 |
2EL#..EE80..EUR |
1 | ||
| 21647A - GASKET, ADAPTER | ||||
| 21647-11090 |
2EL#..EE80..EUR |
1 | ||
| 21652 - RING, O(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21652-15250 |
2EL#..EE80..EUR |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-11150 |
2EL..EE80..EUG |
1 | ||
| 21712 - BUSH, SLIDING ROD | ||||
| 21712-38010 |
2EL#..EE80..EUR |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2EL#..EE80 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-11041 |
2EL#..EE80..EUR |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38010 |
2EL#..EE80..EUR |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-38010 |
2EL..EE80..EUG |
1 | ||
| 21732 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-15251 |
2EL#..EE80..EUR |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-15250 |
2EL#..EE80..EUR |
1 | ||
| 21735-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21735-21032 |
2EL..EE80..MTM..EUG |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-11150 |
2EL#..EE80..EUR |
1 | ||
| 21769 - PIN(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21769-15250 |
2EL#..EE80..EUR |
1 | ||
| 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21785-11090 |
2EL#..EE80..EUR NO.1 |
1 | ||
| 21672-15250 |
2EL#..EE80..EUR NO.2 |
1 | ||
| 21785-11090 |
2EL..EE80..EUG |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2EL#..EE80..EUR |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2EL#..EE80..EUR |
2 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2EL#..EE80..EUR |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-24470 |
2EL#..EE80..EUR |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-31012 |
2EL#..EE80..EUR |
1 | ||
| 21845 - SCREW(FOR LEVER SET) | ||||
| 21273-38010 |
2EL..EE80..EUG |
1 | ||
| 21850 - SCREW, THROTTLE SWITCH ADJUSTING | ||||
| 21272-11090 |
2EL#..EE80..EUR |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-11180 |
2EL#..EE80..EUR |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21656-15250 |
2EL#..EE80..EUR |
1 | ||
| 21934F - GASKET | ||||
| 21633-15250 |
2EL#..EE80..EUR |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-31140 | ||||
| 21821-34380 | ||||
| 21821-38310 | ||||
| 90079-11001 | ||||
| 90339-03005 | ||||
| 94511-00500 | ||||

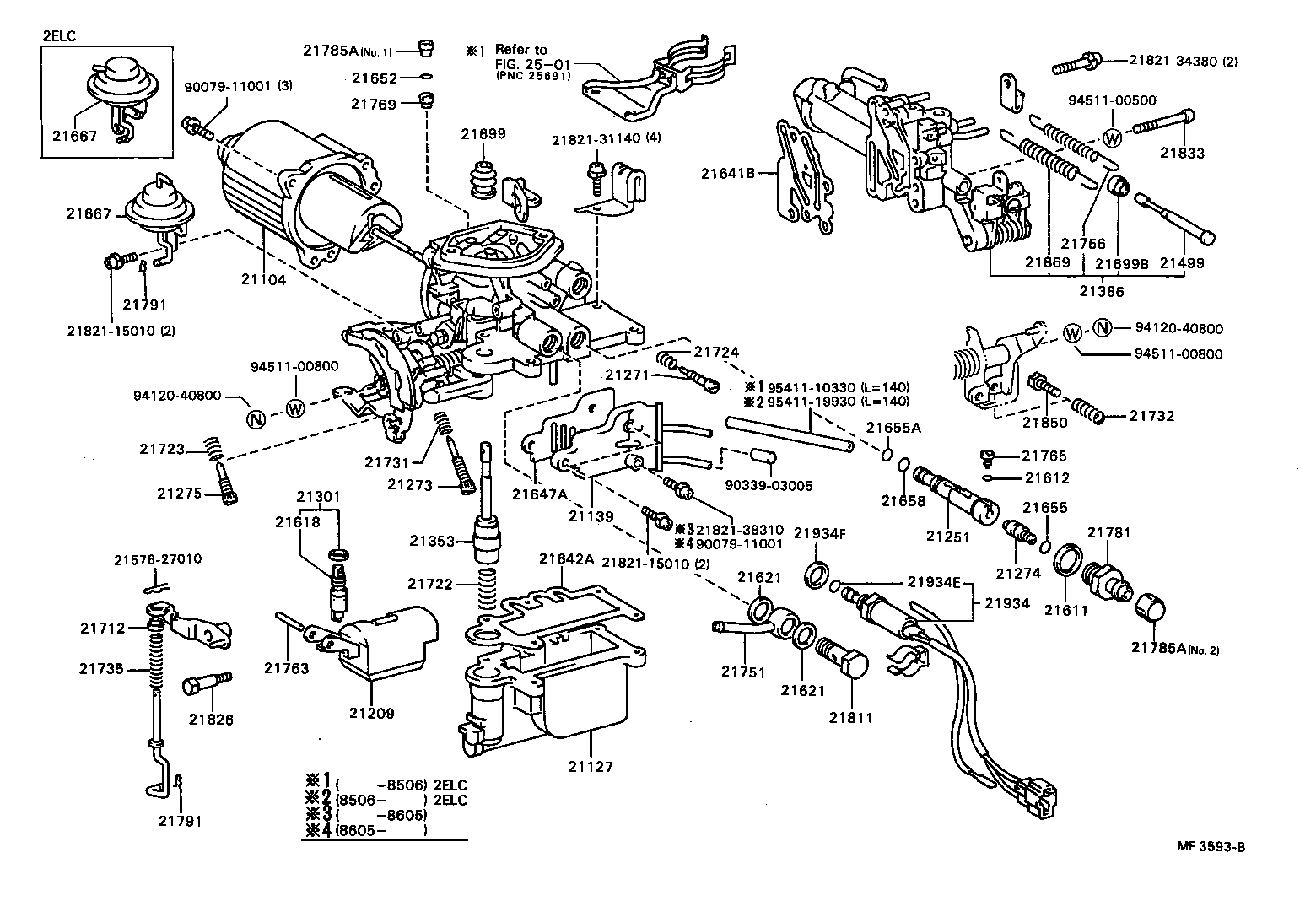

(8502- )2EL#..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21104 - CHAMBER SUB-ASSY, SUCTION | ||||
| 21014-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21014-11151 |
2EL..EE80..MTM..EUG |
1 | ||
| 21014-11154 |
2EL..EE80..MTM..EUG |
1 | ||
| 21014-11153 |
2EL..EE80..MTM..EUG |
1 | ||
| 21127 - BOWL, FLOAT | ||||
| 21127-11150 |
2EL#..EE80..MTM..EUR |
1 | ||
| 21127-11090 |
2EL..EE80..EUG |
1 | ||
| 21127-11090 |
2EL#..EE80..MTM..EUR |
1 | ||
| 21127-11270 |
2EL..EE80..MTM..EUG |
1 | ||
| 21139 - ADAPTER(FOR CARBURETOR CONNECTING PIPE) | ||||
| 21139-11150 |
2EL#..EE80..EUR |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-11090 |
2EL#..EE80..EUR |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-11090 |
2EL..EE80..EUG |
1 | ||
| 21251-15460 |
2EL#..EE80..EUR |
1 | ||
| 21251-15461 |
2EL#..EE80..EUR |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-11150 |
2EL#..EE80..EUR |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-11090 |
2EL#..EE80..EUR |
1 | ||
| 21274 - SCREW, 1ST THROTTLE ADJUSTING | ||||
| 21275-15460 |
2EL#..EE80..EUR |
1 | ||
| 21275-11090 |
2EL#..EE80..EUR |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21273-60151 |
2EL#..EE80..EUR |
1 | ||
| 21844-33010 |
2EL#..EE80..EUR |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-11140 |
2EL#..EE80..EUR |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-11140 |
2EL#..EE80..EUR |
1 | ||
| 21353-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21386 - COMPENSATOR | ||||
| 21386-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21386-11150 |
2EL..EE80..EUG |
1 | ||
| 21386-11290 |
2EL..EE80..MTM..EUG |
1 | ||
| 21499 - ROD, PUSH(FOR CARBURETOR) | ||||
| 21499-11150 |
2EL..EE80..EUG |
1 | ||
| 21499-11150 |
2EL#..EE80..MTM..EUR |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-15250 |
2EL#..EE80..EUR |
1 | ||
| 21612 - GASKET, POWER VALVE | ||||
| 21612-15250 |
2EL#..EE80..EUR |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2EL#..EE80 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2EL#..EE80 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2EL#..EE80 |
2 | ||
| 21641B - GASKET, COMPENSATOR | ||||
| 21641-11090 |
2EL#..EE80..EUR |
1 | ||
| 21642A - GASKET, FLOAT BOWL | ||||
| 21642-11090 |
2EL#..EE80..EUR |
1 | ||
| 21647A - GASKET, ADAPTER | ||||
| 21647-11090 |
2EL#..EE80..EUR |
1 | ||
| 21652 - RING, O(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21652-15250 |
2EL#..EE80..EUR |
1 | ||
| 21655 - RING, O(FOR LIFTER ROD) | ||||
| 21655-60010 |
2EL#..EE80..EUR |
1 | ||
| 21655A - RING, O(FOR SLOW JET) | ||||
| 21655-15250 |
2EL#..EE80..EUR |
1 | ||
| 21658 - RING, O(FOR MAIN GUIDE UPPER) | ||||
| 21658-15250 |
2EL#..EE80..EUR |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-11150 |
2EL..EE80..EUG |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-11150 |
2EL..EE80..EUG |
1 | ||
| 21699B - BOOT(FOR COMPENSATOR) | ||||
| 21699-11090 |
2EL#..EE80..EUR |
1 | ||
| 21712 - BUSH, SLIDING ROD | ||||
| 21712-38010 |
2EL#..EE80..EUR |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2EL#..EE80 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-11041 |
2EL#..EE80..EUR |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38010 |
2EL#..EE80..EUR |
1 | ||
| 21732 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-15251 |
2EL#..EE80..EUR |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-15250 |
2EL#..EE80..EUR |
1 | ||
| 21735-11150 |
2EL..EE80..MTM..EUG |
1 | ||
| 21735-21032 |
2EL..EE80..MTM..EUG |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-11150 |
2EL#..EE80..EUR |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-15250 |
2EL#..EE80..EUR |
1 | ||
| 21765 - PIN(FOR PUMP PLUNGER) | ||||
| 21765-15250 |
2EL#..EE80..EUR |
1 | ||
| 21769 - PIN(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21769-15250 |
2EL#..EE80..EUR |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-11090 |
2EL#..EE80..EUR |
1 | ||
| 21781-15460 |
2EL#..EE80..EUR |
1 | ||
| 21781-15461 |
2EL#..EE80..EUR |
1 | ||
| 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21785-11090 |
2EL#..EE80..EUR NO.1 |
1 | ||
| 21672-15250 |
2EL#..EE80..EUR NO.2 |
1 | ||
| 21785-11090 |
2EL..EE80..EUG |
1 | ||
| 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21785-11090 |
2EL#..EE80..EUR NO.1 |
1 | ||
| 21672-15250 |
2EL#..EE80..EUR NO.2 |
1 | ||
| 21785-11090 |
2EL..EE80..EUG |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2EL#..EE80..EUR |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2EL#..EE80..EUR |
2 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2EL#..EE80..EUR |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-24470 |
2EL#..EE80..EUR |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-31012 |
2EL#..EE80..EUR |
1 | ||
| 21850 - SCREW, THROTTLE SWITCH ADJUSTING | ||||
| 21272-11090 |
2EL#..EE80..EUR |
1 | ||
| 21869 - SPRING(FOR MAIN JET) | ||||
| 21869-15250 |
2EL#..EE80..EUR |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-11180 |
2EL#..EE80..EUR |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21656-15250 |
2EL#..EE80..EUR |
1 | ||
| 21934F - GASKET | ||||
| 21633-15250 |
2EL#..EE80..EUR |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-31140 | ||||
| 21821-34380 | ||||
| 21821-38310 | ||||
| 90079-11001 | ||||
| 90339-03005 | ||||
| 94120-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 95411-10330 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
