CE80R-EEMDS (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
May 1985
Engine
1CL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305-8704)CE80

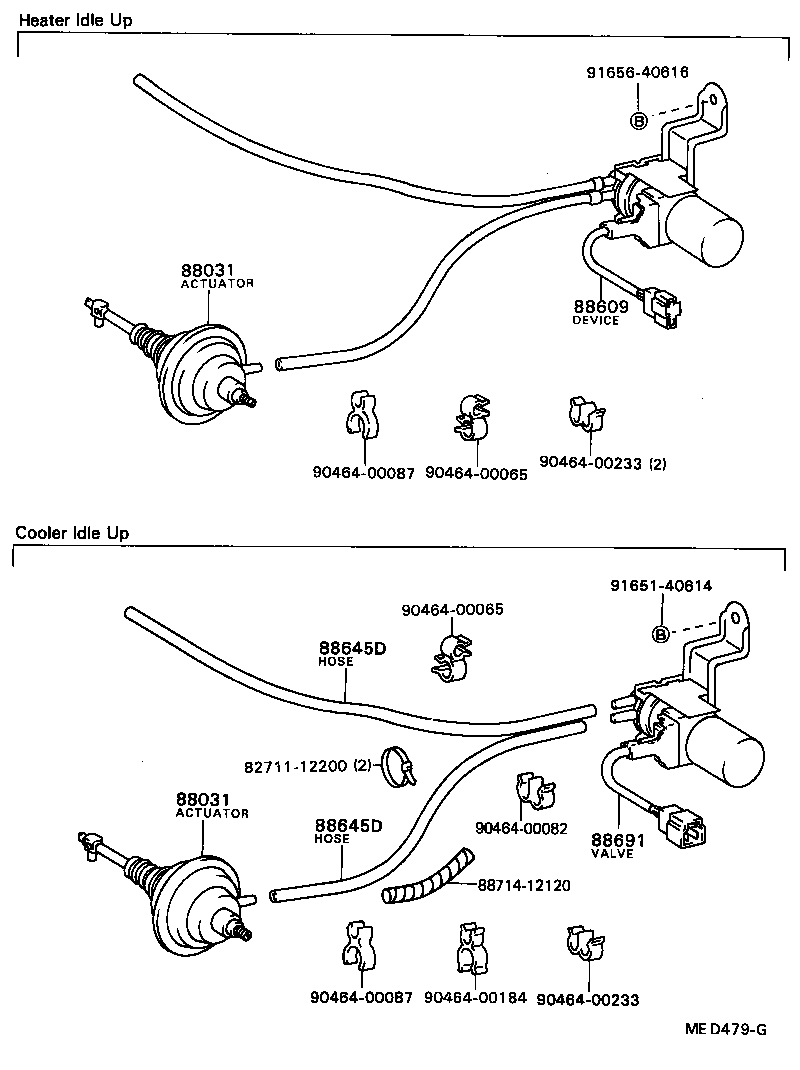

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-30070 |
CE80..GEN |
1 | ||
| 88031-30070 |
CE80..DX..GEN |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-30070 |
CE80..GEN |
1 | ||
| 88031-30070 |
CE80..DX..GEN |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10060 |
CE80..GEN *H,L=390,MARK=#0 |
1 | ||
| 95411-19995 |
CE80..GEN *H,L=850,MARK=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10060 |
CE80..GEN *H,L=390,MARK=#0 |
1 | ||
| 95411-19995 |
CE80..GEN *H,L=850,MARK=#* |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-12280 |
CE80..GEN |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88714-12120 | ||||
| 90464-00065 | ||||
| 90464-00082 | ||||
| 90464-00087 | ||||
| 90464-00184 | ||||
| 90464-00233 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
