CE80R-EEMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - May 1985
Engine 1CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8704)CE80

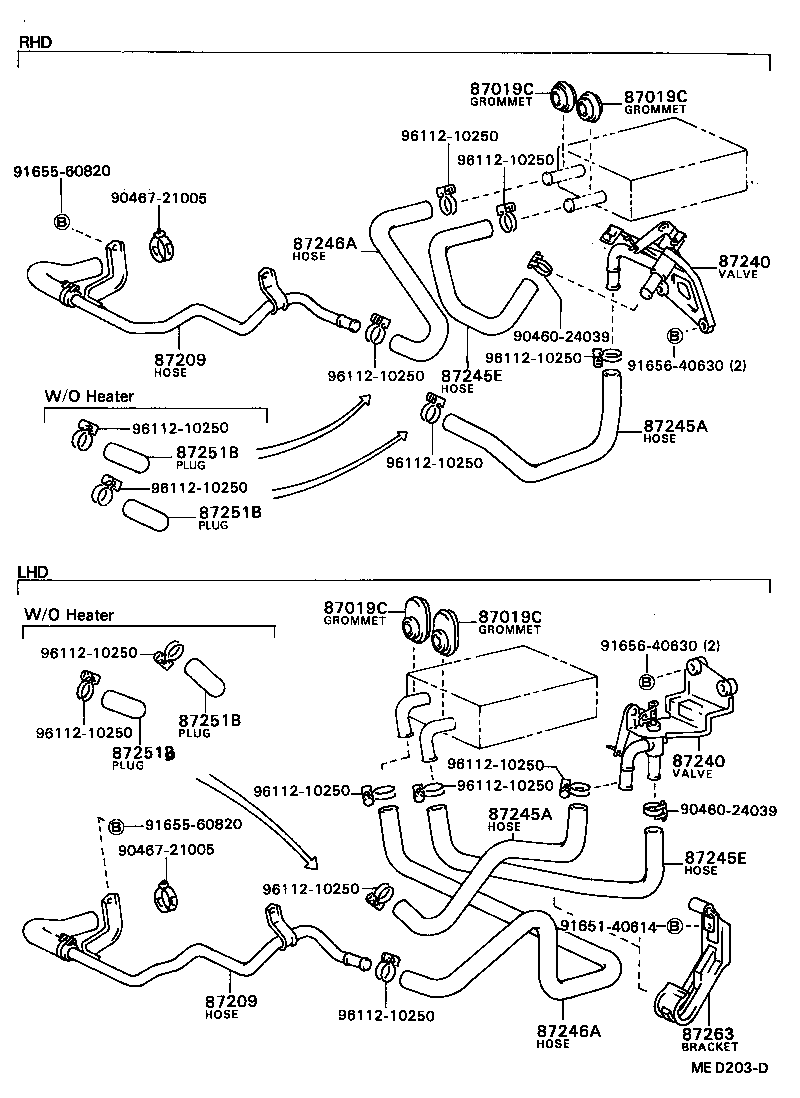

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87209 87209 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87251B 87251B 87251B 87251B 87263 9046024039 9046024039 9046721005 9046721005 9165140614 9165560820 9165560820 9165640630 9165640630 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
96531-13517

AE8#,CE80,EE80..RHD

 2
87019C - GROMMET, HEATER HOSE
96531-13517

AE8#,CE80,EE80..RHD

 2
87019C - GROMMET, HEATER HOSE
96531-13517

AE8#,CE80,EE80..RHD

 2
87019C - GROMMET, HEATER HOSE
96531-13517

AE8#,CE80,EE80..RHD

 2
87209 - HOSE SUB-ASSY, WATER
87209-12390

CE80

 1
87209 - HOSE SUB-ASSY, WATER
87209-12390

CE80

 1
87240 - VALVE ASSY, HEATER WATER
87240-12190

AE8#,CE80,EE80..RHD..(EUR,GEN,SA)

 1
87240 - VALVE ASSY, HEATER WATER
87240-12190

AE8#,CE80,EE80..RHD..(EUR,GEN,SA)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12710

CE80..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12710

CE80..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12670

AE8#,CE80,EE80..RHD..(EUR,GEN,SA)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12670

AE8#,CE80,EE80..RHD..(EUR,GEN,SA)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12720

CE80..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12720

CE80..RHD

 1
87251B - PLUG, HEATER WATER
90339-16007

AE8#,CE80..GEN,SAA

W/O HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

AE8#,CE80..GEN,SAA

W/O HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

AE8#,CE80..GEN,SAA

W/O HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

AE8#,CE80..GEN,SAA

W/O HEATER

 2
Common parts
90460-24039
90467-21005
91651-40614
91655-60820
91656-40630
96112-10250
