Toyota Corolla sed/lb CE80 WIRING & CLAMP

CE80R-EEMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - May 1985

Engine 1CL

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12250
82711-12540
82711-12740
82711-12760
82711-12790
82711-16180
82711-1A040
82711-1A060
82711-1A150
82711-1A160
82711-1A170
82711-1A180
82711-1A210
82711-1A220
82711-1A300
82711-1A310
82711-1A330
82711-1A340
82711-22300
82711-24070
82711-32060
82711-32110
82711-89104
90461-08187

(8305-8704)CE80

Click highlighted areas on diagram

Part #	Description	Period	Qty

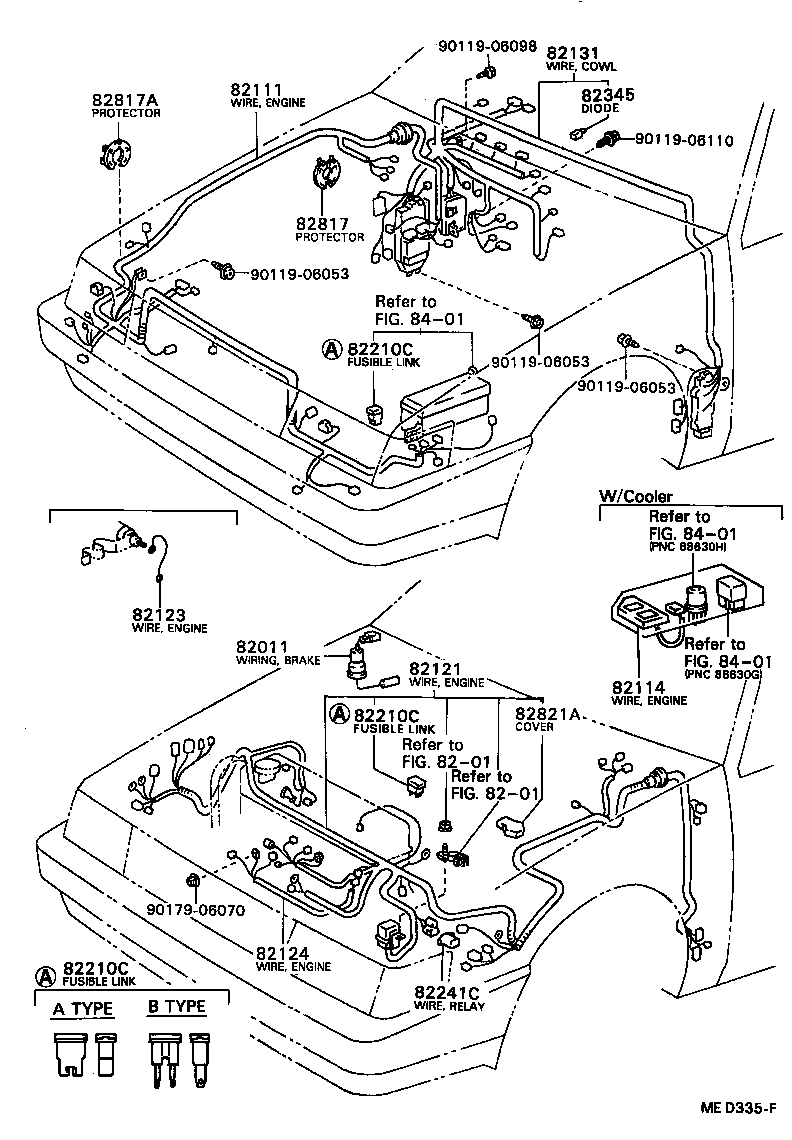

82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-20040	CE80	05/1983 - 04/1987	1
82111 - WIRE, ENGINE ROOM MAIN
82111-12241	AE8#,CE80..RHD..GEN	06/1984 - 10/1984	1
82111-12240	AE8#,CE80..RHD..(GEN,SA)	05/1983 - 06/1984	1
82111-12242	AE8#,CE80..(4DS,5D)..RHD..GEN	10/1984 - 05/1985	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-32010	AE8#,CE80,EE80..ARL,GEN,SA W/COOLER	05/1983 - 07/1988	1
82121 - WIRE, ENGINE
82121-12080	CE80..DX..GEN	05/1983 - 05/1985	1
82123 - WIRE, ENGINE, NO.3
82123-20020	CE80..GEN	05/1983 - 04/1987	1
82124 - WIRE, ENGINE, NO.4
82124-12020	CE80	05/1983 - 01/1987	1
82131 - WIRE, COWL
82131-12700	CE80..DX..GEN	05/1983 - 10/1984	1
82131-12701	CE80..DX..GEN	10/1984 - 05/1985	1
82210C - FUSIBLE LINK
90982-08202	CE80 60A,TERM.:MALE,YEL,60A,B TYPE	05/1983 - 04/1987	1
90982-08188	AE8#,CE80,EE80 30A,TERM.:FEMALE,PNK,30A,A TYPE	05/1983 - 07/1988	3
90982-08203	CE80 80A,TERM.:MALE,BLK,80A,B TYPE	05/1983 - 04/1987	1
82210C - FUSIBLE LINK
90982-08202	CE80 60A,TERM.:MALE,YEL,60A,B TYPE	05/1983 - 04/1987	1
90982-08188	AE8#,CE80,EE80 30A,TERM.:FEMALE,PNK,30A,A TYPE	05/1983 - 07/1988	3
90982-08203	CE80 80A,TERM.:MALE,BLK,80A,B TYPE	05/1983 - 04/1987	1
82210C - FUSIBLE LINK
90982-08202	CE80 60A,TERM.:MALE,YEL,60A,B TYPE	05/1983 - 04/1987	1
90982-08188	AE8#,CE80,EE80 30A,TERM.:FEMALE,PNK,30A,A TYPE	05/1983 - 07/1988	3
90982-08203	CE80 80A,TERM.:MALE,BLK,80A,B TYPE	05/1983 - 04/1987	1
82241C - WIRE, RELAY
82824-12110	AE8#,CE80..MTM	05/1983 - 06/1984	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14360	AE8#,CE80,EE80	05/1983 - 07/1988	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32010	AE8#,CE80,EE80	05/1983 - 07/1988	1
82821A - COVER, CONNECTOR
82821-12180	CE80	05/1983 - 04/1987	1
Common parts
90119-06053
90119-06098
90119-06110
90179-06070
Linked diagrams
8201
8401

(8305- )4DS

Click highlighted areas on diagram

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-12080	AE8#,CE80..4DS..RHD	05/1983 - 10/1984	1
82161-12081	AE8#,CE80,EE80..4DS..RHD..(CS,DX,GL,S,STD,XL)..(ARL,EUR,GEN)	10/1984 - 05/1985	1
82162 - WIRE, FLOOR, NO.2
82162-12090	AE8#,CE80..RHD	05/1983 - 10/1984	1
82162-12091	AE8#,CE80,EE80..RHD..(3FC,4F,5F)	10/1984 - 05/1985	1
82171 - WIRE, ROOF, NO.1
82171-12030	AE8#,CE80..4DS..RHD..(DX,GL,XL)..(EUR,GEN) W/SUN ROOF	05/1983 - 10/1984	1
82171-12020	AE8#,CE80,EE80..SED..RHD	05/1983 - 07/1988	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-12050	AE8#,CE80,EE80..4DS	05/1983 - 05/1985	1
82186 - WIRE, REAR WINDOW, NO.1
82186-12010	AE8#,CE80,EE80..4DS..(EUR,GEN,SAA)	05/1983 - 05/1985	1
82187 - WIRE, REAR WINDOW, NO.2
82187-12010	AE8#,CE80,EE80..4DS..(EUR,GEN,SAA)	05/1983 - 05/1985	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-16100	AE8#,CE80,EE80	05/1983 - 07/1988	1
Common parts
90119-06005

(8305- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-14110
82711-16460
82711-1A350
82711-1A390
82711-20490
82711-22090
82819-32060

(8305- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-16010	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82983-12010	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82983-12010	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82983-12010	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82982-12030	AE8#,CE80,EE80	05/1983 - 05/1985	1
Common parts
82981-16010
82981-17010
82982-12030
82982-12040
82982-12050
82983-12010
82983-30010

(8305- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82984 - WIRE, HORN REPAIR
82984-22010	AE8#,CE80..GEN,SA,SAA	05/1983 - 06/1984	1
82984 - WIRE, HORN REPAIR
82984-22010	AE8#,CE80..GEN,SA,SAA	05/1983 - 06/1984	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12010	CE80	05/1983 - 04/1987	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12010	CE80	05/1983 - 04/1987	1
Common parts
82984-22010
82984-22020
82987-22010
82991-12010
82991-12020

CE80R-EEMDS (1983)

(8305- )

(8305-8704)CE80

(8305- )4DS

(8305- )

(8305- )

(8305- )
