CE80R-EEMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - May 1985
Engine 1CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )CE80..RHD

Click highlighted areas on diagram

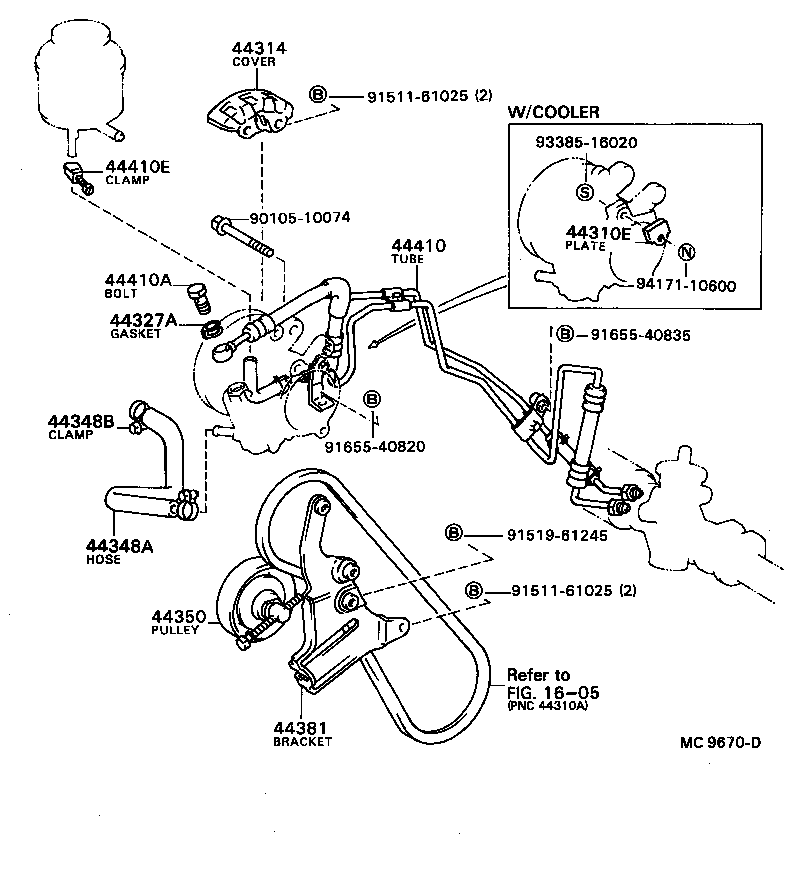

diagram 1605 44310E 44314 44327A 44348A 44348B 44350 44381 44410 44410A 44410E 9010510074 9151161025 9151161025 9151961245 9165540820 9165540835 9338516020 9417110600
Part # Description Qty Price
44310E - PLATE(FOR VANE PUMP)
88892-12130

CE80..DX..GEN

W/COOLER

 1
44314 - COVER, PULLEY
44314-12010

CE80

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

CE80;AE82..(CSX,GL)..(ARL,GEN)

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-12020

CE80

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

CE80

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12050

CE80

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-12020

CE80

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-12090

CE80..RHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

CE80;AE82..(CSX,GL)..(ARL,GEN)

 1
44410E - CLAMP(FOR PRESSURE FEED TUBE)
90460-01001

CE80

 1
Common parts
90105-10074
91511-61025
91519-61245
91655-40820
91655-40835
93385-16020
94171-10600
Linked diagrams
1605

(8305-8505)AE82..RHD..GL..GEN ; (8402- )AE82..DX,GL,SE..SA ; (8411- )CSX ; (8

Click highlighted areas on diagram

diagram 1605 44327A 44410 44410A 44412 44412C 44416 44443 44446 9010510075 9011910280 9161160822 9161161018 9161161025 9166160816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

CE80;AE82..(CSX,GL)..(ARL,GEN)

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-12090

CE80..RHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

CE80;AE82..(CSX,GL)..(ARL,GEN)

 1
Common parts
90105-10075
90119-10280
91611-60822
91611-61018
91611-61025
91661-60816
Linked diagrams
1605
