CE80R-EEMDS (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
May 1985
Engine
1CL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305-8507)CE80

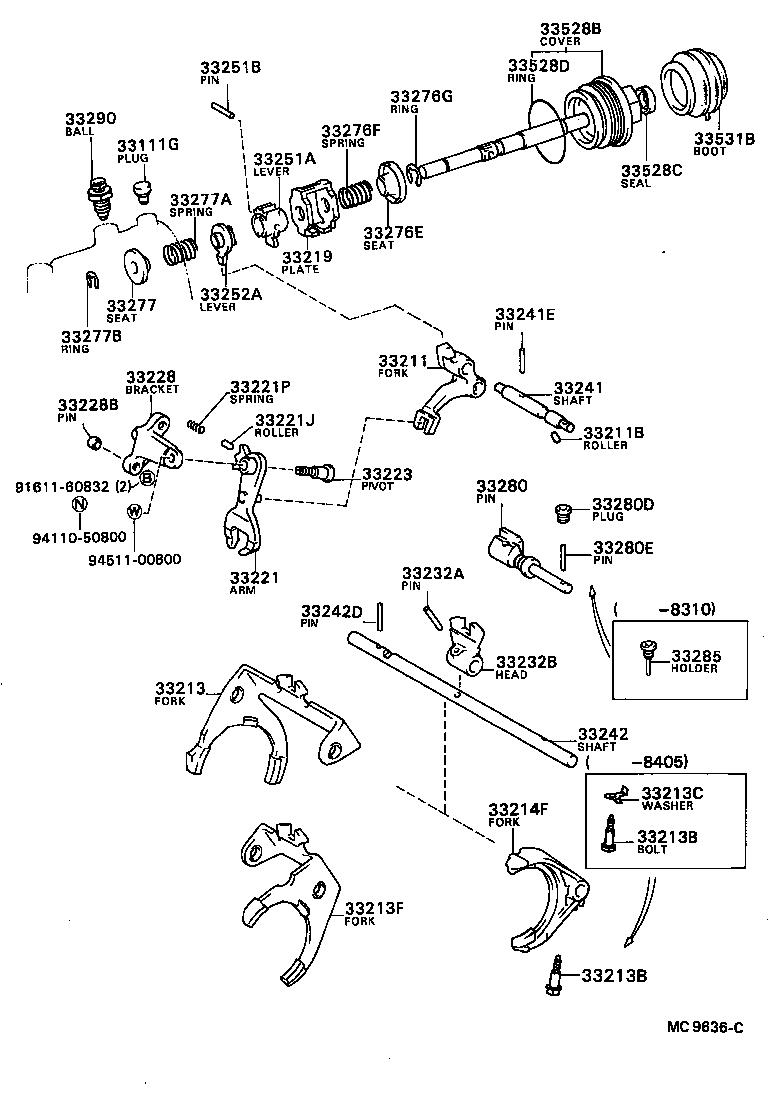

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03080 |
AE8#,CE80,EE80..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-32010 |
CE80 |
1 | ||
| 33211B - ROLLER(FOR REVERSE SHIFT FORK) | ||||
| 90361-08002 |
CE80 |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33210-32010 |
CE80 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06006 |
CE80 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06006 |
CE80 |
1 | ||
| 33213C - WASHER, LOCK(FOR SHIFT FORK SET) | ||||
| 90215-08003 |
CE80 |
1 | ||
| 33213F - FORK, 3RD & 4TH SHIFT | ||||
| 33220-32010 |
CE80 |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-32010 |
CE80 |
1 | ||
| 33219 - PLATE, SHIFT FORK LOCK | ||||
| 33219-32010 |
CE80 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-32010 |
CE80 |
1 | ||
| 33221J - ROLLER(FOR REVERSE SHIFT ARM) | ||||
| 90361-08002 |
CE80 |
1 | ||
| 33221P - SPRING, COMPRESSION(FOR REVERSE SHIFT ARM ROLLER) | ||||
| 90501-10048 |
CE80 |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-32010 |
CE80 |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-32010 |
CE80 |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
CE80 |
2 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
CE80 |
1 | ||
| 33232B - HEAD, 5TH SHIFT | ||||
| 33232-32010 |
CE80 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33243-32010 |
CE80 |
1 | ||
| 33241E - PIN, SLOTTED SPRING(FOR REVERSE SHIFT FORK SHAFT) | ||||
| 90254-05001 |
CE80 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-32010 |
CE80 |
1 | ||
| 33242D - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT) | ||||
| 90254-05001 |
CE80 |
2 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-32010 |
CE80 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
CE80 L=47.0 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-32010 |
CE80 |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-32010 |
CE80 |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-16072 |
CE80 |
1 | ||
| 33276G - RING, E (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90523-14001 |
CE80 |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-32010 |
CE80 |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-18037 |
CE80 |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
AE8#,CE80,EE80..MTM |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-32010 |
CE80 |
1 | ||
| 33285 - HOLDER, REVERSE RESTRICT PIN | ||||
| 33285-32010 |
CE80 |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-32010 |
CE80 |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-32020 |
CE80 |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18004 |
CE80 |
1 | ||
| 33528D - RING, O (FOR CONTROL SHAFT COVER) | ||||
| 90301-65004 |
CE80 |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-32011 |
CE80 |
1 | ||
| Common parts | ||||
| 91611-60832 | ||||
| 94110-50800 | ||||
| 94511-00800 | ||||
