CE80R-EEMDS (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
May 1985
Engine
1CL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )CE80

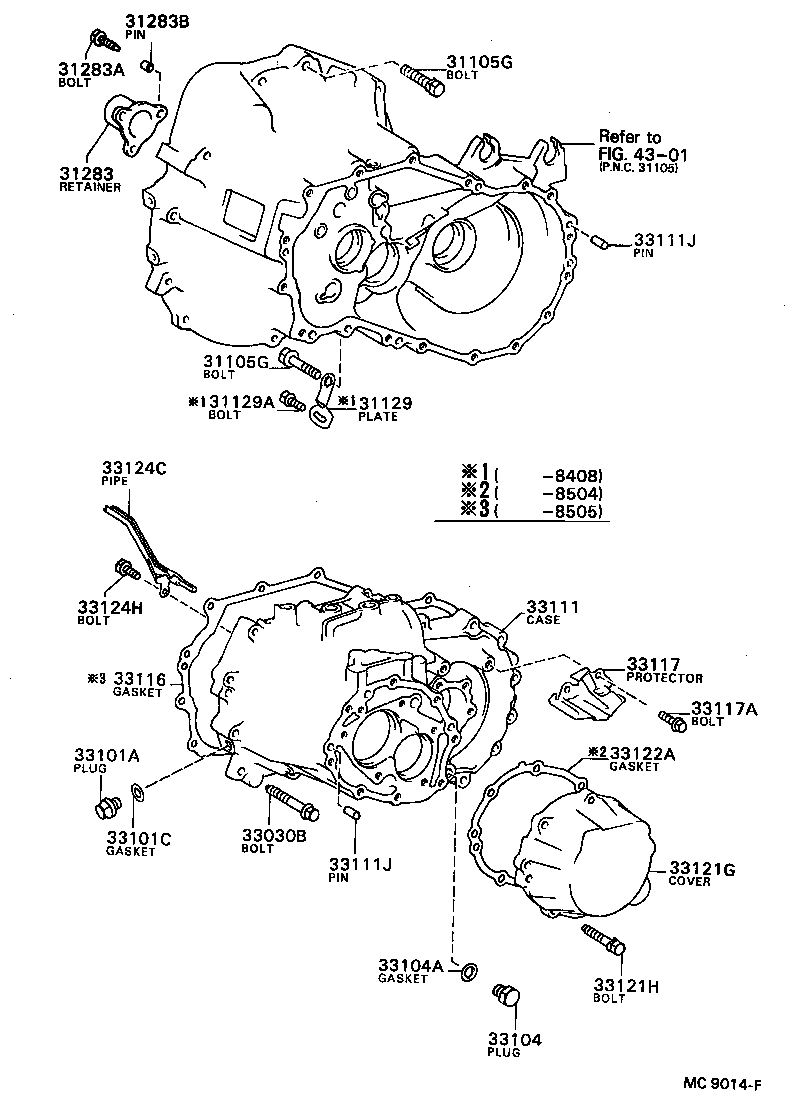

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12168 |
AE8#,CE80..MTM *12-1.25PX55-30,*12-1.25PX55-30 |
3 | ||
| 90105-10077 |
AE8#,CE80..MTM *10-1.25PX43-26,*10-1.25PX43-26 |
1 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12168 |
AE8#,CE80..MTM *12-1.25PX55-30,*12-1.25PX55-30 |
3 | ||
| 90105-10077 |
AE8#,CE80..MTM *10-1.25PX43-26,*10-1.25PX43-26 |
1 | ||
| 31129 - PLATE, BOLT LOCK(MTM) | ||||
| 31129-32010 |
CE80 |
1 | ||
| 31129A - BOLT(FOR BOLT LOCK PLATE) | ||||
| 90105-08040 |
CE80 |
1 | ||
| 31283 - RETAINER, CLUTCH RELEASE BEARING HUB | ||||
| 31283-32010 |
CE80 |
1 | ||
| 31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90105-06023 |
CE80 |
3 | ||
| 31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER) | ||||
| 90253-08002 |
CE80 |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08042 |
CE80 *8-1.25PX45-27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18002 |
CE80 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18007 |
AE8#,CE80..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
CE80 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
AE8#,CE80..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-32011 |
CE80 |
1 | ||
| 33111-32010 |
CE80 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE8#,CE80,EE80..MTM L=23,OD=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AE8#,CE80,EE80..MTM L=23,OD=8 |
6 | ||
| 33116 - GASKET, MANUAL TRANSMISSION CASE | ||||
| 33116-32010 |
CE80 |
1 | ||
| 33116-32011 |
CE80 |
1 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-32010 |
CE80 |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AE8#,CE80,EE80..MTM |
2 | ||
| 33121G - COVER, MANUAL TRANSMISSION CASE | ||||
| 33102-32010 |
CE80 |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90105-08057 |
CE80 |
8 | ||
| 33122A - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-32011 |
CE80 |
1 | ||
| 33122-32010 |
CE80 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-32010 |
CE80 |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91651-60618 |
CE80 |
1 | ||
| Linked diagrams | ||||
| 4301 | ||||
