CE80R-EEMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - May 1985
Engine 1CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8606)1CL

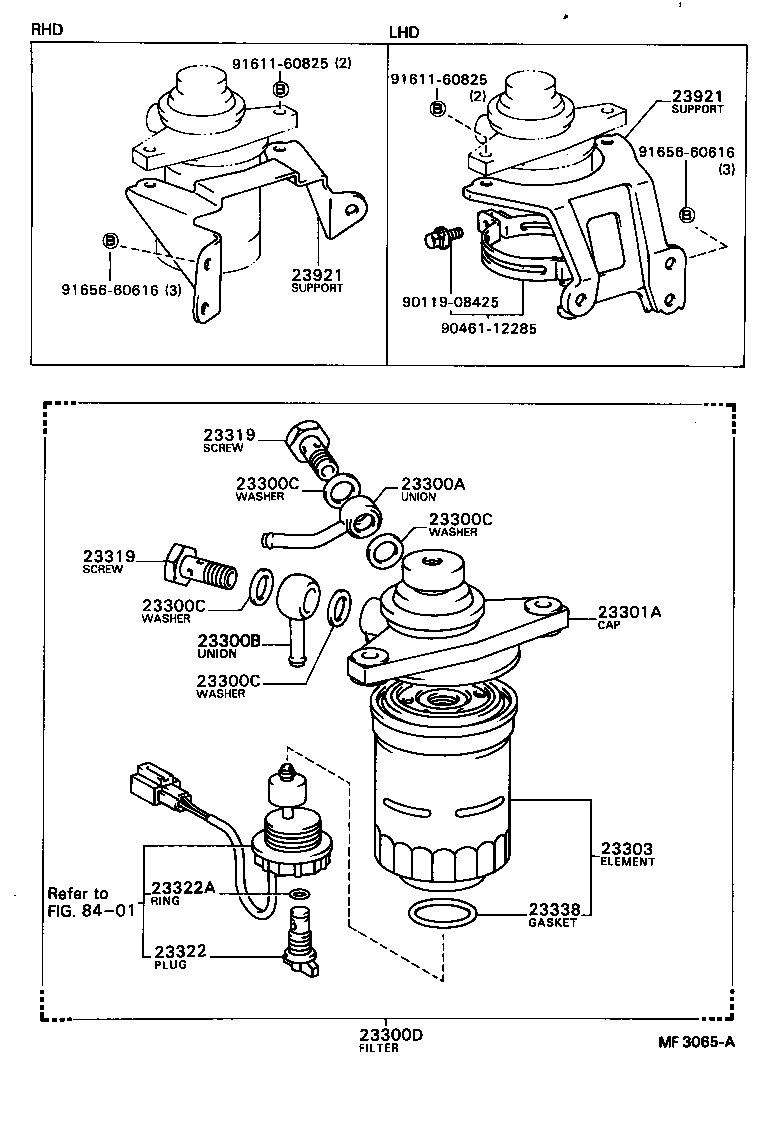

Click highlighted areas on diagram

diagram 23300A 23300B 23300C 23300C 23300C 23300C 23300D 23301A 23303 23319 23319 23322 23322A 23338 23921 23921 8401 9011908425 9046112285 9161160825 9161160825 9165660616 9165660616
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
23323-64010

1CL..CE80

 1
23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET)
90405-08016

1CL..CE80..RHD

 1
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1CL..CE80

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1CL..CE80

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1CL..CE80

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1CL..CE80

 4
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-64070

1CL..CE80..RHD

 1
23301A - CAP ASSY, FUEL FILTER
23301-64020

1CL..CE80

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

1CL..CE80

 1
23319 - SCREW, FUEL PIPE FOLLOW
90099-18011

1CL..CE80

 2
23319 - SCREW, FUEL PIPE FOLLOW
90099-18011

1CL..CE80

 2
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

1CL..CE80

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1CL..CE80

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1CL..CE80

 1
23921 - SUPPORT, FUEL FILTER
23921-64060

1CL..CE80..RHD

 1
23921 - SUPPORT, FUEL FILTER
23921-64060

1CL..CE80..RHD

 1
Common parts
90119-08425
90461-12285
91611-60825
91656-60616
Linked diagrams
8401
